Emission Control System System Application

EMISSION CONTROL SYSTEM SYSTEM APPLICATION

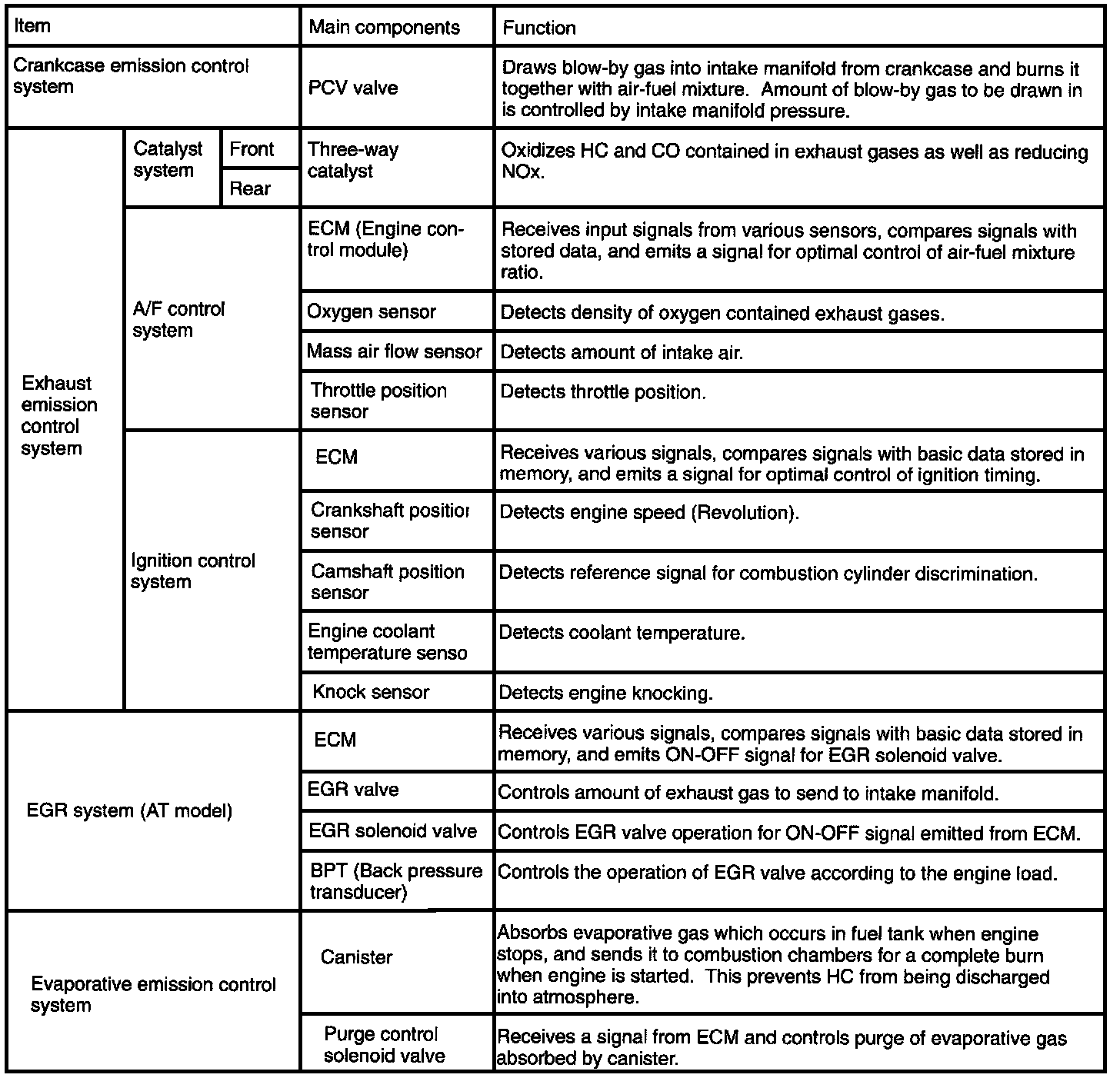

There are three emission Control Systems which are as follows:

1. Crankcase Emission Control System.
2. Exhaust Emission Control System.
- Three-way Catalyst System.
- Air/Fuel (A/F) Control System.
- Ignition Control System.
- Exhaust Gas Recirculation (EGR) System (A/T Model Only).

3. Evaporative Emission Control System.
