Firing Order & Timing Marks

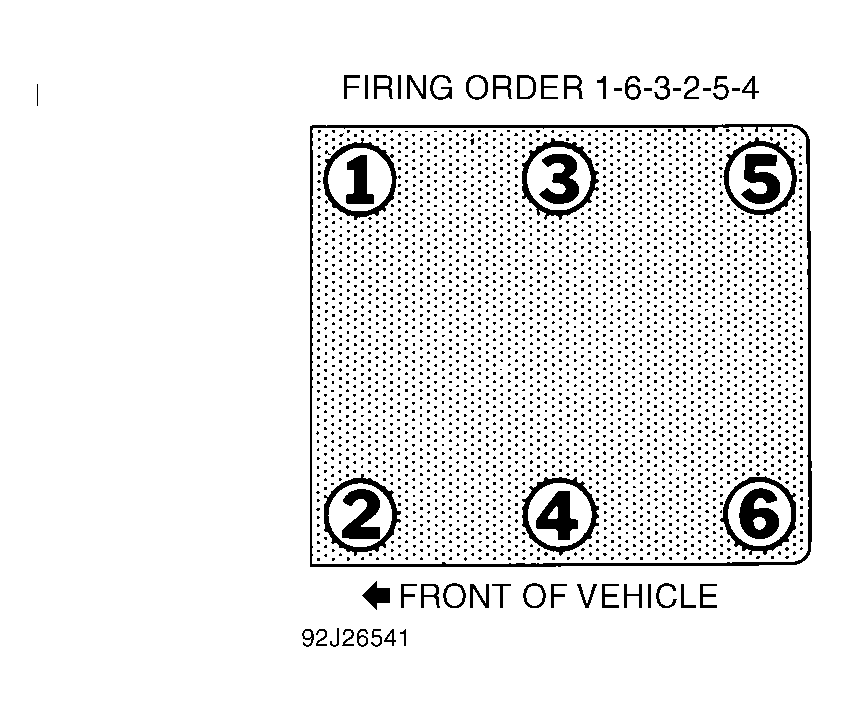

Fig 1: Firing Order
G92J26541

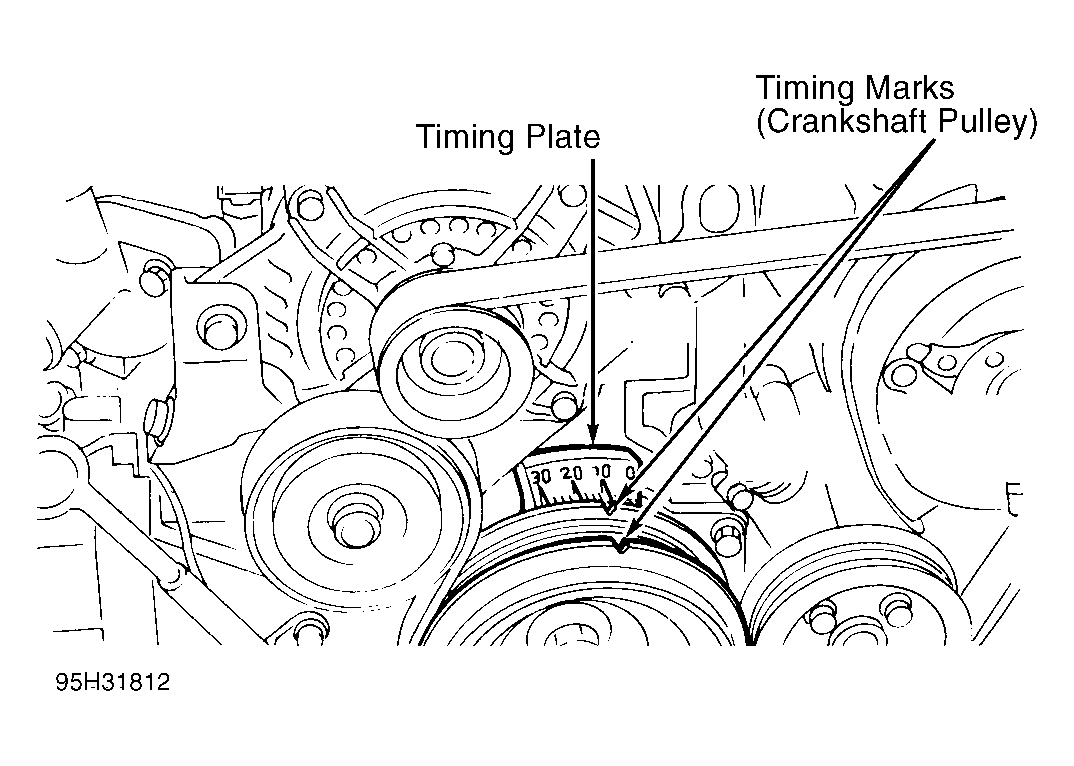

Fig 2: Locating Ignition Timing Marks
G95H31812Courtesy of SUBARU OF AMERICA, INC.
