Relay Box: Locations

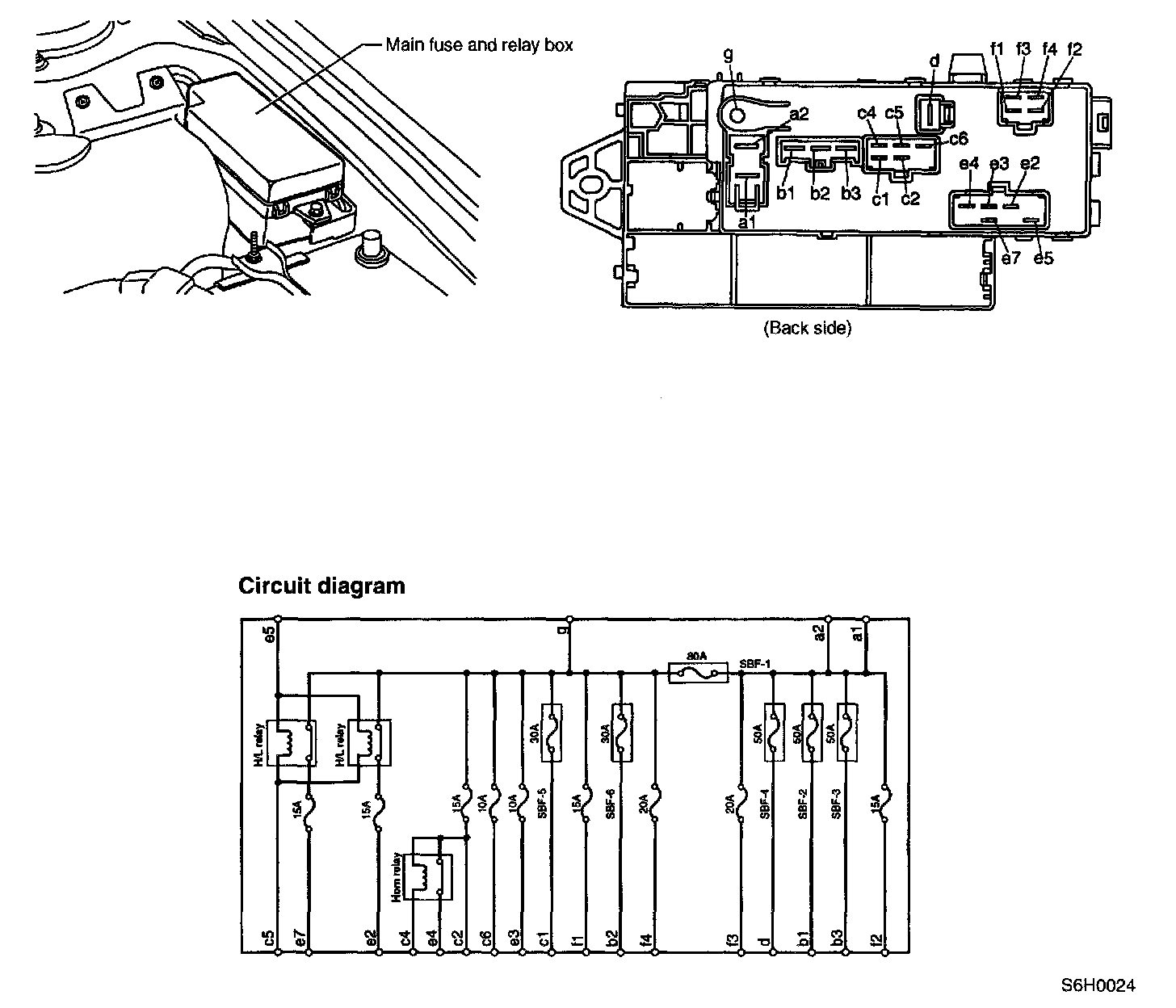

MAIN FUSE AND RELAY BOX




The main fuse and relay box is installed at the rear of the battery on left side of the engine compartment.

The fuses, relays and fusible links are installed in the box as described.

NOTE: The distined connection points shown are for a typical case.
