No Trouble Code

Part 1 Of 2:

Part 2 Of 2:

DIAGNOSIS:
ABS warning light circuit is shorted.

TROUBLE SYMPTOM:
- ABS warning light remains on.
- NO TROUBLE CODE displayed on the select monitor.

NOTE: When the ABS warning light is OFF and "NO TROUBLE CODE" is displayed on the select monitor, the system is in normal condition.

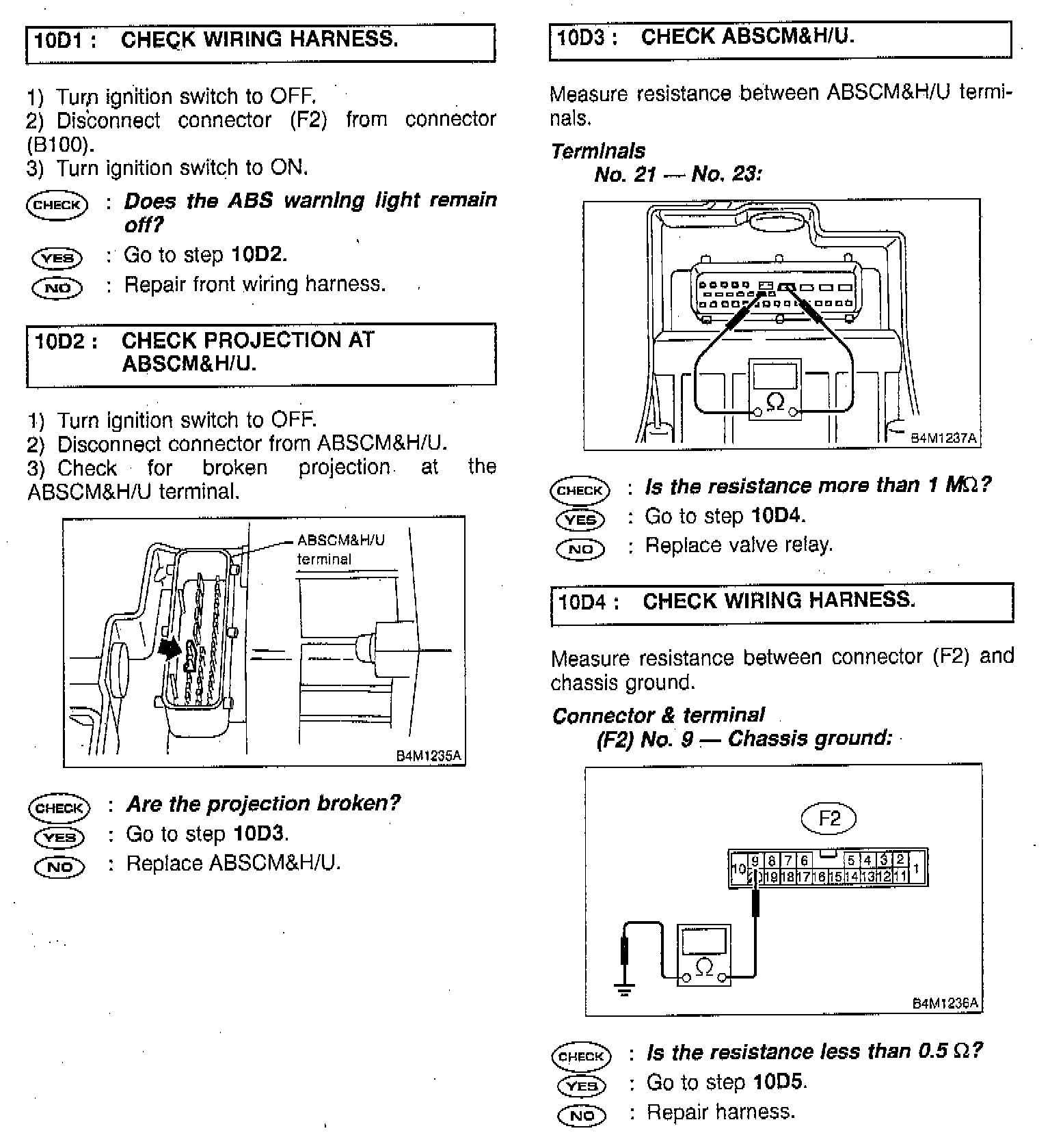

Although No Trouble Code Appears On The Select Monitor Display, The ABS Warning Light Remains On:

WIRING DIAGRAM:
