Part 2

WIRING DIAGRAM, FWD SWITCH





CHECK KICK DOWN SWITCH.





CHECK BRAKE SWITCH.





CHECK ABS SWITCH.





CHECK CRUISE CONTROL SWITCH.





CHECK POWER MODE SWITCH.

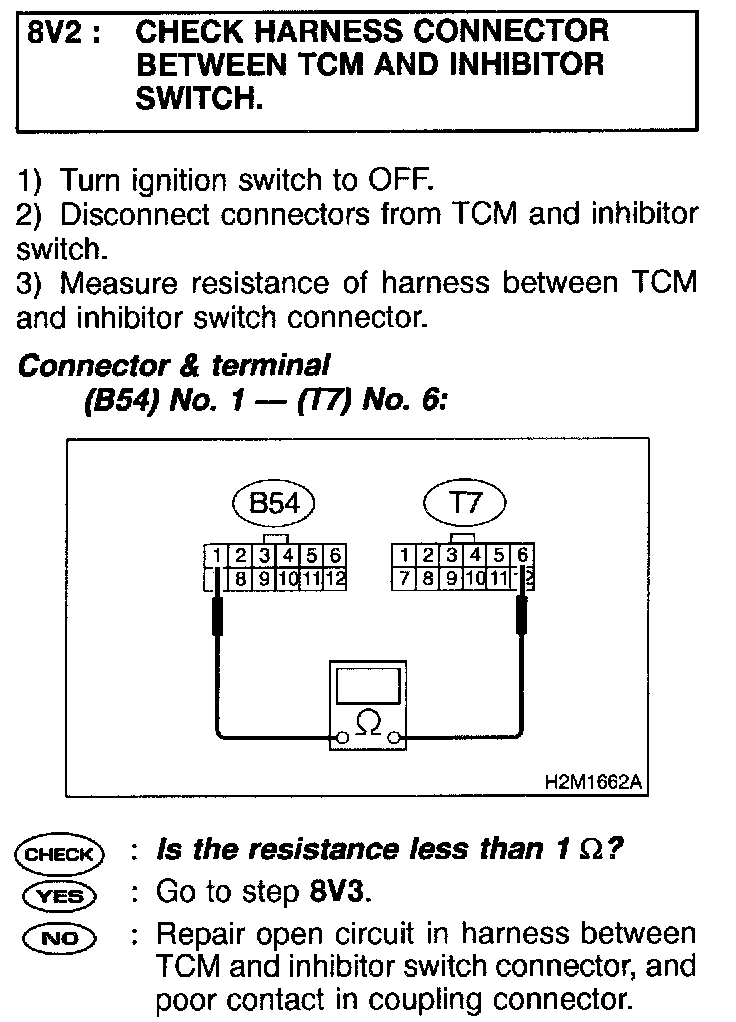

CHECK "N/P" RANGE SWITCH.

DIAGNOSIS:
- Input signal circuit of "P" or "N" range is open or shorted.





WIRING DIAGRAM, "N/P" RANGE SWITCH

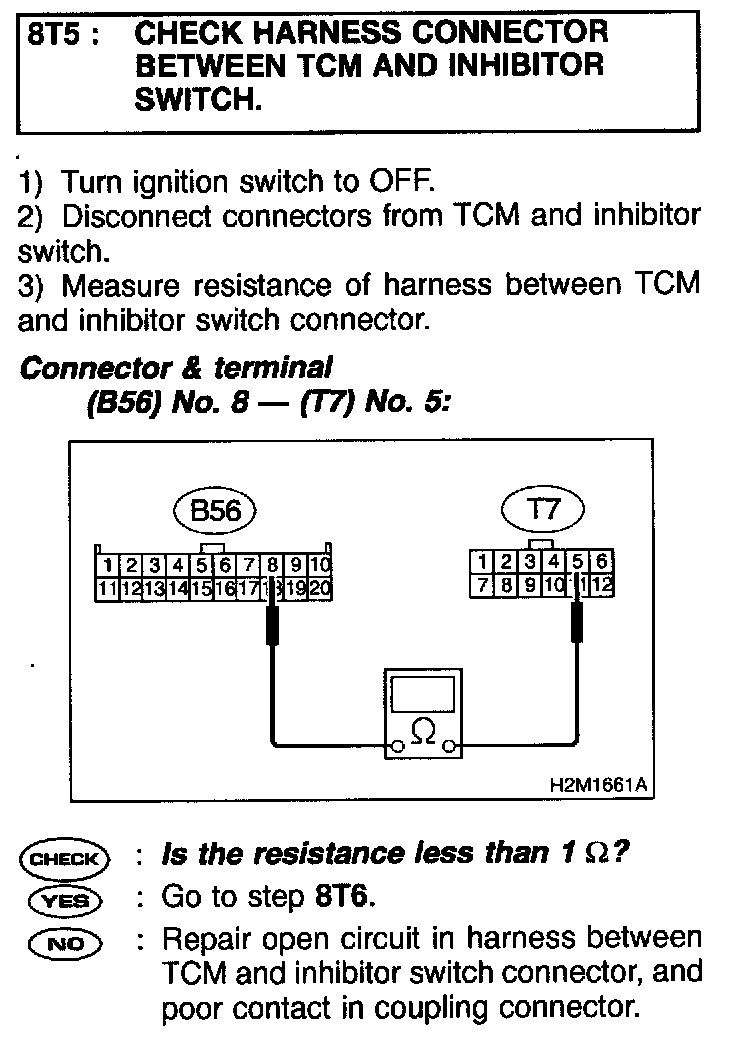

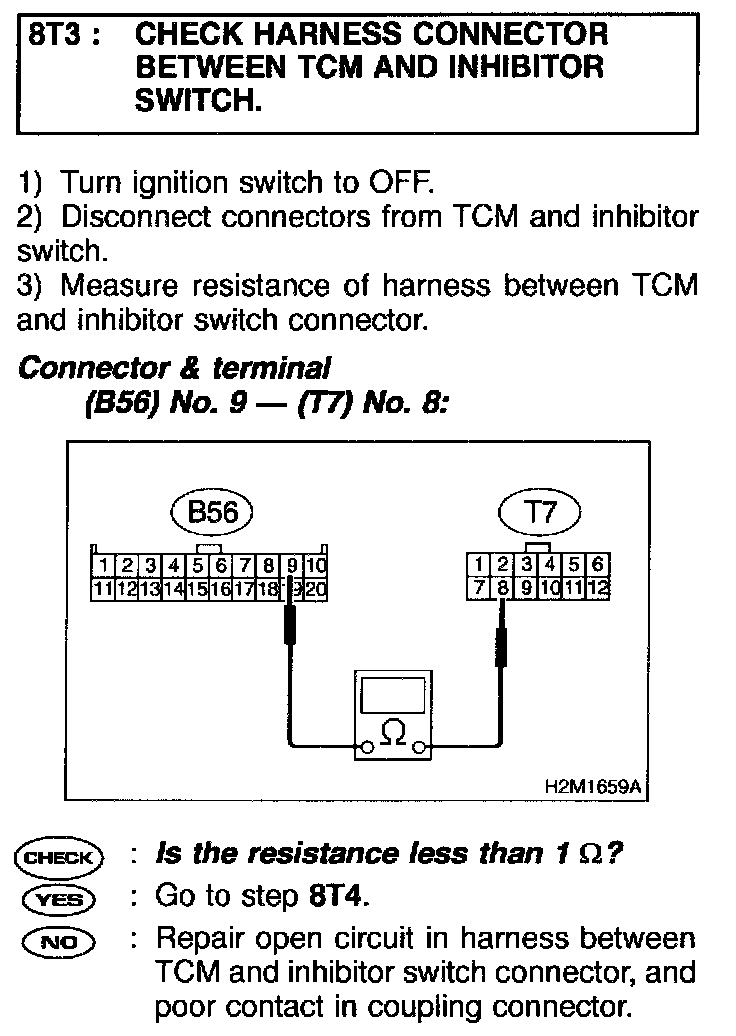

CHECK "R" RANGE SWITCH.

DIAGNOSIS:
- Input signal circuit of "R" range is open or shorted.

TROUBLE SYMPTOM:
- Shift characteristics are erroneous.





WIRING DIAGRAM, "R" RANGE SWITCH


































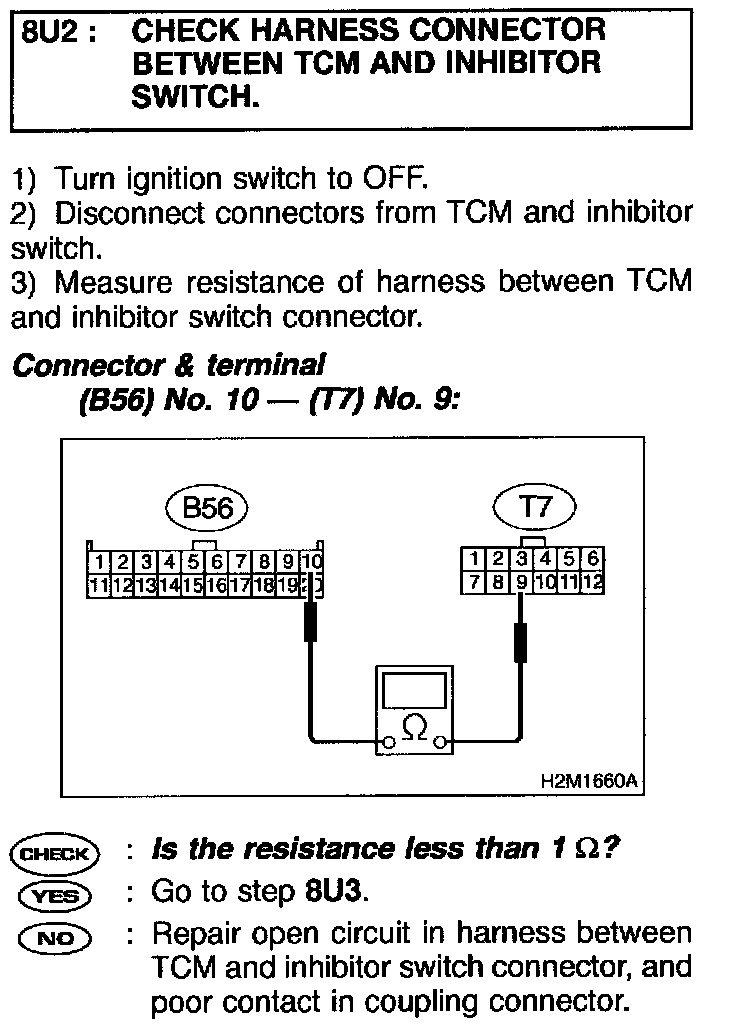

CHECK "D" RANGE SWITCH.

DIAGNOSIS:
- Input signal circuit of "D" range is open or shorted.

TROUBLE SYMPTOM:
- Shift characteristics are erroneous.
