Legacy Outback AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
M/T Technical Data
>>
Service
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Service
5-spd M/T/4-spd A/T, Transmission Gear Ratio (2.5L):

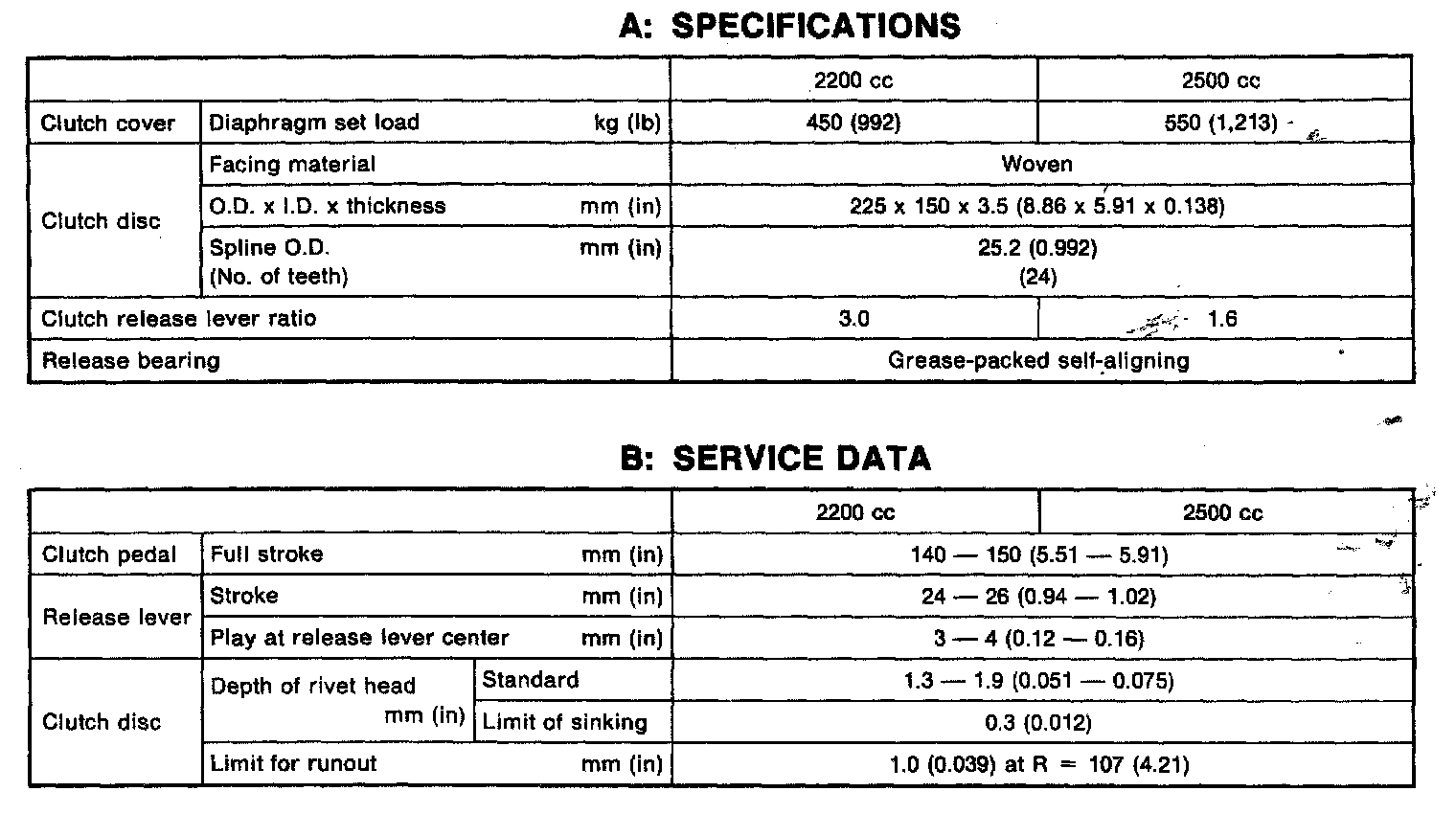

5-spd M/T, Transmission Clutch System:
