Control Module Power Supply and Ground Line
CONTROL MODULE POWER SUPPLY AND GROUND LINE

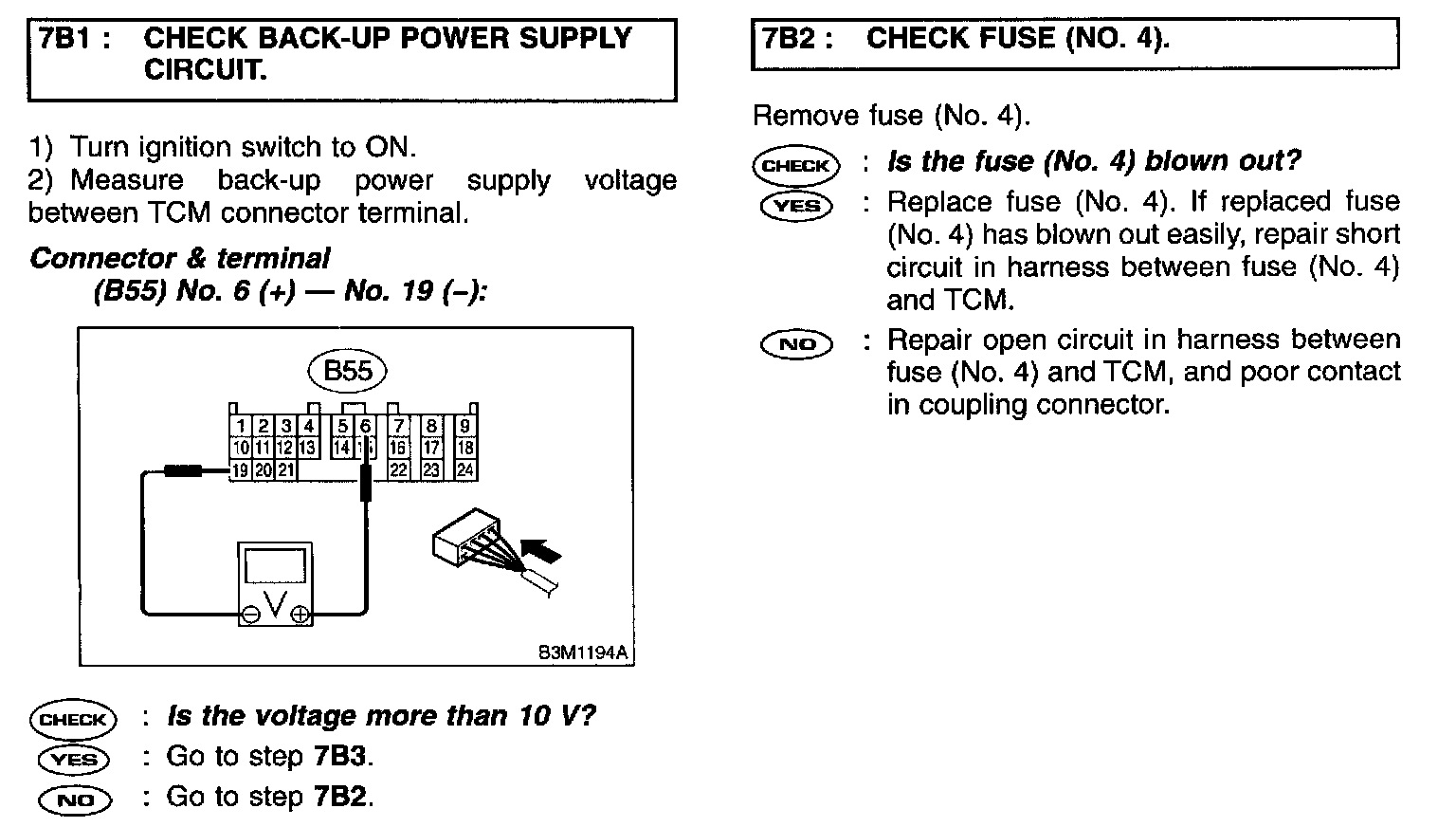

Steps 7B1 - 7B2:

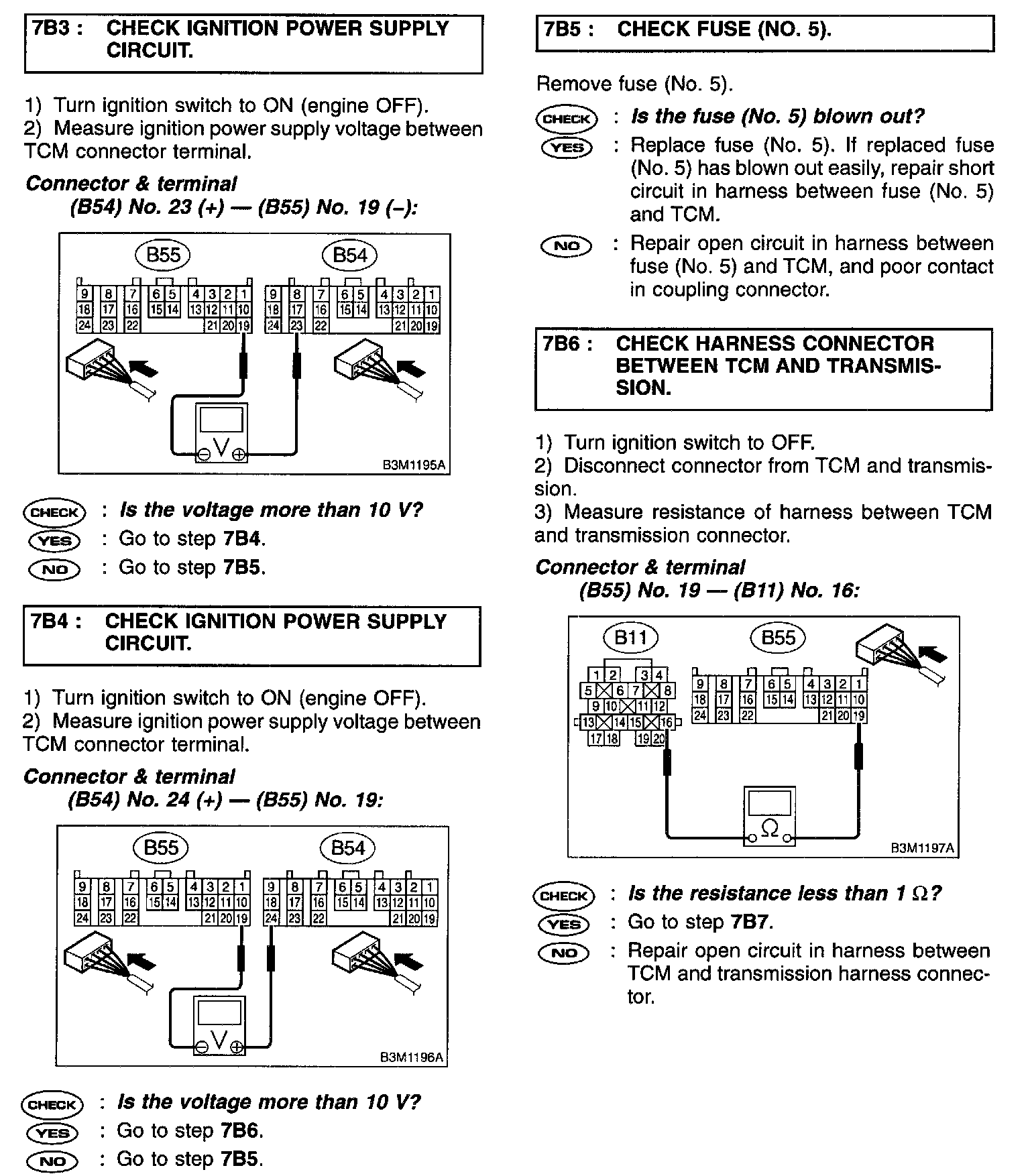

Steps 7B3 - 7B6:

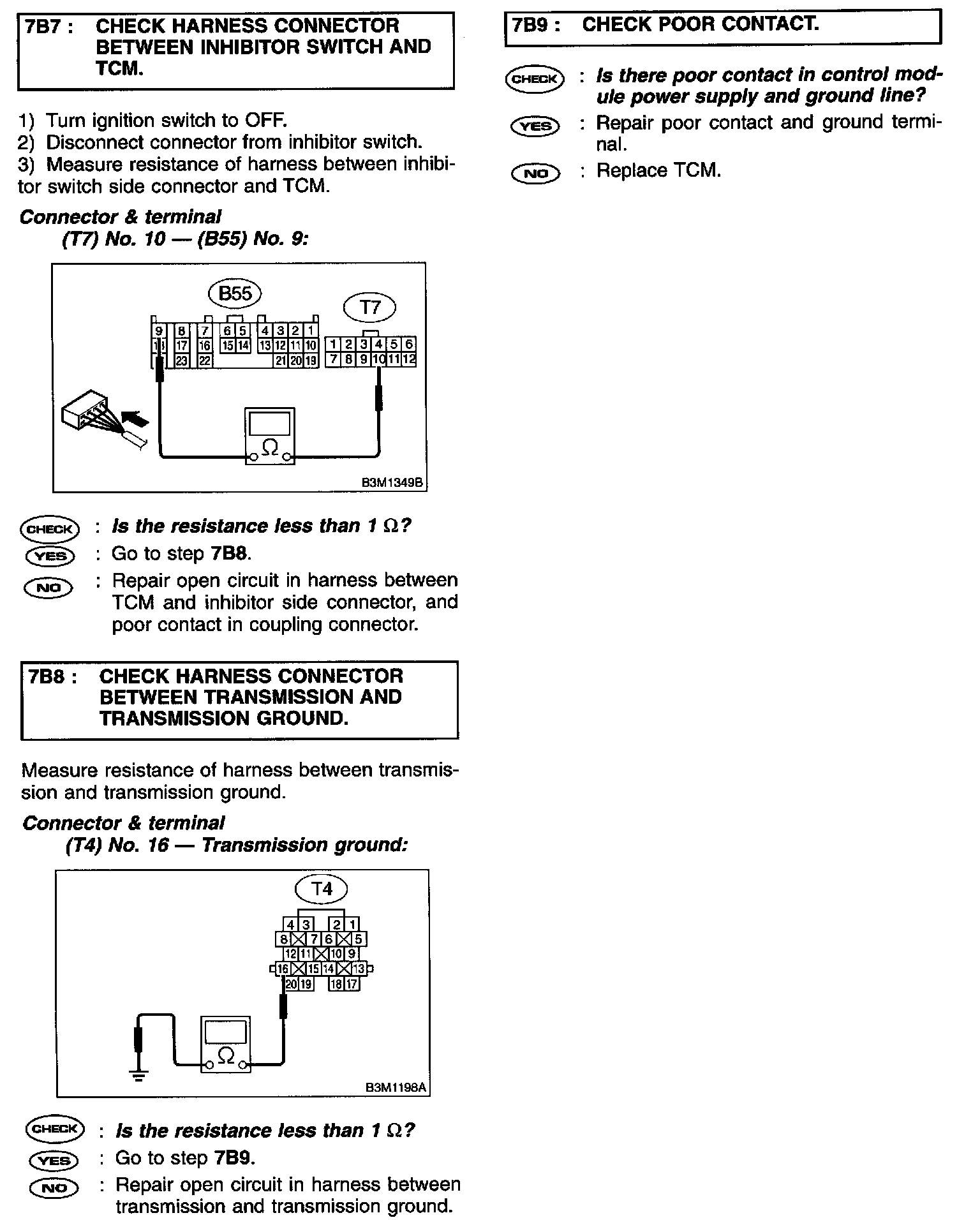

Steps 7B7 - 7B9:
DIAGNOSIS:

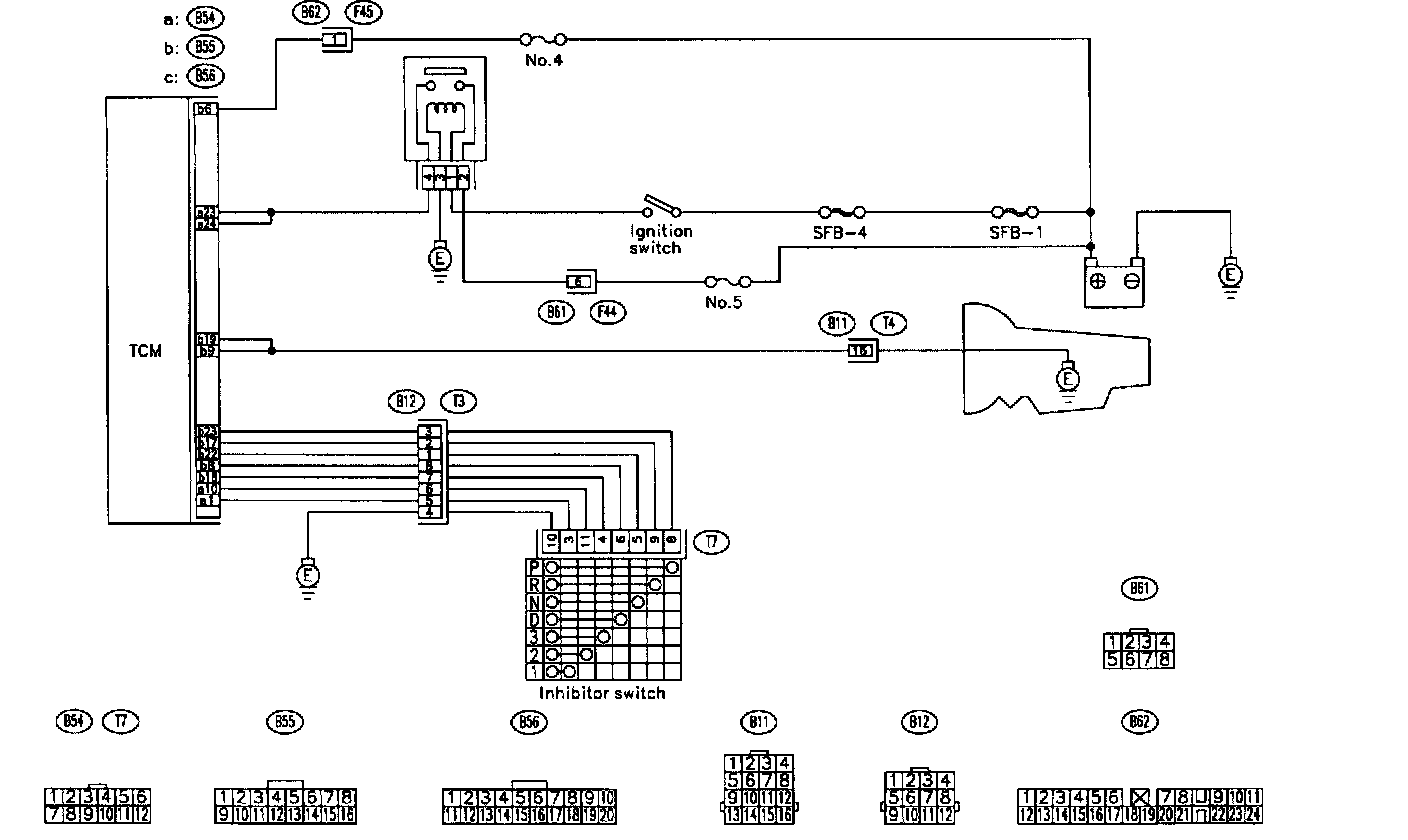

WIRING DIAGRAM:
