Front Axle

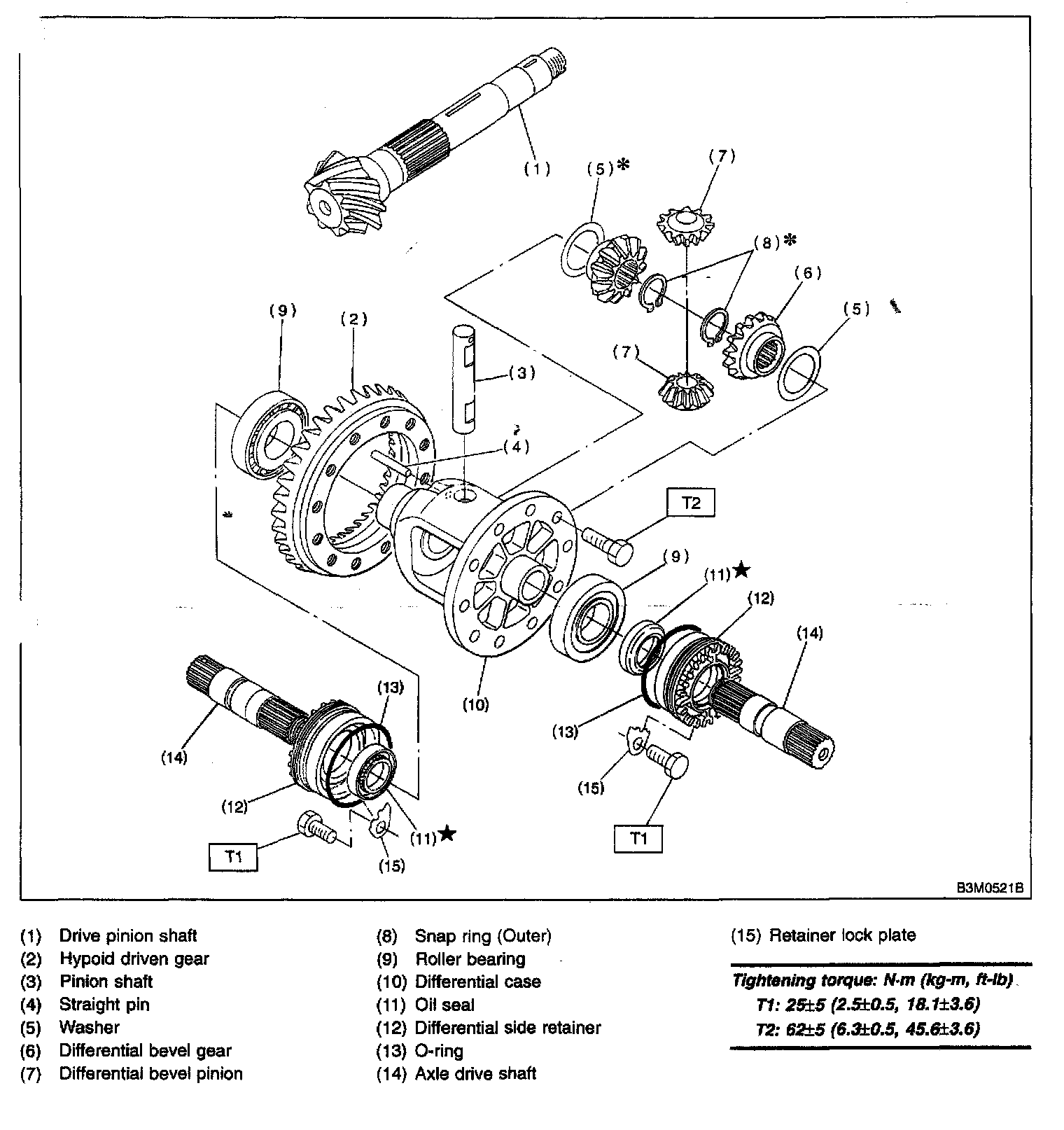

5-spd M/T, Transmission Front Differential:

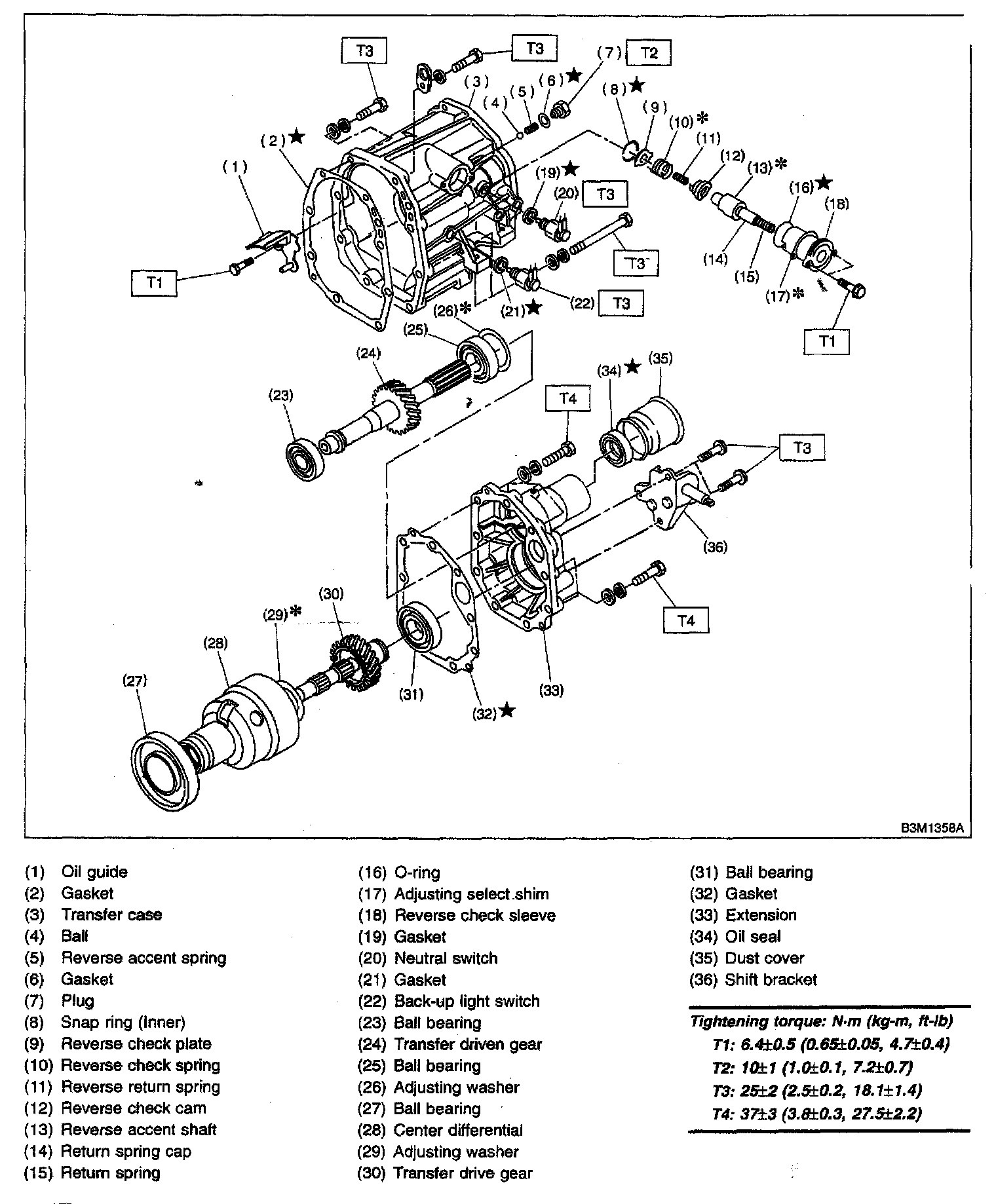

5-spd M/t, Transfer Case & Transmission Extension:

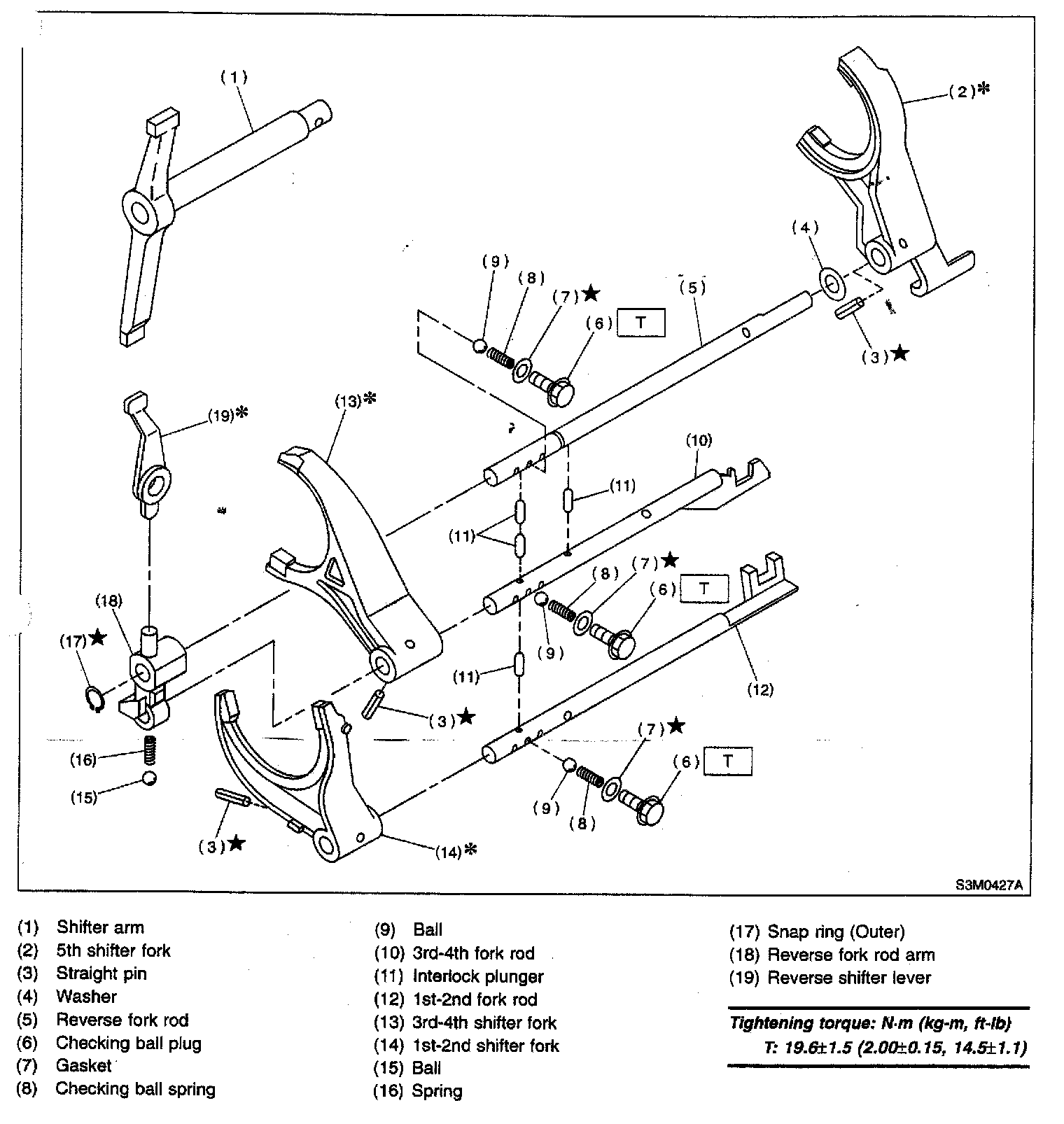

5-spd M/T, Transmission Shifter Fork & Rod:

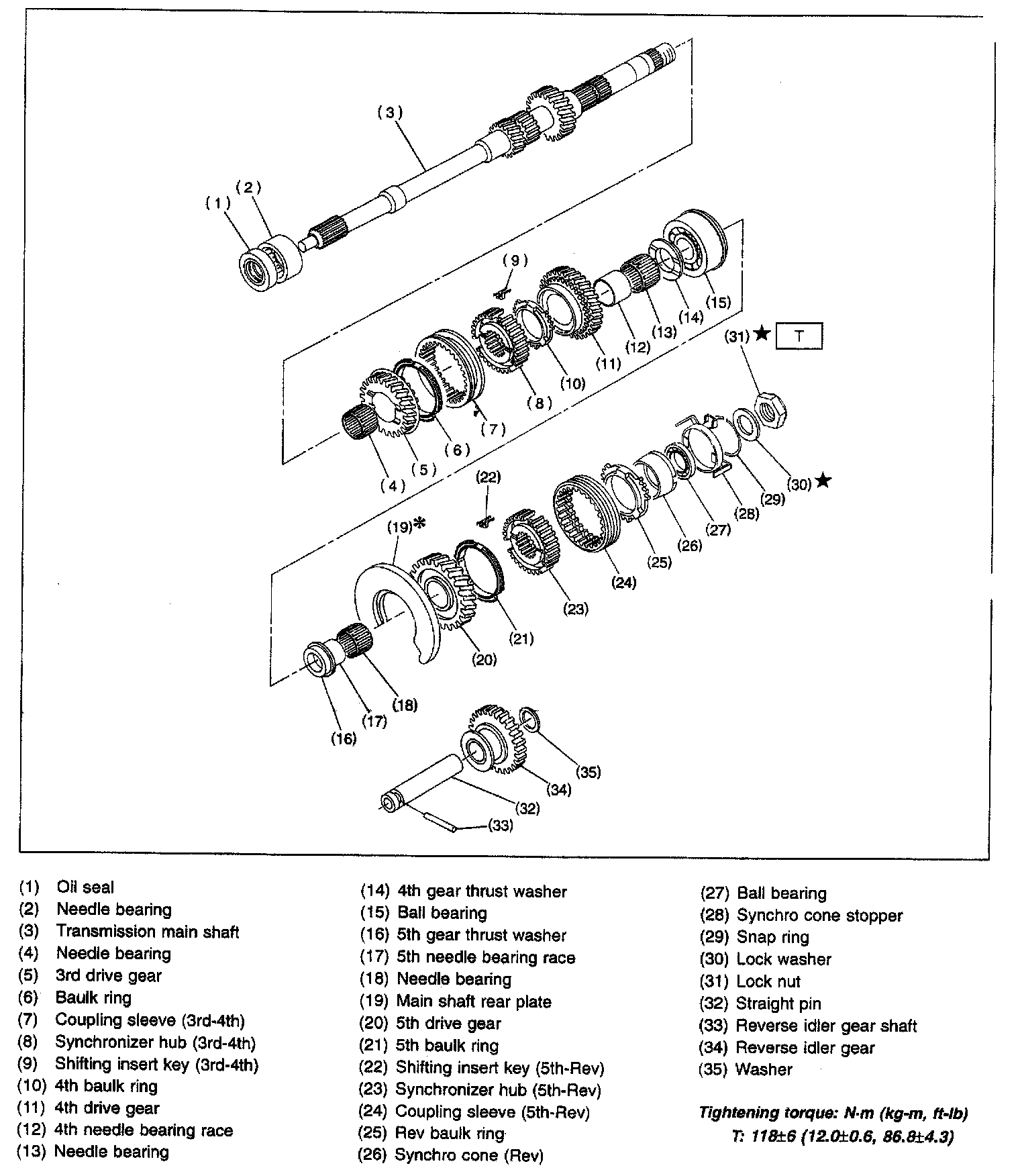

5-spd M/T, Transmission Main Shaft Assembly:

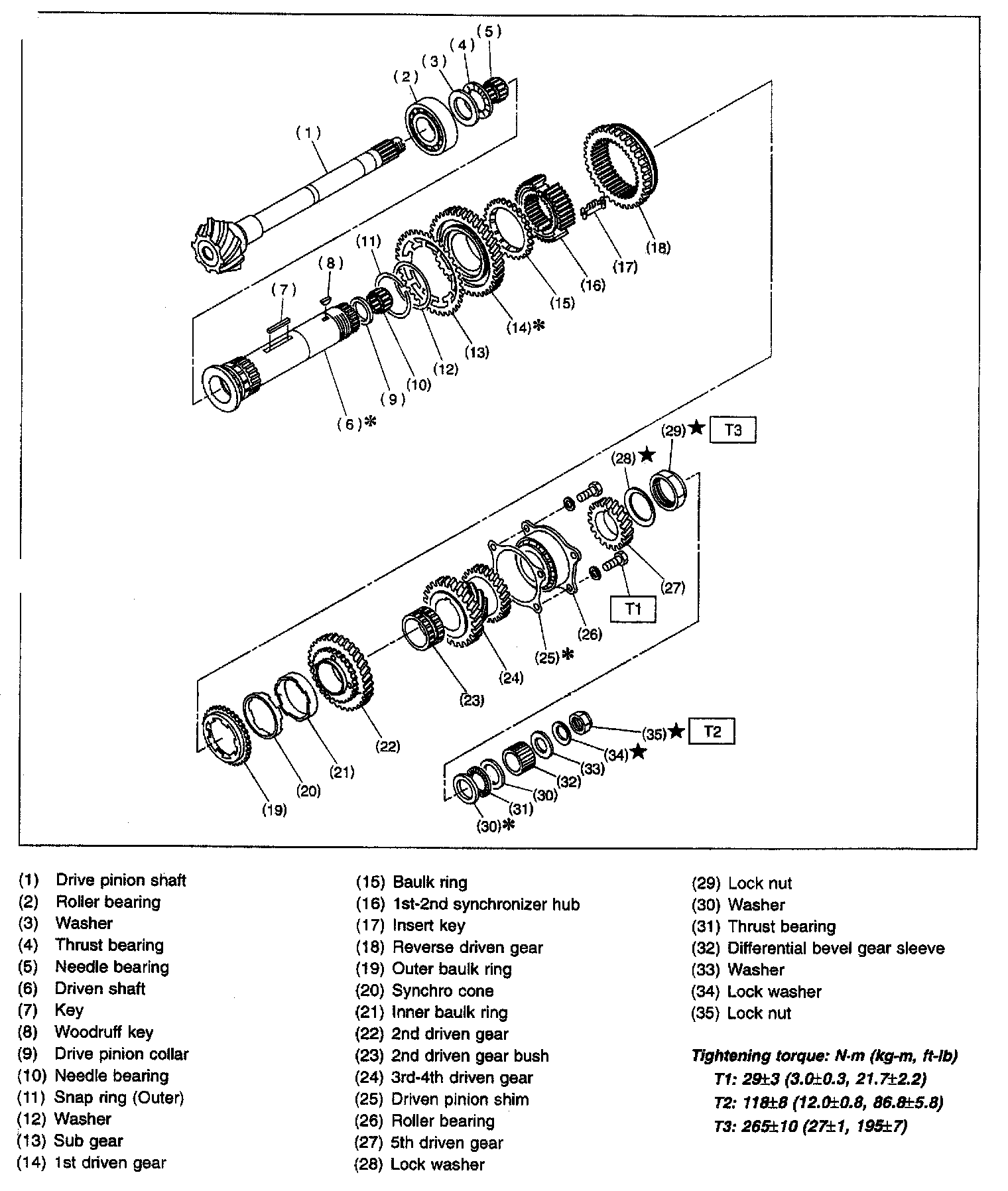

5-spd M/T, Transmission Drive Pinion Assembly:

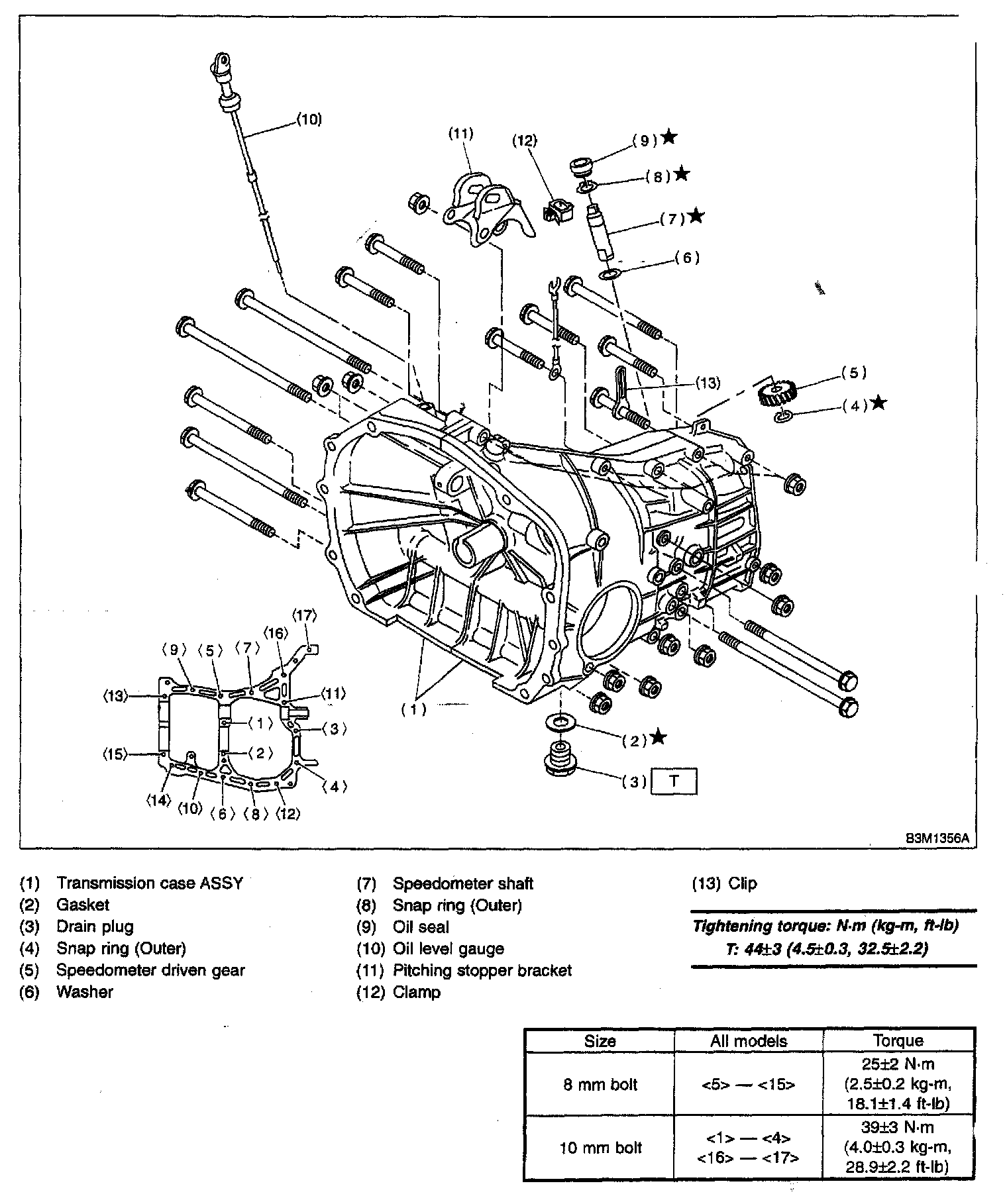

5-spd M/T, Transmission Case:
