System Diagram

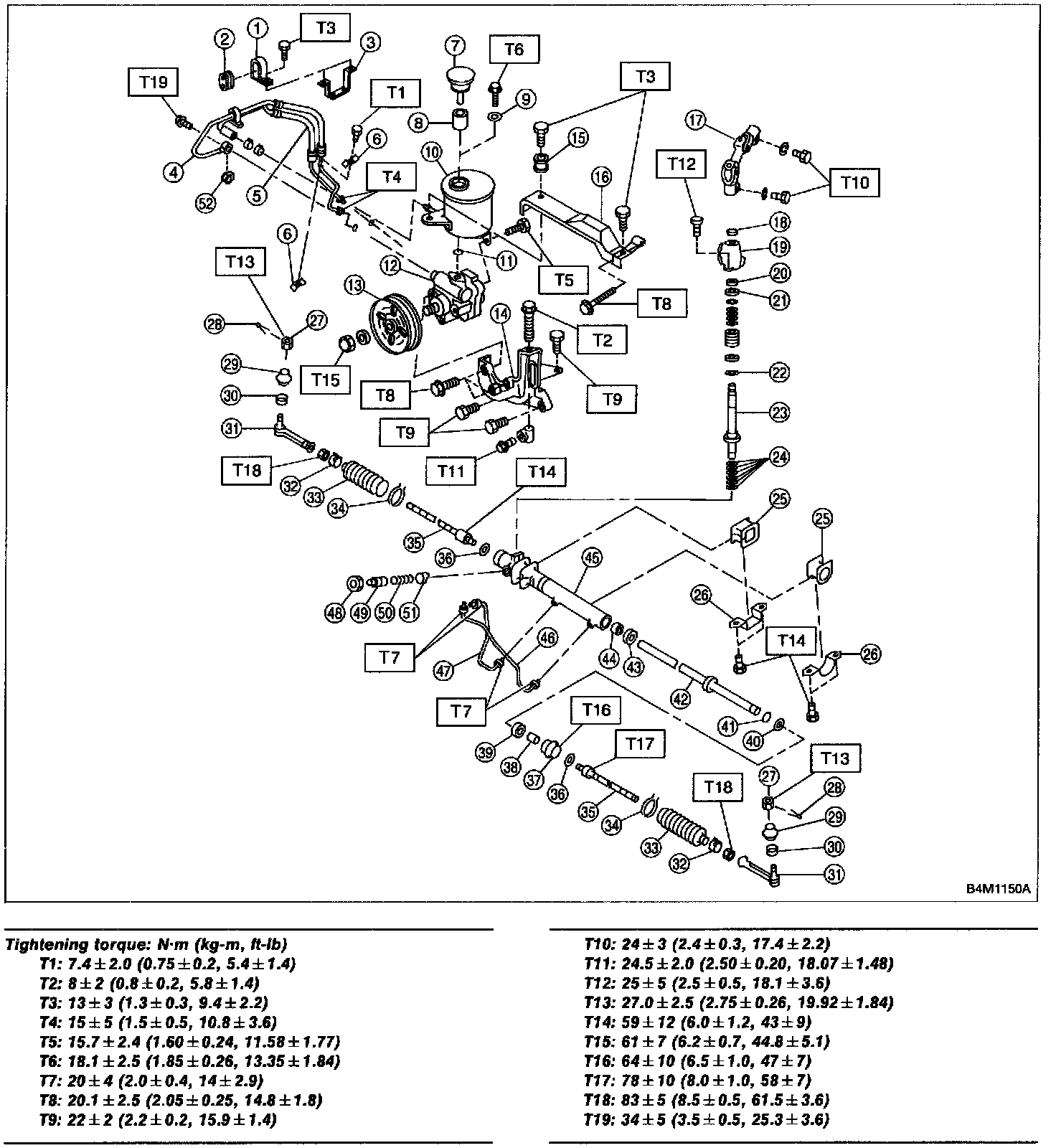

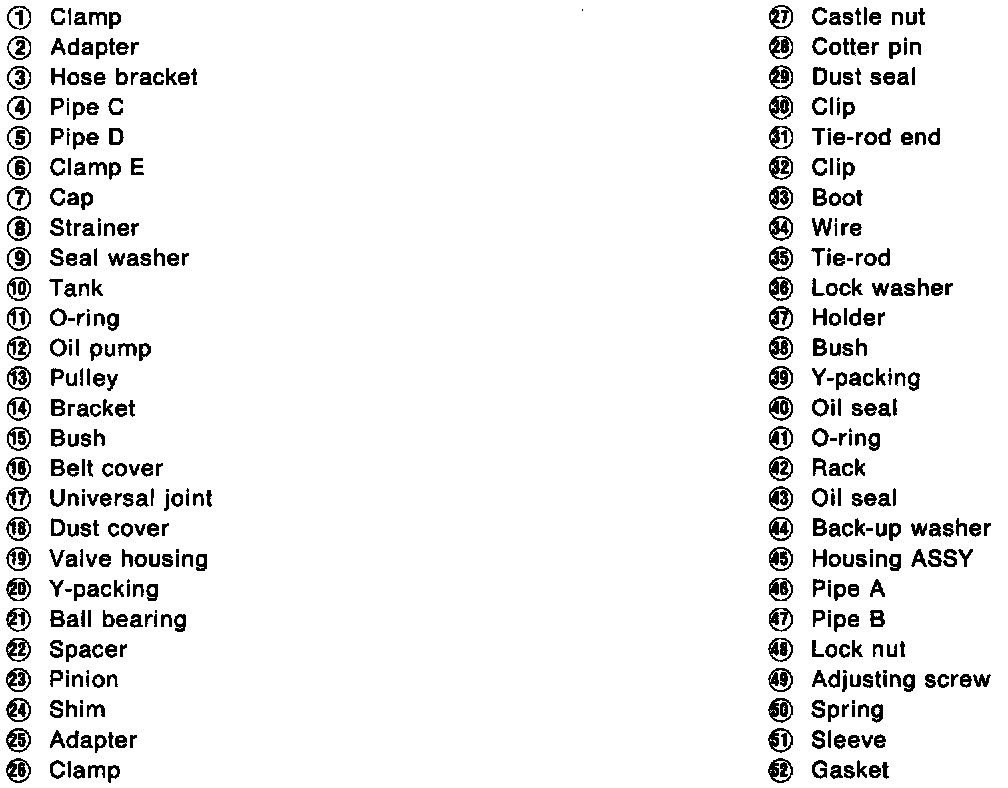

Power Steering System (LHD Model, Part 1 Of 2):

Power Steering System (LHD Model, Part 2 Of 2):

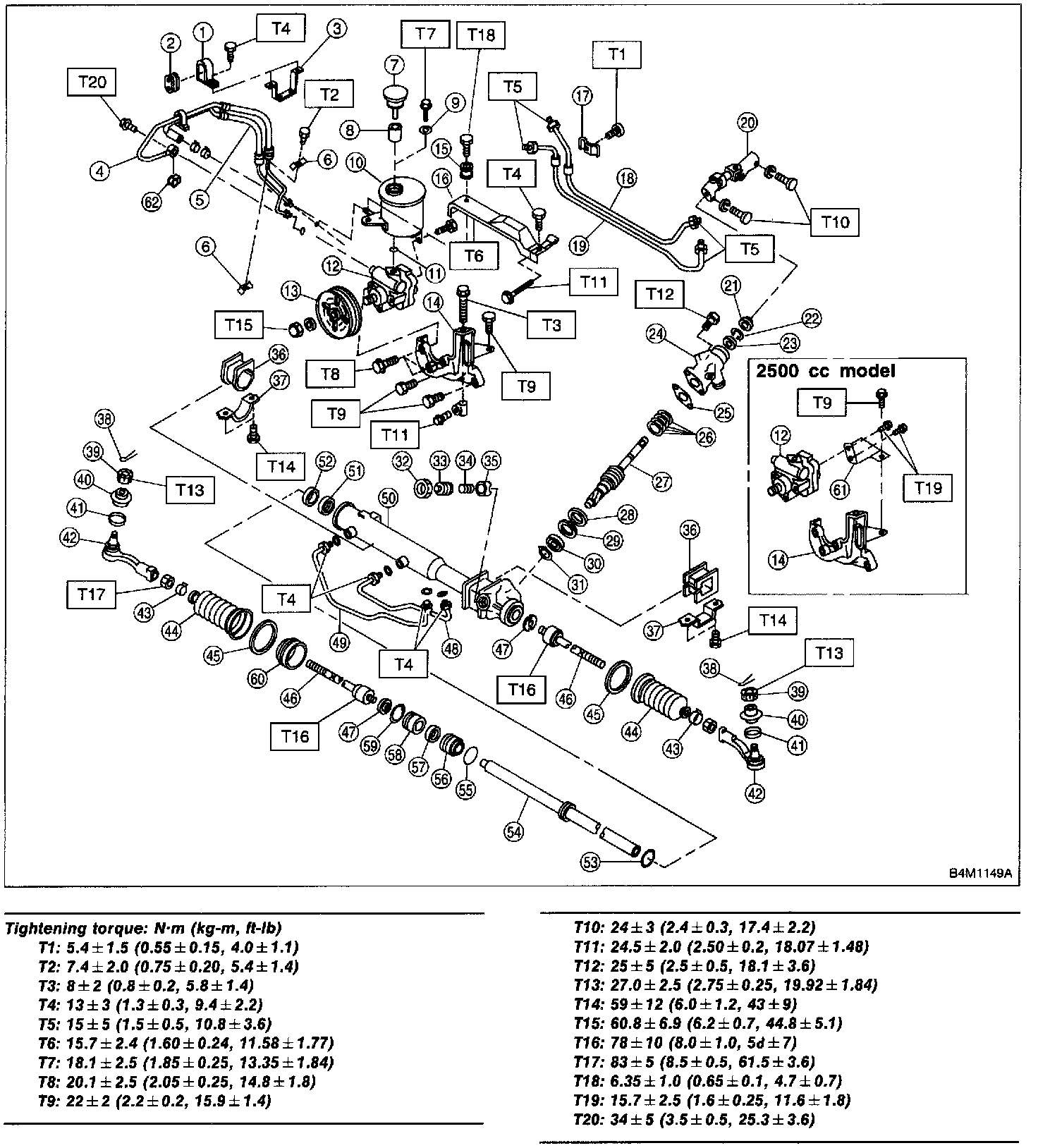

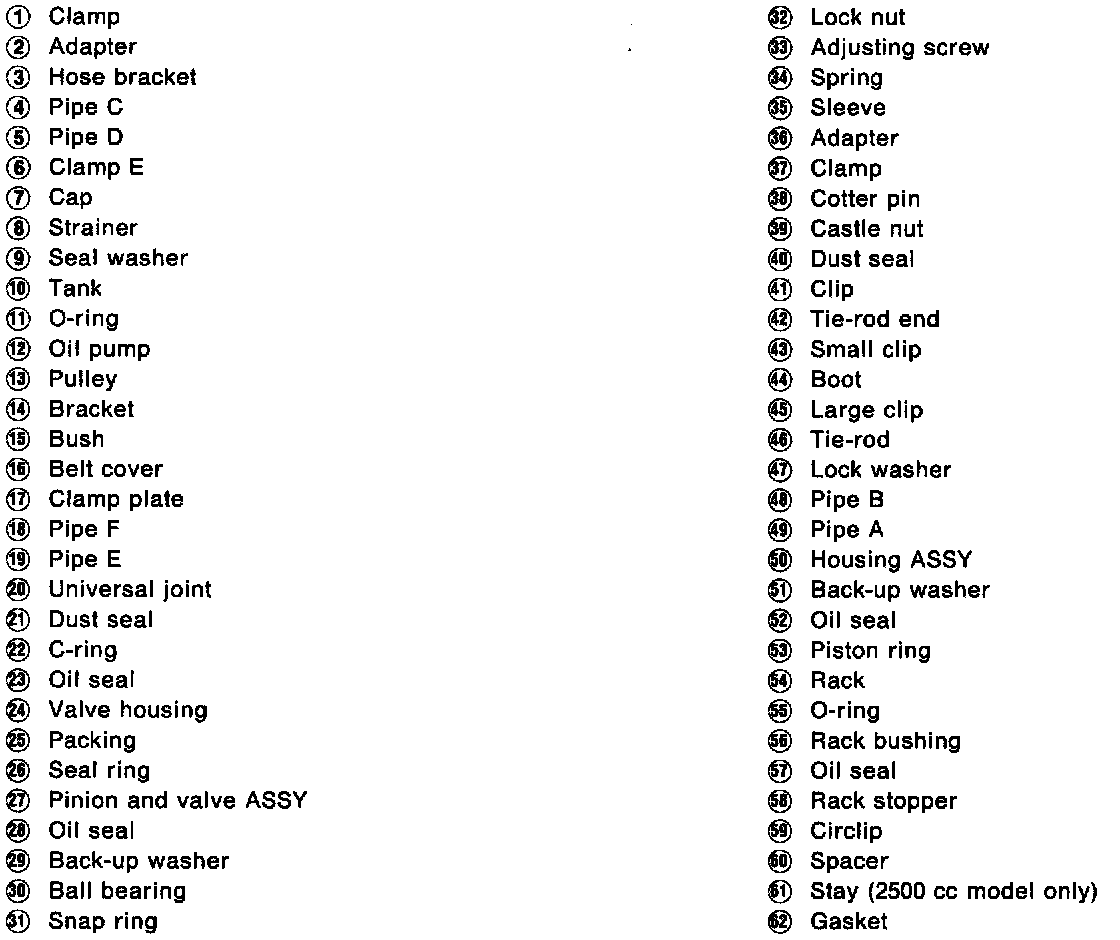

Power Steering System (RHD Model, Part 1 Of 2):

Power Steering System (LHD Model, Part 2 Of 2):
