System Relay: Locations
Relay and FuseLOCATION

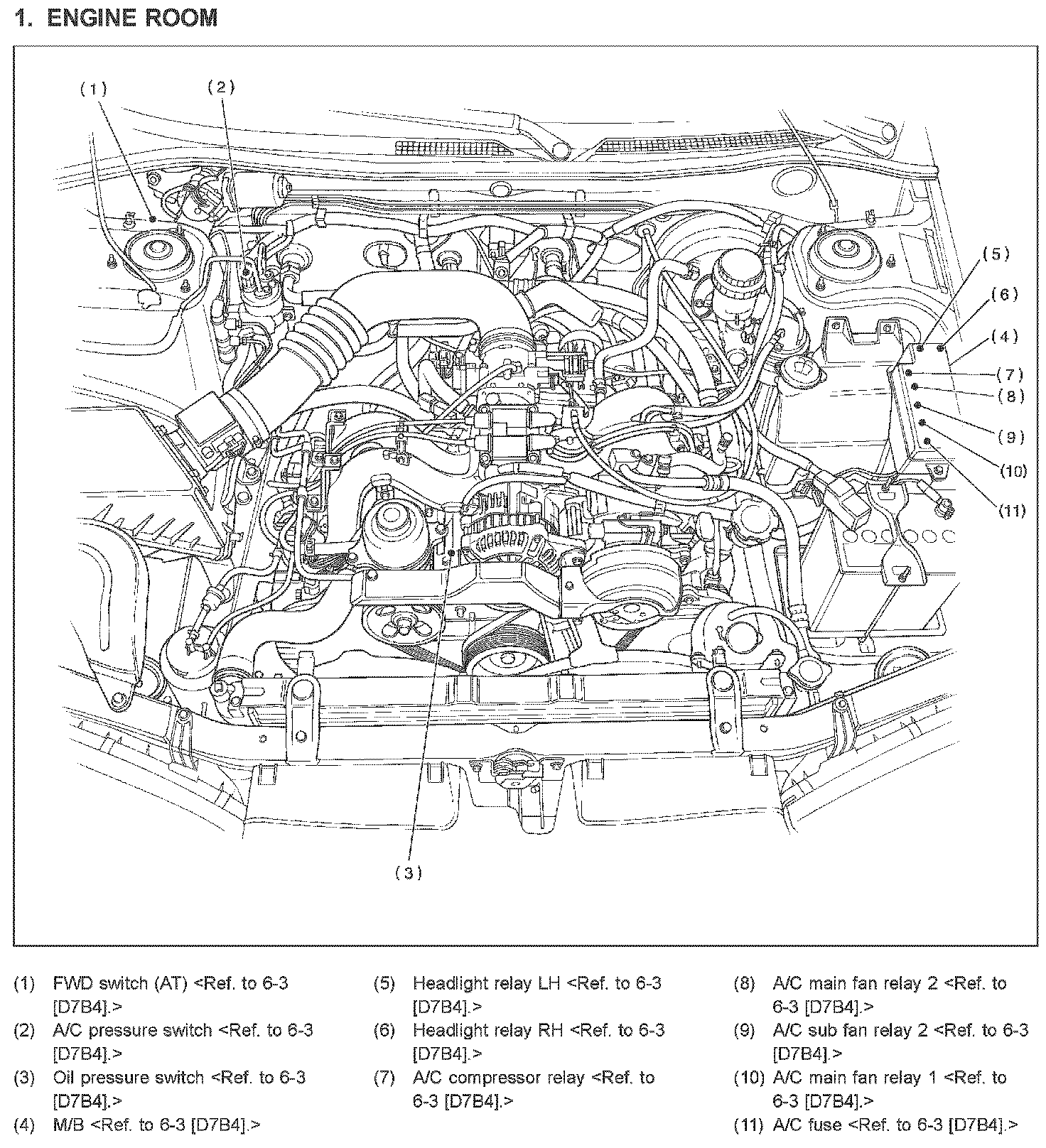

Relays used with A/C system are located as shown in figure.
7. A/C compressor relay
8. A/C Main fan 2 relay
9. A/C Sub fan 2 relay
10. A/C Sub fan 1 relay
11. A/C Fuse
LOCATION
Relays used with A/C system are located as shown in figure.
7. A/C compressor relay
8. A/C Main fan 2 relay
9. A/C Sub fan 2 relay
10. A/C Sub fan 1 relay
11. A/C Fuse
