General Diagnostics Table

GENERAL DIAGNOSTICS TABLE WITH NON-CONFORMITY SYMPTOM FOR ENGINE

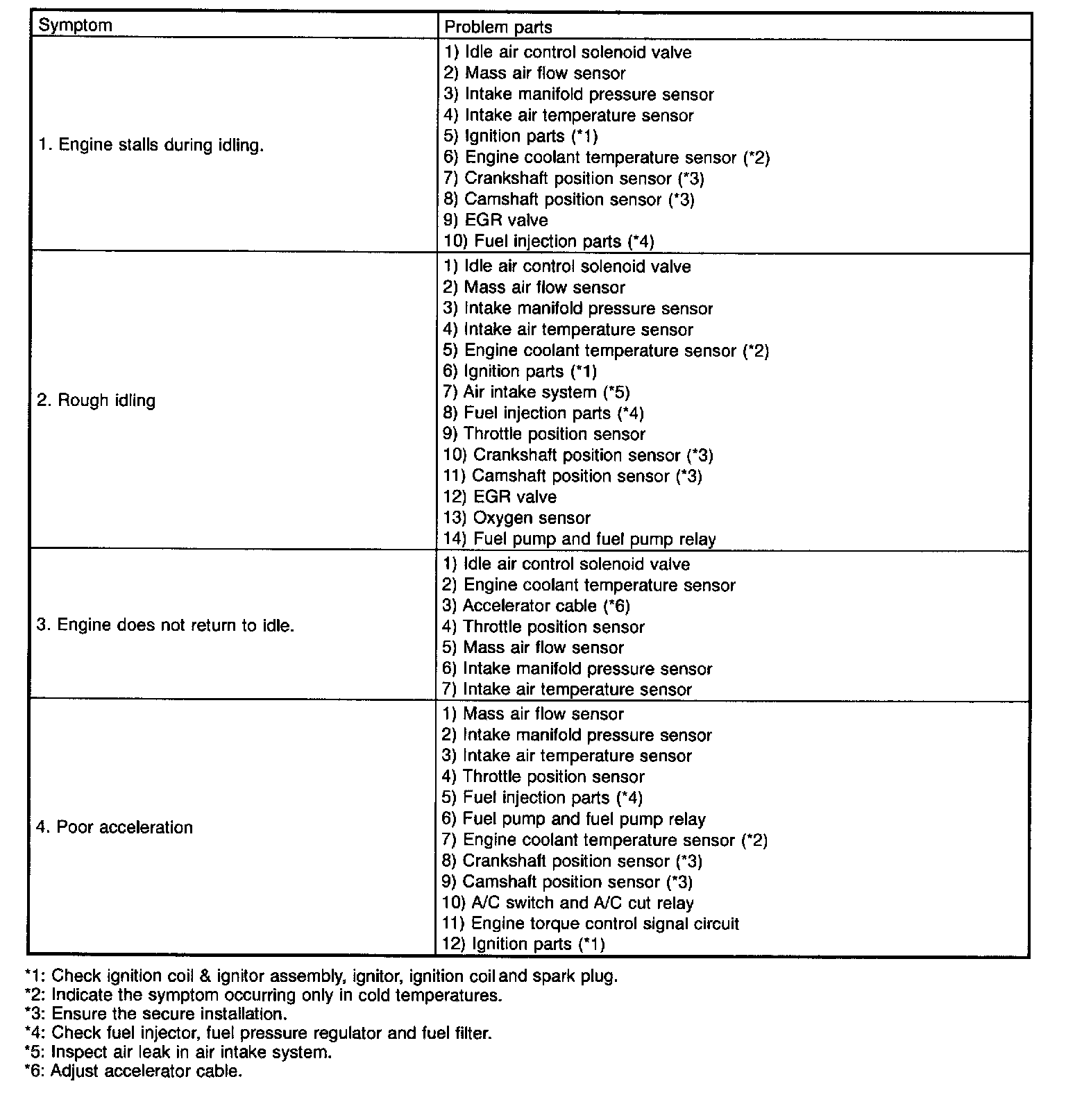

Part 1 Of 2:

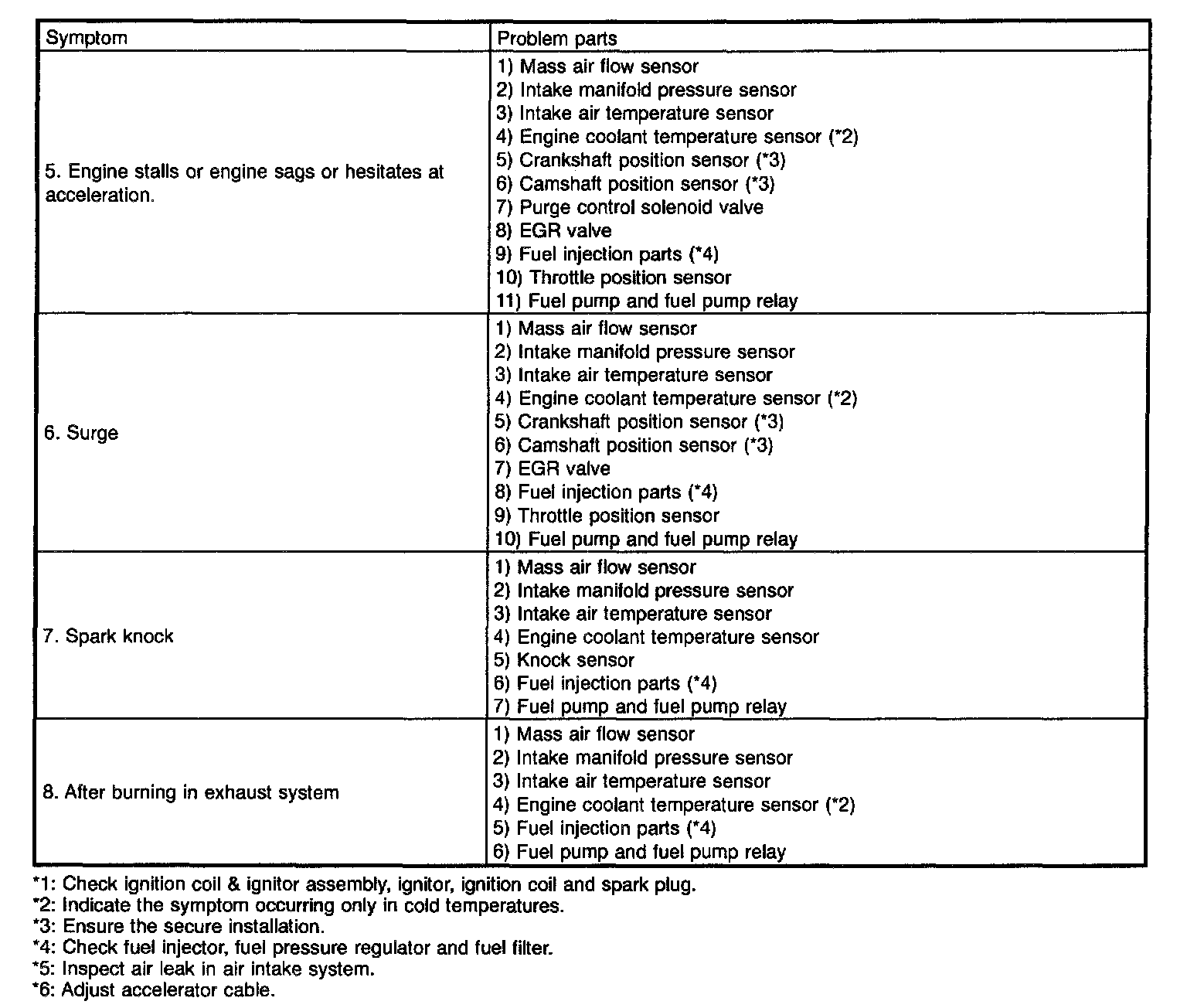

Part 2 Of 2:

NOTE: Malfunction of parts other than those listed is also possible.

GENERAL DIAGNOSTICS TABLE WITH NON-CONFORMITY SYMPTOM FOR AUTOMATIC TRANSMISSION

NOTE: Check general diagnostics table with non-conformity symptom for automatic transmission. See Diagnosis By Symptom.
