Part 2

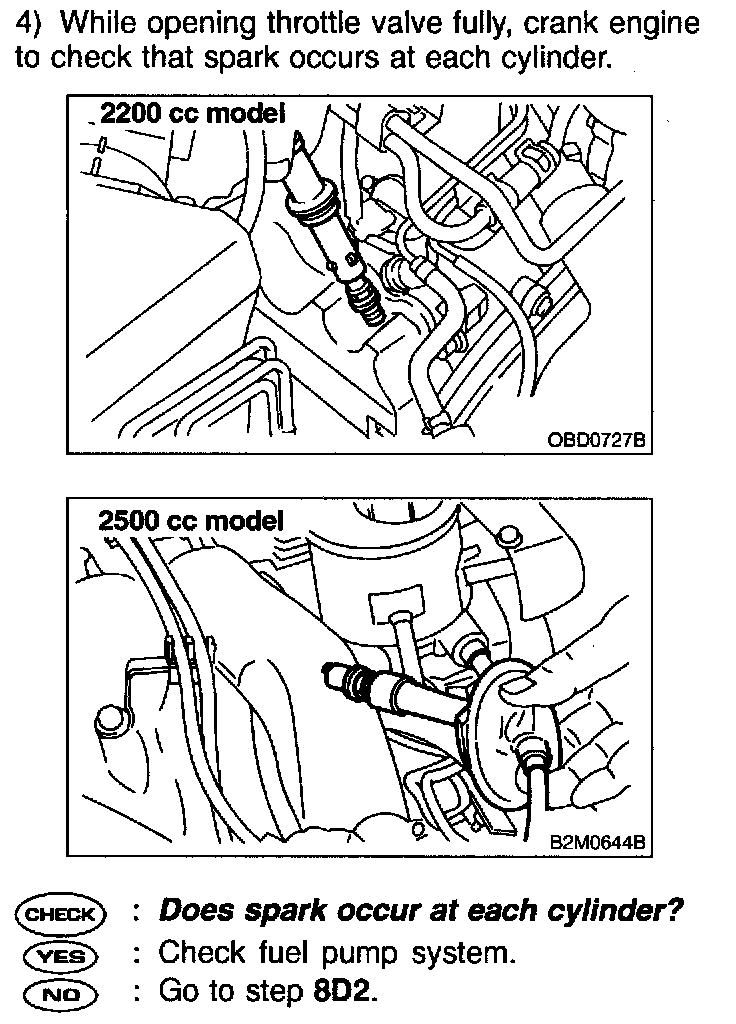

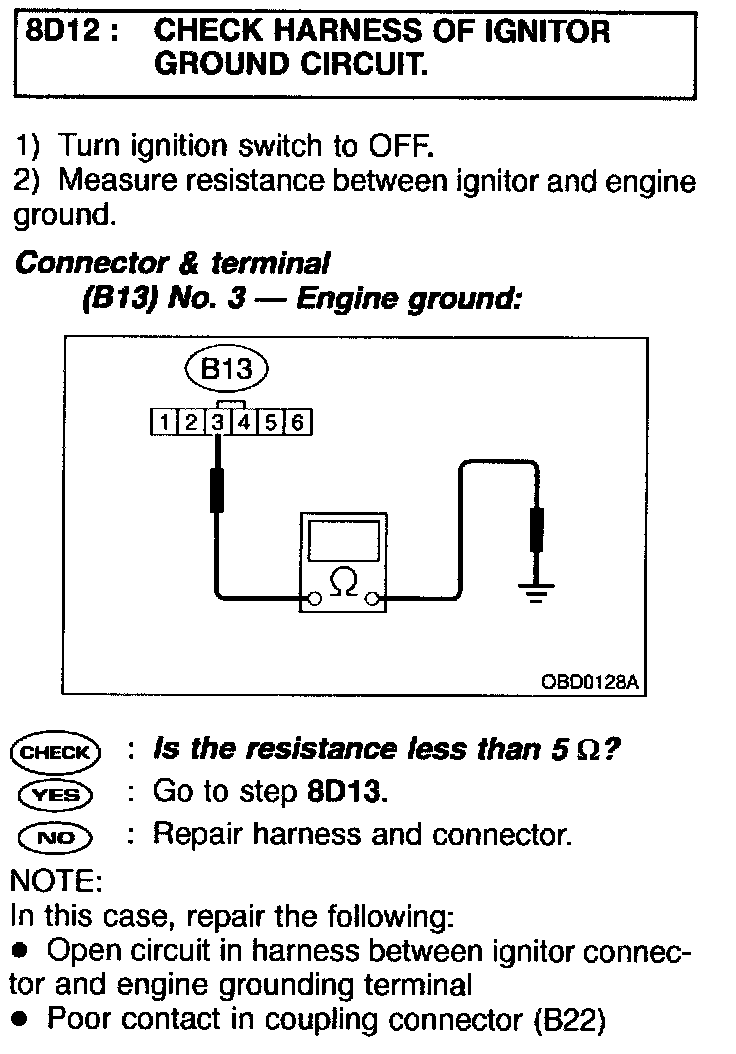

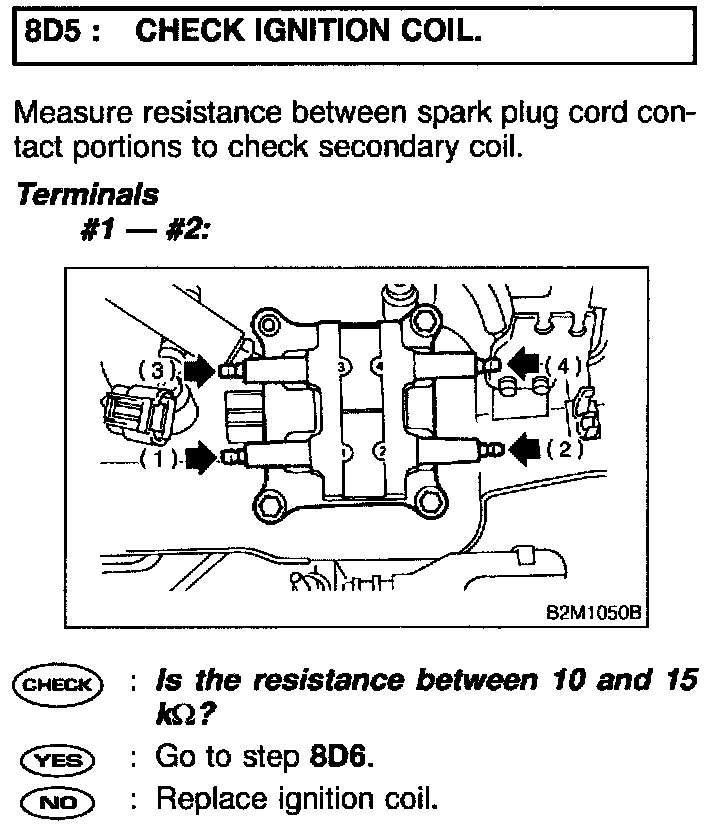

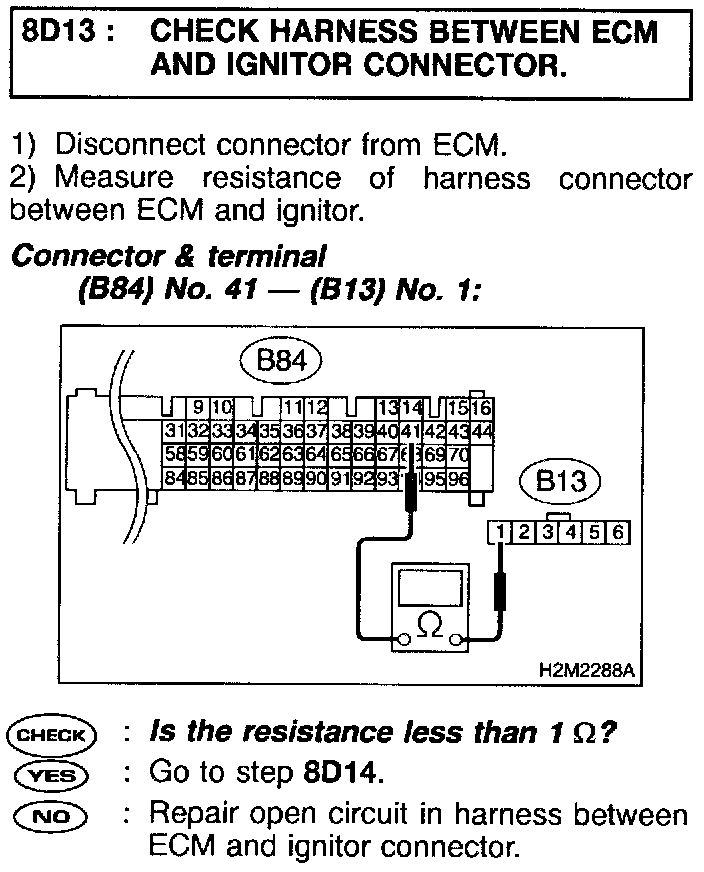

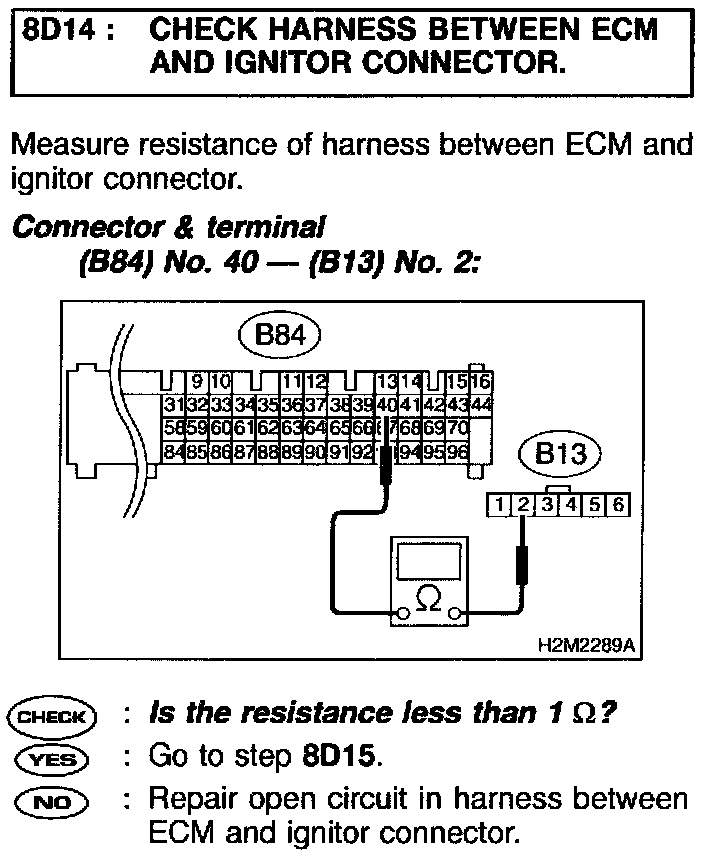

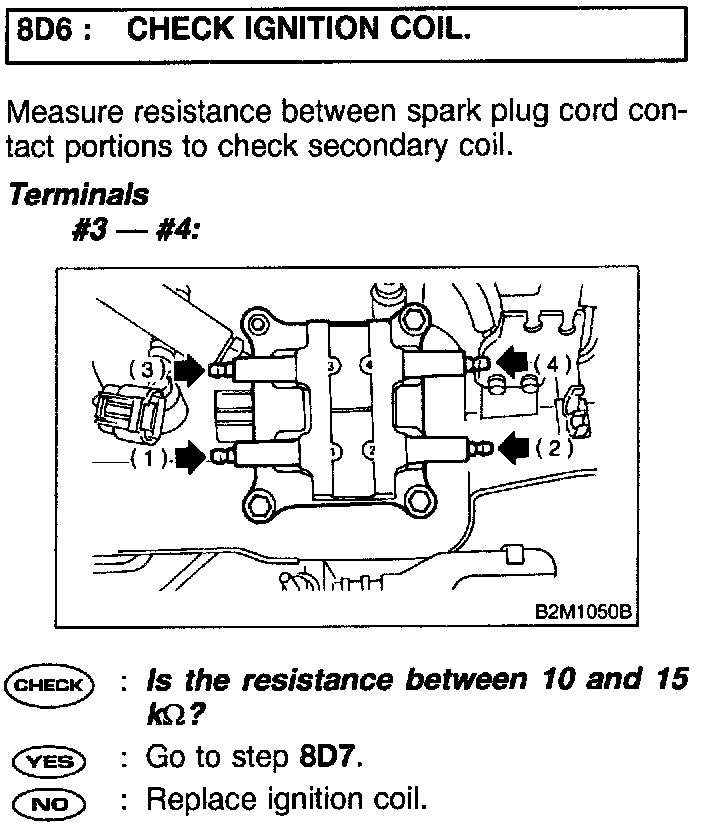

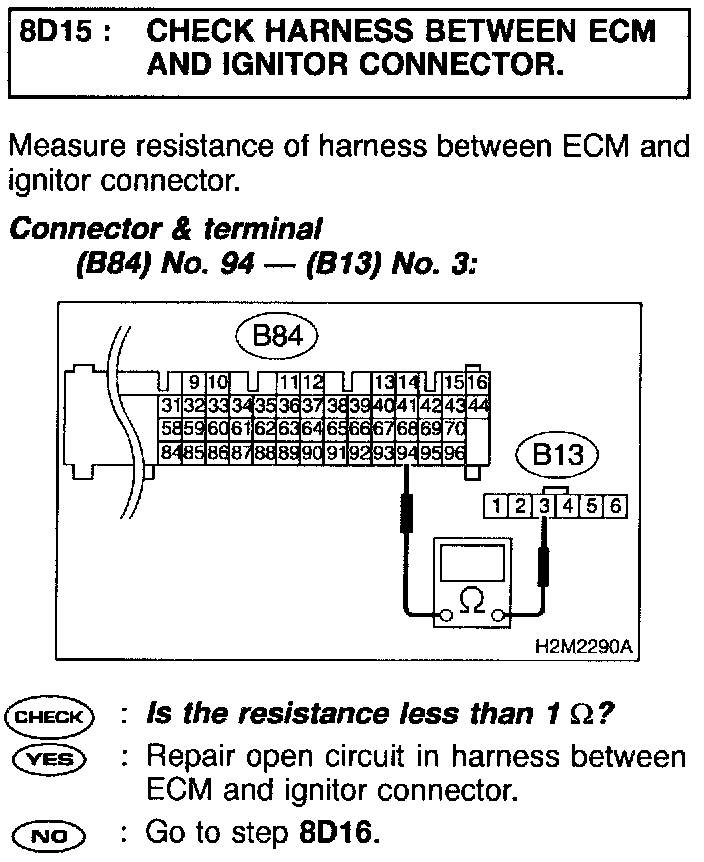

IGNITION CONTROL SYSTEM

1 Of 20:

2 Of 20:

3 Of 20:

4 Of 20:

5 Of 20:

6 Of 20:

7 Of 20:

8 Of 20:

9 Of 20:

10 Of 20:

11 Of 20:

12 Of 20:

13 Of 20:

14 Of 20:

15 Of 20:

16 Of 20:

17 Of 20:

18 Of 20:

19 Of 20:

20 Of 20:

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM

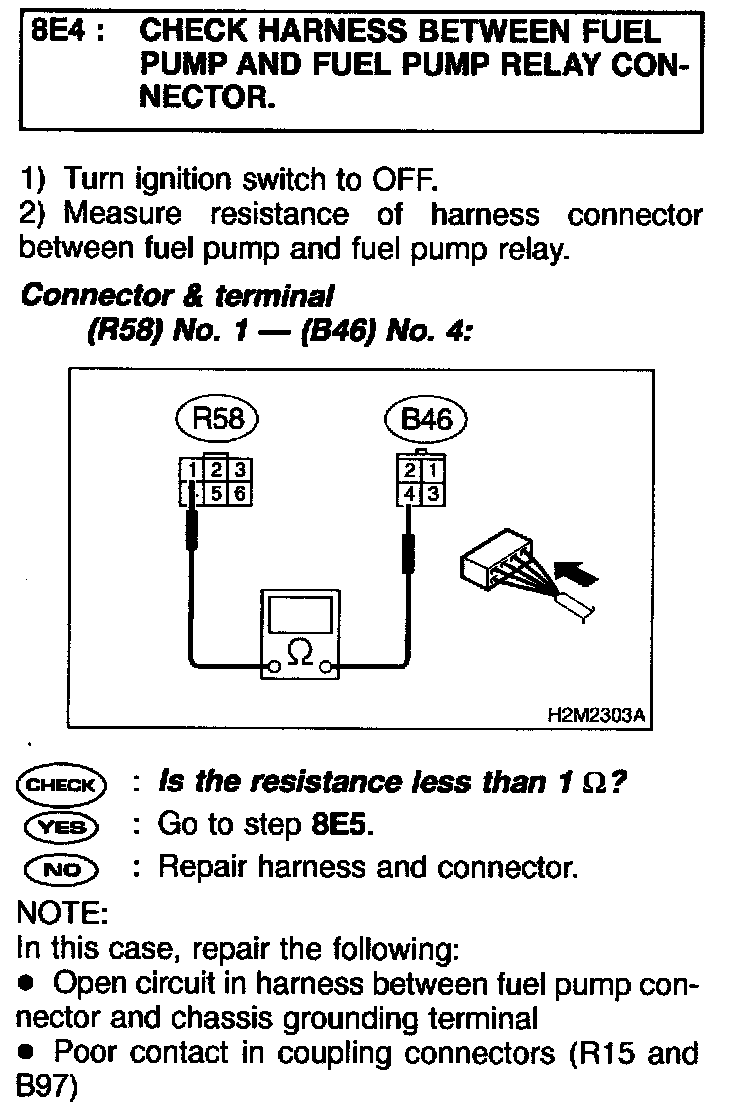

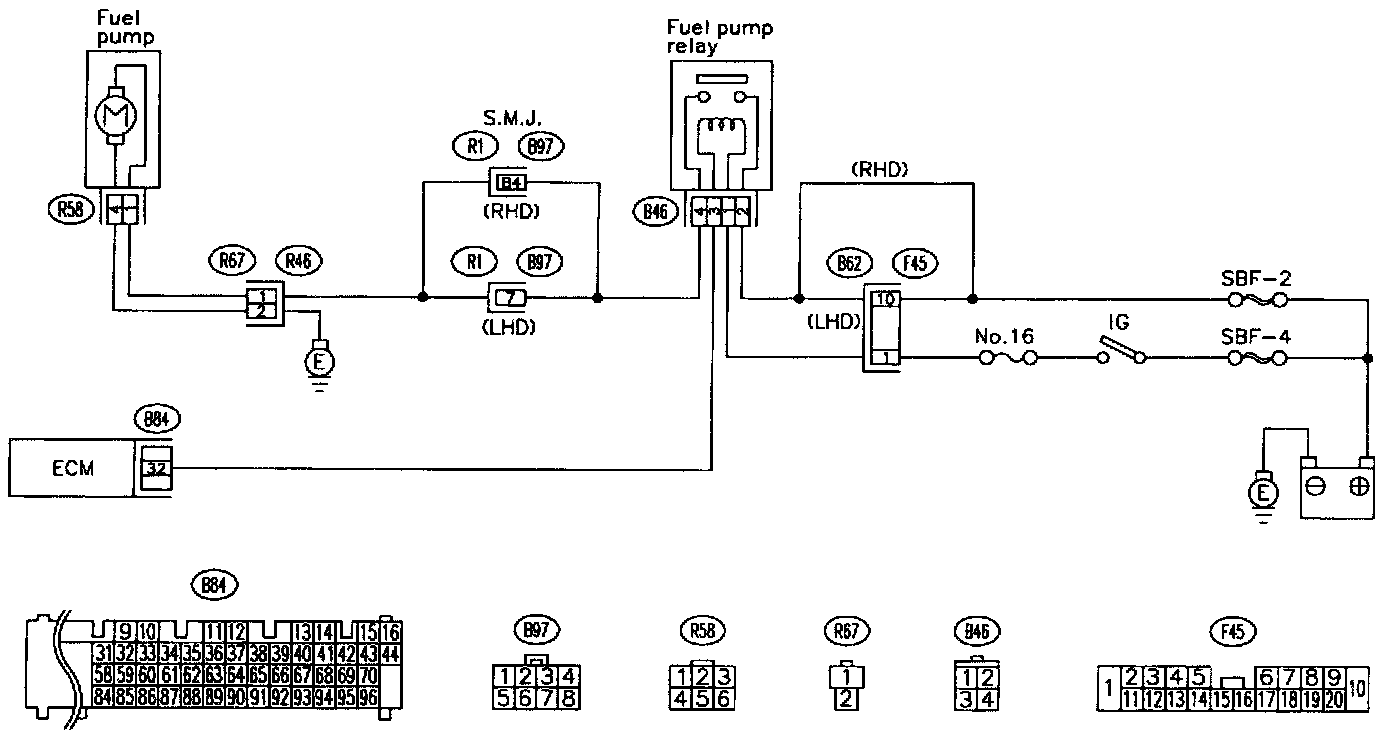

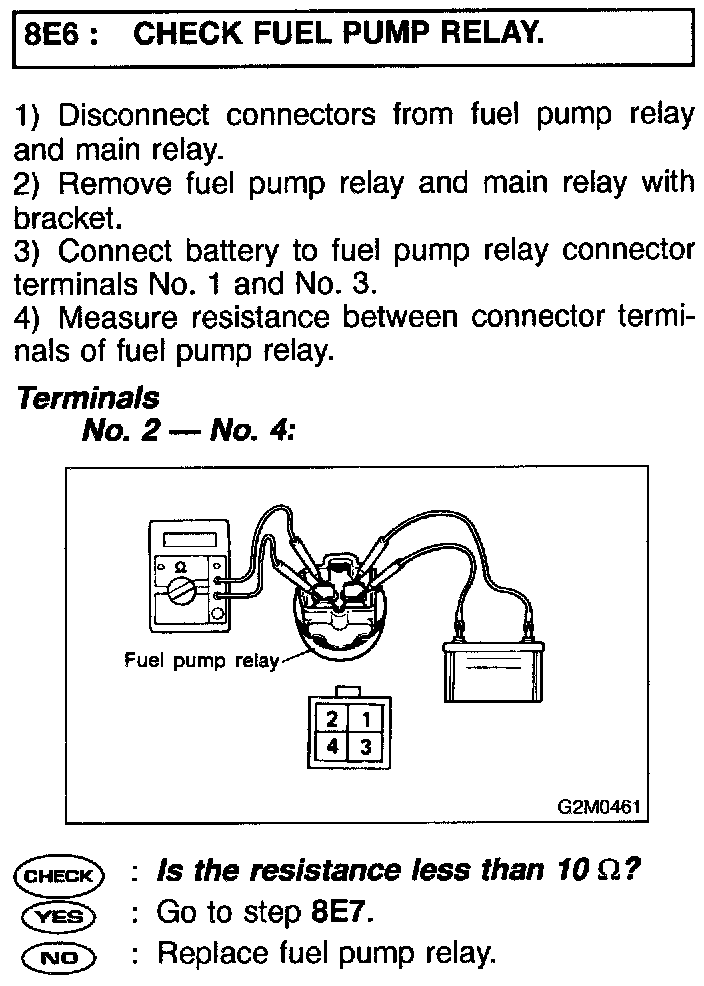

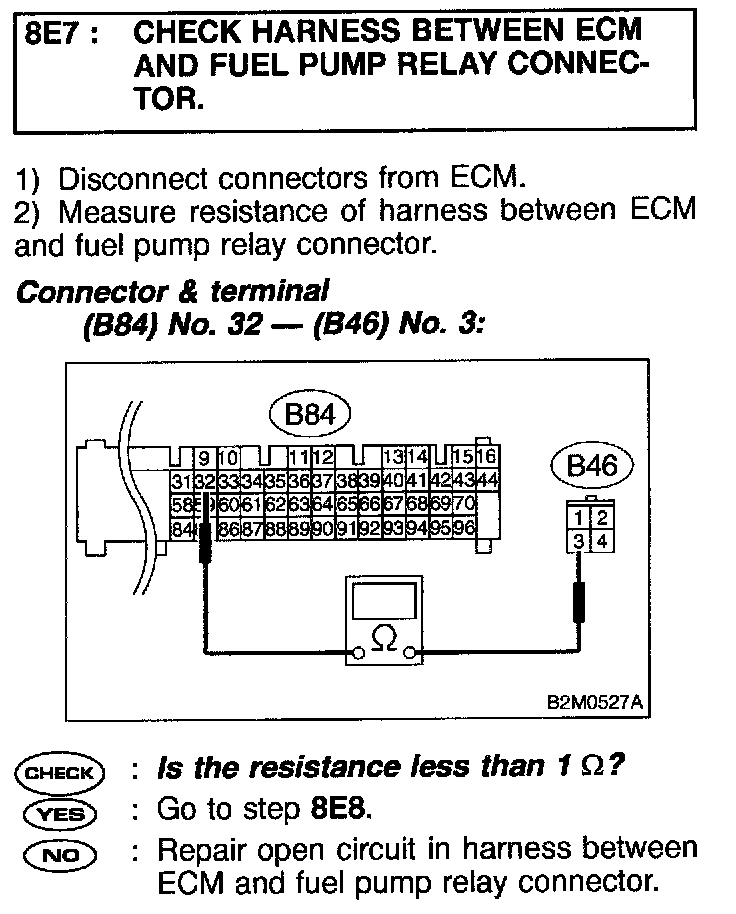

FUEL PUMP CIRCUIT (2200 cc VEHICLES)

1 Of 9:

2 Of 9:

3 Of 9:

4 Of 9:

5 Of 9:

6 Of 9:

7 Of 9:

8 Of 9:

9 Of 9:

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM

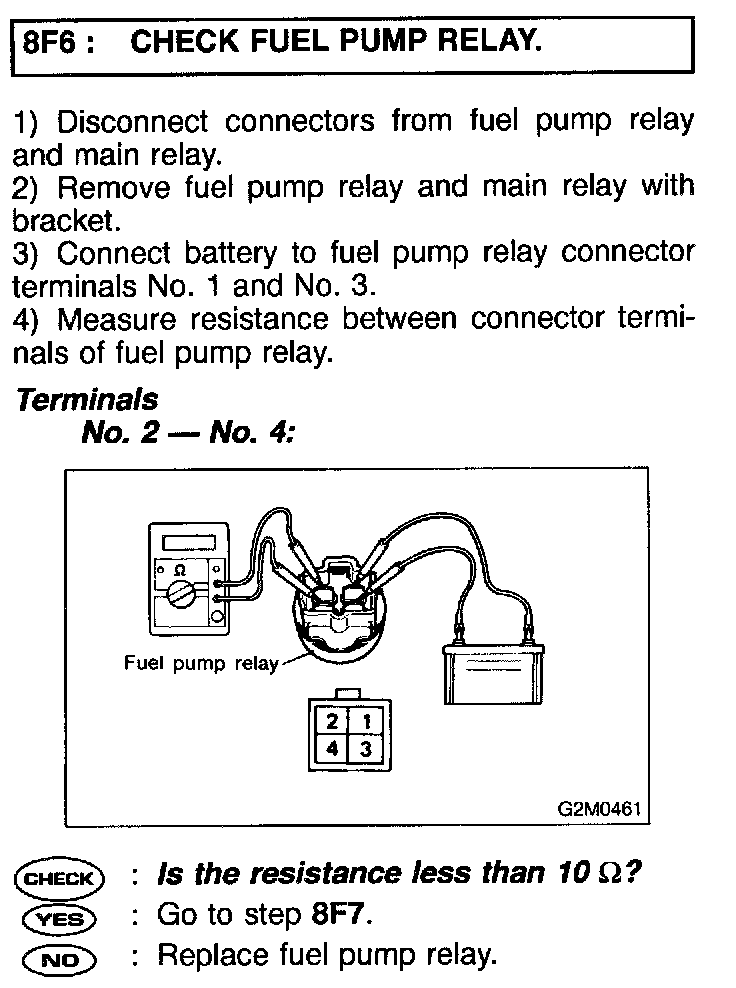

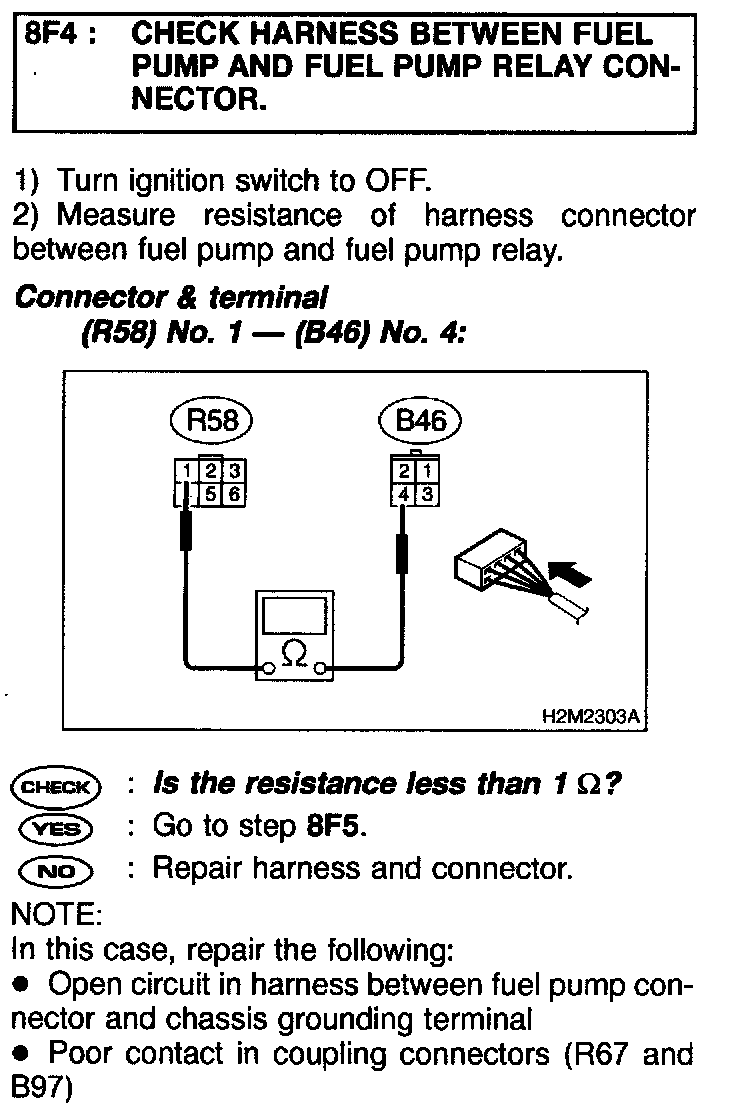

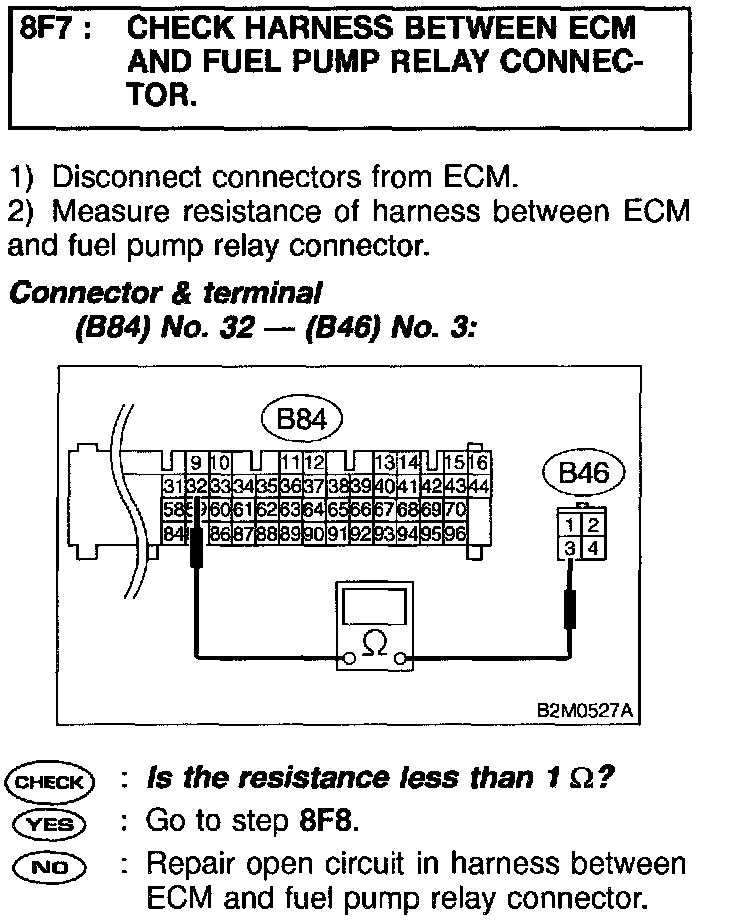

FUEL PUMP CIRCUIT (2500 cc VEHICLES)

1 Of 9:

2 Of 9:

3 Of 9:

4 Of 9:

5 Of 9:

6 Of 9:

7 Of 9:

8 Of 9:

9 Of 9:

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.





WIRING DIAGRAM

FUEL INJECTOR CIRCUIT

CAUTION:
- Check or repair only faulty parts.
- After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

NOTE: Check fuel injector circuit.





WIRING DIAGRAM

CRANKSHAFT POSITION SENSOR CIRCUIT

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

NOTE: Check crankshaft position sensor circuit.





WIRING DIAGRAM

CAMSHAFT POSITION SENSOR CIRCUIT

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

NOTE: Check crankshaft position sensor circuit.





WIRING DIAGRAM
