Powertrain Management: Locations

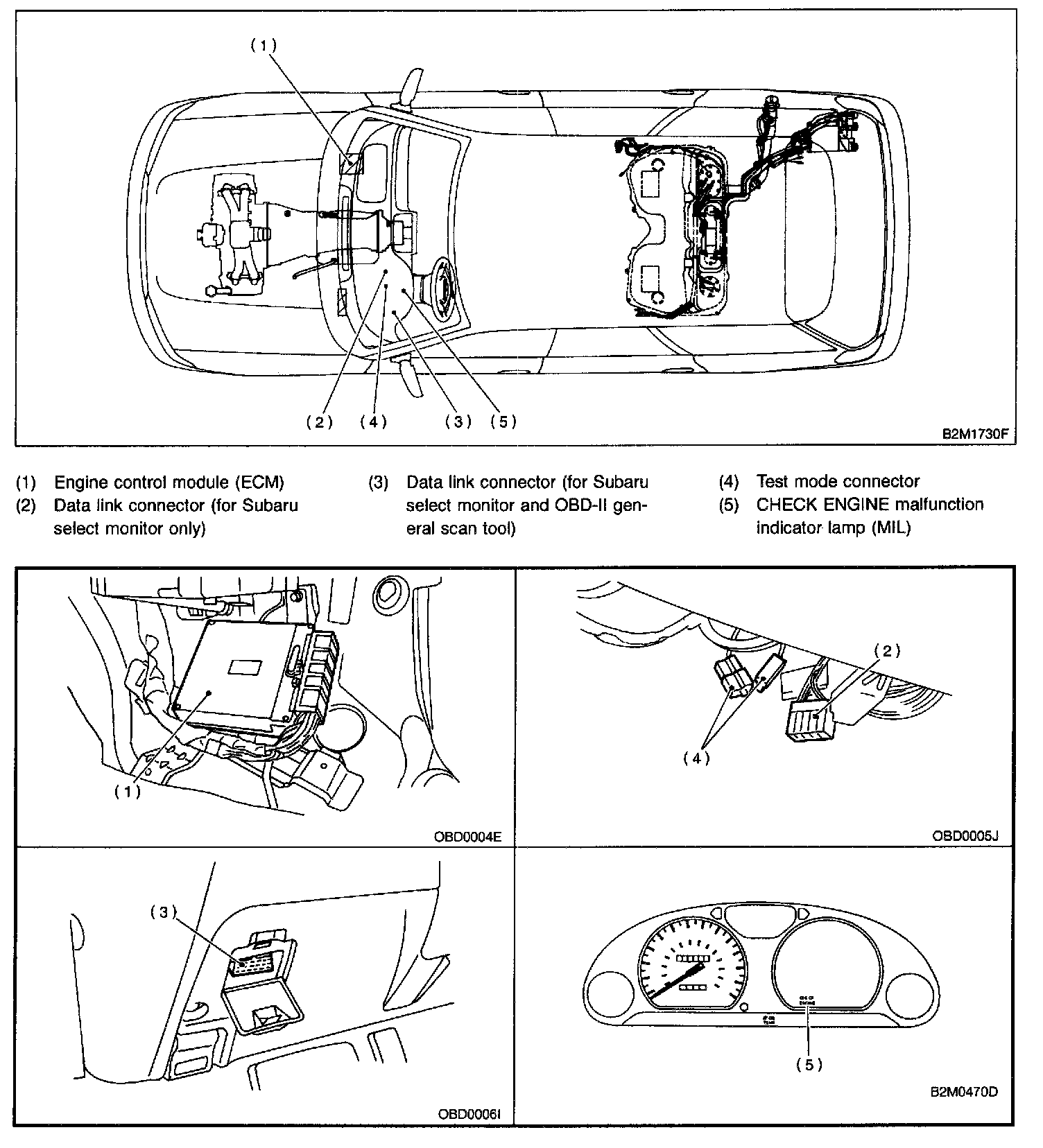

Module [Engine (2500 CC Model)]:
MODULE

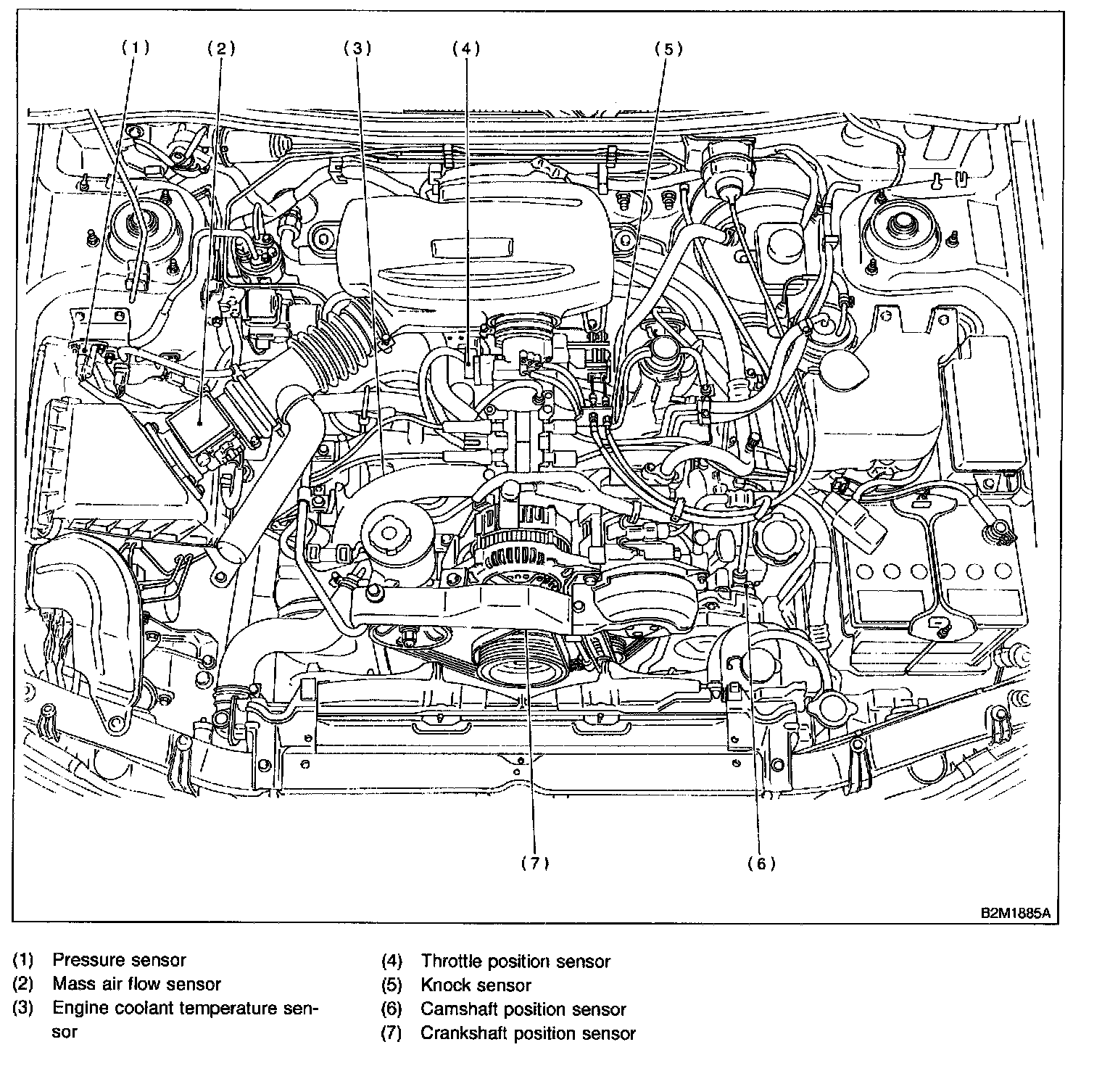

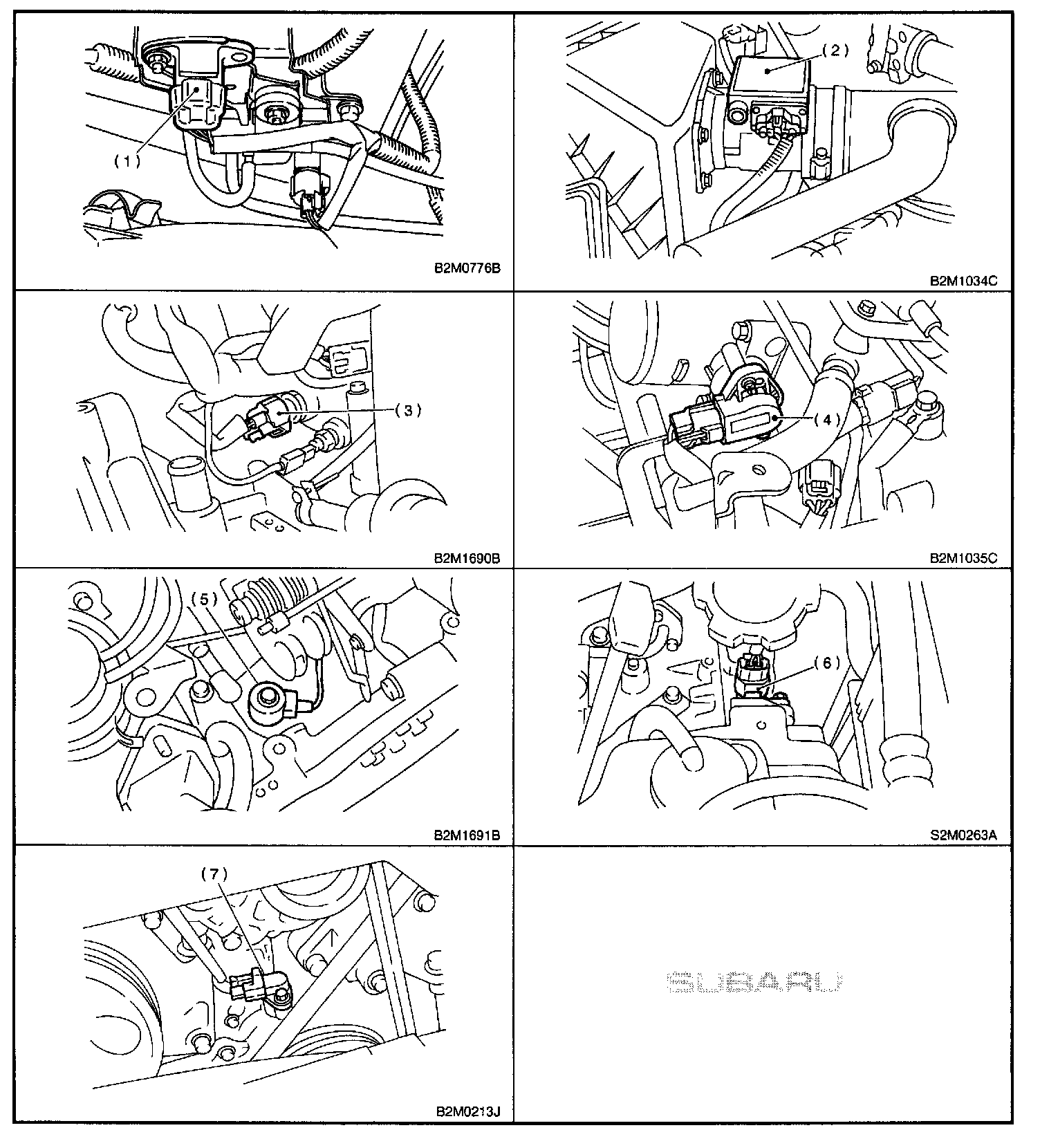

Sensor [Engine (2500 CC Model)] (Part 1 Of 2):
Sensor [Engine (2500 CC Model)] (Part 2 Of 2):

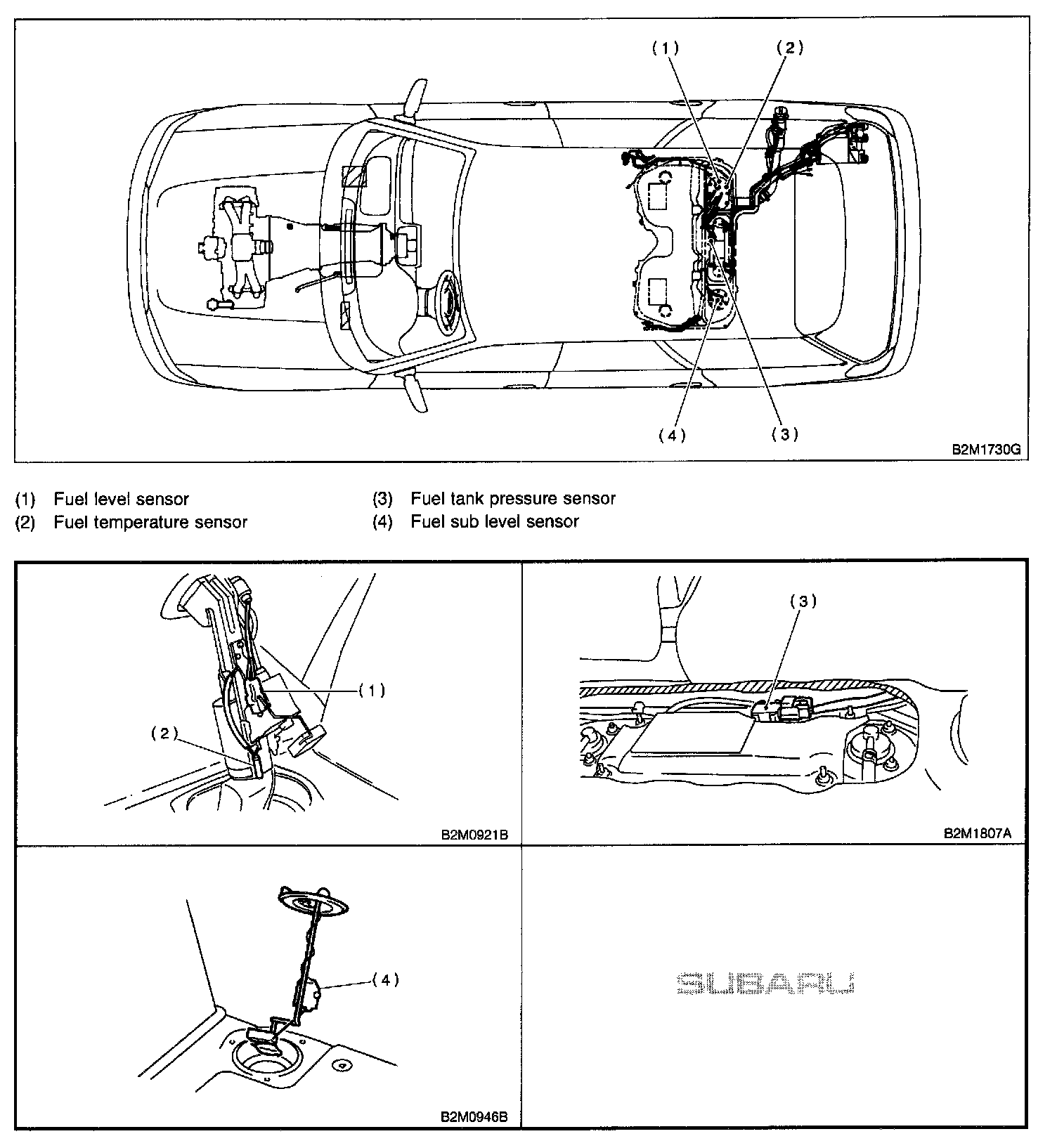

Sensor [Engine (2500 CC Model)]:
Sensor [Engine (2500 CC Model)]:
SENSOR

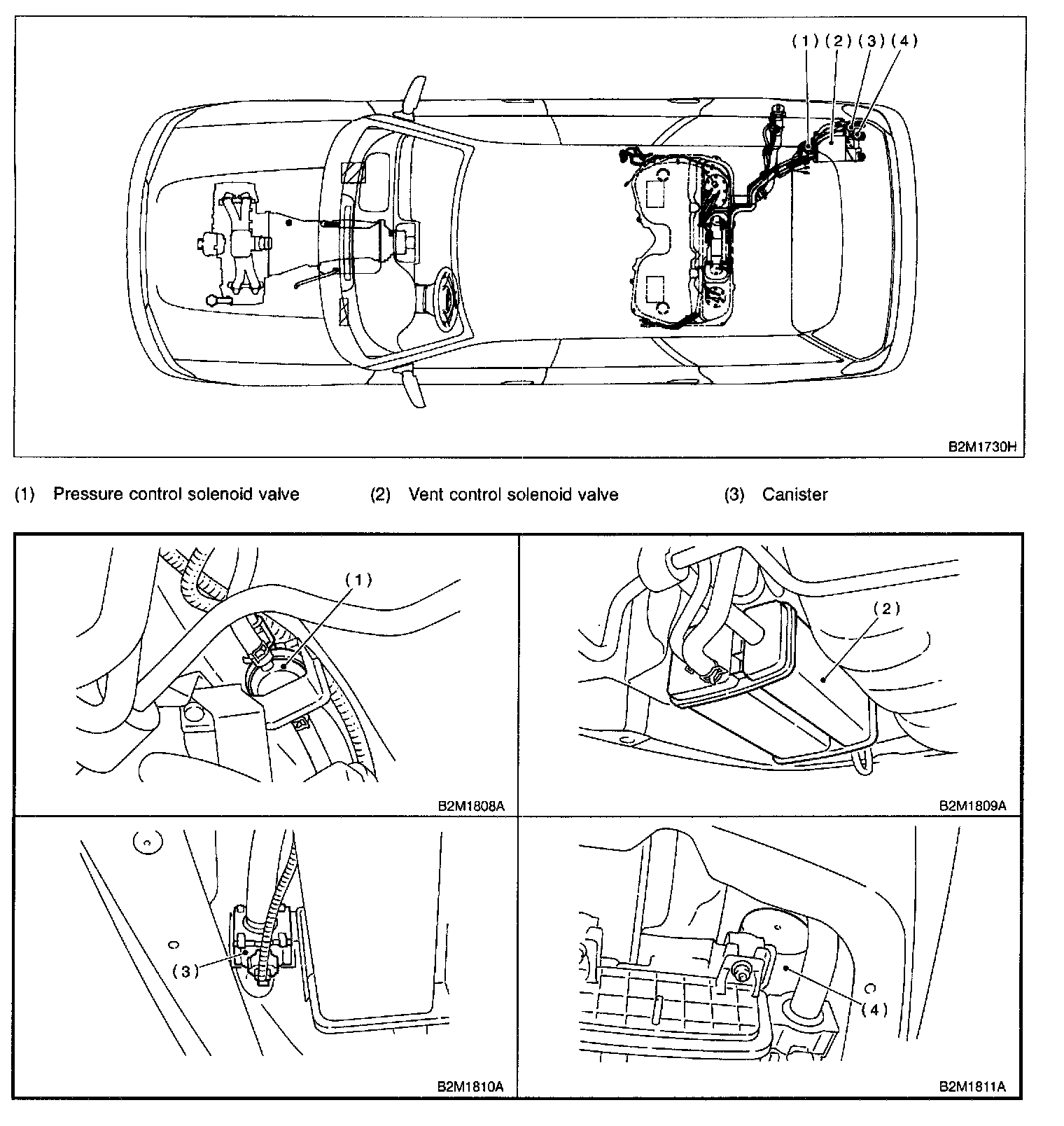

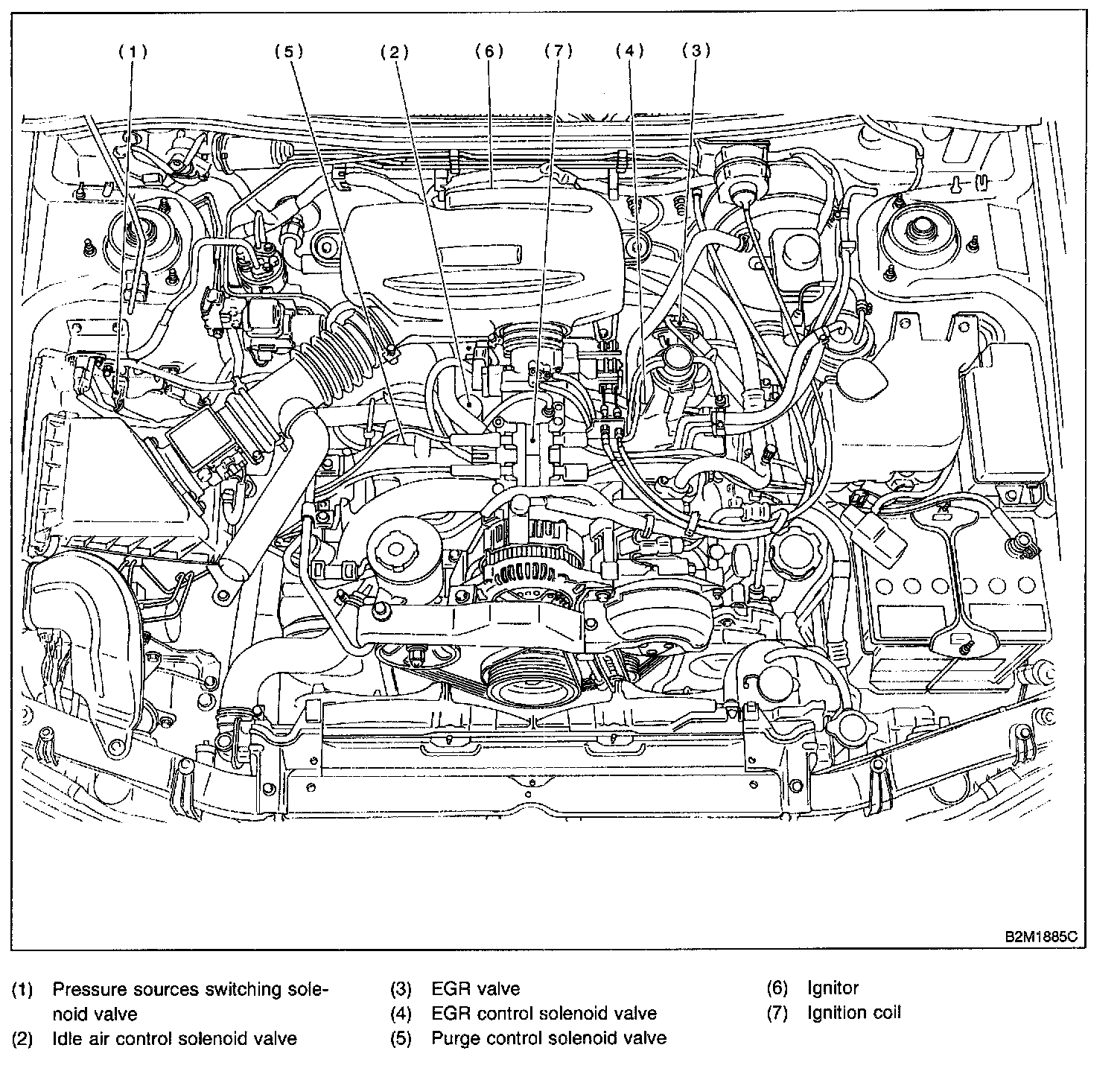

Solenoid Valve, Emission Control System Parts And Ignition System Parts (Part 1 Of 2):
Solenoid Valve, Emission Control System Parts And Ignition System Parts (Part 2 Of 2):
Solenoid Valve, Emission Control System Parts And Ignition System Parts:

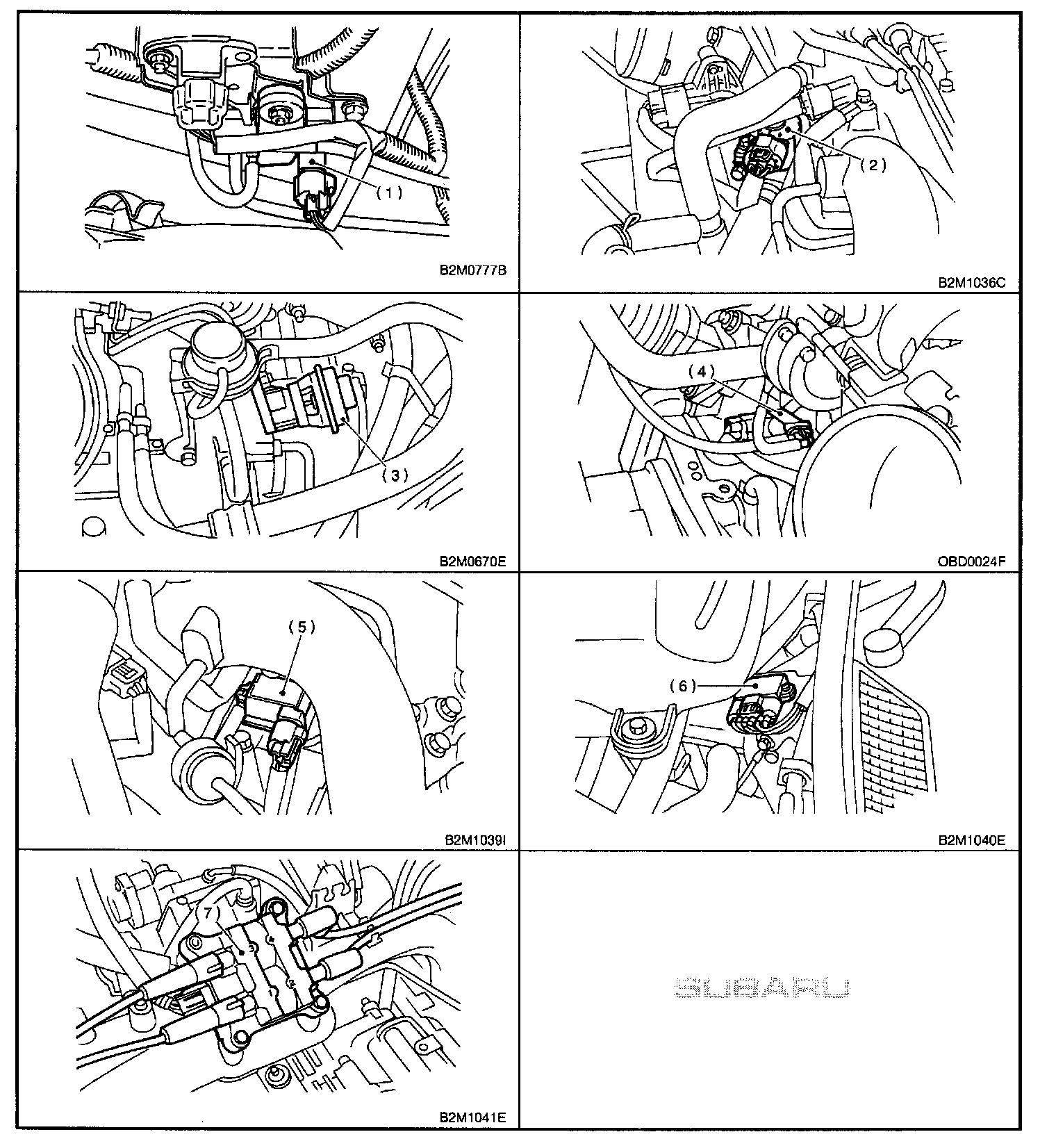

Solenoid Valve, Emission Control System Parts And Ignition System Parts (Part 1 Of 2):
Solenoid Valve, Emission Control System Parts And Ignition System Parts (Part 2 Of 2):
SOLENOID VALVE, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
