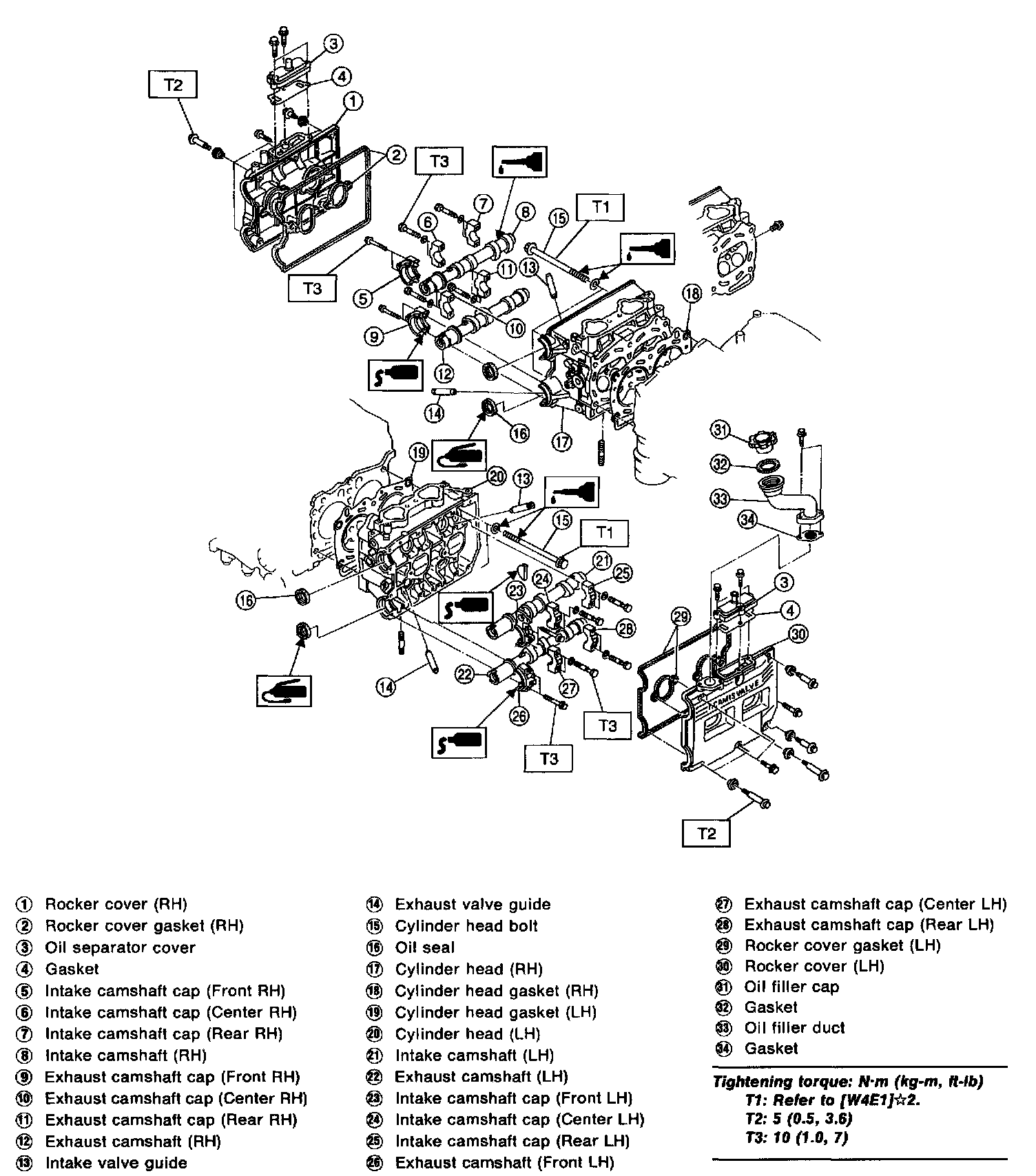

Cylinder Head Assembly

T1 HEAD BOLTS
(1) Apply a coat of engine oil to washers and bolt threads.
(2) Tighten all bolts to 29 Nm (3.0 kg-m, 22 ft-lb) in numerical sequence.
Then tighten all bolts to 69 Nm (7.0 kg-m, 51 ft-lb) in numerical sequence.
(3) Back off all bolts by 180° first; back them off by 180° again.
(4) Tighten bolts (1) and (2) to 34 N.m (3.5 kg-m, 25 ft-lb).
(5) Tighten bolts (3), (4), (5) and (6) to 15 Nm (1.5 kg-m, 11 ft-lb).
(6) Tighten all bolts by 80° to 90° in numerical sequence.

CAUTION: Do not tighten bolts more than 90°.

(7) Further tighten all bolts by 80° to 90° in numerical sequence.
