Trouble Code 52 Motor Relay On Failure - Motor Relay On Failure

DIAGNOSIS:

• Faulty motor
• Faulty motor relay
• Faulty harness connector

TROUBLE SYMPTOM:

• ABS does not operate.

WIRING DIAGRAM:

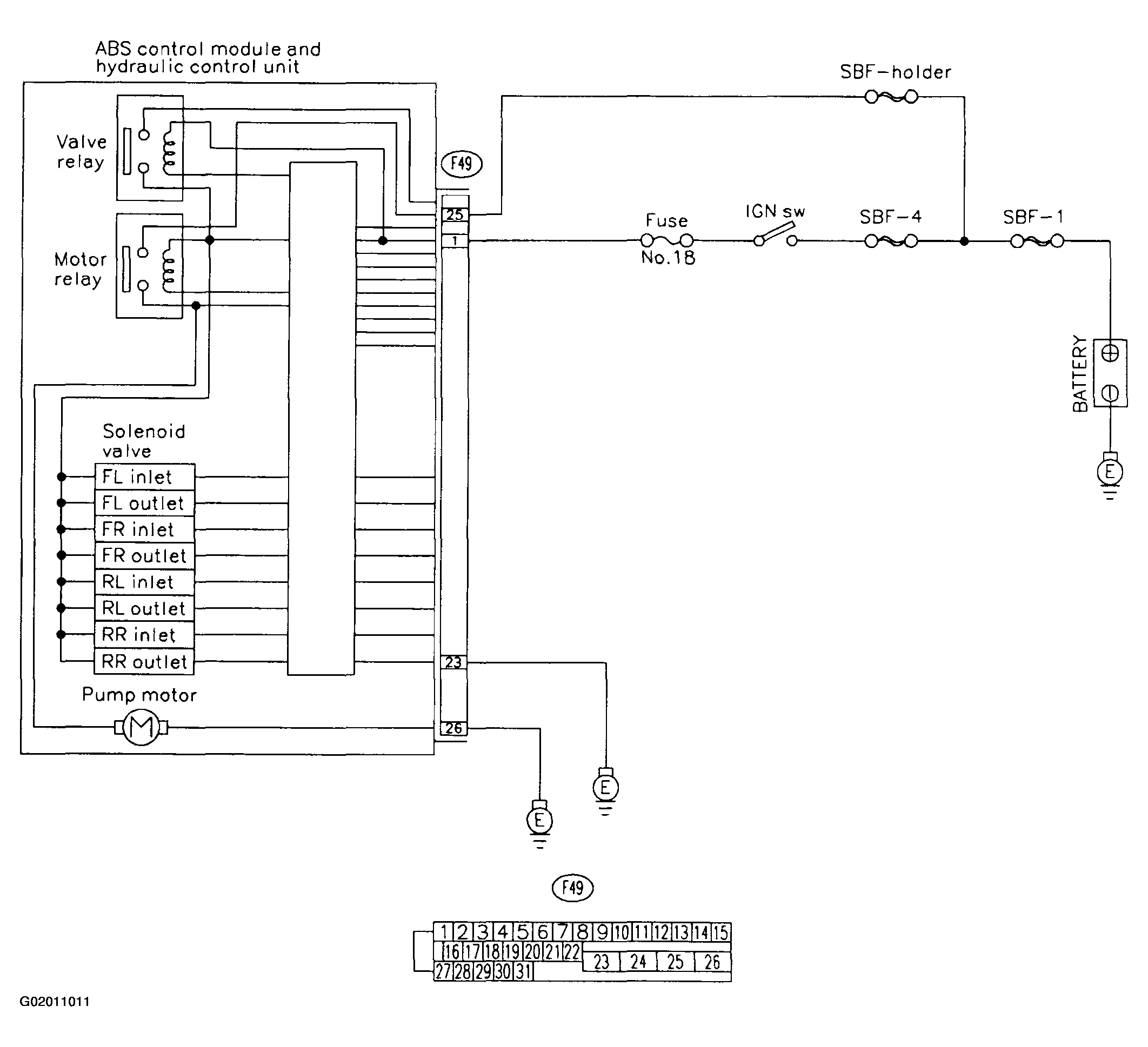

Fig 1: Wiring Diagram

1. 10AD1: CHECK MOTOR RELAY IN ABSCM & H/U.

   Measure resistance between ABSCM & H/U terminals.

   Terminals

   1. No. 25 - No. 26:
   Fig 2: Measuring Resistance Between ABSCM & H/U Terminals.



   CHECK: Is the resistance more than 1 Mohm?

   1. YES:  Go to step 10AD2.
   2. NO:  Replace ABSCM & H/U, see ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM & H/U)  .
2. 10AD2: CHECK MOTOR OPERATION.

   Operate the sequence control, see ABS SEQUENCE CONTROL  .

   NOTE: Use the diagnosis connector to operate the sequence control.

   CHECK: Can motor revolution noise (buzz) be heard when carrying out the sequence control?

   1. YES:  Go to step 10AD3.
   2. NO:  Replace ABSCM & H/U, see ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM & H/U)  .
3. 10AD3: CHECK POOR CONTACT IN CONNECTORS.

   Turn ignition switch to OFF.

   CHECK: Is there poor contact in connector between hydraulic unit, relay box and ABSCM & H/U?

   1. YES:  Repair connector.
   2. NO:  Go to step 10AD4.
4. 10AD4: CHECK ABSCM & H/U.
   1. Connect all connectors.
   2. Erase the memory.
   3. Perform inspection mode.
   4. Read out the trouble code.

   CHECK: Is the same trouble code as in the current diagnosis still being output?

   1. YES:  Replace ABSCM & H/U, see ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM & H/U)  .
   2. NO:  Go to step 10AD5.
5. 10AD5: CHECK ANY OTHER TROUBLE CODES APPEARANCE.

   CHECK: Are other trouble codes being output?

   1. YES:  Proceed with the diagnosis corresponding to the trouble code.
   2. NO:  A temporary poor contact.
