Abs System: Sensors

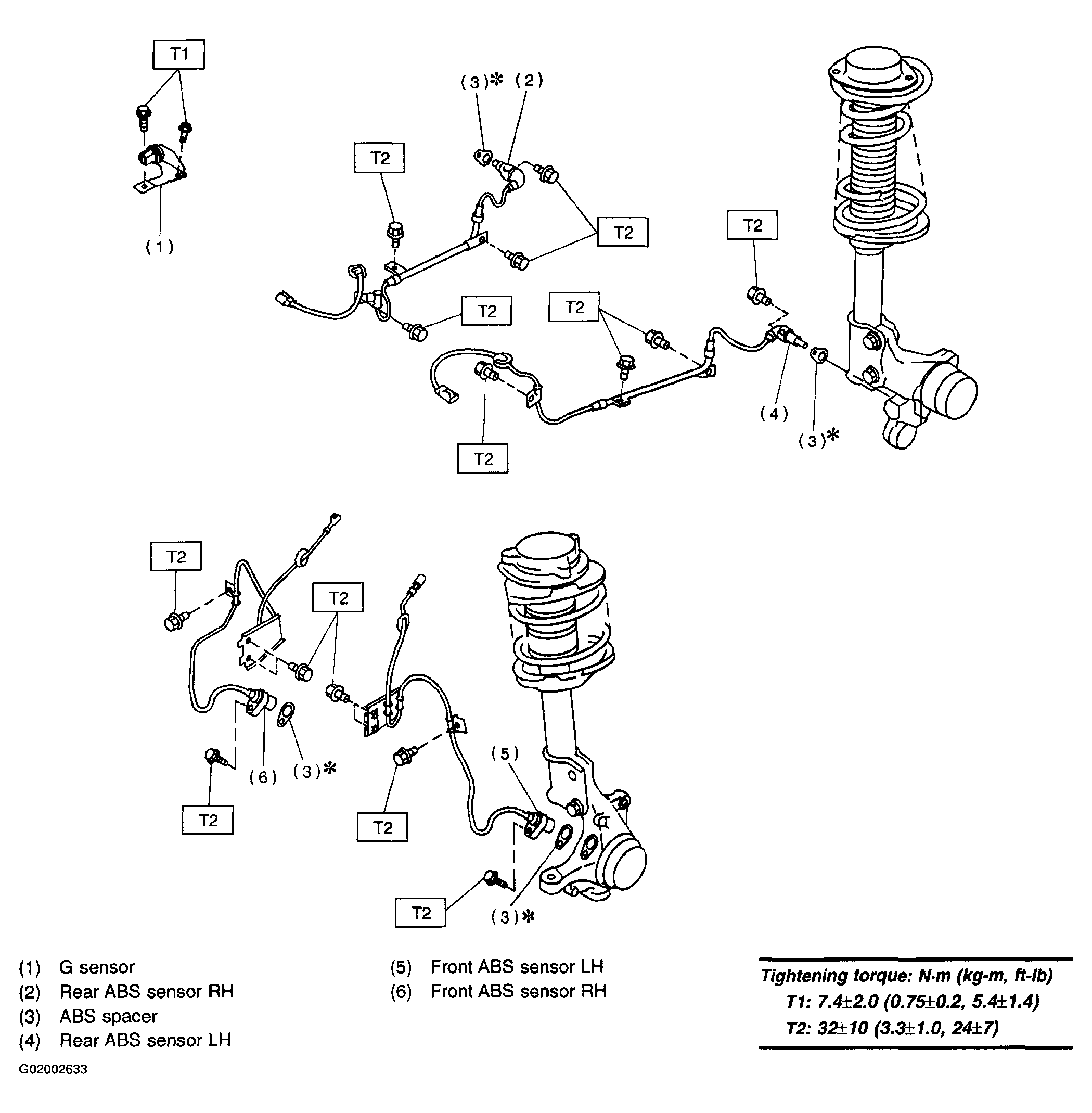

Fig 1: Identifying ABS Sensors & Related Components
G02002633

Tightening torque: N.m (kg-m, ft-lb)

  1. T1:  7.4+/-2.0 (0.75+/-0.2, 5.4+/-1.4)
  2. T2:  32+/-10 (3.3+/-1.0, 24+/-7)
