Clearing Memory

After calling up a trouble code, disconnect diagnosis connector terminal 6 from diagnosis terminal.

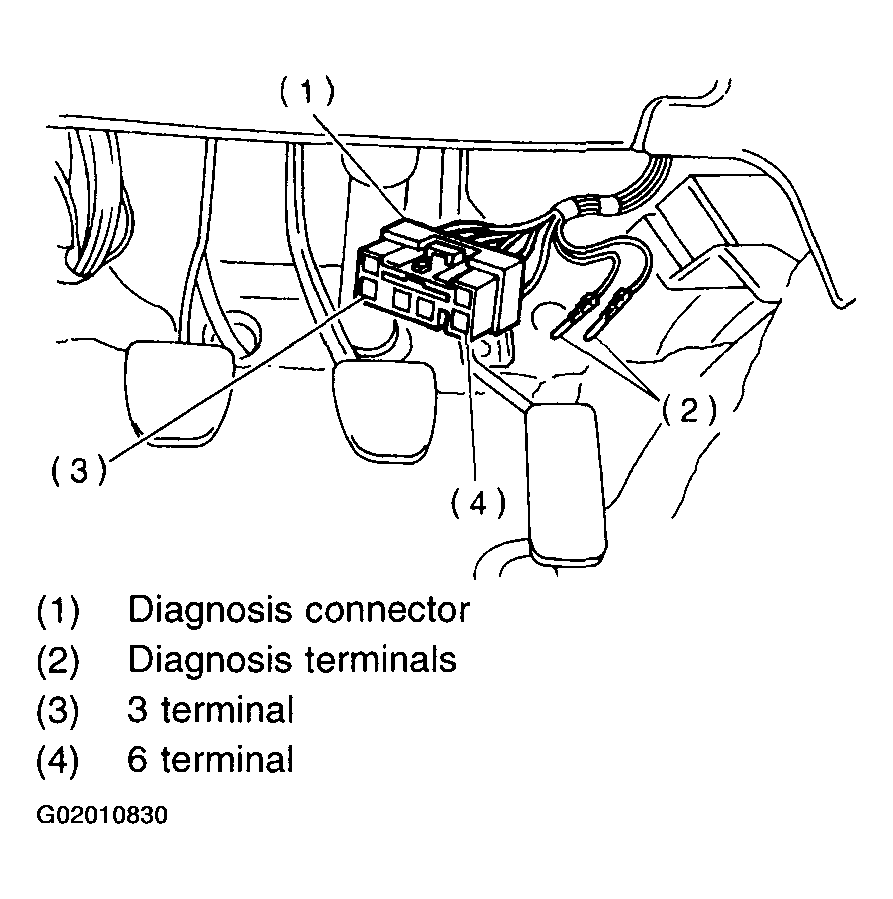

Fig 1: Identifying Diagnostic Connector
Repeat 3 times within approximately 12 seconds; connecting and disconnecting terminal 6 and diagnosis terminal for at least 0.2 seconds each time.

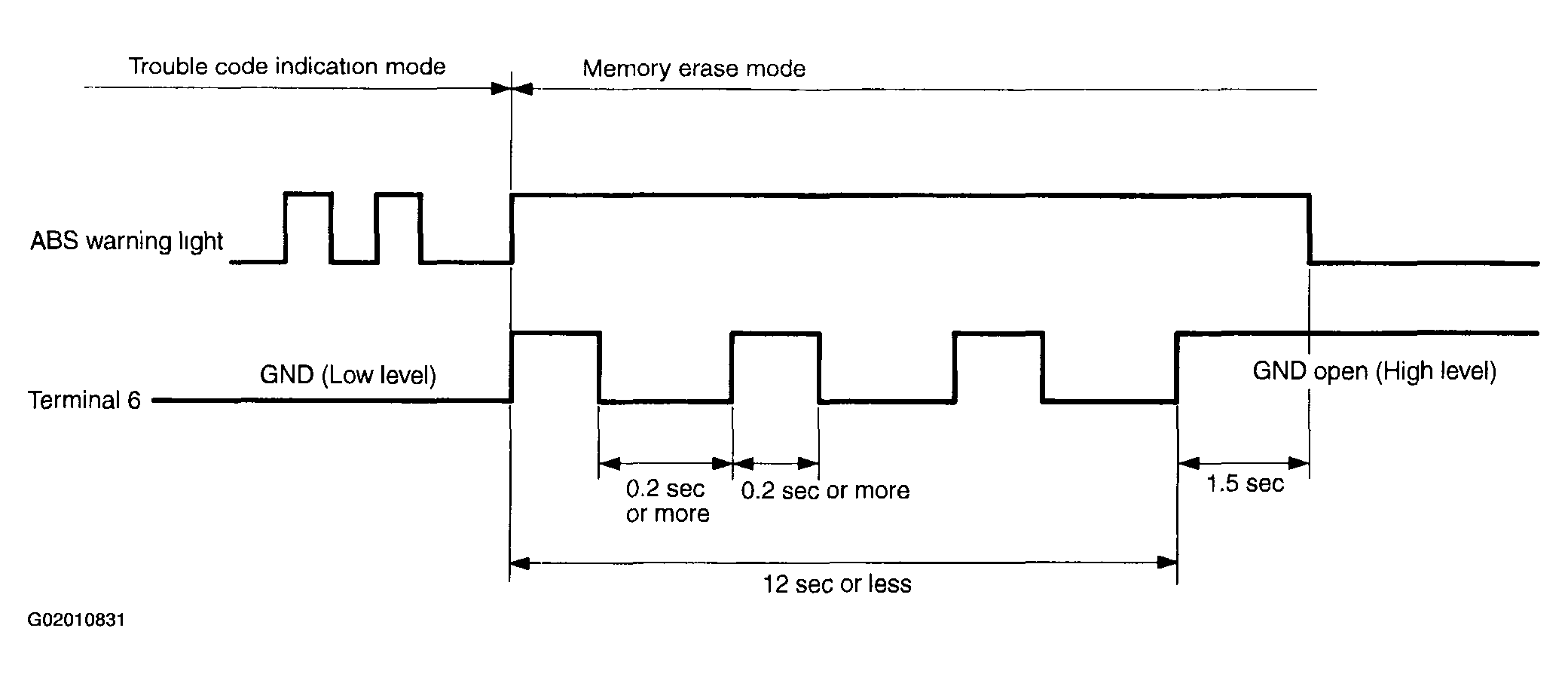

Fig 2: Example Of Displayed Code (Shown: Memory Erased Mode)

NOTE: After diagnostics is completed, make sure to clear memory. Make sure only start code (11) is shown after memory is cleared.
