Abs Control Module And Hydraulic Control Unit (ABSCM & H/U): Installation

Install ABSCM & H/U.
CAUTION: Confirm that the specifications of the ABSCM & H/U conforms to the vehicle specifications.

NOTE: Apply a coat of rust-preventive wax (Nippeco LT or GB) to bracket attaching bolt after tightening.

Tightening torque: 18+/-5 N.m (1.8+/-0.5 kg-m, 13.0+/-3.6 ft-lb)
Install ABSCM & H/U ground terminal to bracket.
Tightening torque: 32+/-10 N.m (3.3+/-1.0 kg-m, 24+/-7 ft-lb)
Connect brake pipes to their correct ABSCM & H/U connections, see BRAKE PIPE .

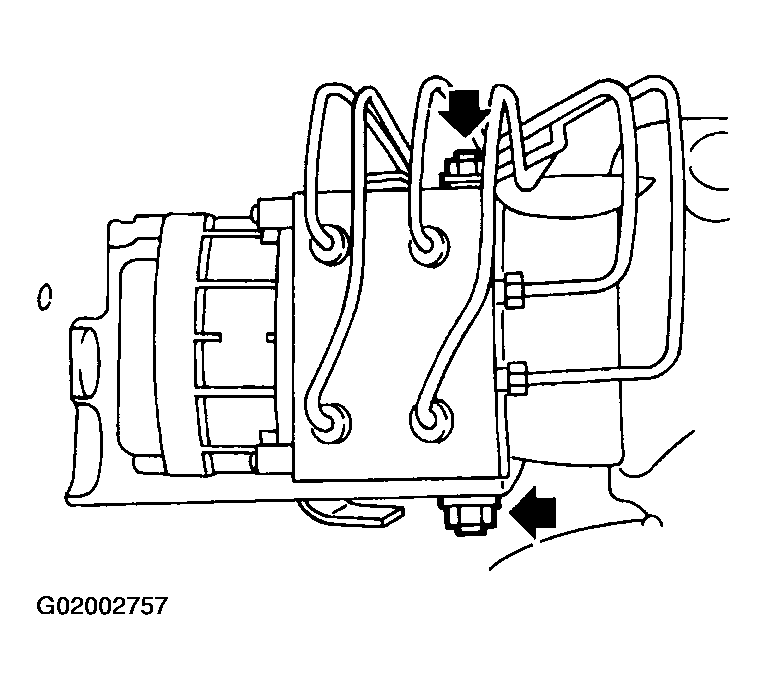

Fig 1: Identifying ABSCM & H/U Bracket Attaching Bolts
Using cable clip, secure ABSCM & H/U harness to bracket.
Connect connector to ABSCM & H/U.
CAUTION:
- Be sure to remove all foreign matter from inside the connector before connecting.
- Ensure that the ABSCM & H/U connector is securely locked.
Install air intake duct.
Connect ground cable to battery.
Bleed air from the brake system.
