G Sensor

The G sensor detects a change in G in the longitudinal direction.

It detects the motion of the moving electrode built into the sensor in terms of a change in the capacitance of the capacitor and outputs it to the ABSCM in terms of a change in voltage.

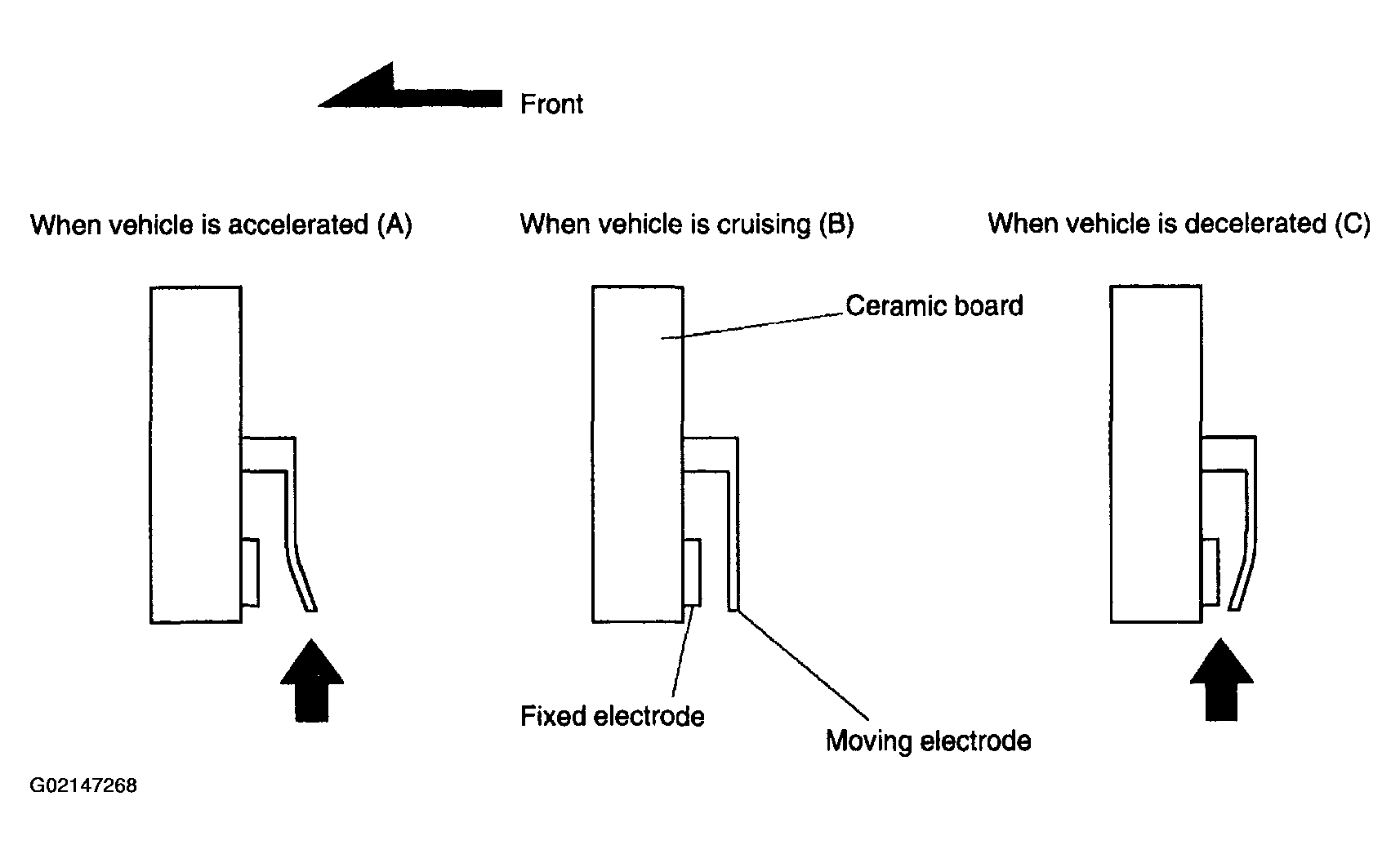

Fig 1: Identifying G Sensor Function

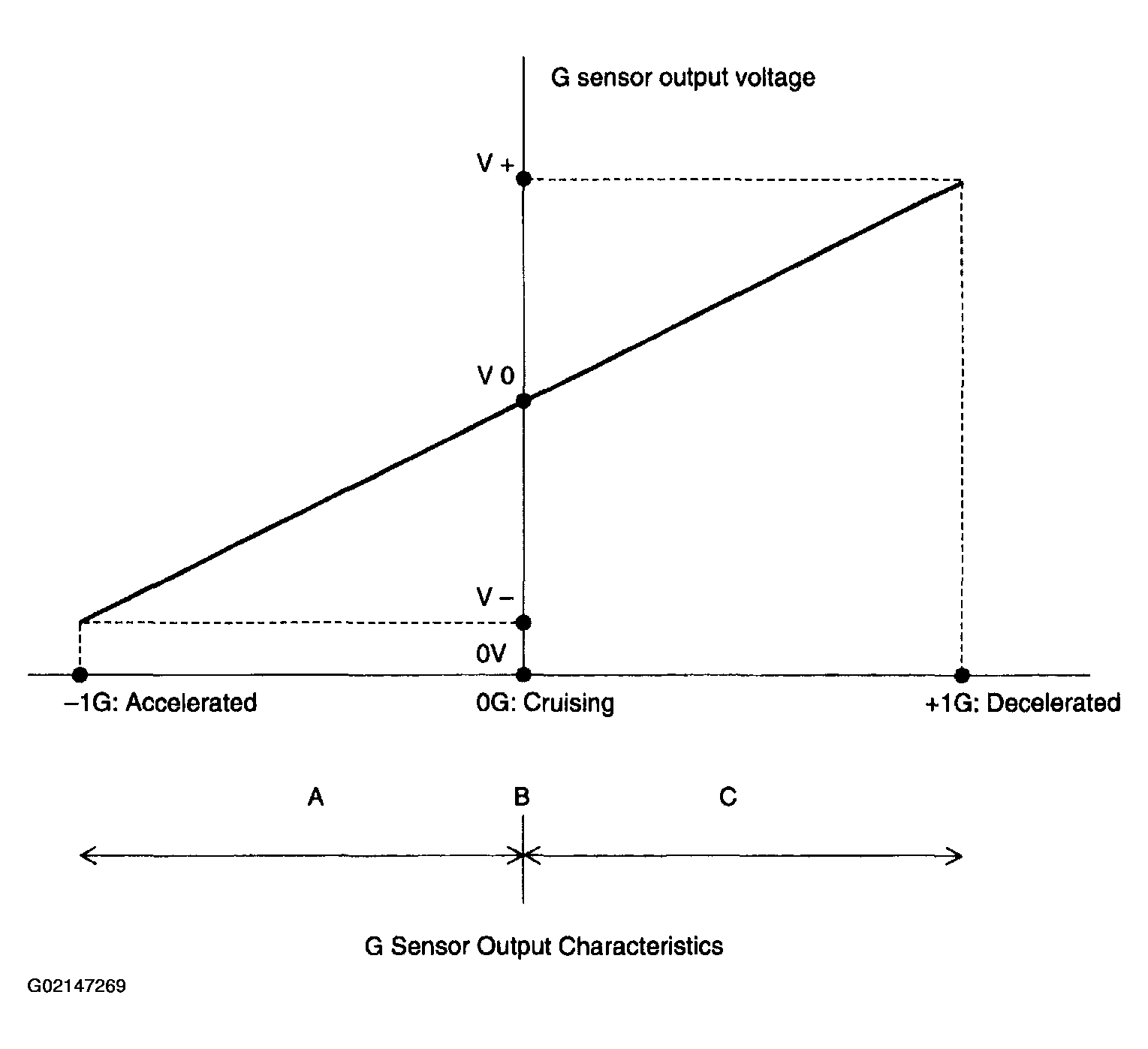

Fig 2: Identifying G Sensor's Change In Output Voltage
