Removal & Installation: Stabilizer: Notes

For stabilizer component location, see Fig 1.

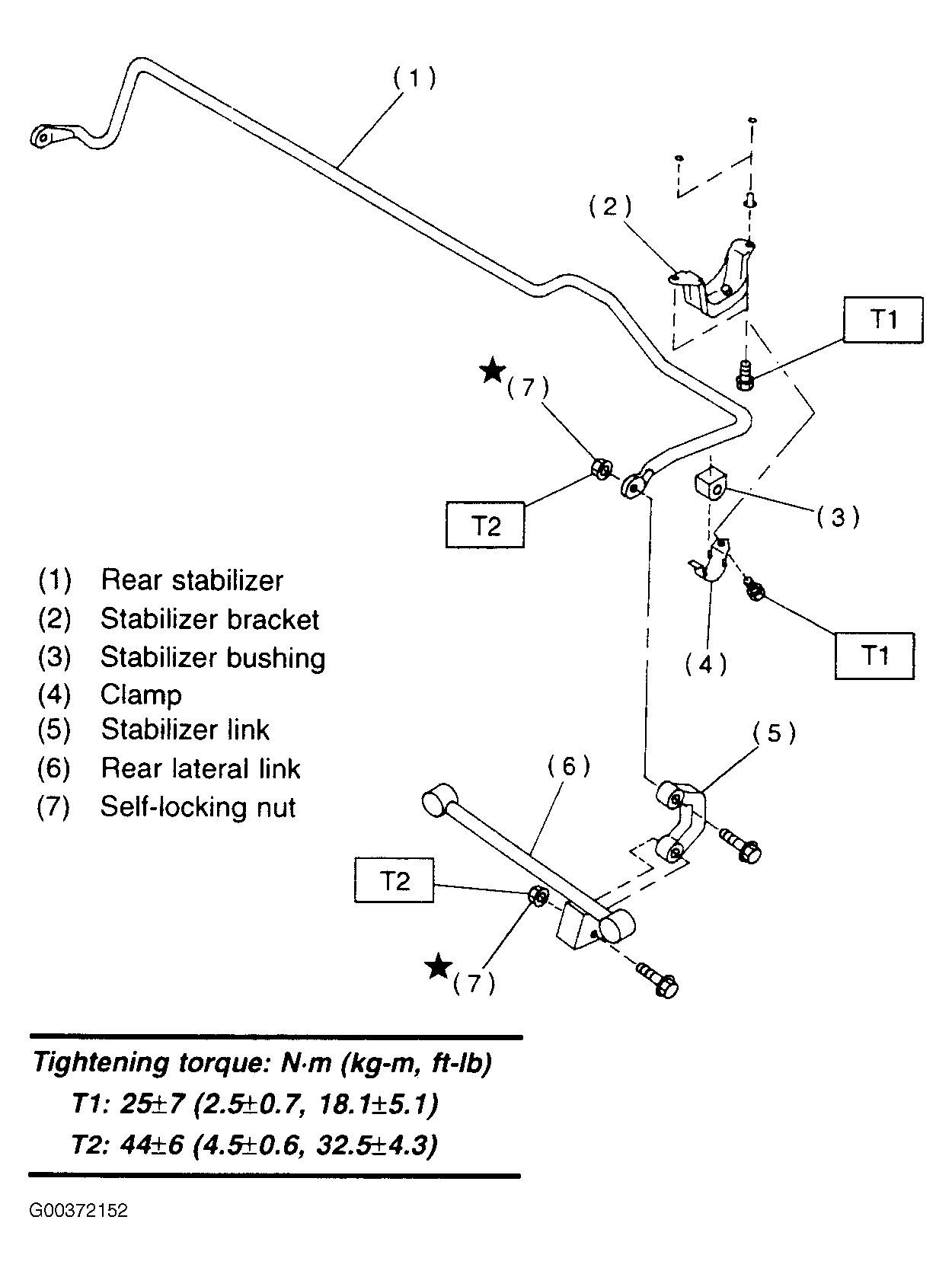

Fig 1: Exploded View Of Rear Stabilizer
G00372152Courtesy of SUBARU OF AMERICA, INC.
