Low Clutch Timing Solenoid

This solenoid is mounted to the control valve, and it is turned ON or OFF according to the signal sent from the TCM. It then controls the low clutch timing valve B and reverse inhibit valve.

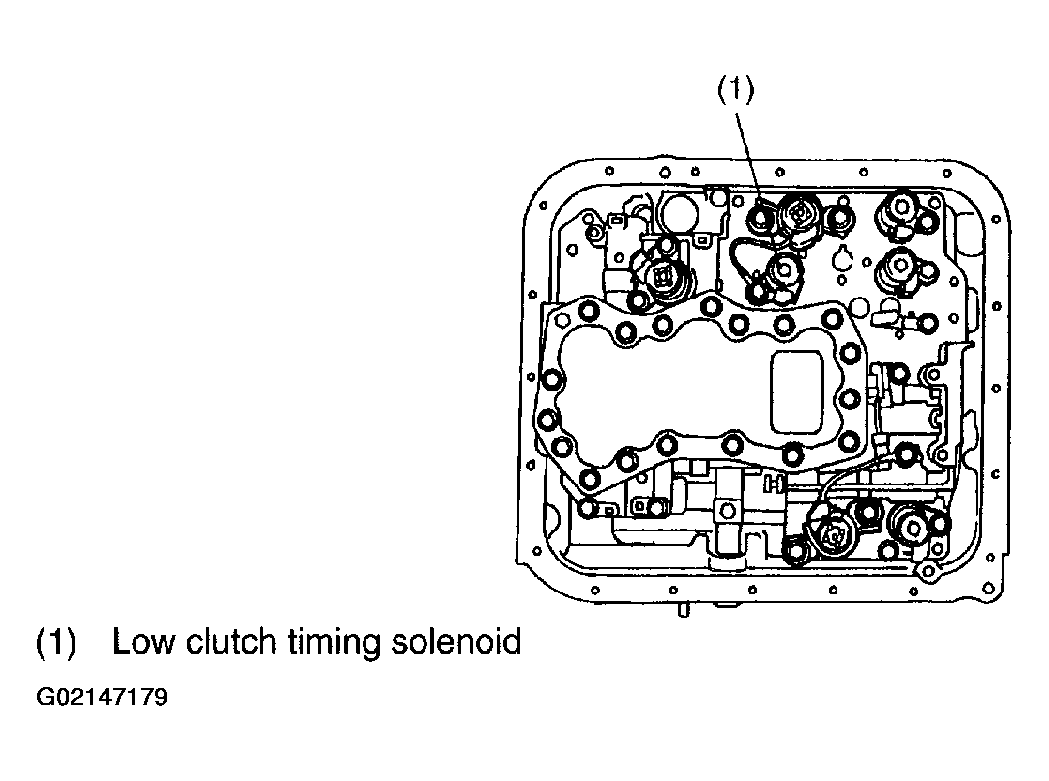

Fig 1: Identifying Low Clutch Timing Solenoid
