Oil Pump

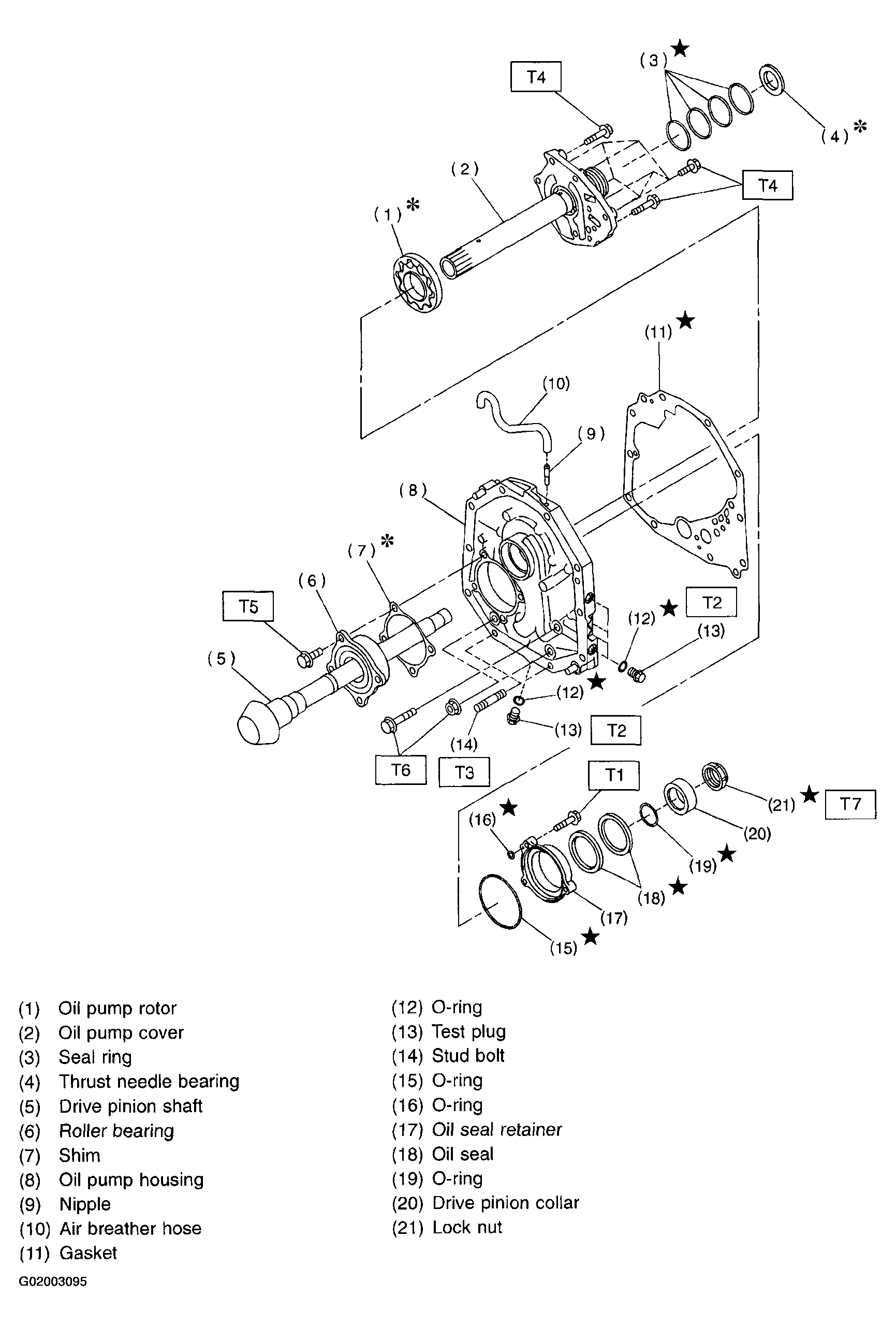

Fig 1: Identifying Oil Pump Components

Tightening torque: N.m (kg-m, ft-lb)

T1:  7+/-1 (0.7+/-0.1, 5.1+/-0.7)

T2:  13+/-1 (1.3+/-0.1, 9.4+/-0.7

T3:  18+/-5 (1.8+/-0.5, 13.0+/-3.6)

T4:  25+/-2 (2.5+/-0.2, 18.1+/-1.4)

T5:  39+/-3 (4.0+/-0.3, 28.9+/-2.2)

T6:  41+/-3 (4.2+/-0.3, 30.4+/-2.2)

T7:  121+/-5 (12.3+/-0.5, 89.0+/-3.6)
