Extension Section

NOTE: When installing new oil seal into extension case, press it with ST.

ST 498057300 INSTALLER

Install the transfer pipe to extension case.

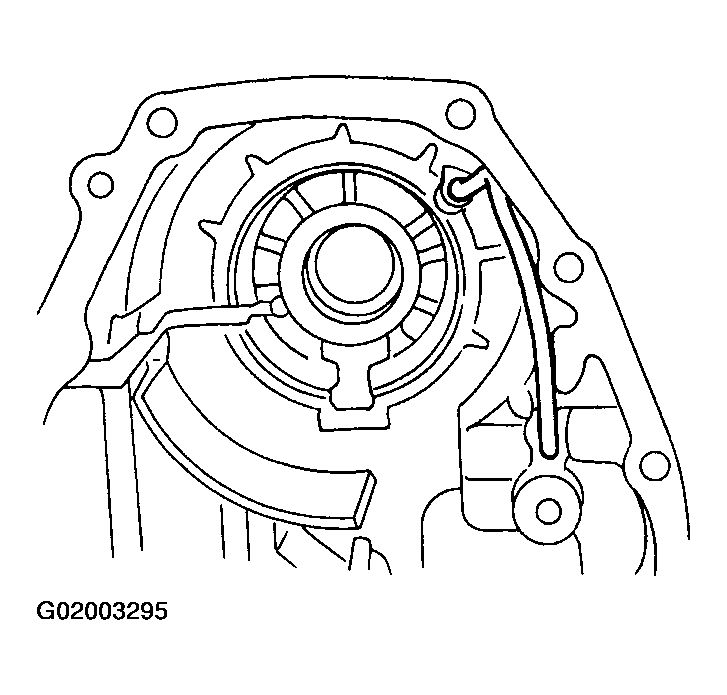

Fig 1: Installing Transfer Pipe To Extension Case
Install the transfer clutch assembly to the case.
CAUTION: Be careful not to damage the seal rings.

NOTE: Insert the clutch assembly fully into position until the bearing shoulder bottoms.

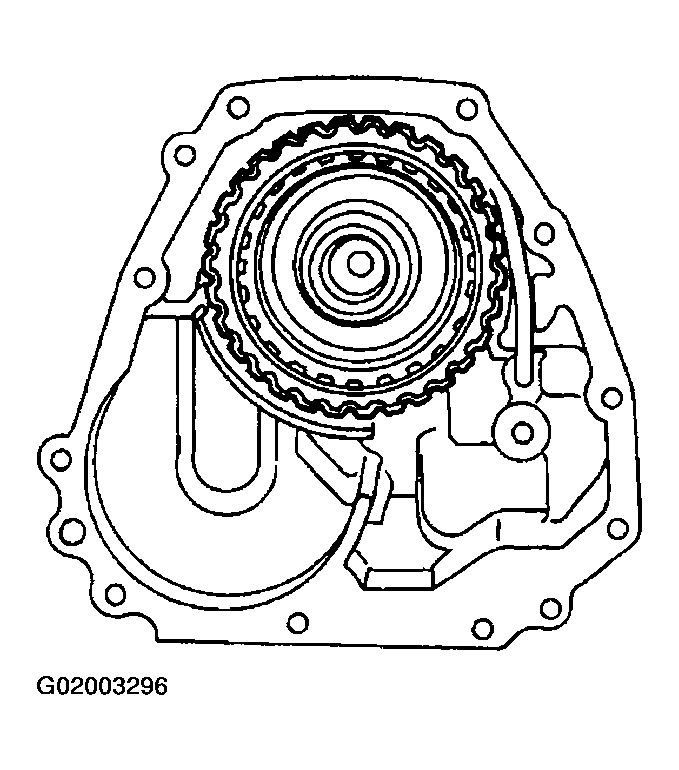

Fig 2: Installing Transfer Clutch Assembly To Case
