Separation Of Each Section

Separation of torque converter clutch case and transmission case sections
CAUTION:
- Be careful not to damage the oil seal and bushing inside the torque converter clutch case by the oil pump cover.
- Be careful not to lose the rubber seal.
NOTE: Separate these cases while tapping lightly on the housing.

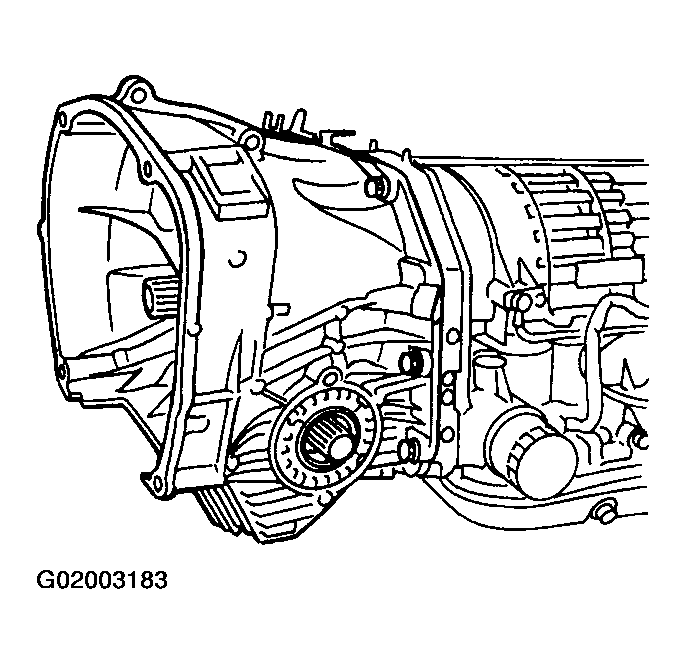

Fig 1: Separating 2 Front Sections Of Transmission Case
Separation of transmission case and extension sections
1. Remove vehicle speed sensor 1 (rear).

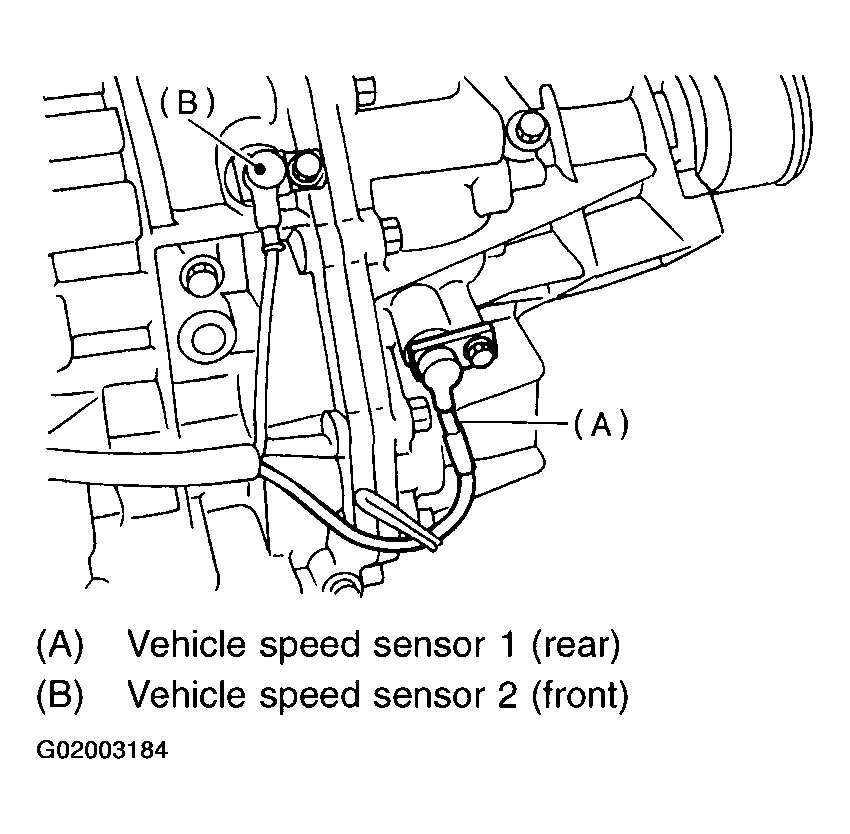

  Fig 2: Removing Vehicle Speed Sensor 1 (Rear)
2. Separation of transmission case and extension case sections

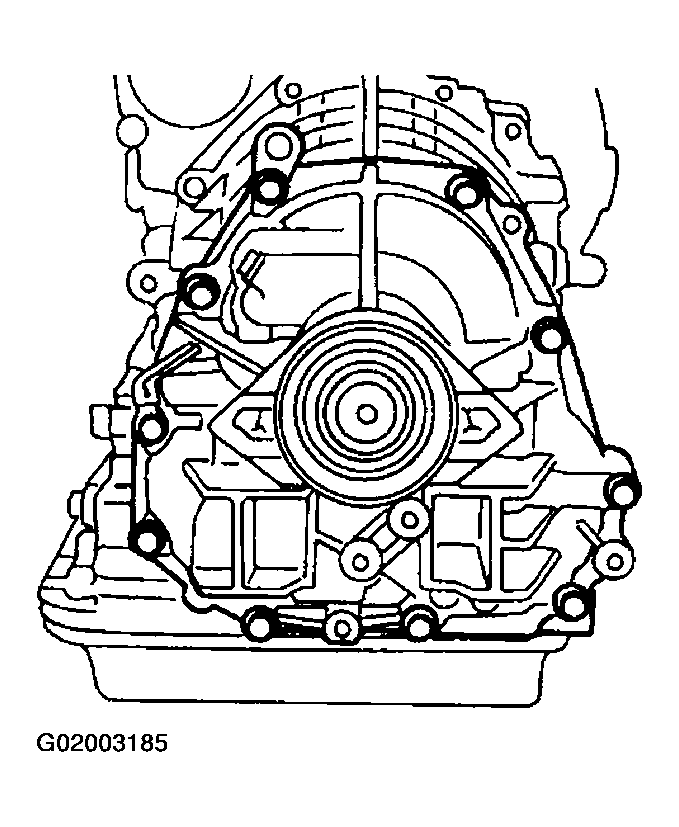

  Fig 3: Identifying Transmission Case To Extension Case Section Fasteners
