Reduction Drive Gear Assembly: Assembly
- Press-fit the reduction drive gear to the shaft.
- Press-fit the ball bearing to the reduction drive gear.

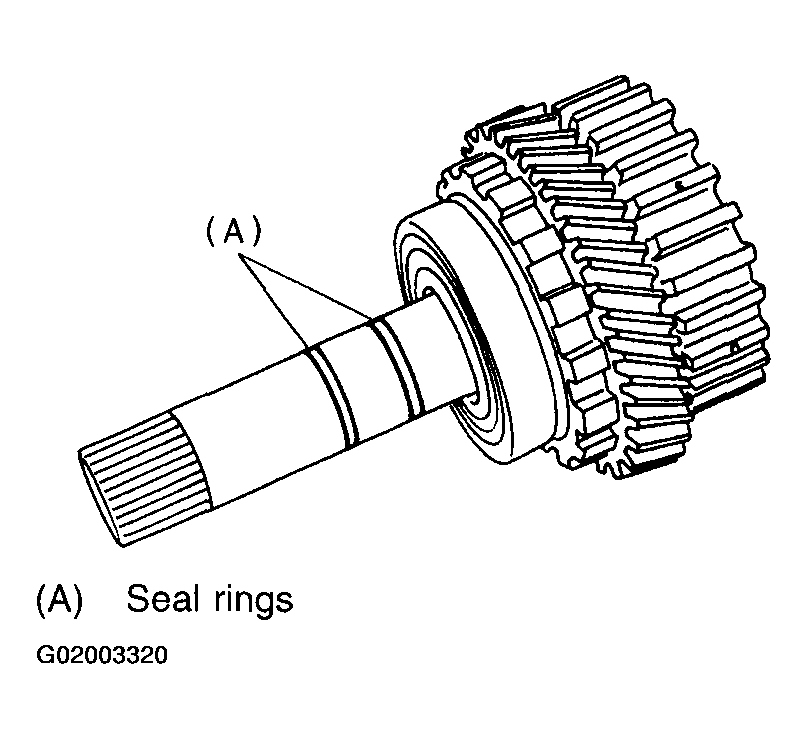

- Attach two seal rings.
NOTE:
To make subsequent assembly easier, apply vaseline to the grooves of the shaft and to the exterior of the seal ring.
