Reduction Drive Gear: Assembly: AWD

  1. Press-fit the reduction drive gear to the shaft.
  2. Press-fit the ball bearing to the reduction drive gear.
  3. Attach two seal rings.
    NOTE: To make subsequent assembly easier, apply vaseline to the grooves of the shaft and to the exterior of the seal ring.

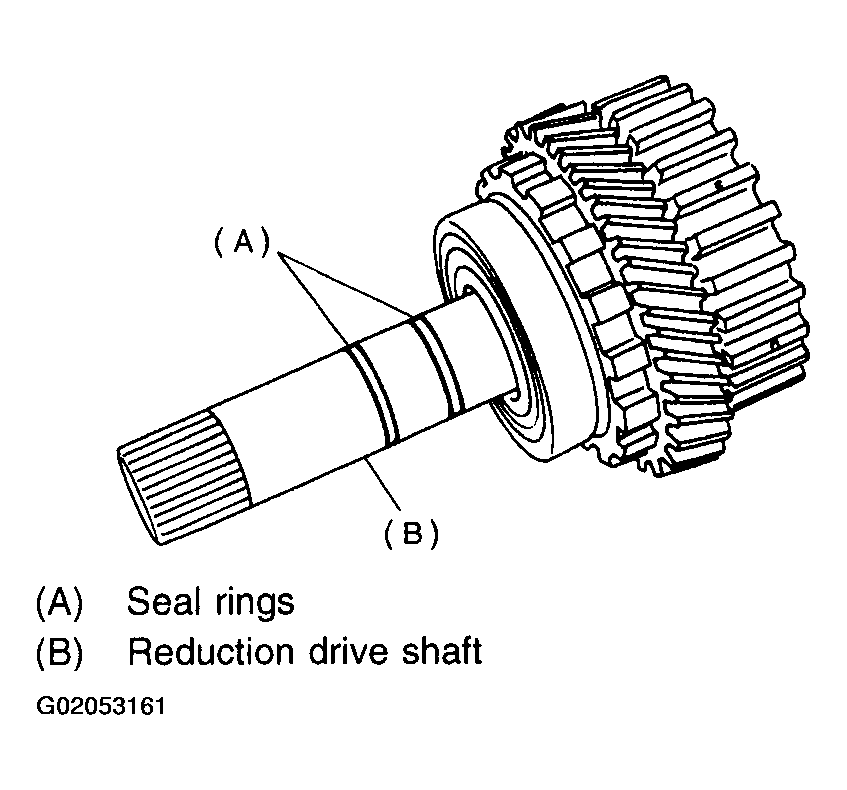

    Fig 1: Attaching Seal Rings
    G02053161
