Mt Model

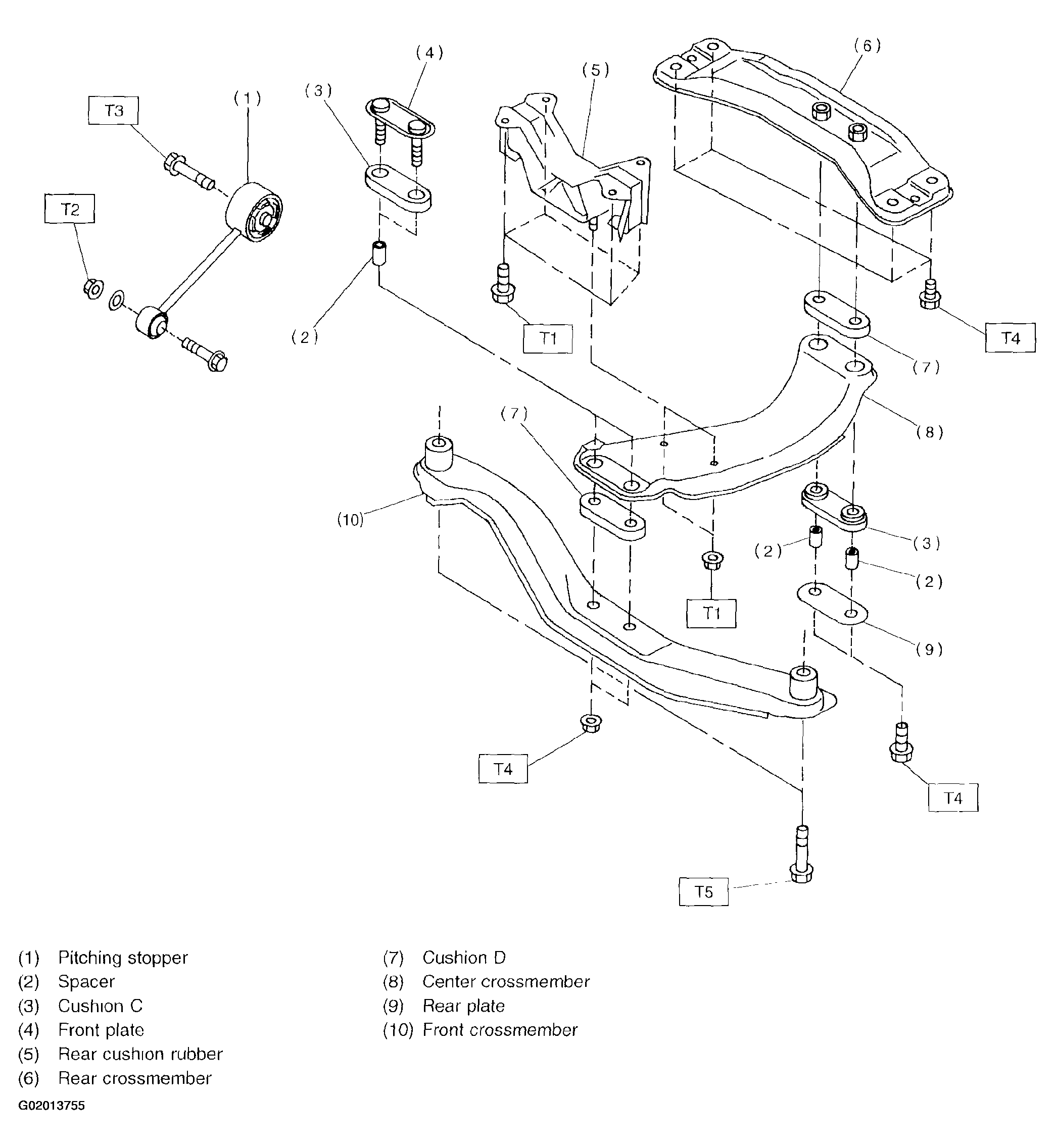

Fig 1: Identifying MT Transmission Mounting Components
G02013755

Tightening torque: N.m (kg-m, ft-lb)

  1. T1:  34+/-5 (3.5+/-0.5, 25.3+/-3.6)
  2. T2:  49+/-5 (5.0+/-0.5, 36.2+/-3.6)
  3. T3:  57+/-10 (5.8+/-1.0, 42+/-7)
  4. T4:  69+/-15 (7.0+/-1.5, 51+/-11)
  5. T5:  137+/-20 (14+/-2, 101+/-14)
