System Diagram

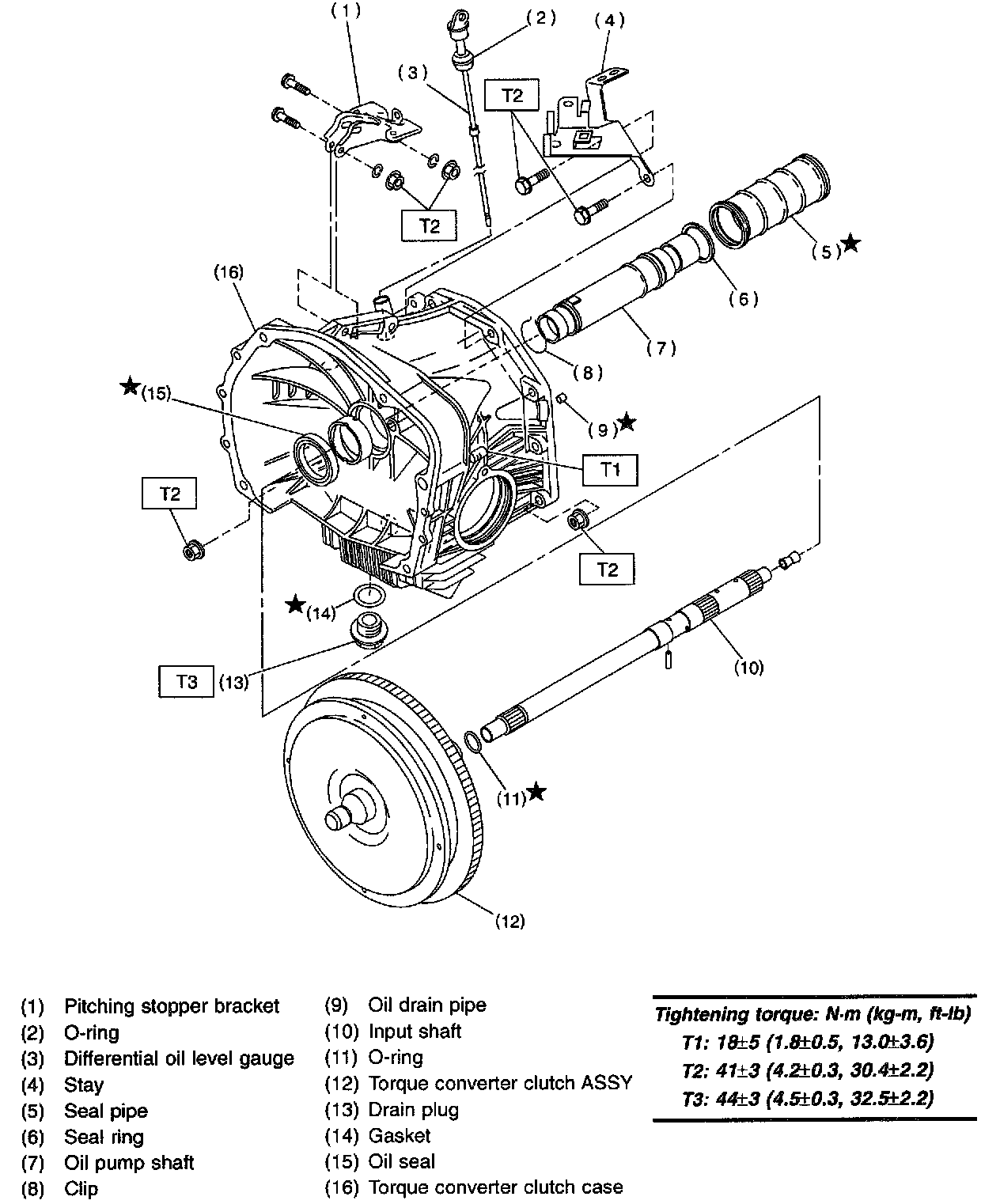

1. Torque Converter Clutch and Case

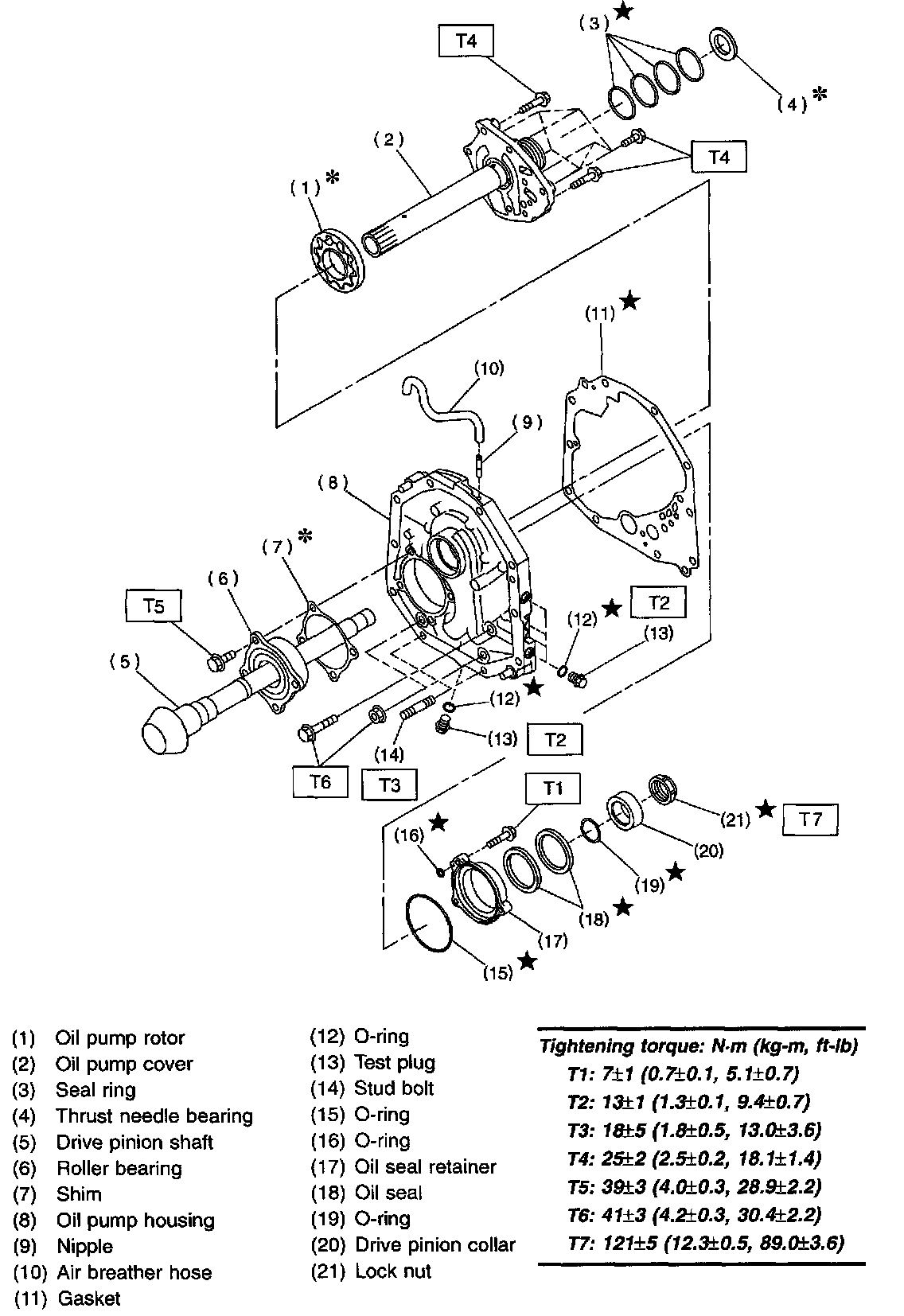

2. Oil Pump

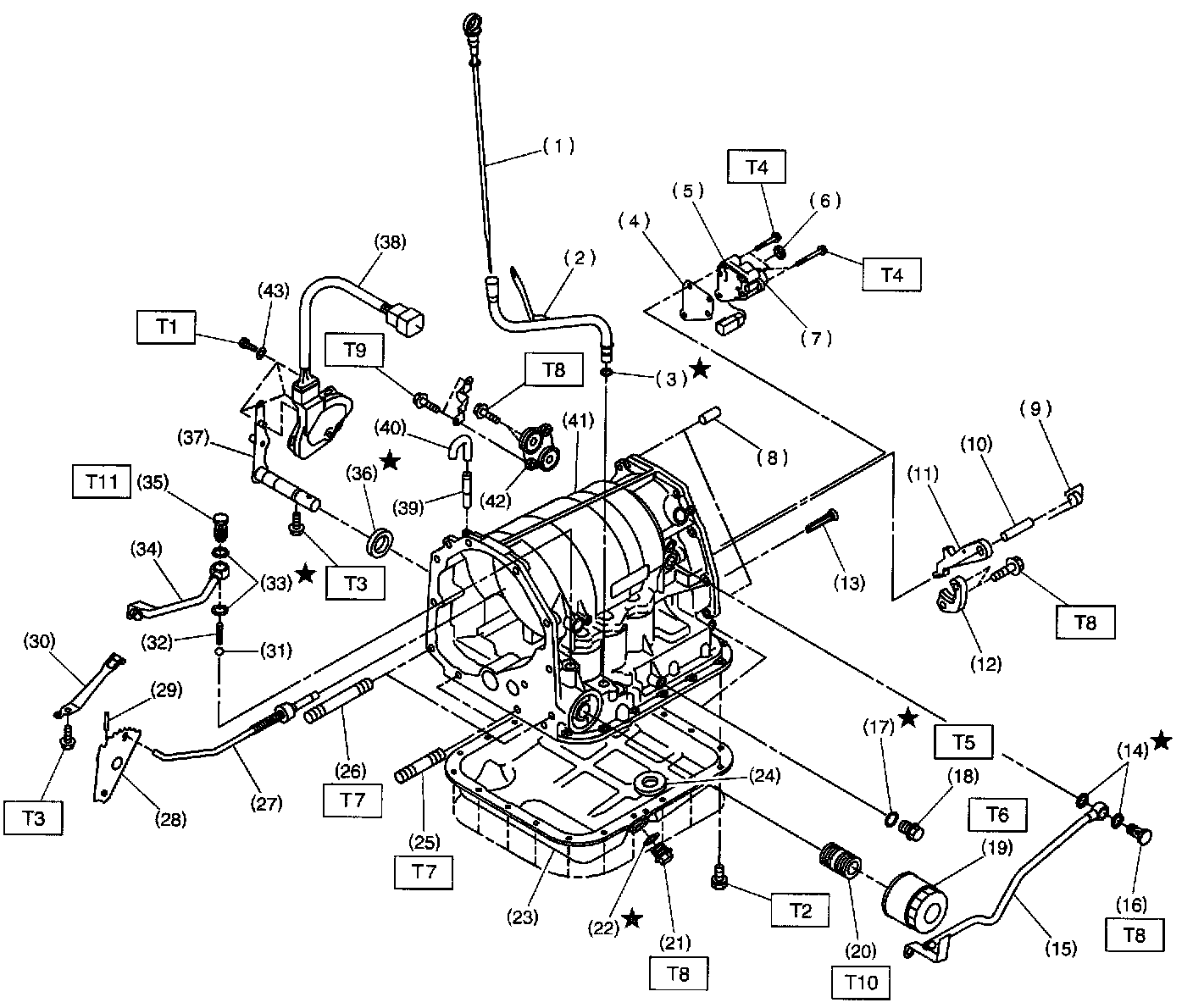

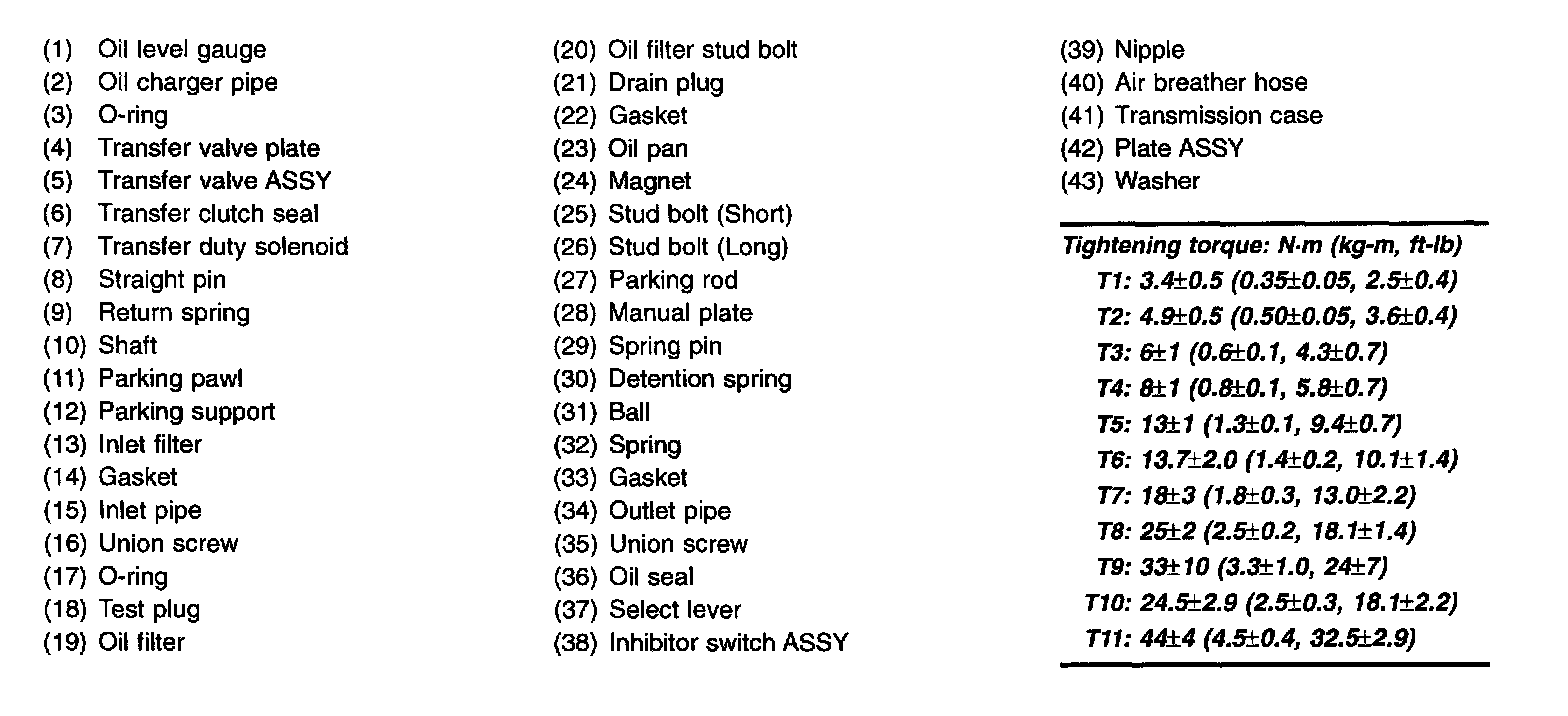

3. Transmission Case and Control Device





Diagram





Legend

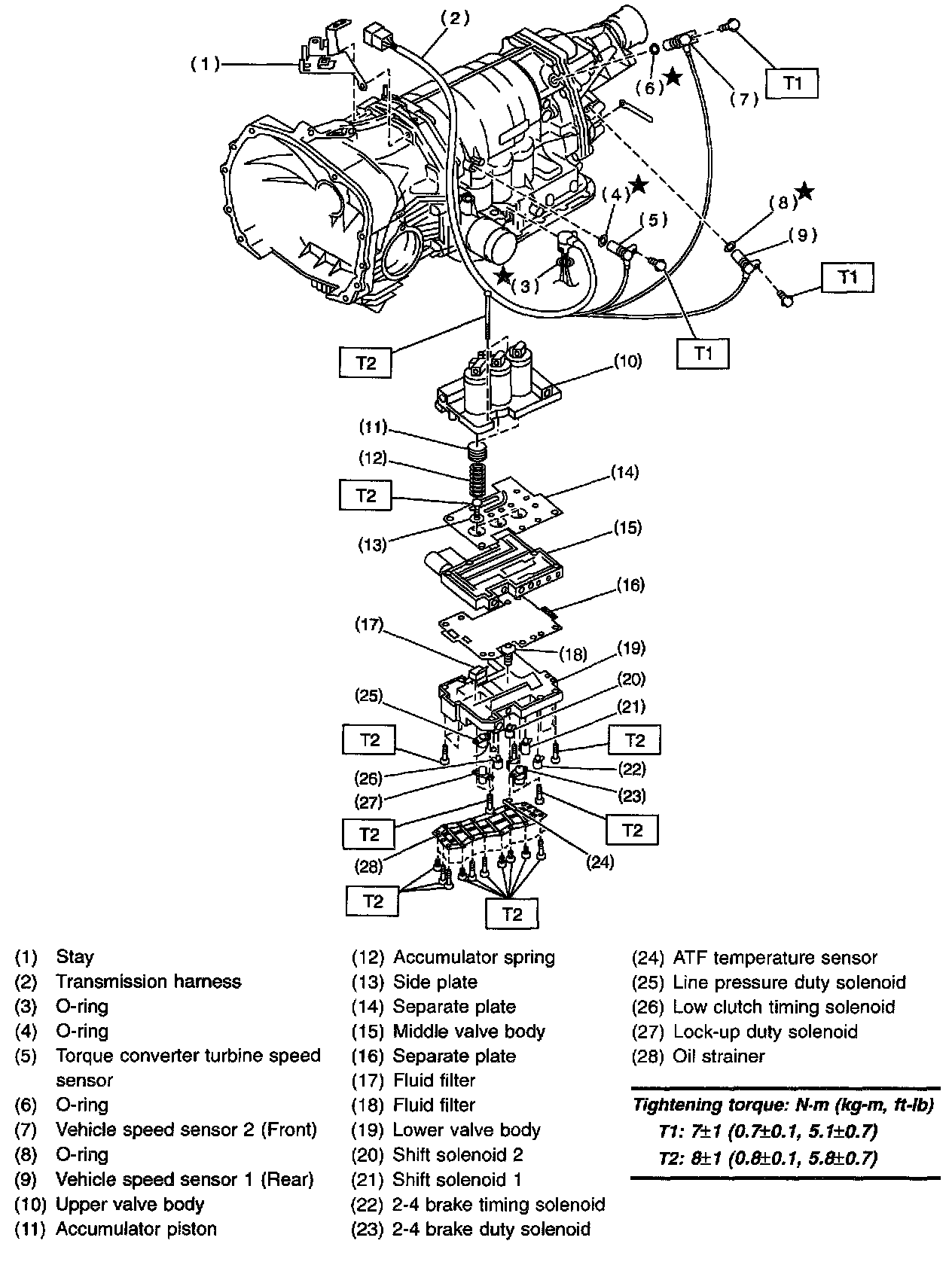

4. Control Valve and Harness Routing

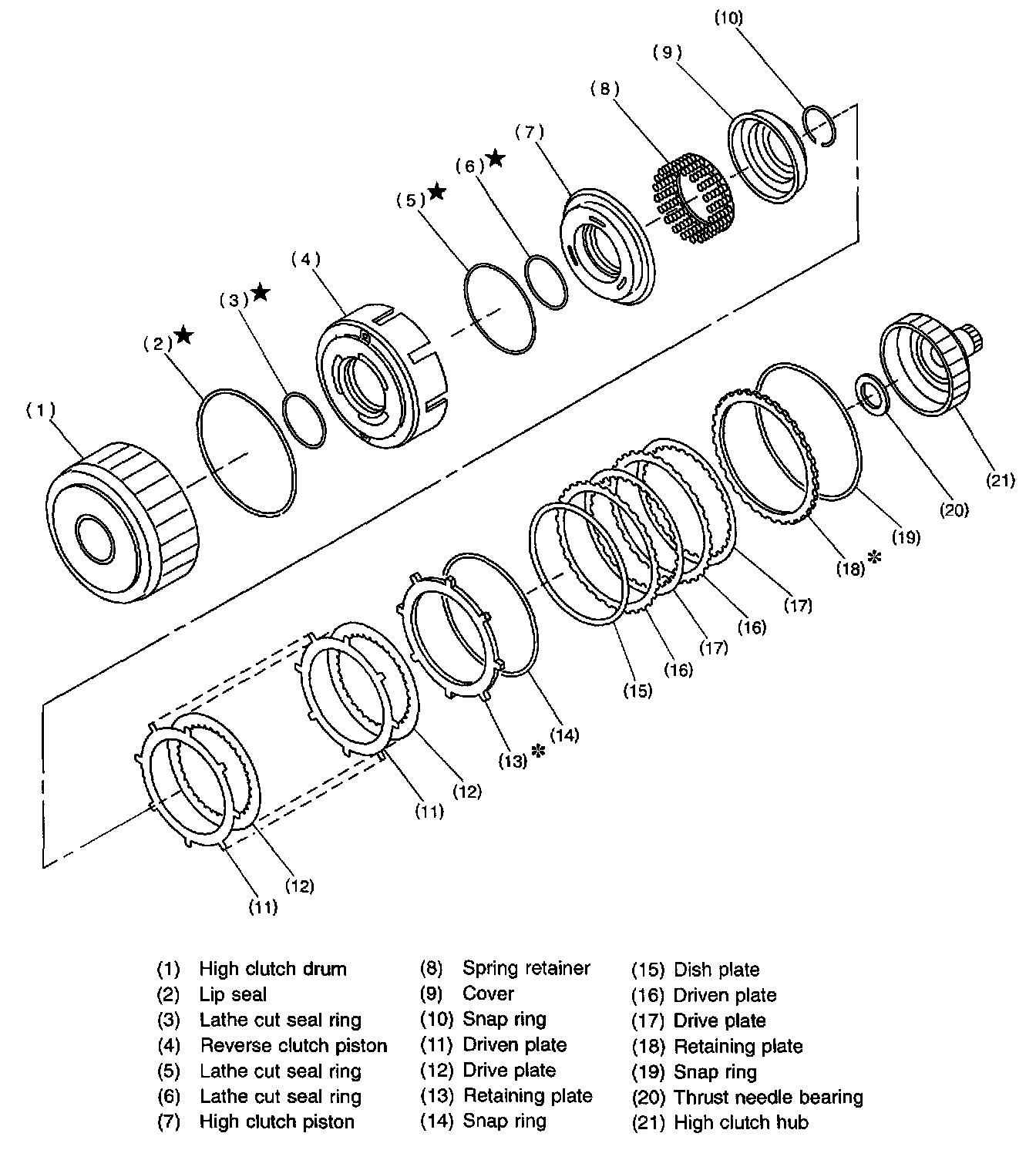

5. High Clutch and Reverse Clutch

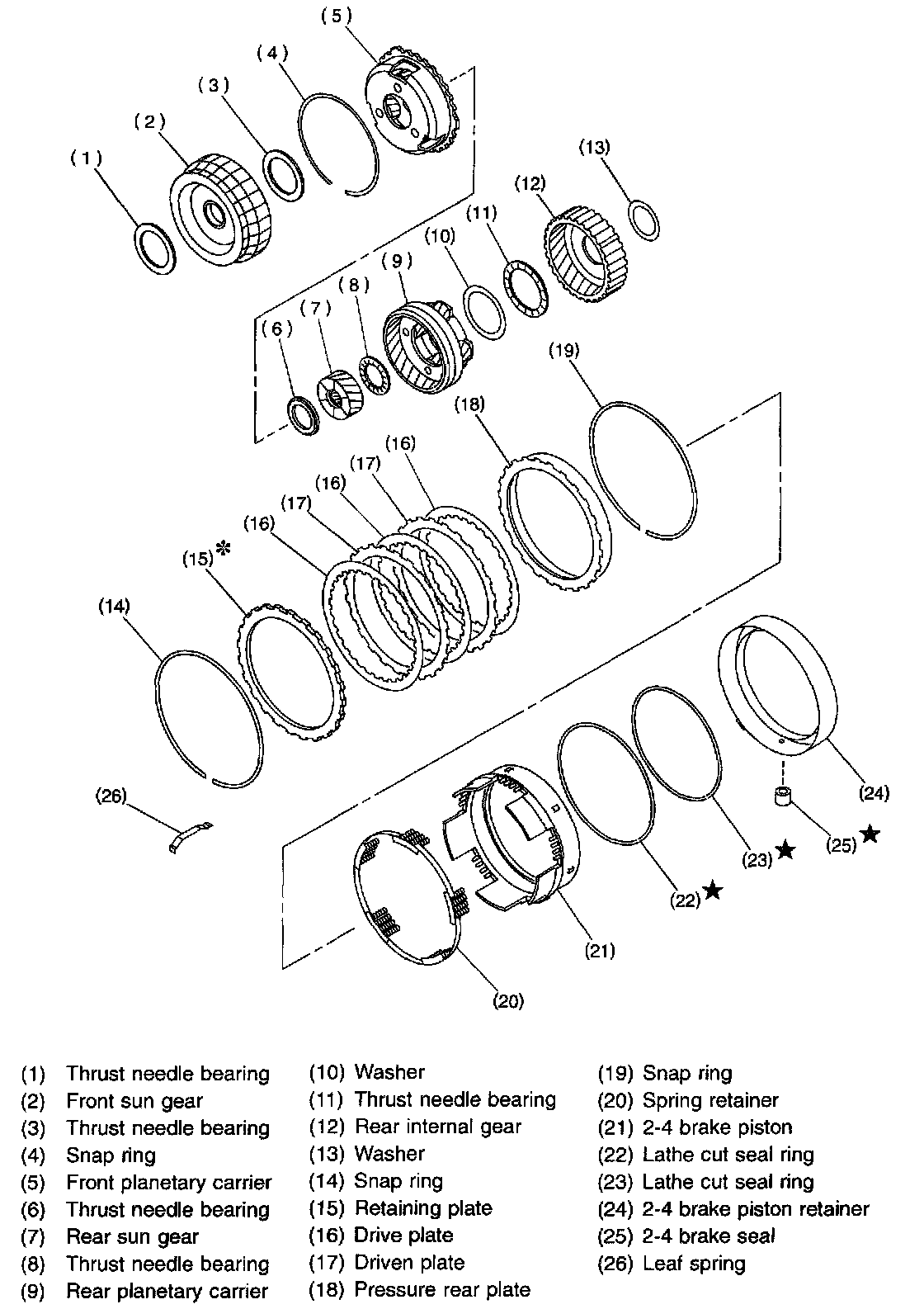

6. Planetary Gear and 2-4 Brake

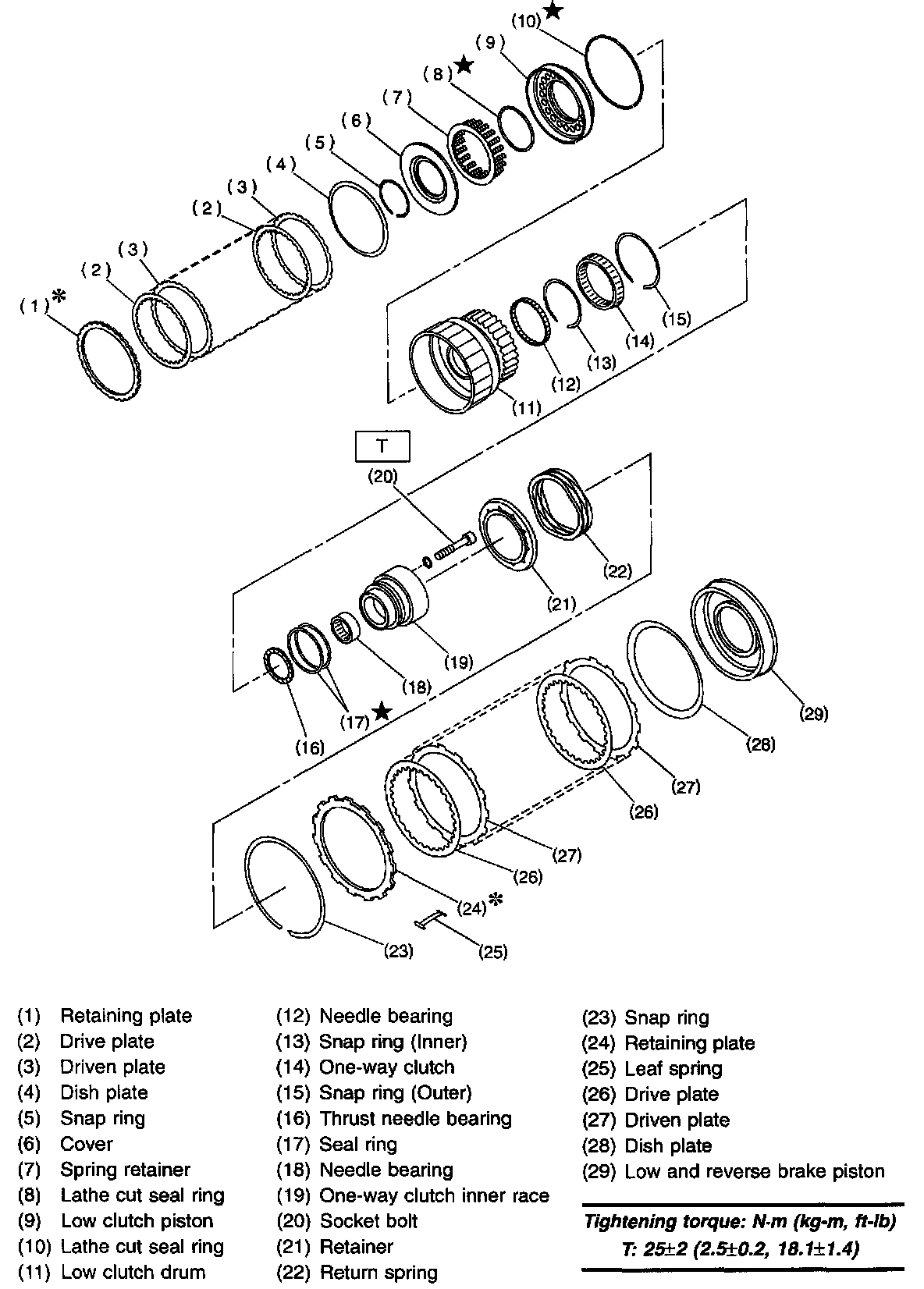

7. Low Clutch and Low & Reverse Brake

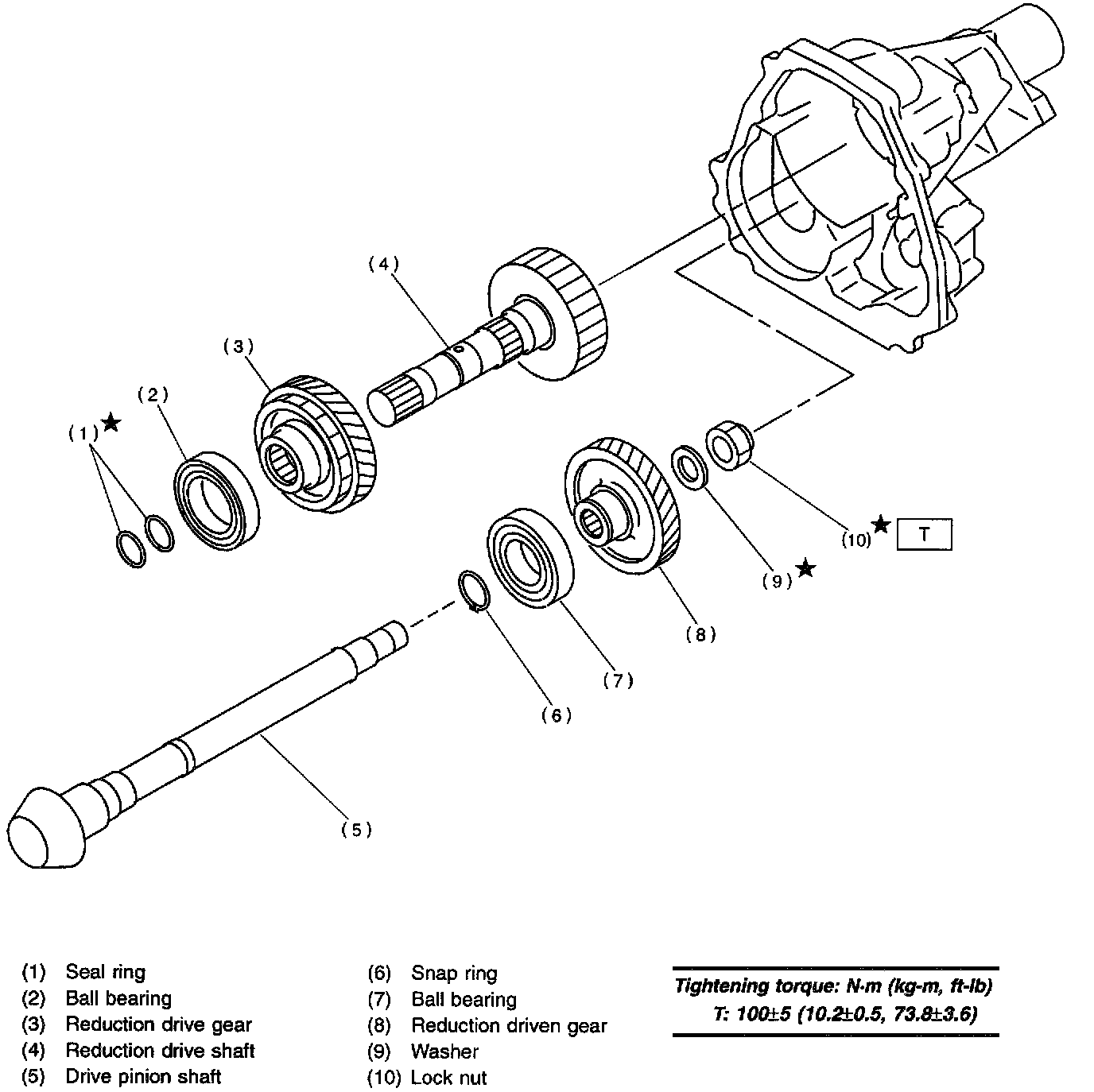

8. Reduction Gear

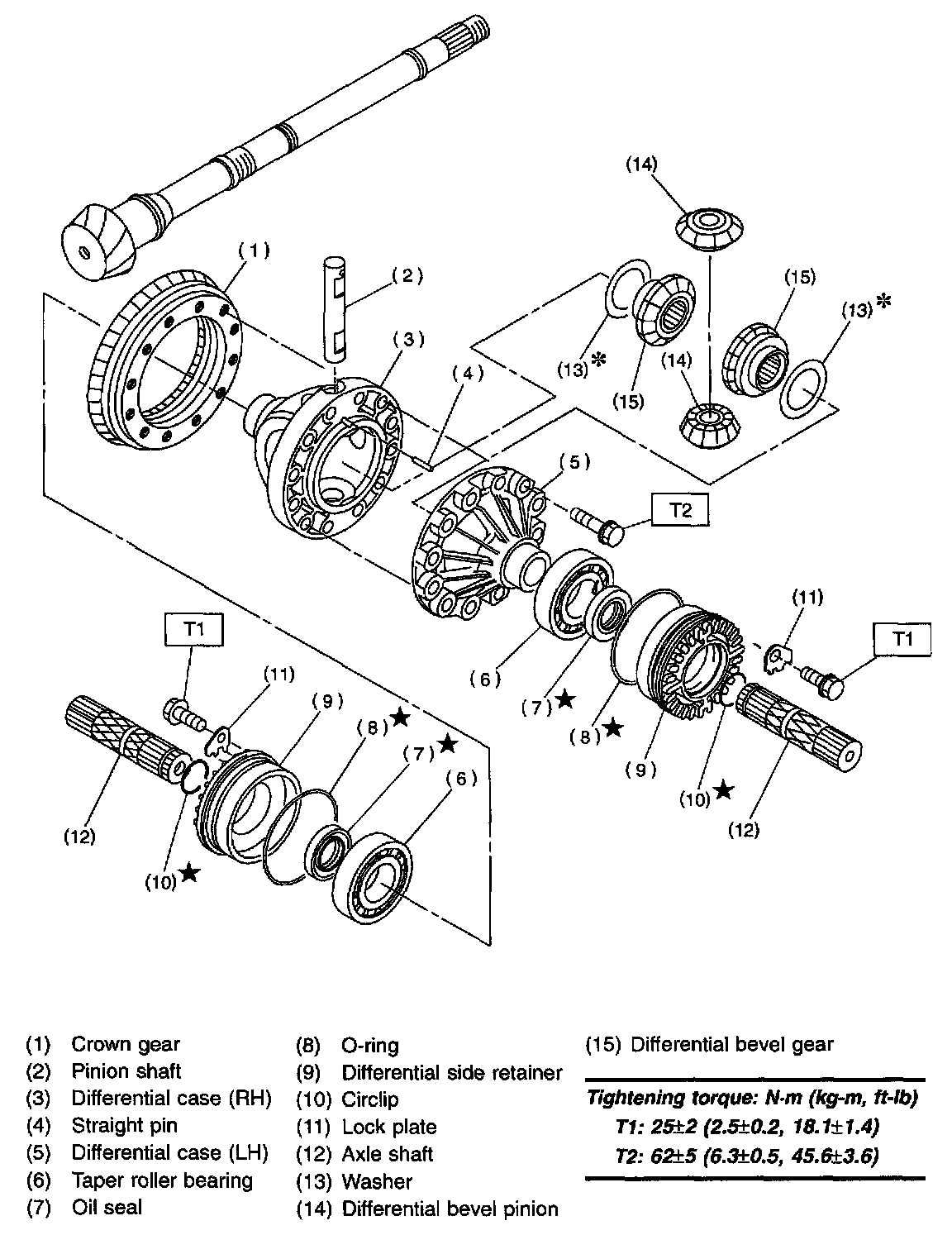

9. Differential Case

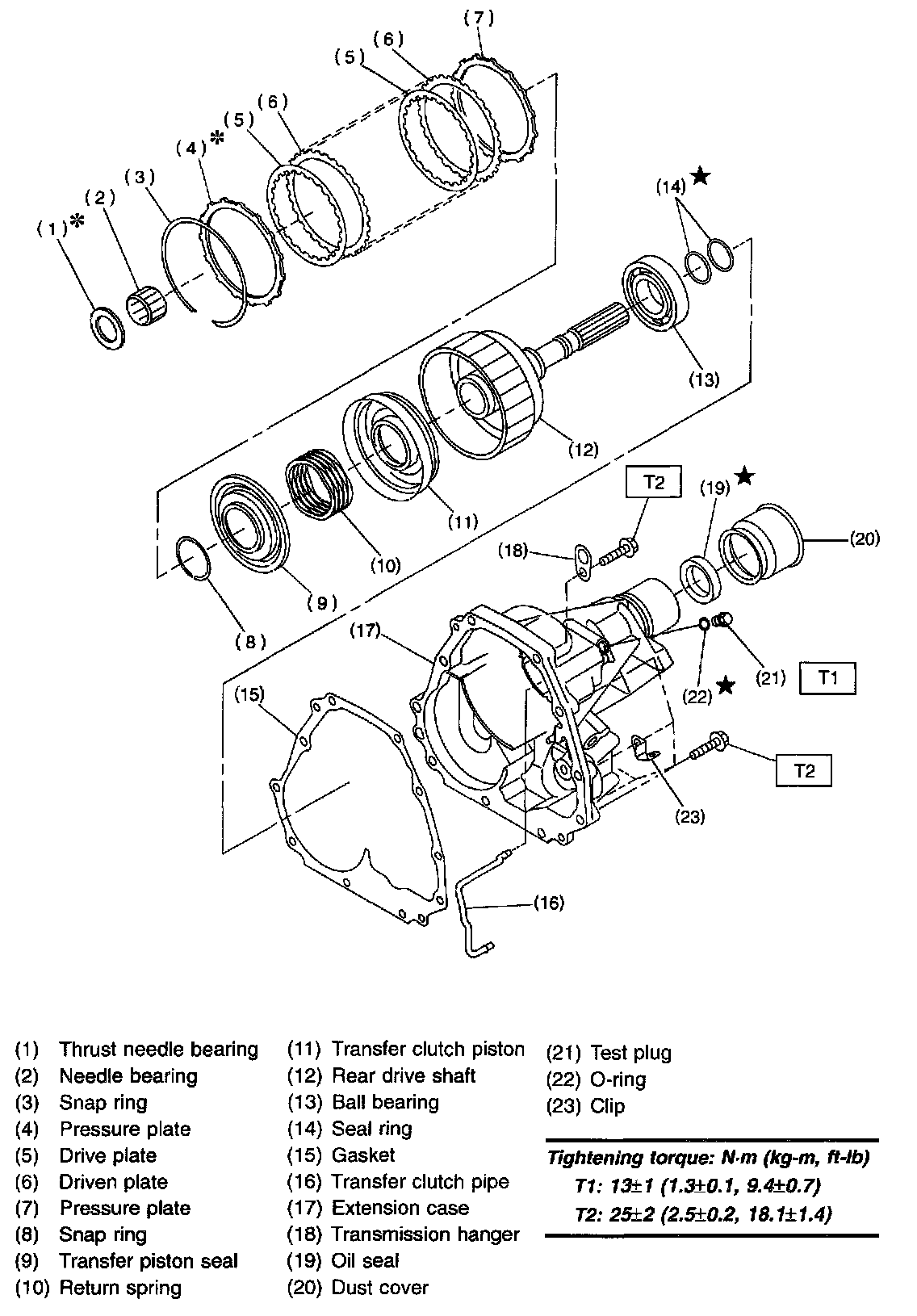

10. Transfer and Extension
