Radiator Fan Control

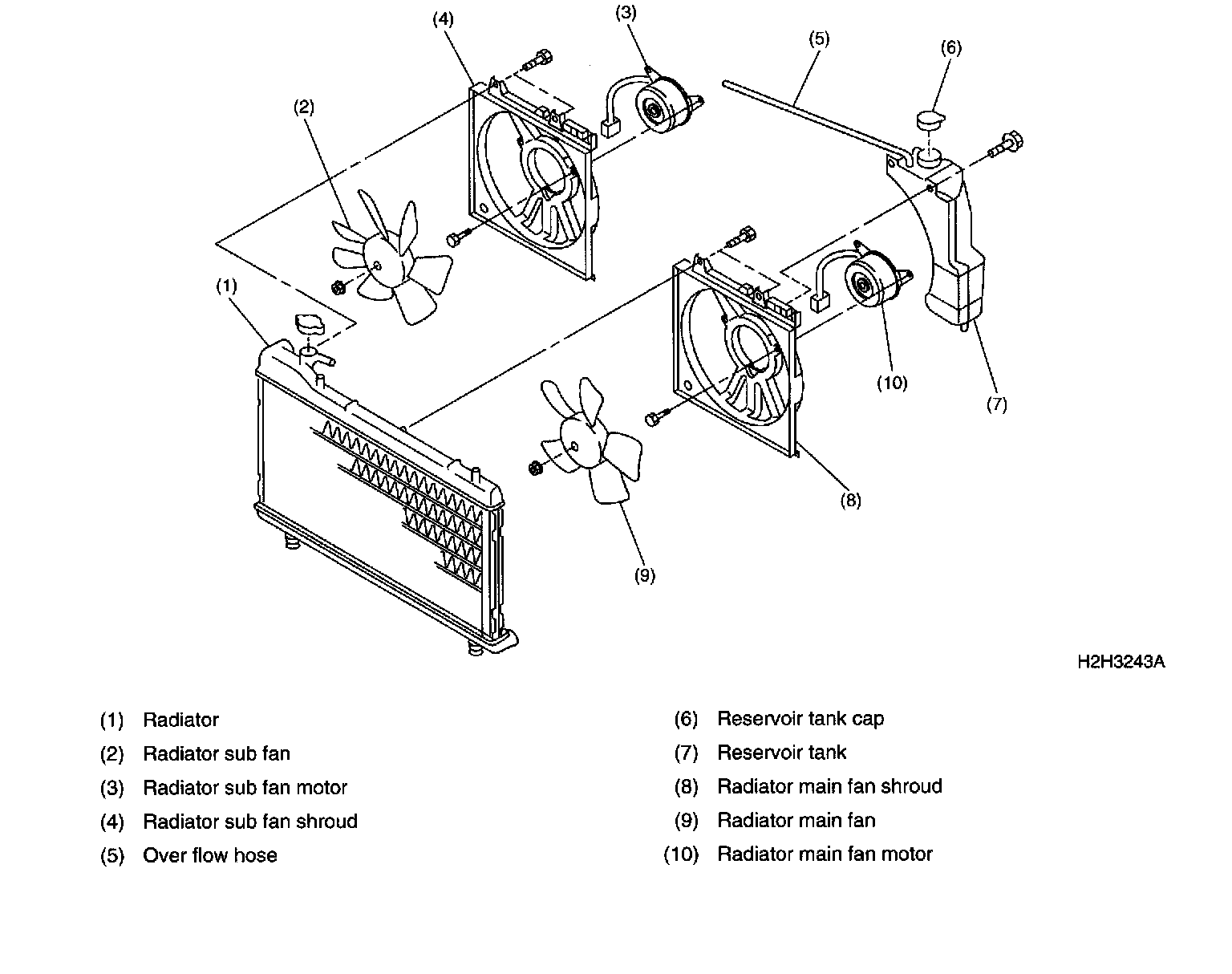

6. Radiator Fan





^ The radiator fan is made of plastic. That is installed to the electric motor, and is located onto radiator straight by shroud.
^ The vehicle without air conditioning has the radiator main fan only. Thus, the vehicle with air conditioning has the radiator sub fan, too.

WITH A/C MODELS

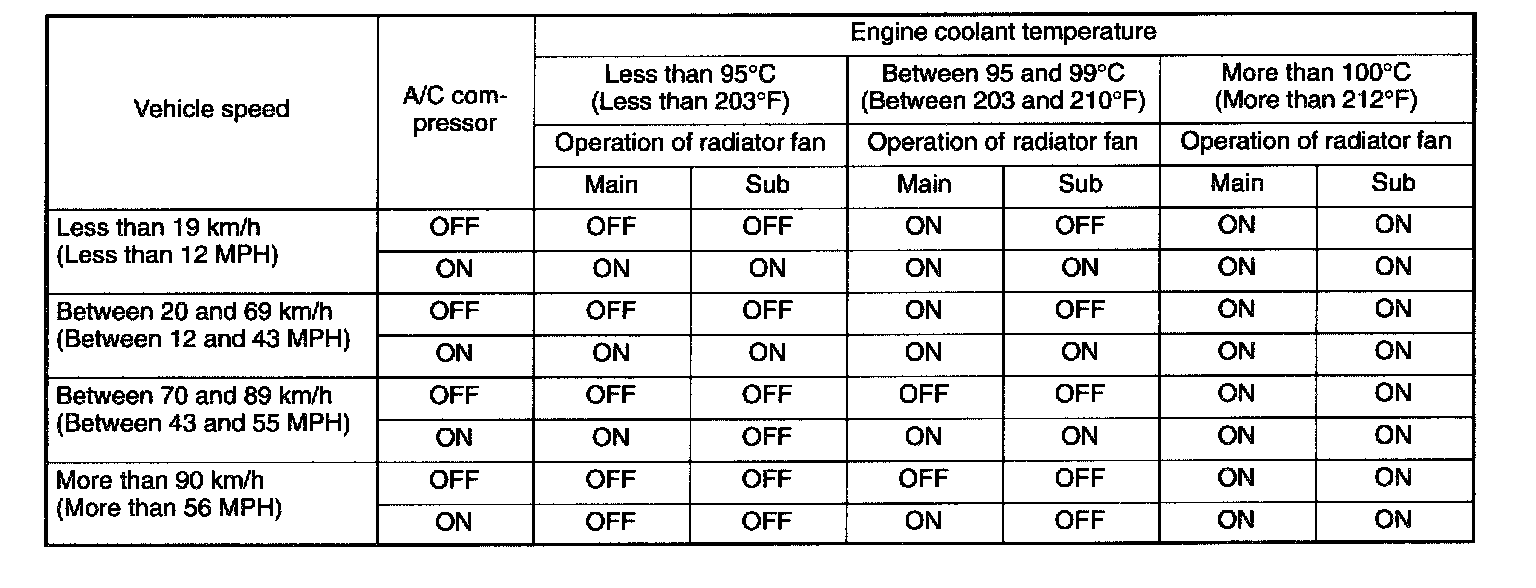

On models which are equipped with an air conditioning system, the ECM receives signals sent from the engine coolant temperature sensor, vehicle speed sensor 2 and A/C switch. These signals simultaneously turn ON or OFF the radiator main fan and radiator sub fan.
