Relay Box: Locations

Main Fuse and Relay Box

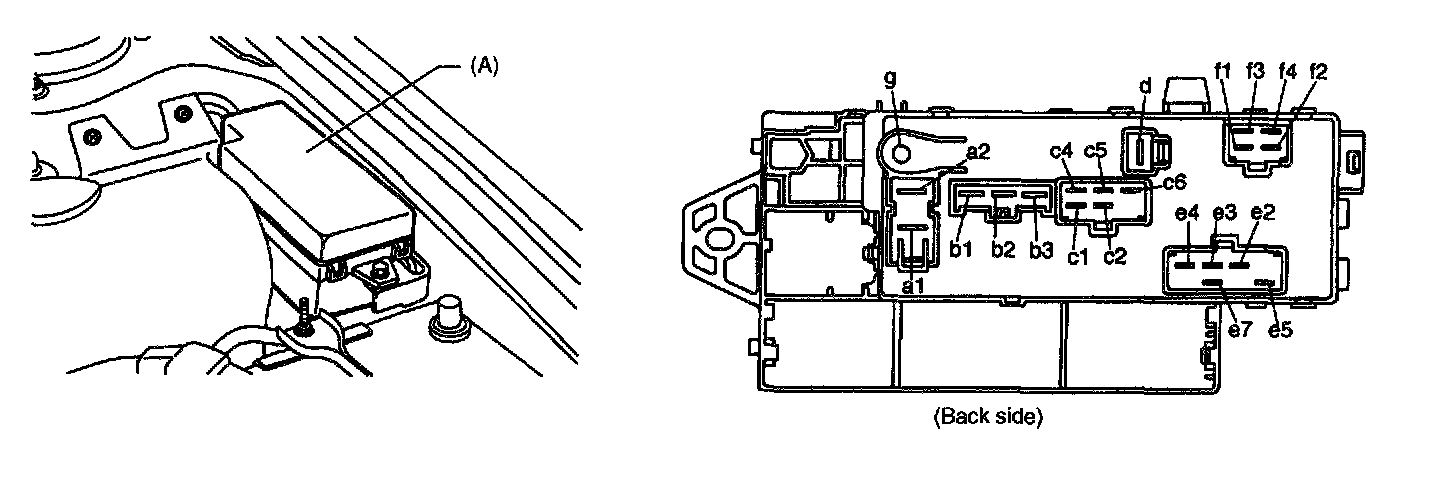

The main fuse and relay box (A) is installed at the rear of the battery on left side of the engine compartment.

The fuses, relays and fusible links are installed in the box.

NOTE: The destined connection points shown are for a typical case.
