Computers and Control Systems: Locations

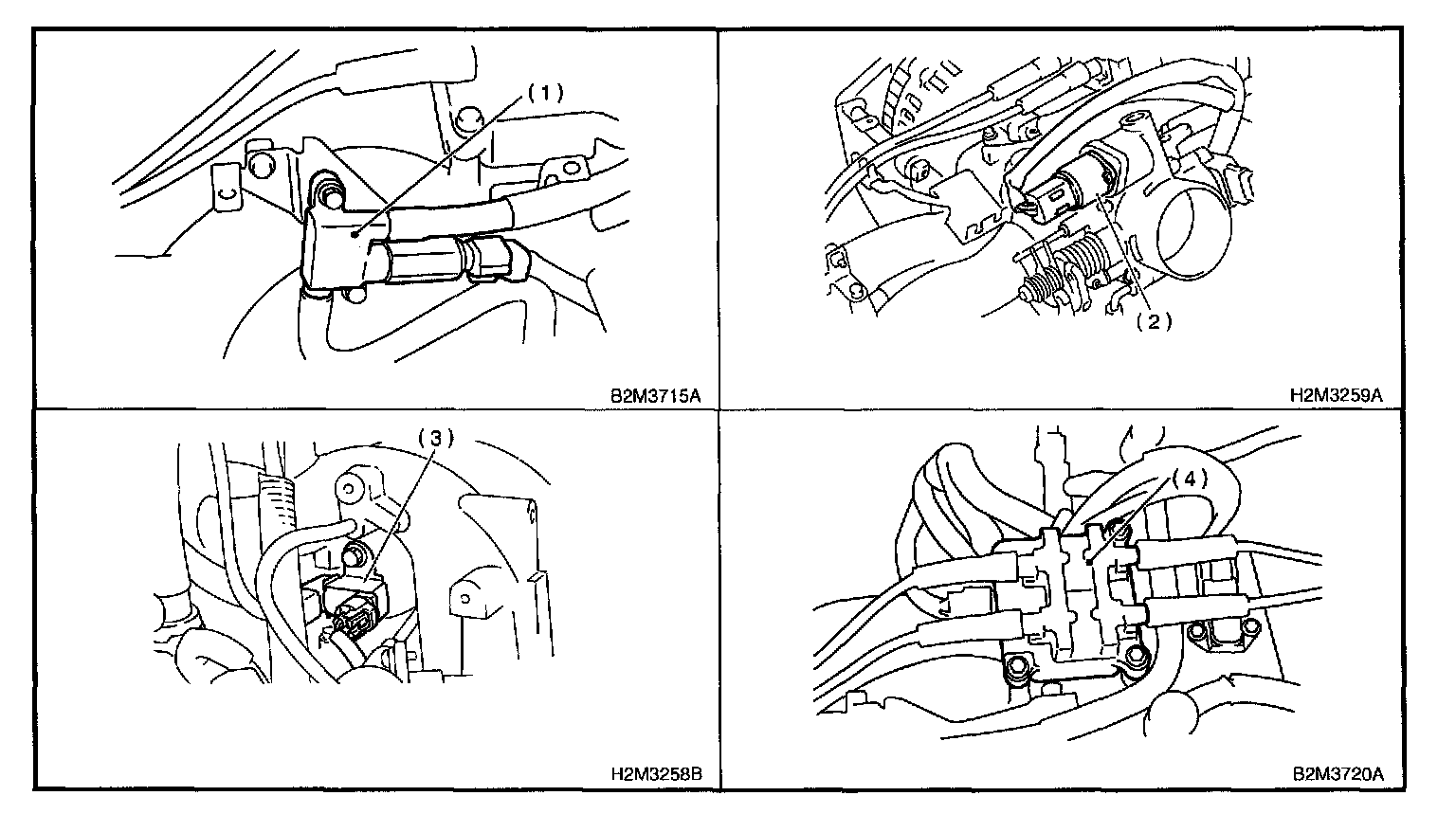

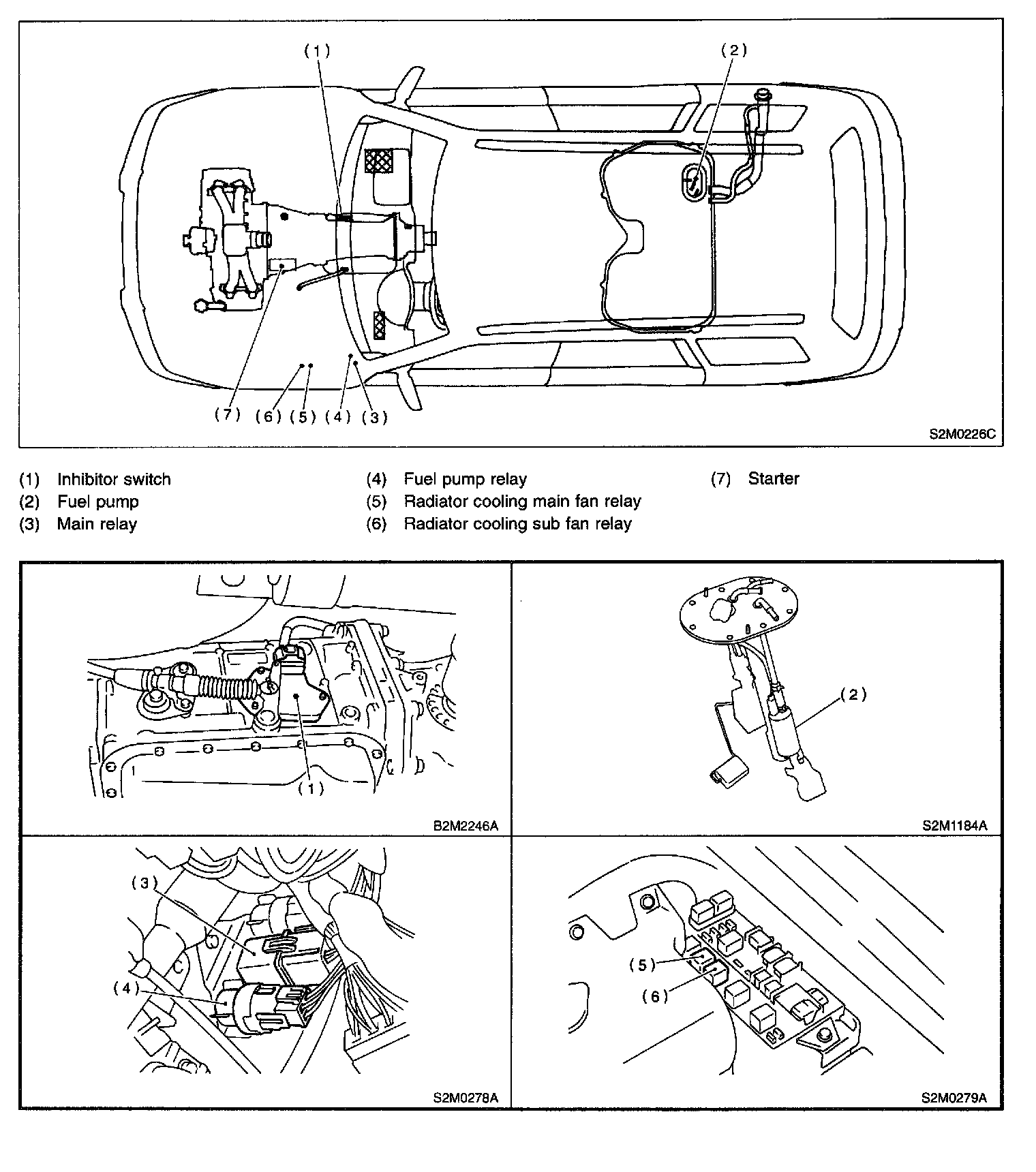

ELECTRICAL COMPONENT LOCATION

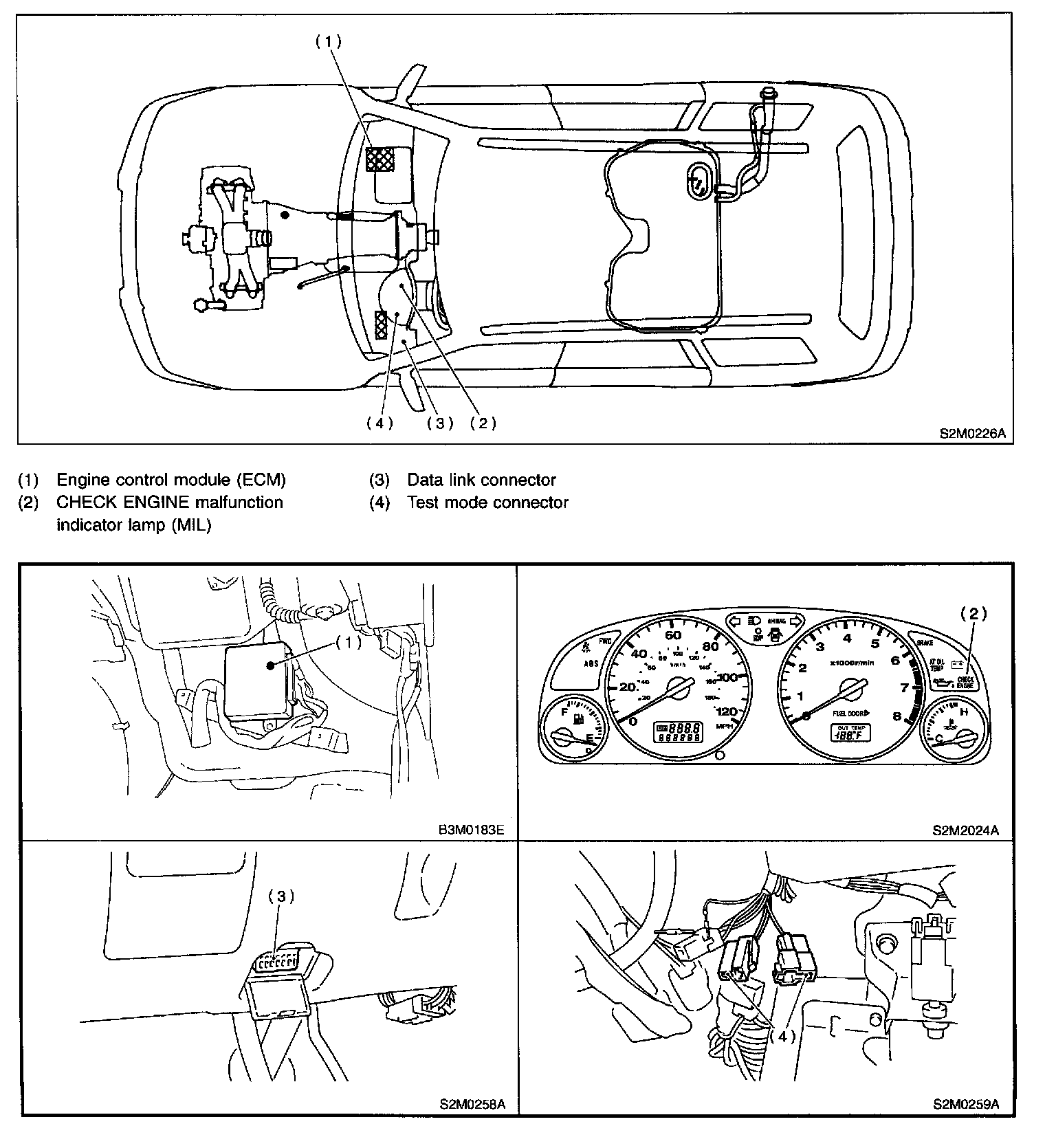

MODULE




Part 2:

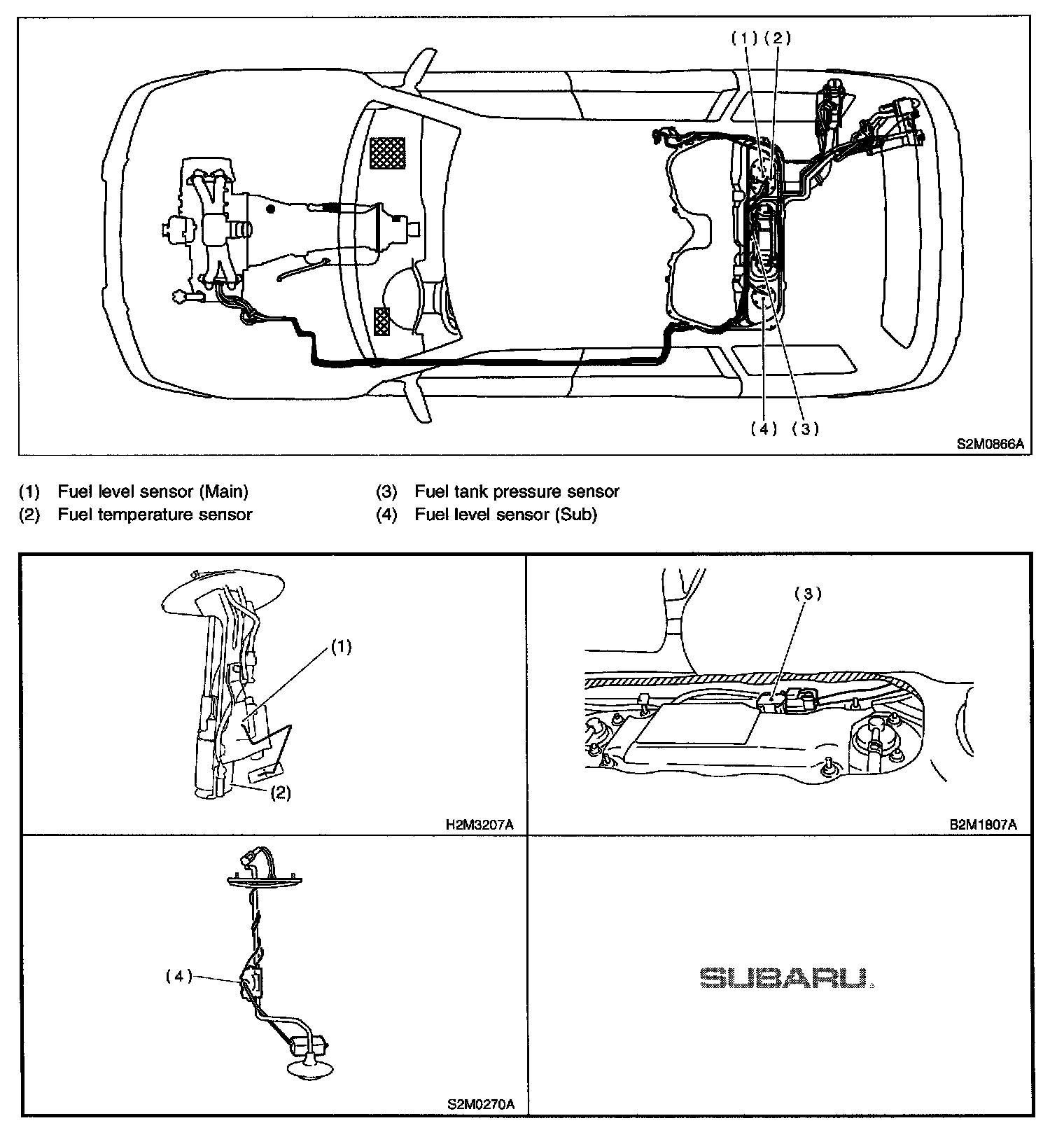

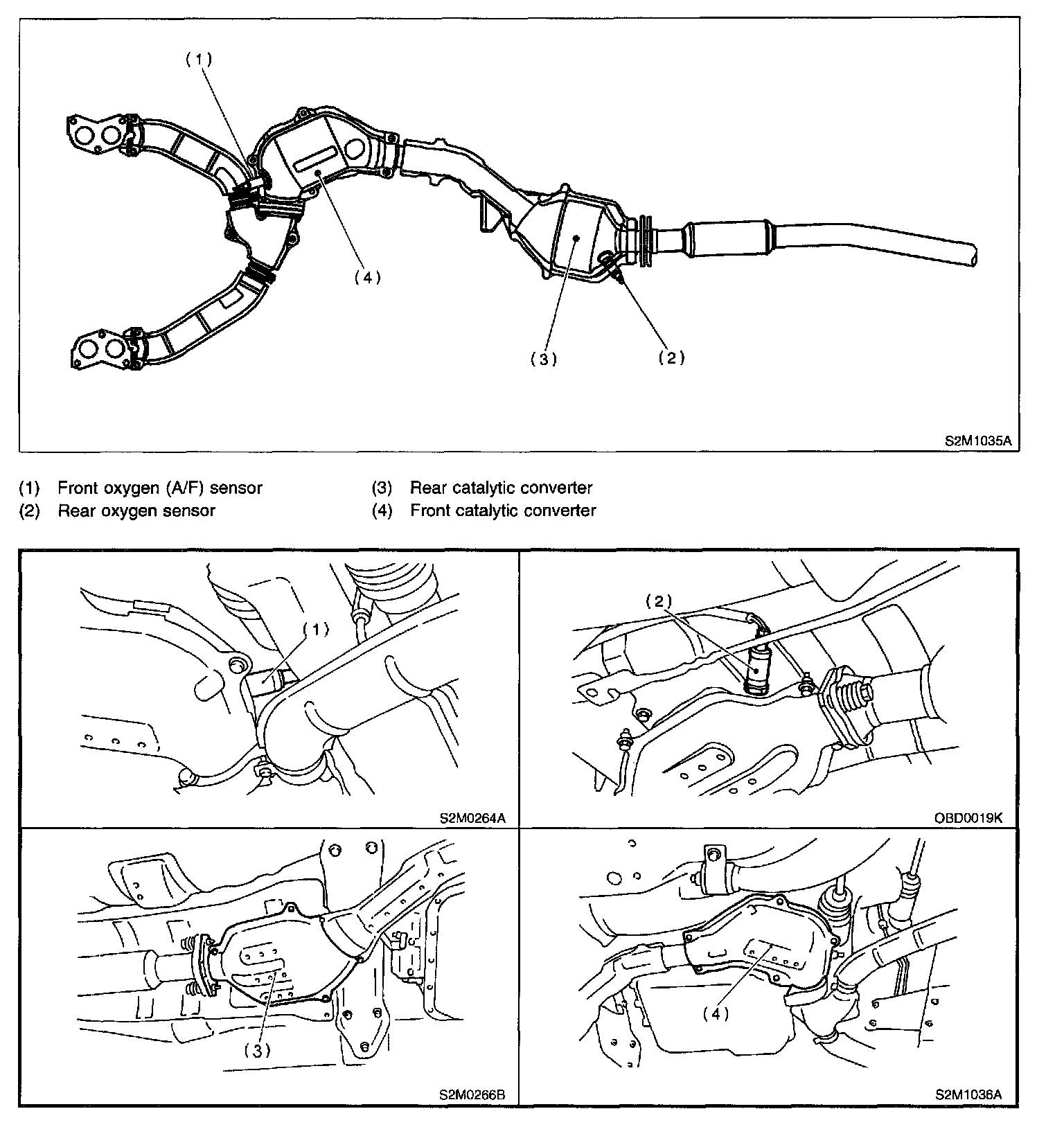

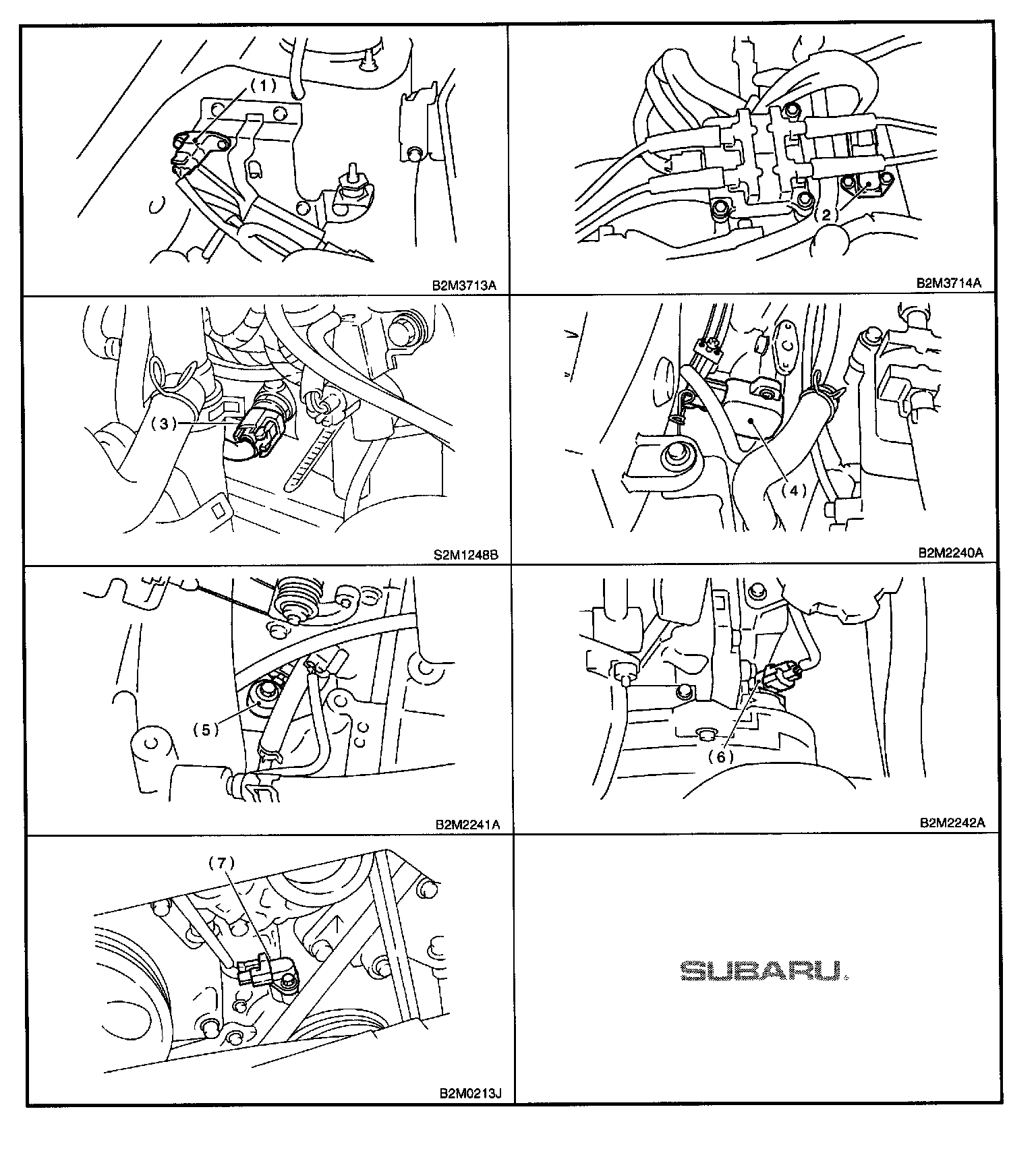

ENGINE SENSOR




Part 2:







Part 1:

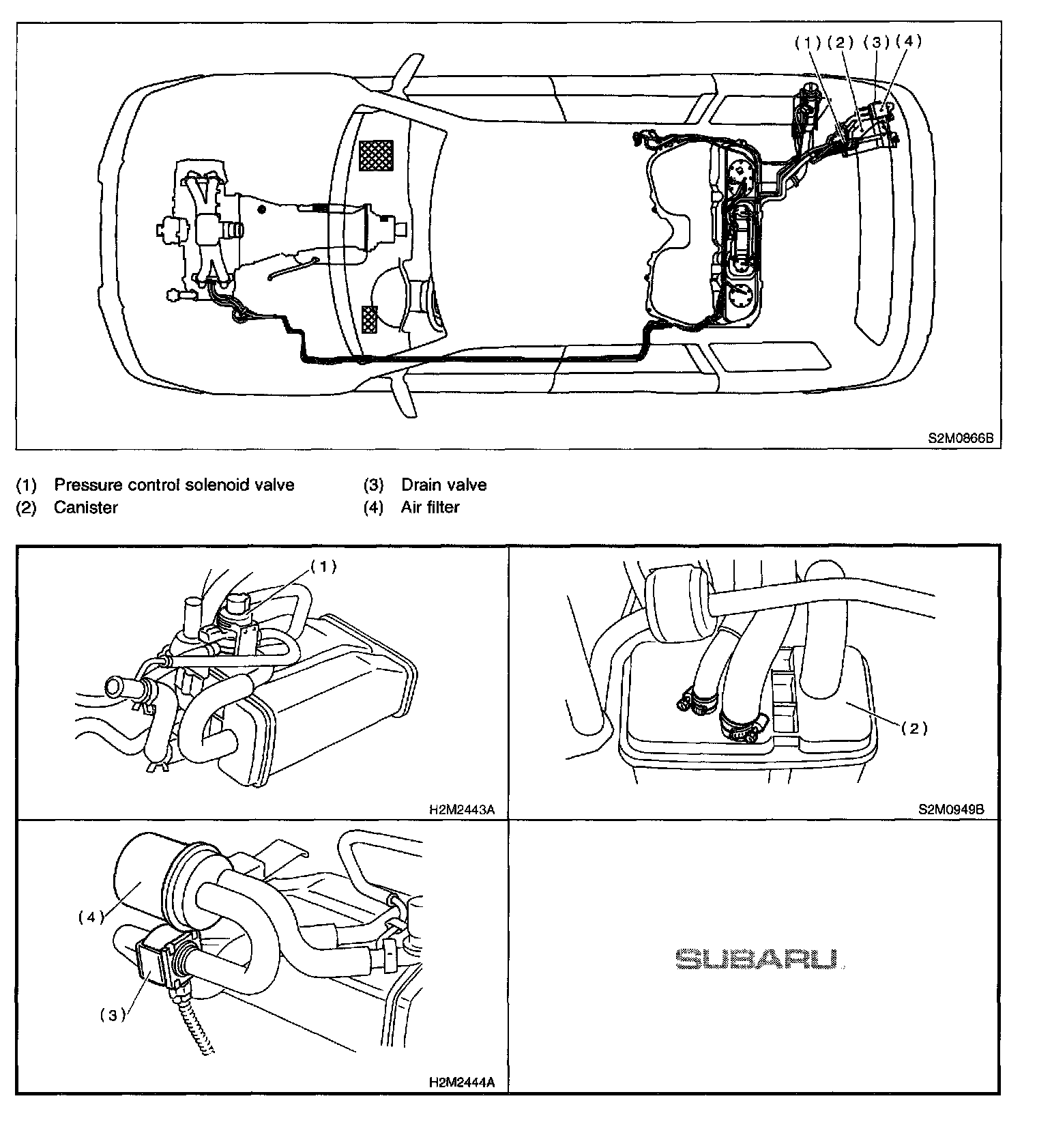

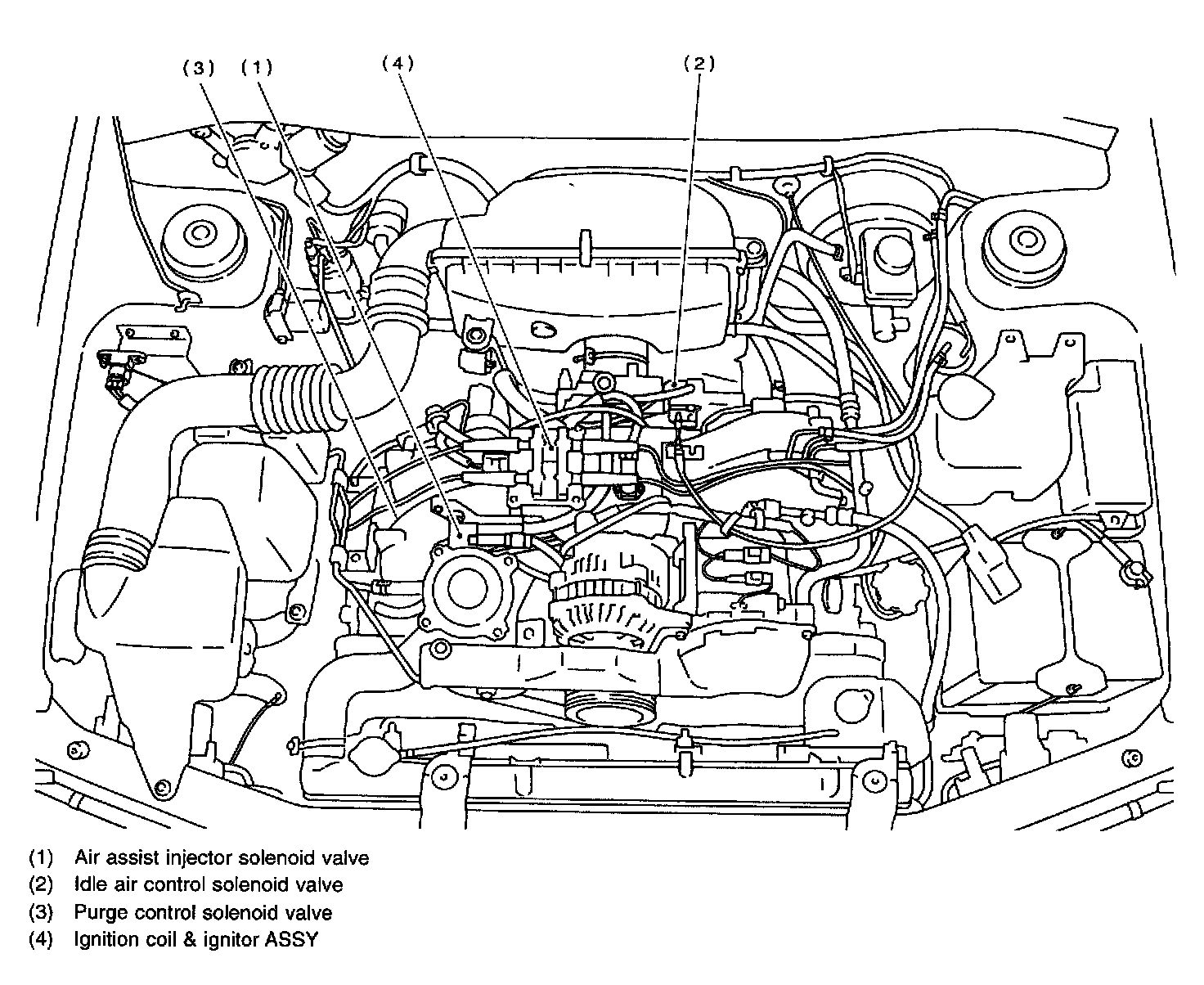

SOLENOID VALVE, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
