Check FWD Switch

P: CHECK FWD SWITCH.
DIAGNOSIS:
^ LED does not come on even if FWD switch is ON.
^ FWD switch circuit is open or short.

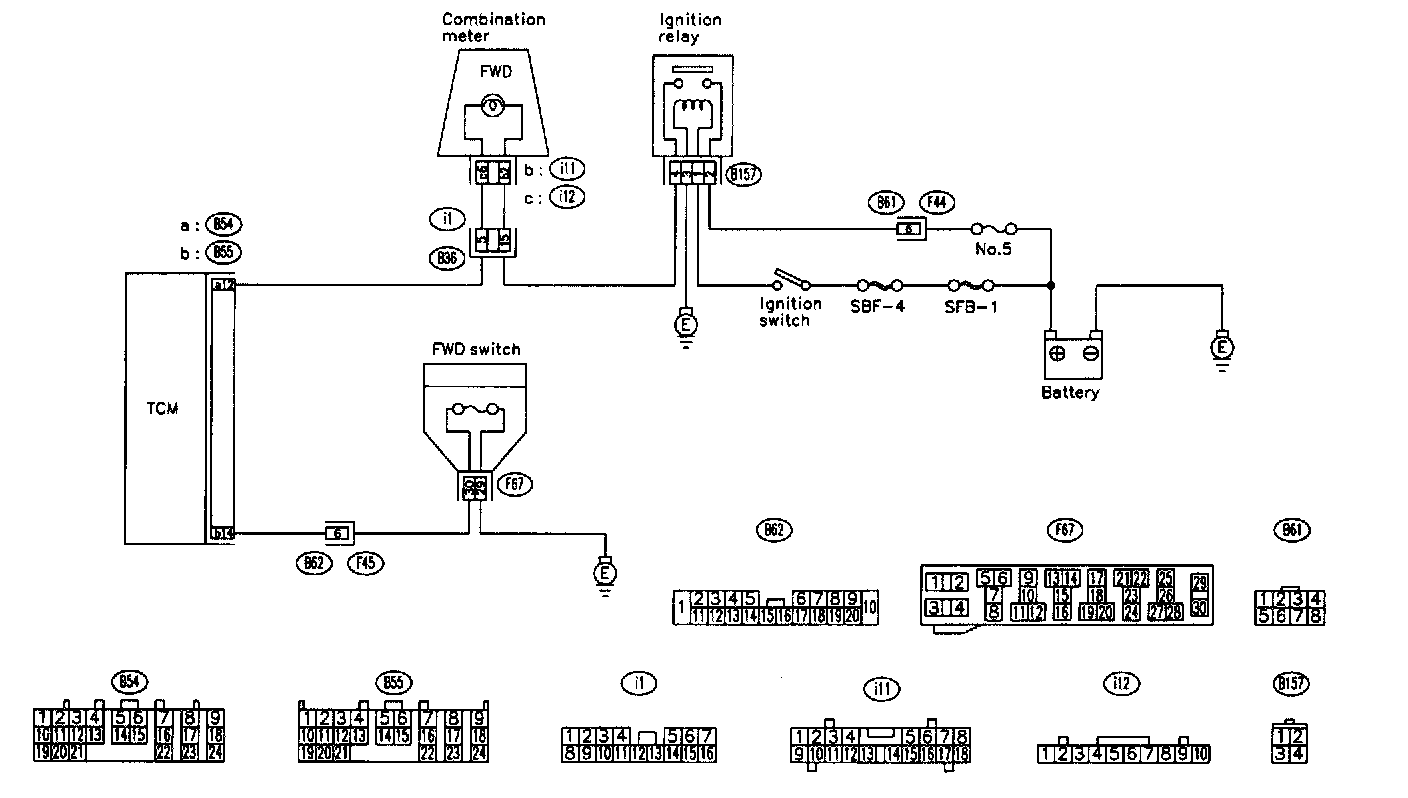

WIRING DIAGRAM:

PROCEDURE:





9P1

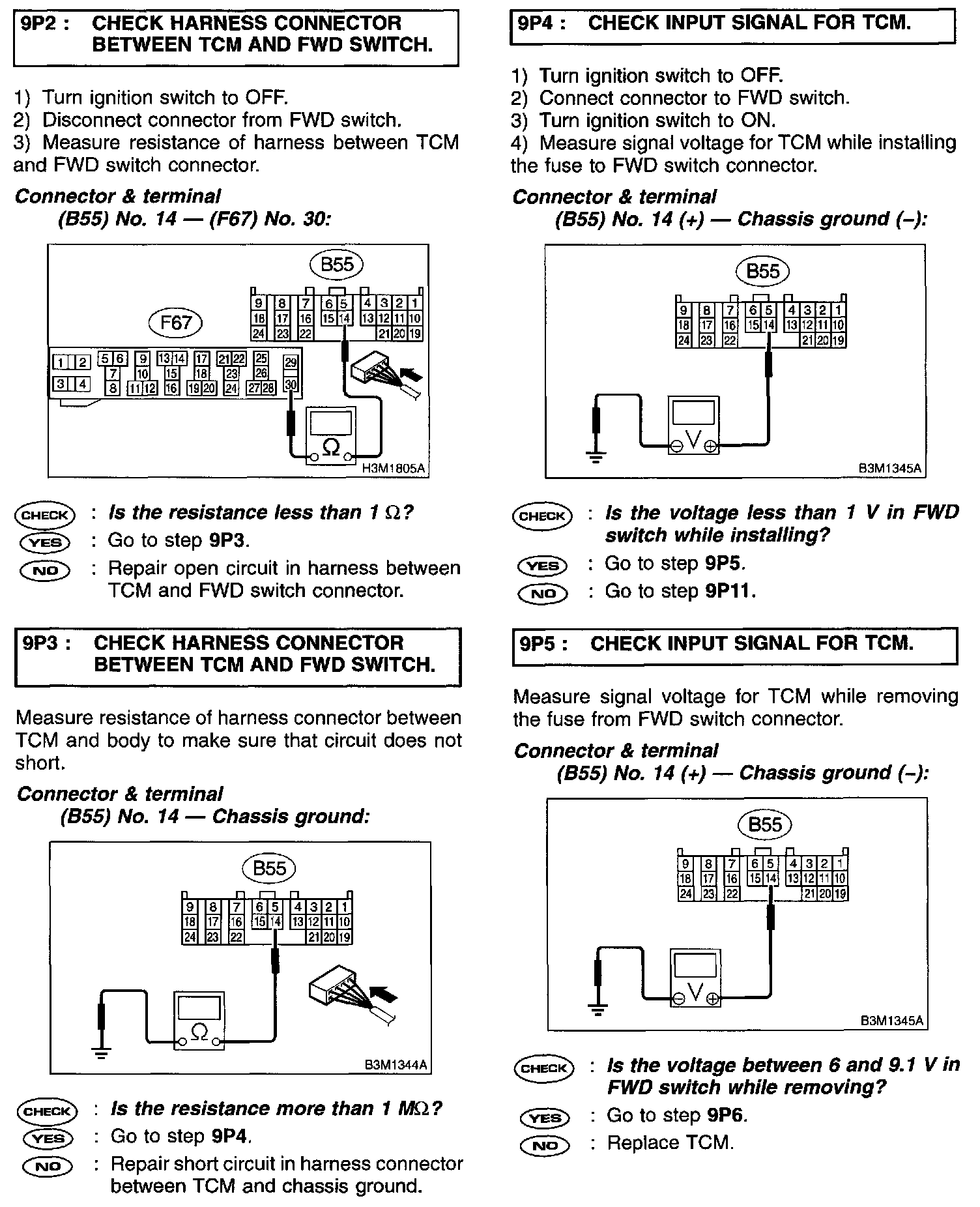

9P2 - 9P5

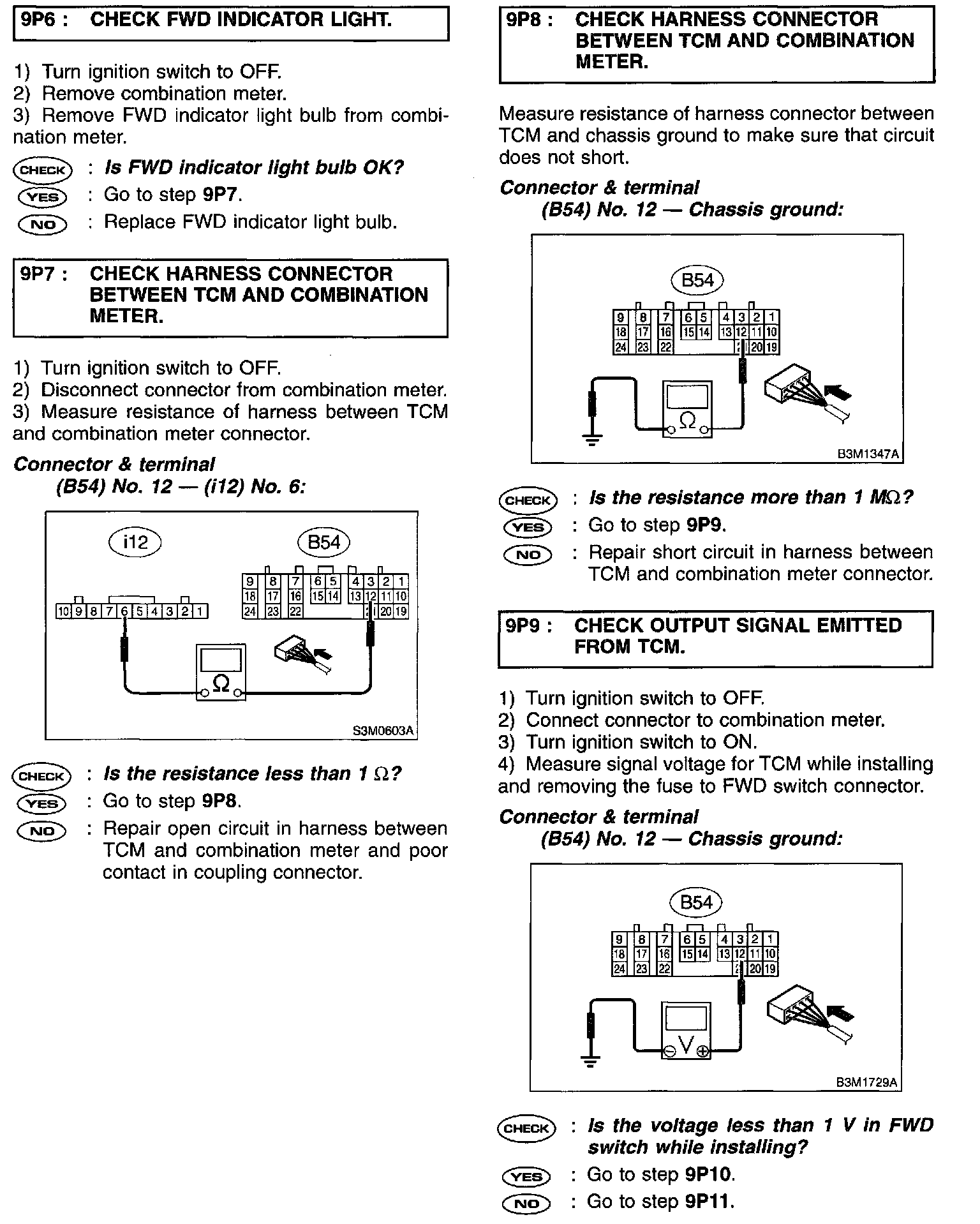

9P6 - 9P9

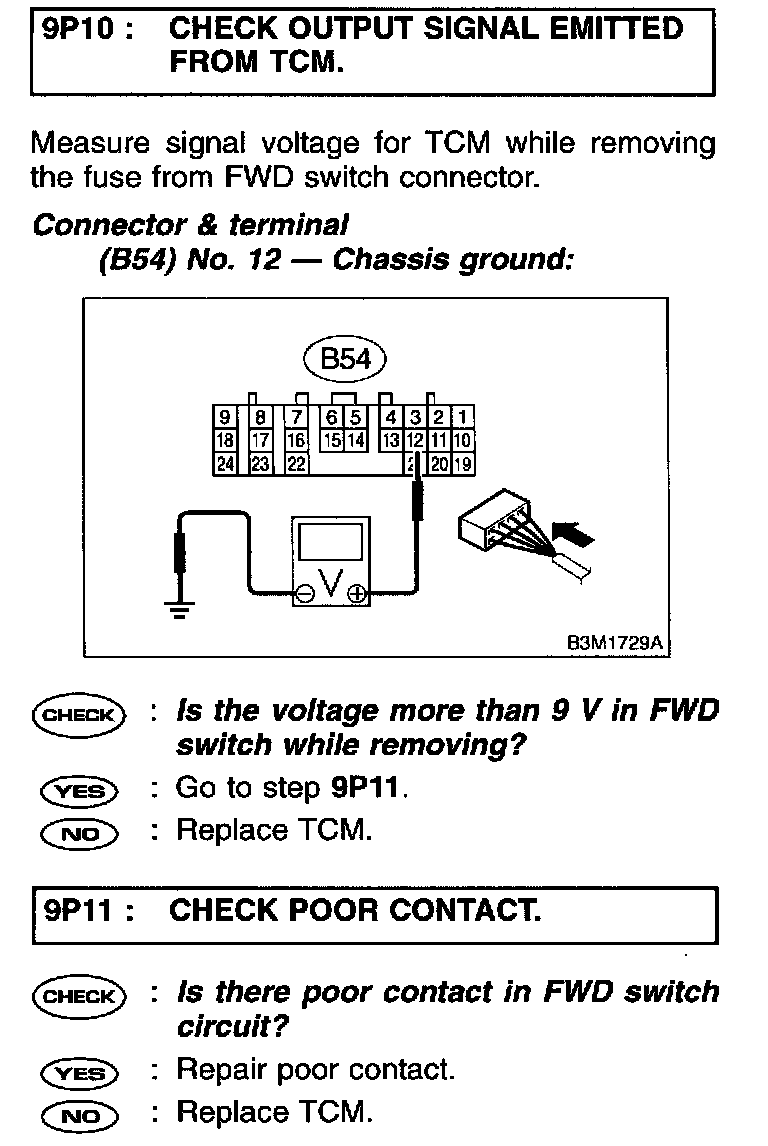

9P10 - 9P11
