Pinout Values and Diagnostic Parameters

5. TRANSMISSION CONTROL MODULE (TCM) I/0 SIGNAL

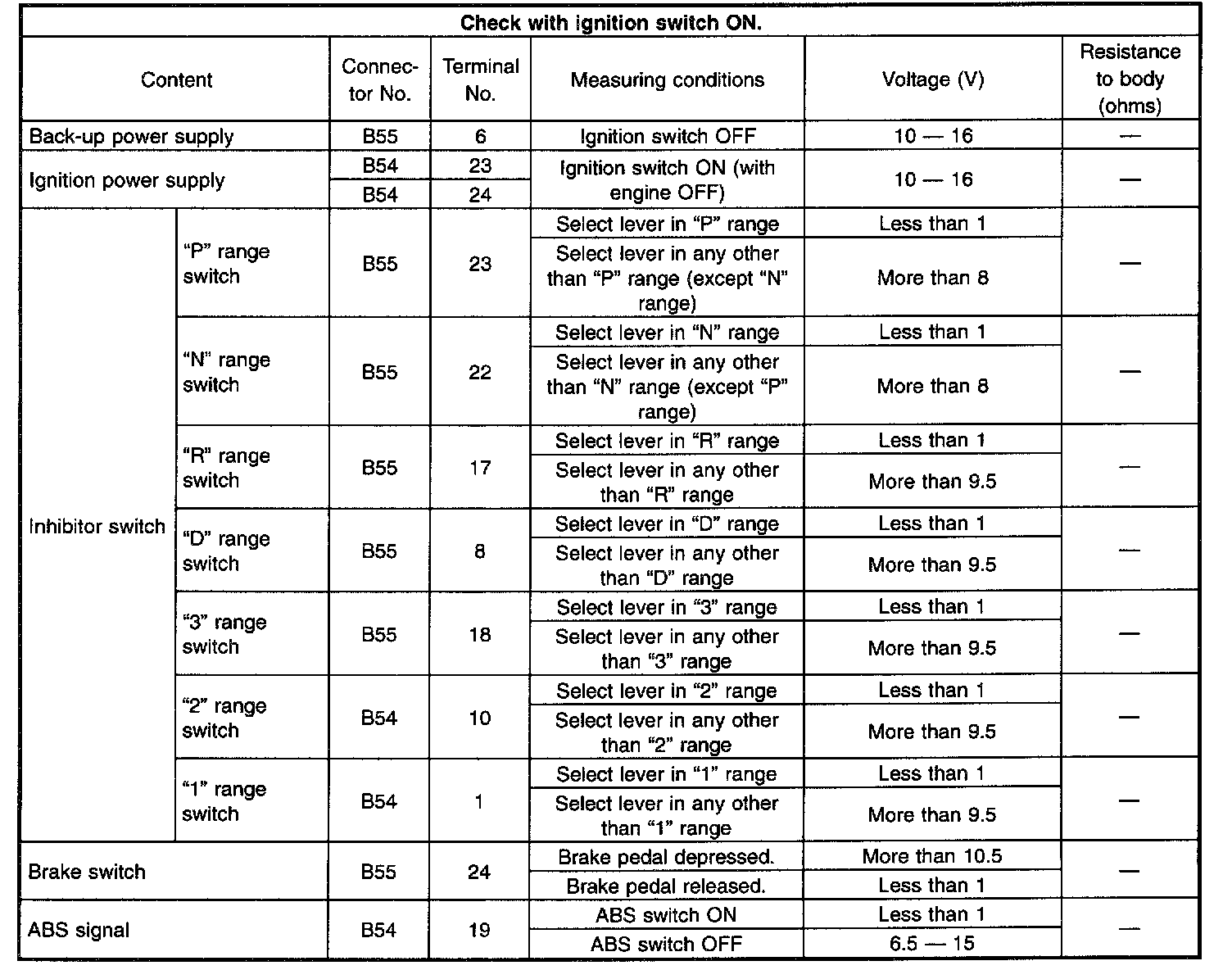

1 of 4

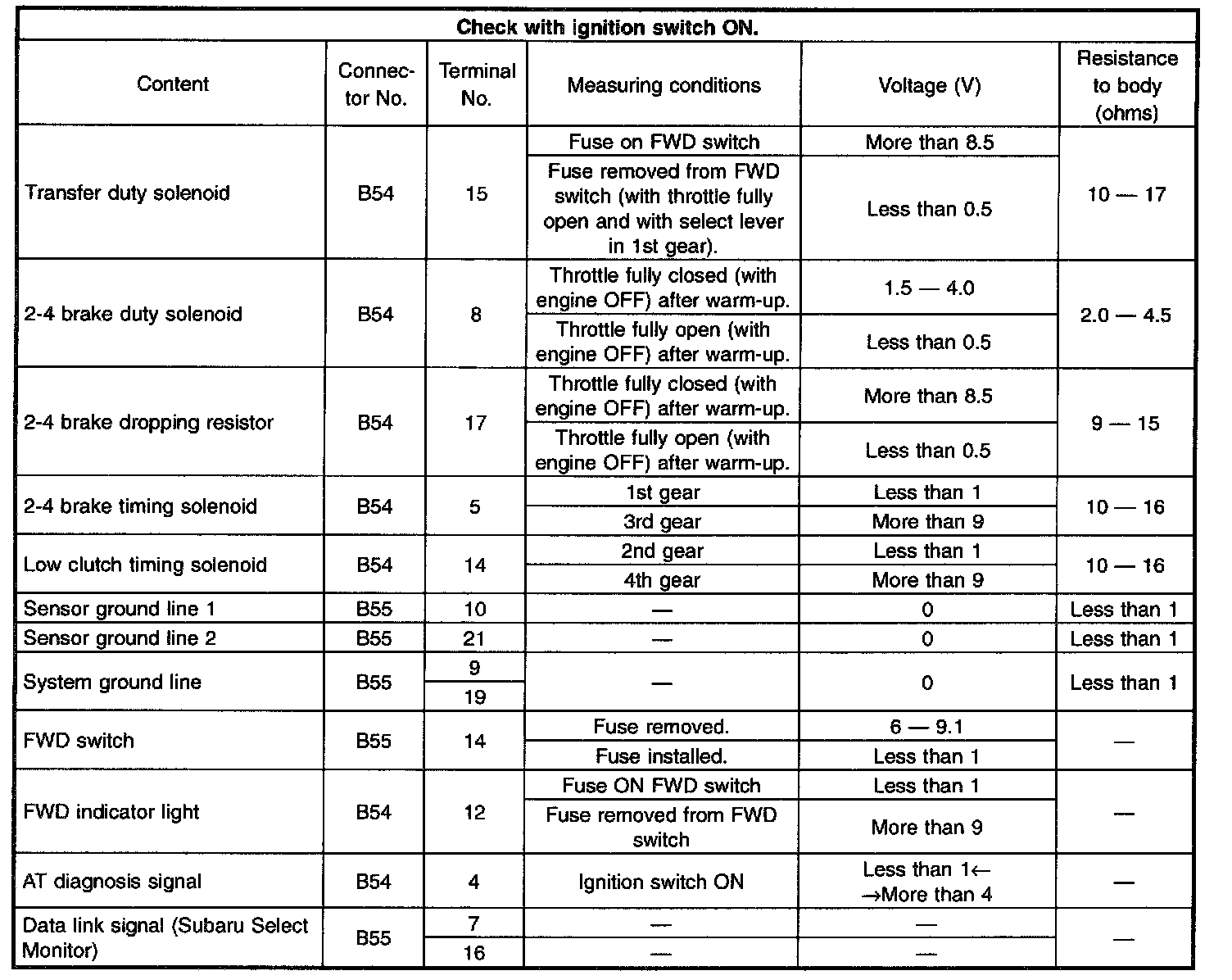

2 of 4

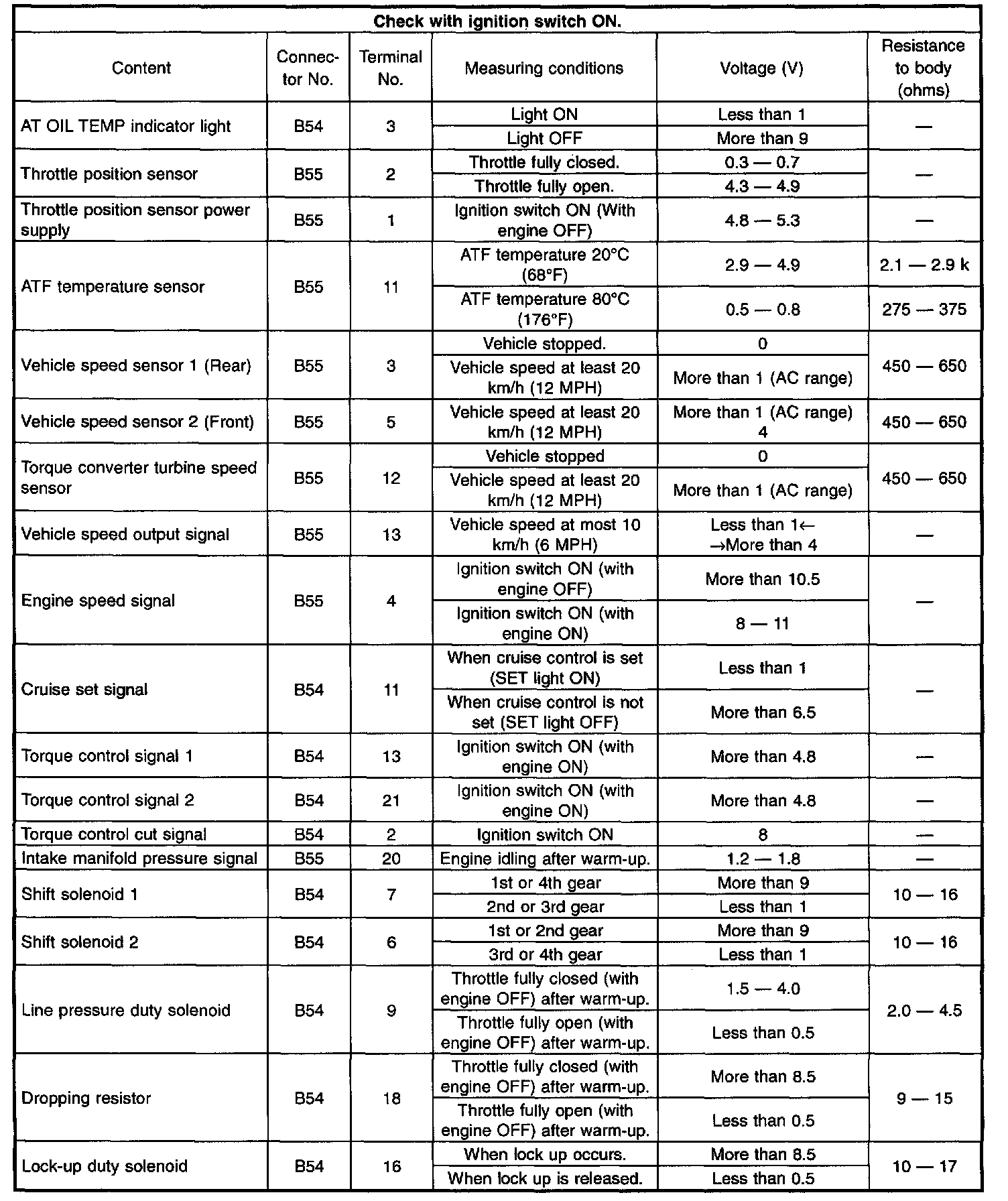

3 of 4





4 of 4
