A/T Technical Data

5-spd M/T/4-spd A/T, Transmission Service Data (Wagon):

4-spd A/T, Torque Converter Clutch & Oil Pump:

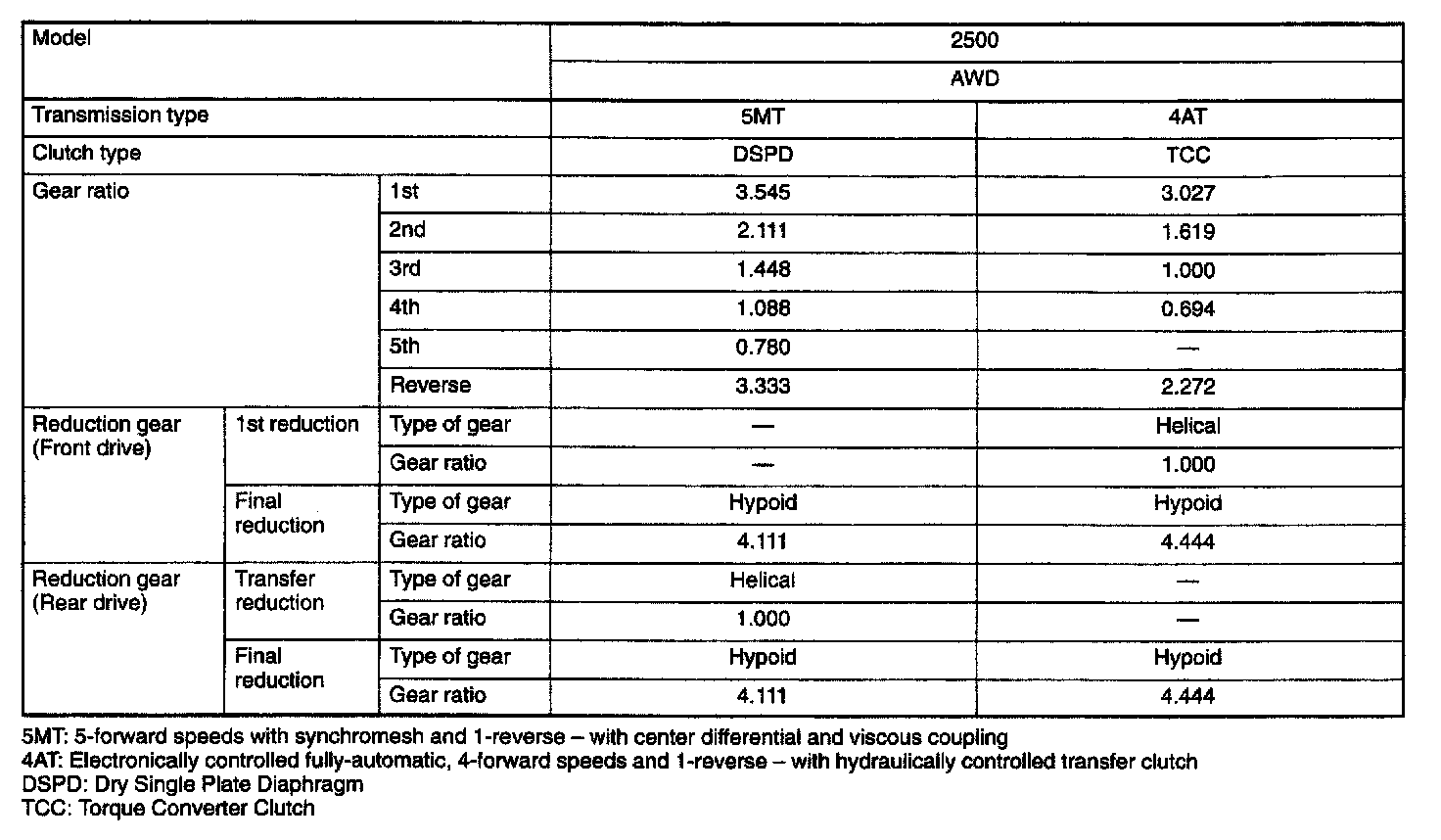

4-spd A/T, Transmission Control & Gear Ratio:

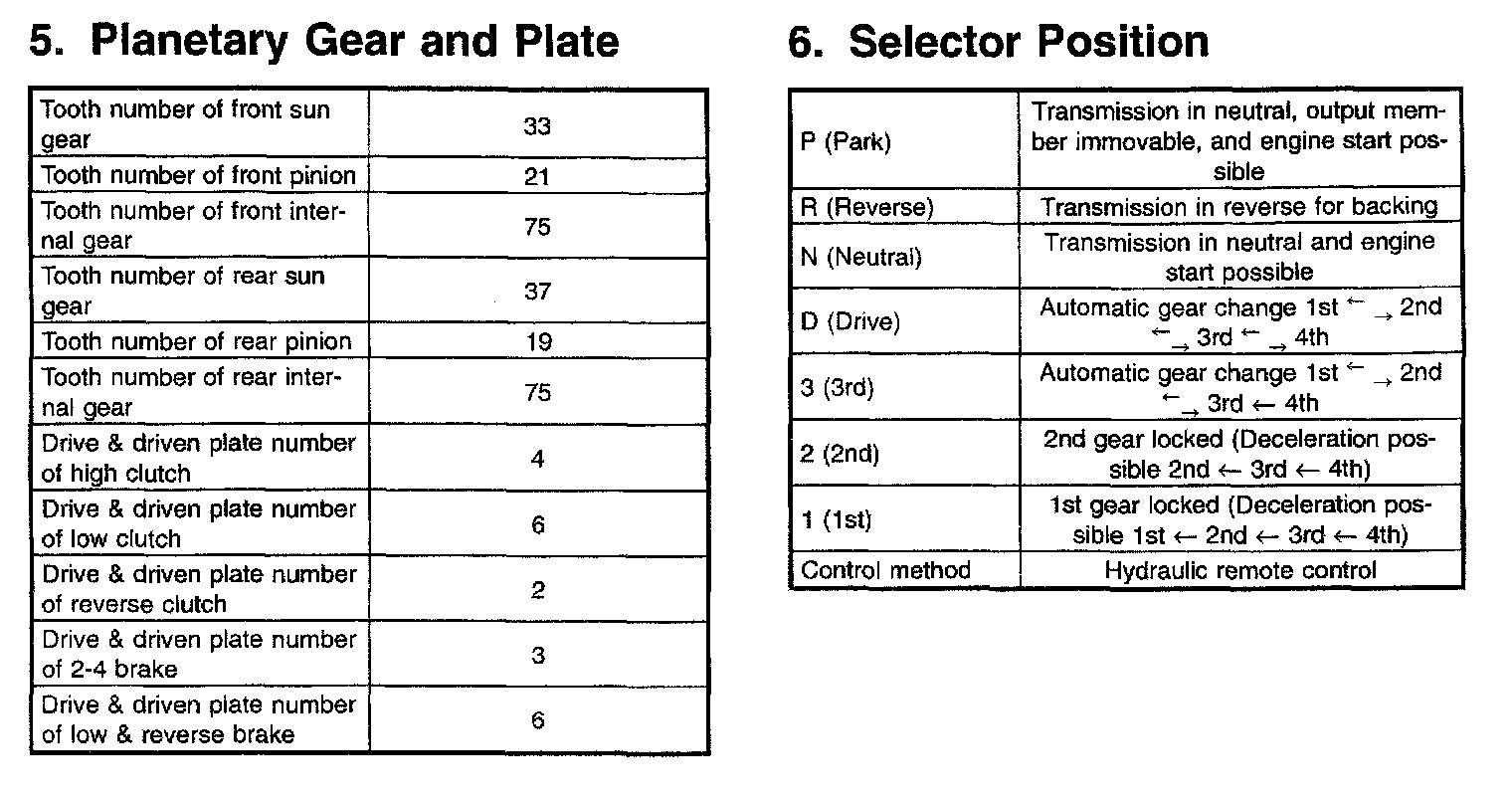

4-spd A/T, Transmission Planetary Gear & Plate/Selector Position:

4-spd A/T, Transfer Case & Final Reduction:

4-spd A/T, Transmission Dimensions & Application:

4-spd A/T, Transmission Drive Pinion Shim Application:

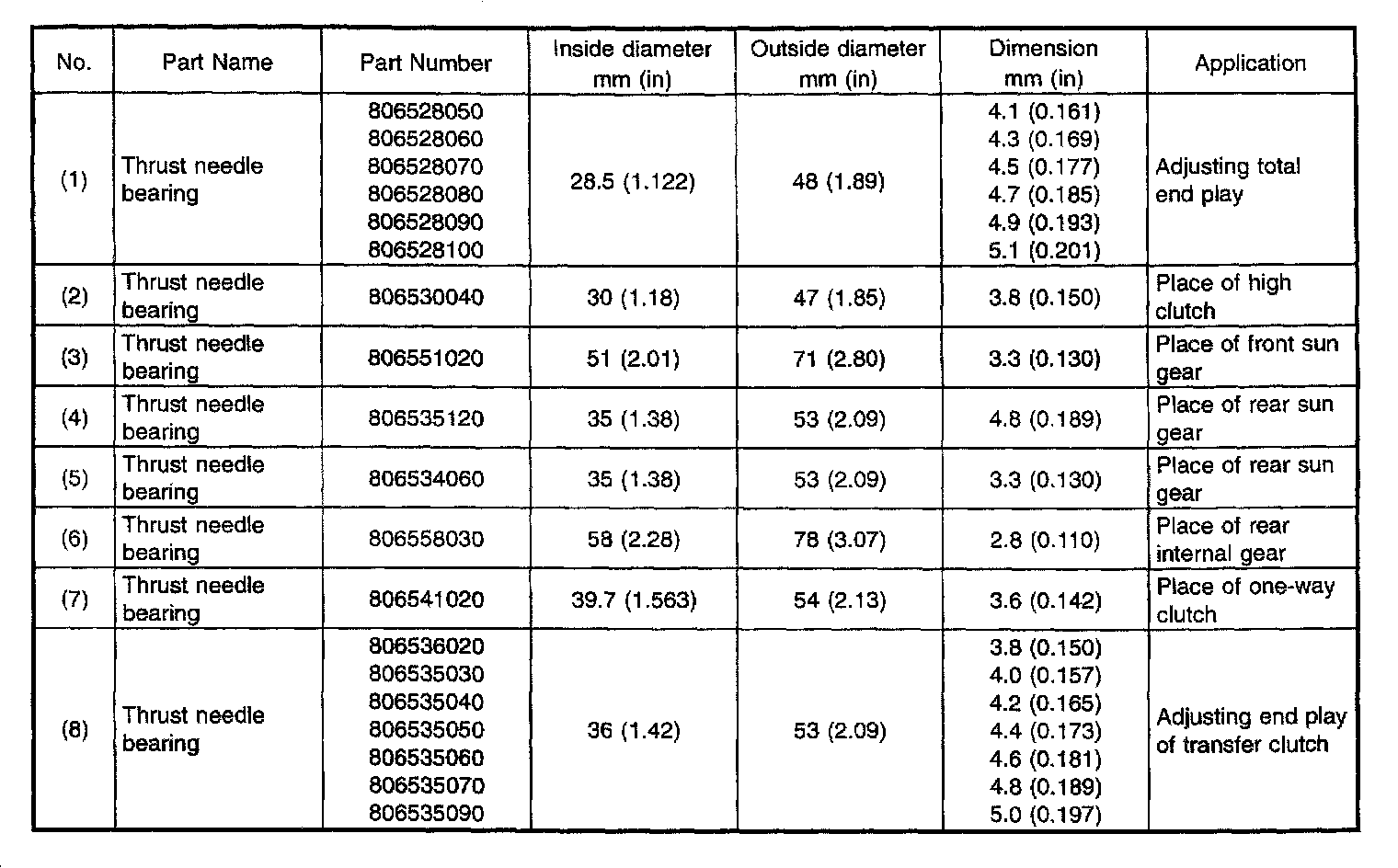

4-spd A/T, Transmission Thrust Needle Bearing:
