Gear Shift Lever: Removal

  1. Remove gear shift knob.
  2. Remove front cover, see FRONT COVER - CENTER CONSOLE  .
  3. Remove console boot.
  4. Remove boot plate from body.
    Fig 1: Removing Console Boot & Boot Plate
    G02003699
  5. Remove rear exhaust pipe and muffler. See REAR EXHAUST PIPE .
    CAUTION: When removing exhaust pipes, make sure no exhaust pipes drop out.

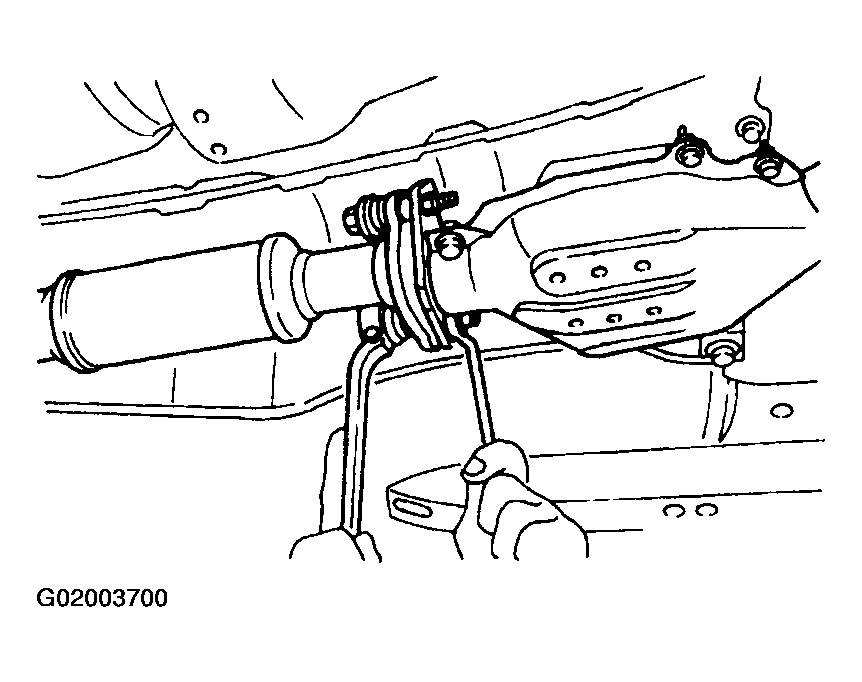

    Fig 2: Removing Rear Exhaust Pipe And Muffler
    G02003700
  6. Remove heat shield cover.
    Fig 3: Removing Heat Shield Cover
    G02003701
  7. Remove stay from transmission bracket.

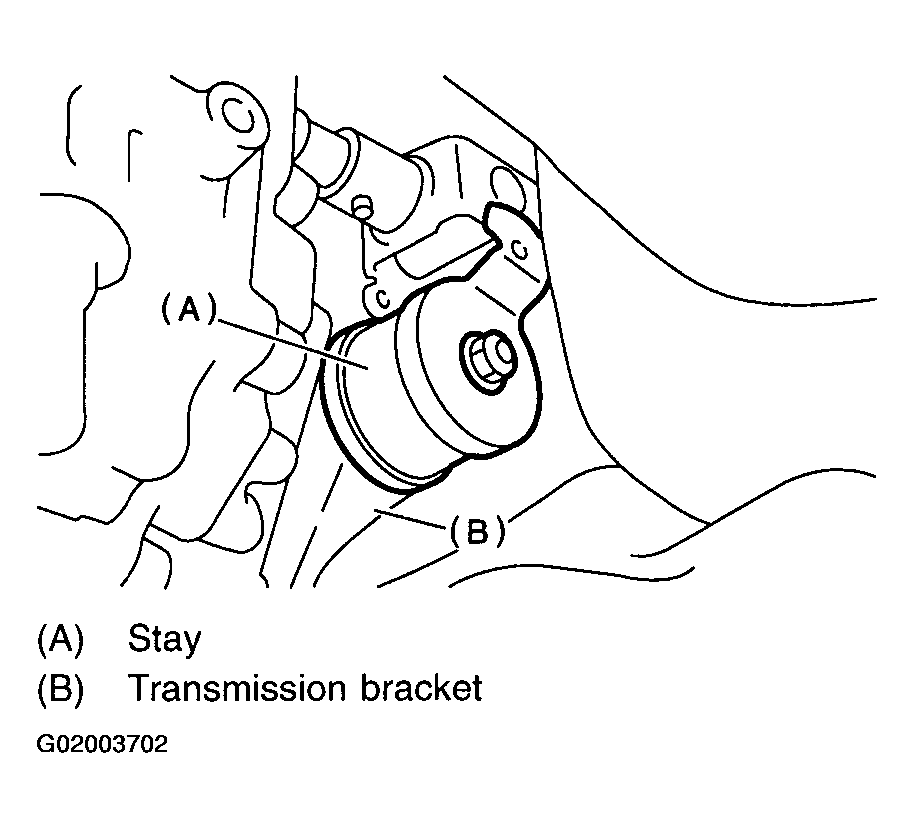

    Fig 4: Removing Stay From Transmission Bracket
    G02003702
  8. Remove rod from joint.

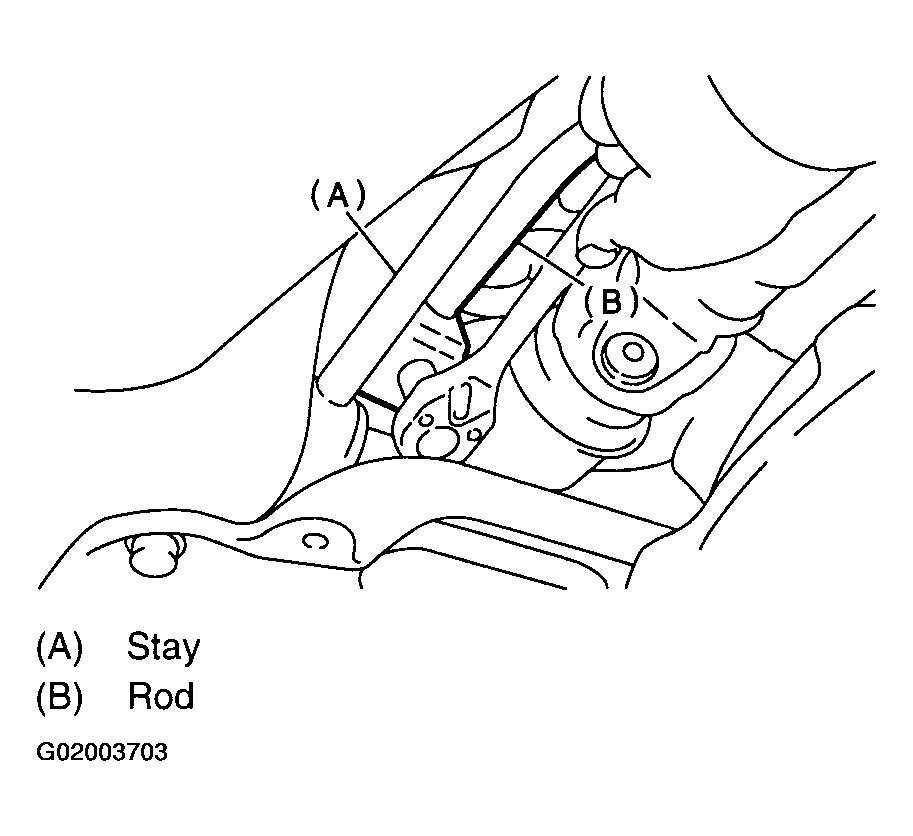

    Fig 5: Removing Rod From Joint
    G02003703
  9. Remove cushion rubber from body.
    Fig 6: Removing Cushion Rubber From Body
    G02003704
  10. Remove joint and then extract straight pin.
    Fig 7: Removing Joint & Extracting Straight Pin
    G02003705
  11. Remove gear shift lever.

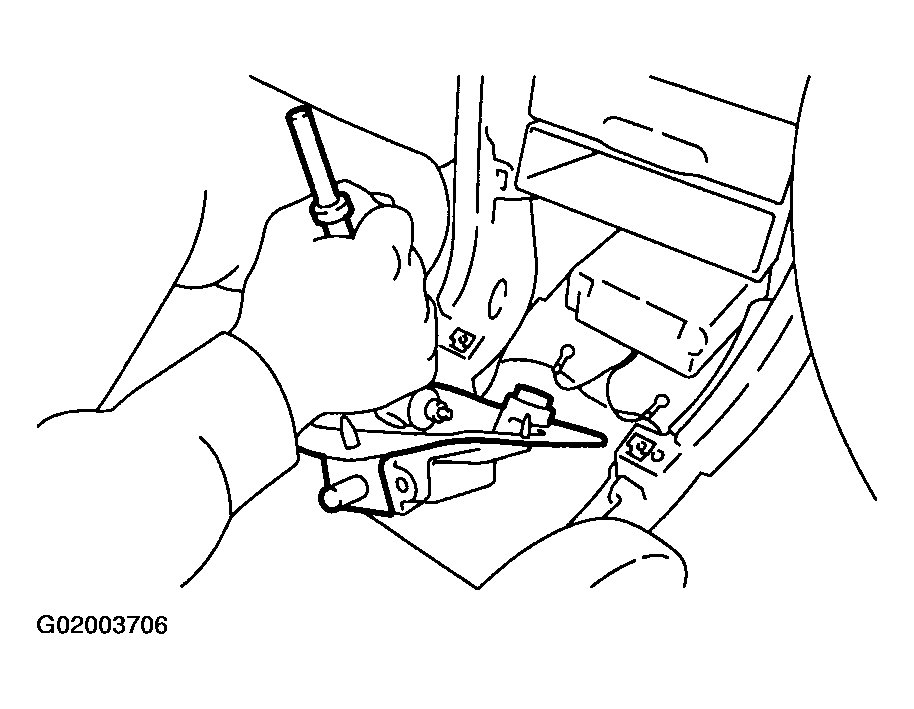

    Fig 8: Removing Gear Shift Lever
    G02003706
