Clutch System: General: Flywheel: Outline

The flywheel is of a flexible type which is composed of a drive plate, reinforcement, mass flywheel, etc.

This type of flywheel is characterized by less vibration and less noise, since it transmits the engine power from the crankshaft to the clutch disc through the drive plate and mass flywheel.

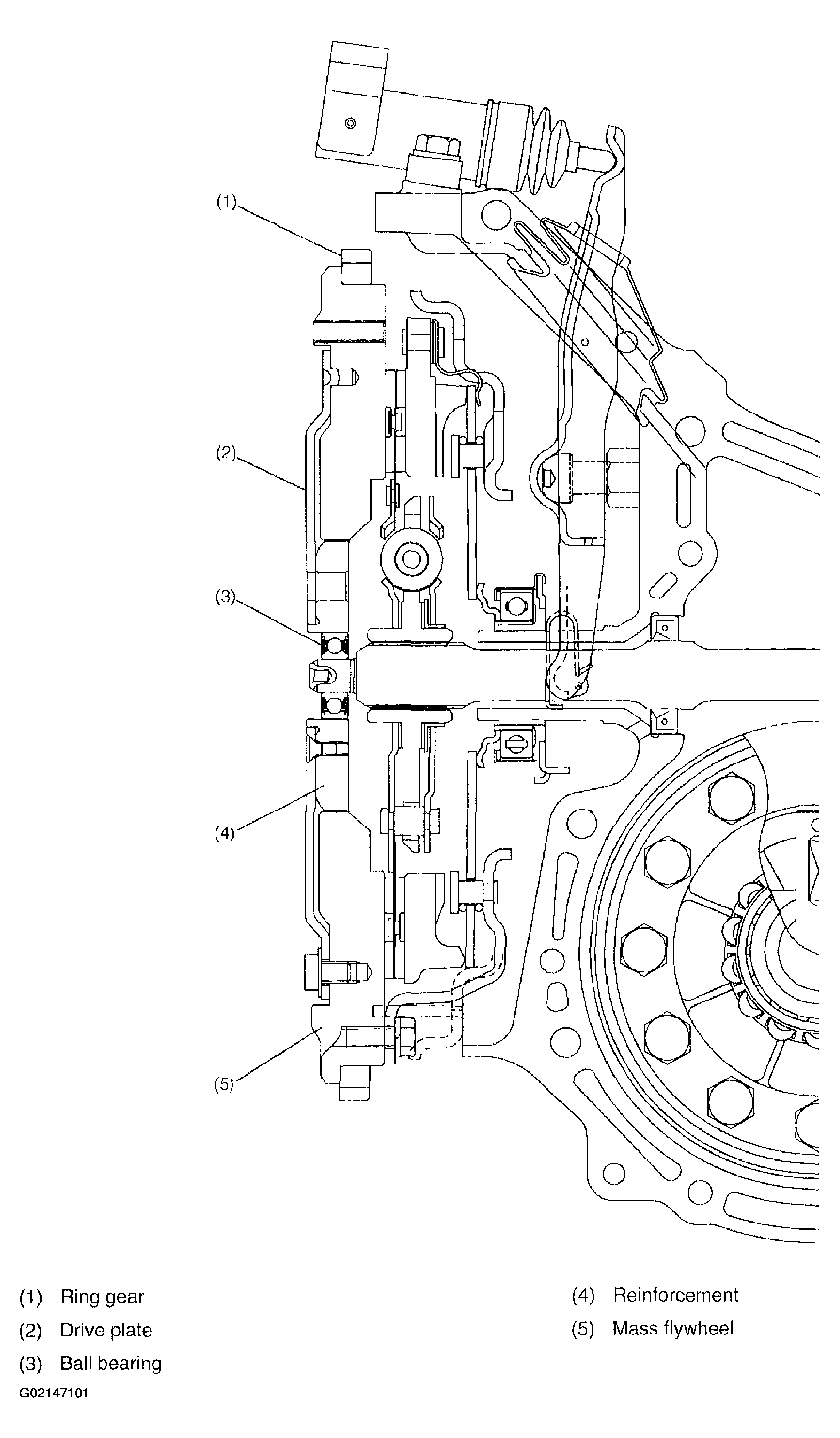

Fig 1: Identifying Flywheel & Related Components
G02147101
