Compressor HVAC: Testing and Inspection

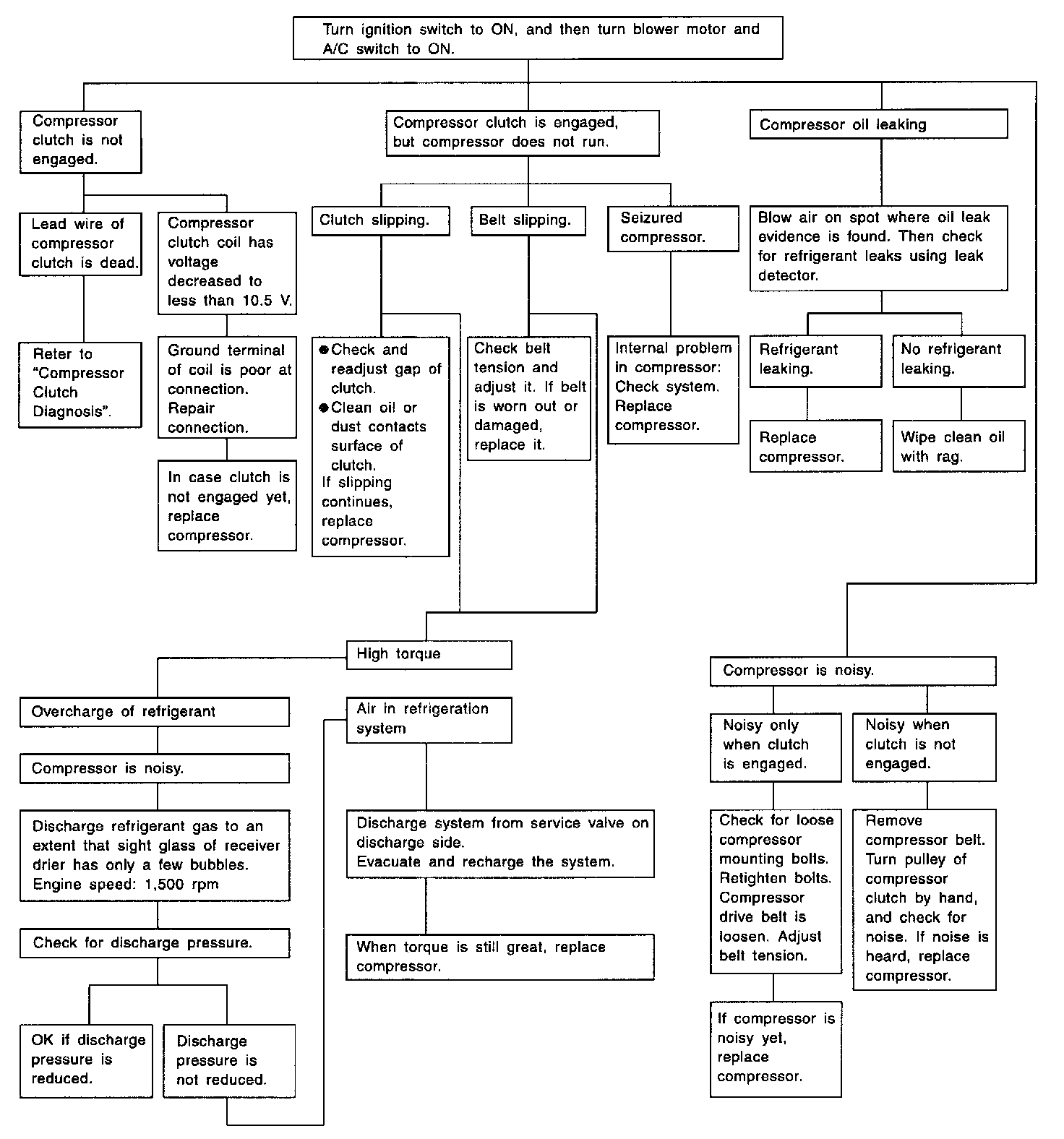

Compressor Diagnosis:

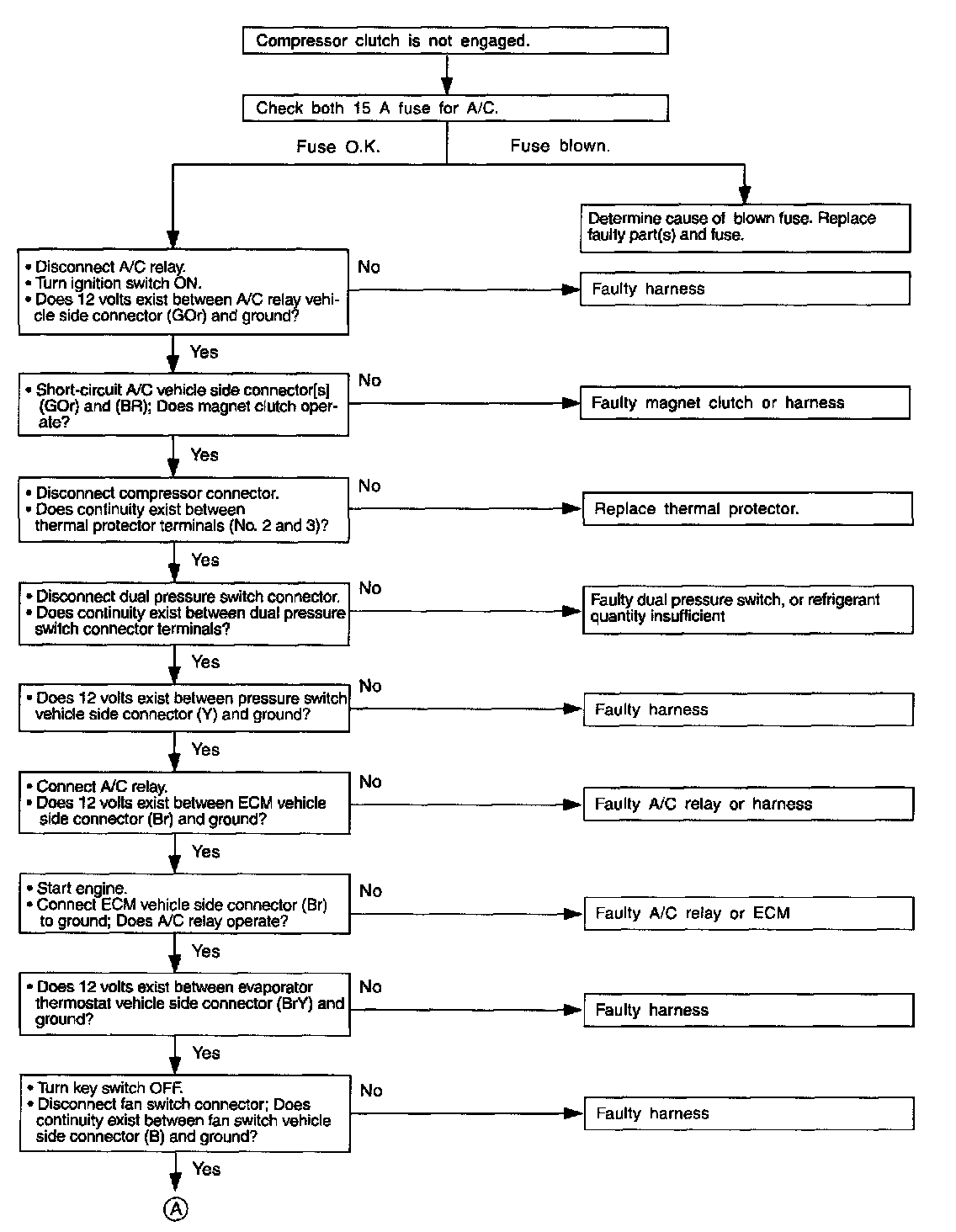

Compressor Clutch Diagnosis Part 1:

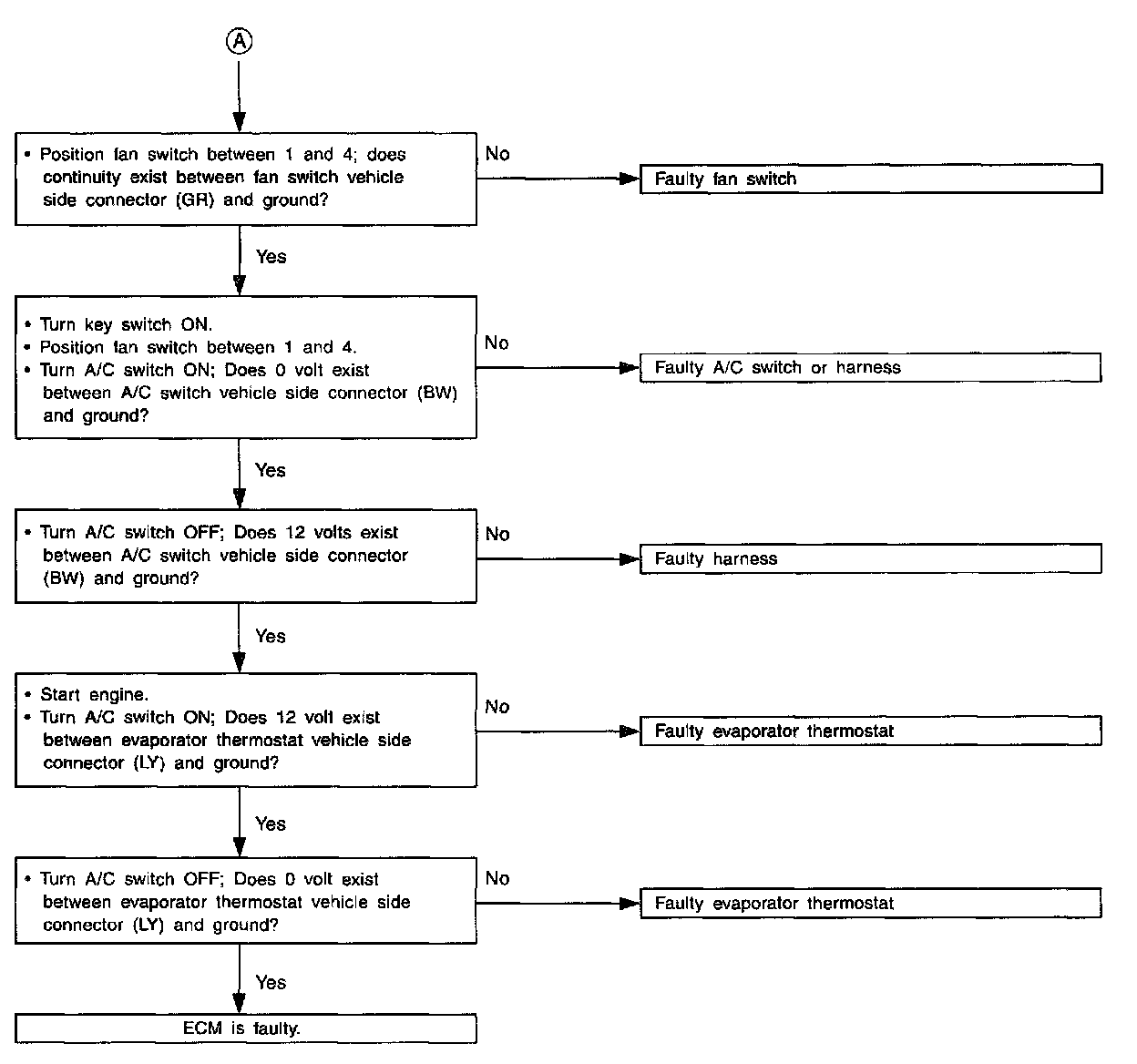

Compressor Clutch Diagnosis Part 2:
