System Diagram

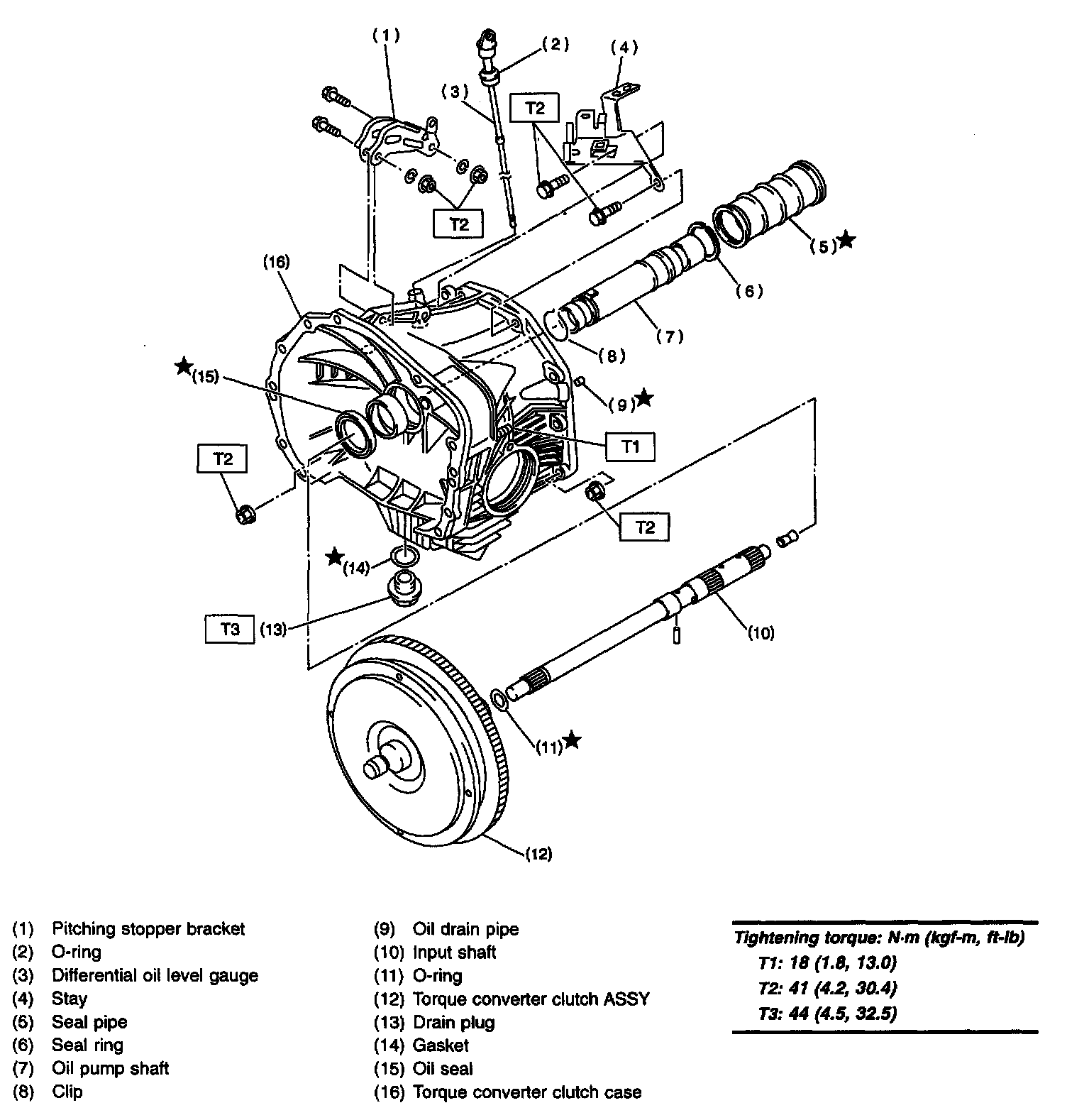

1. TORQUE CONVERTER CLUTCH AND CASE

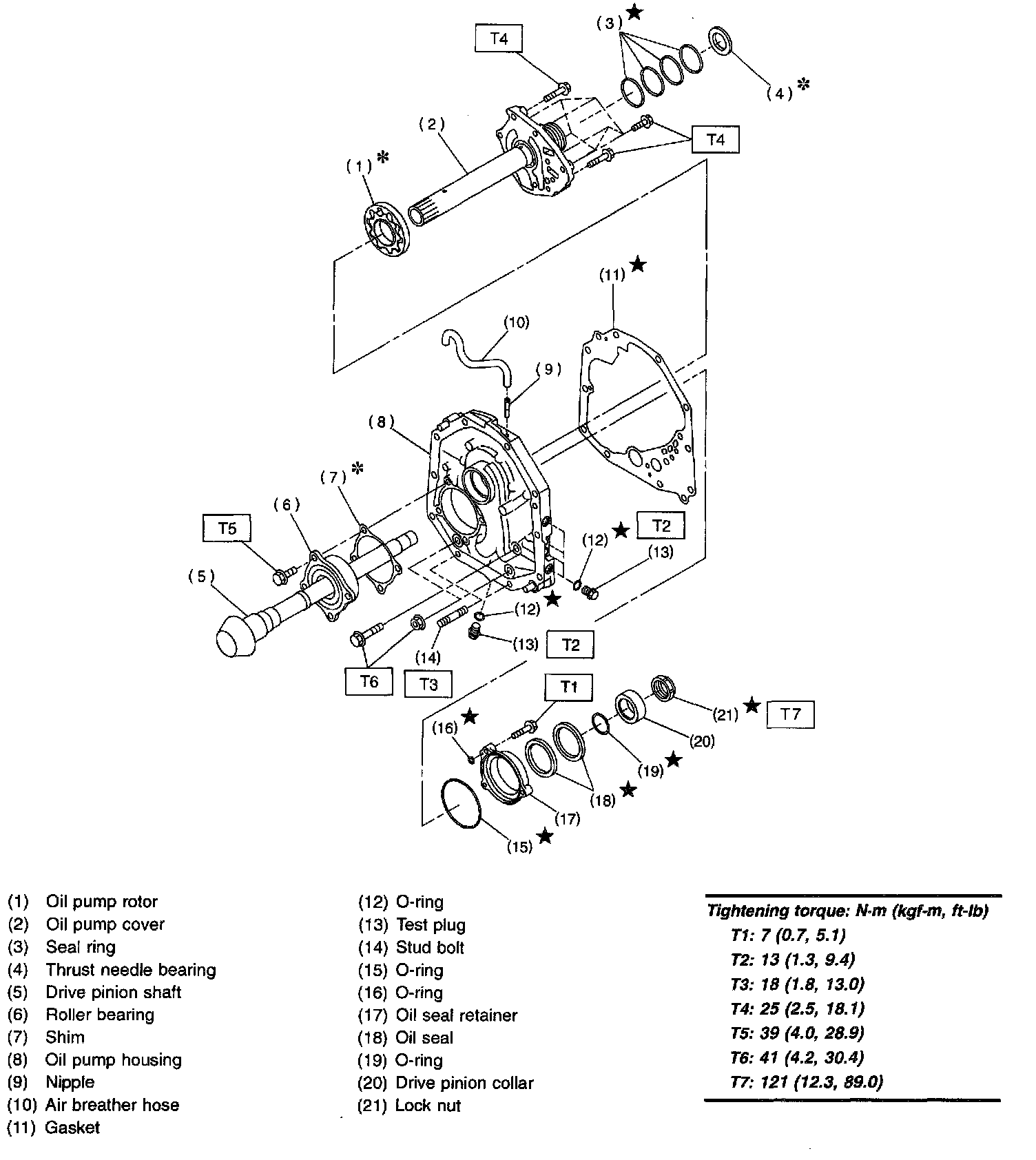

2. OIL PUMP

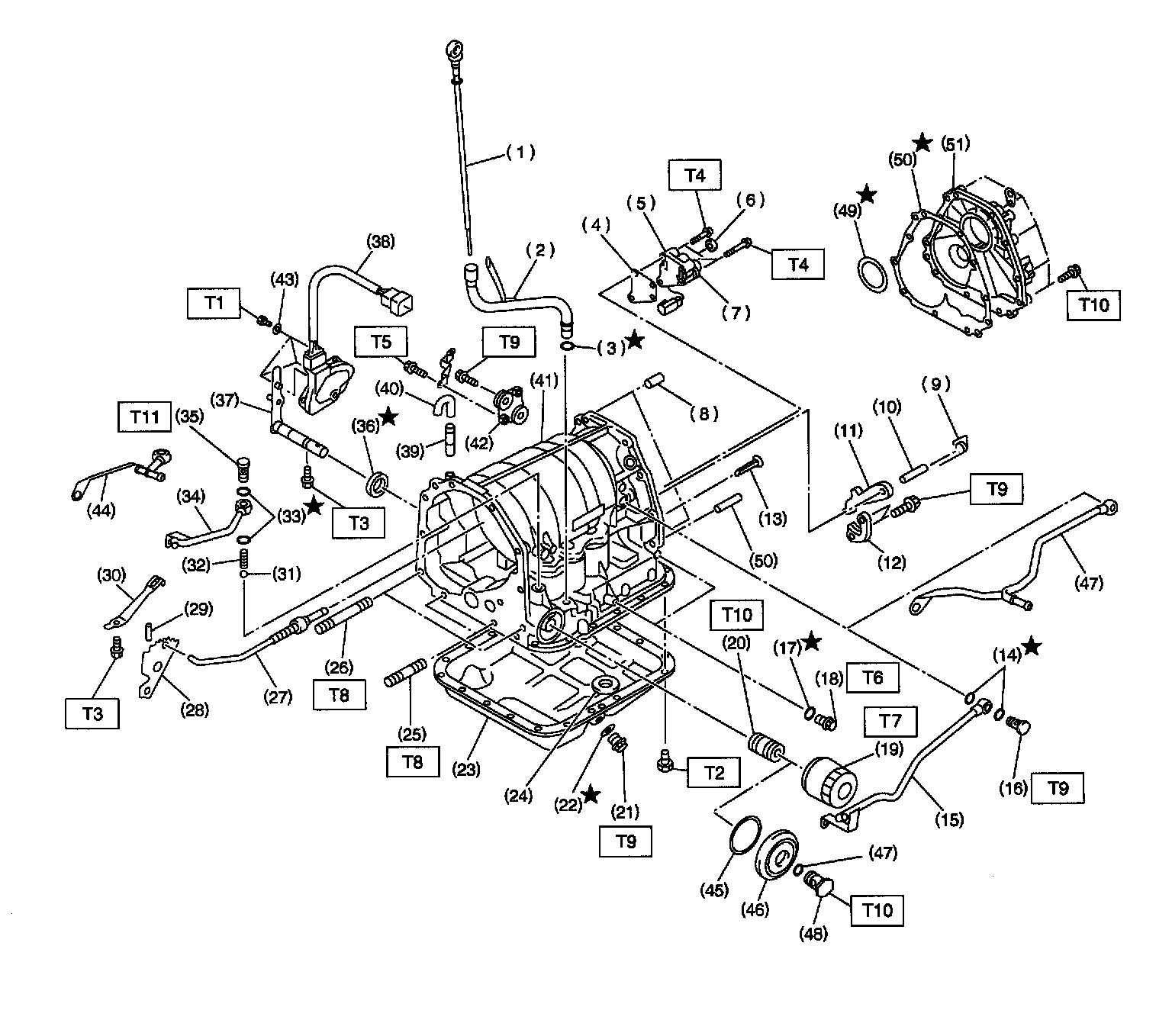

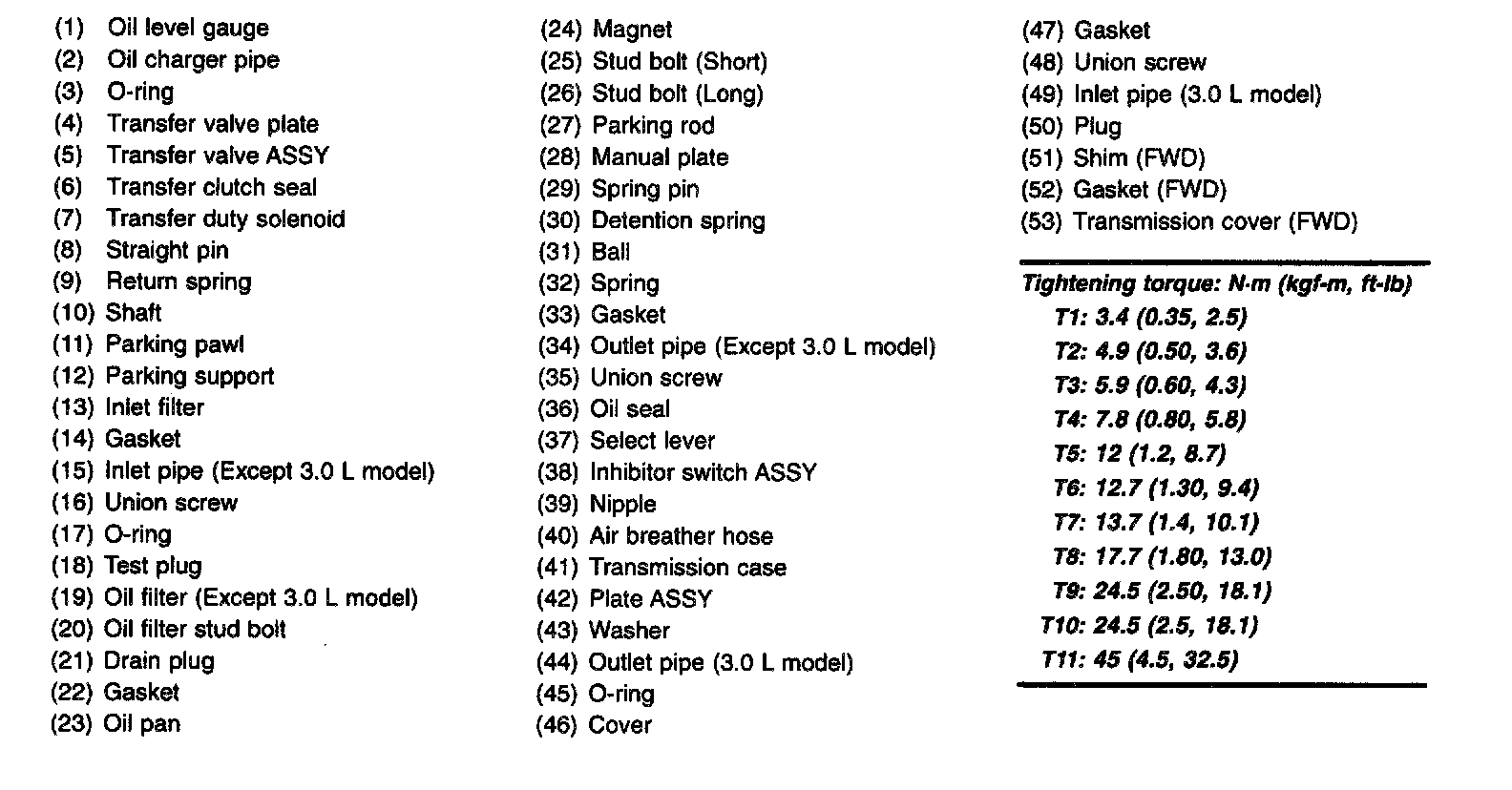

3. TRANSMISSION CASE AND CONTROL DEVICE

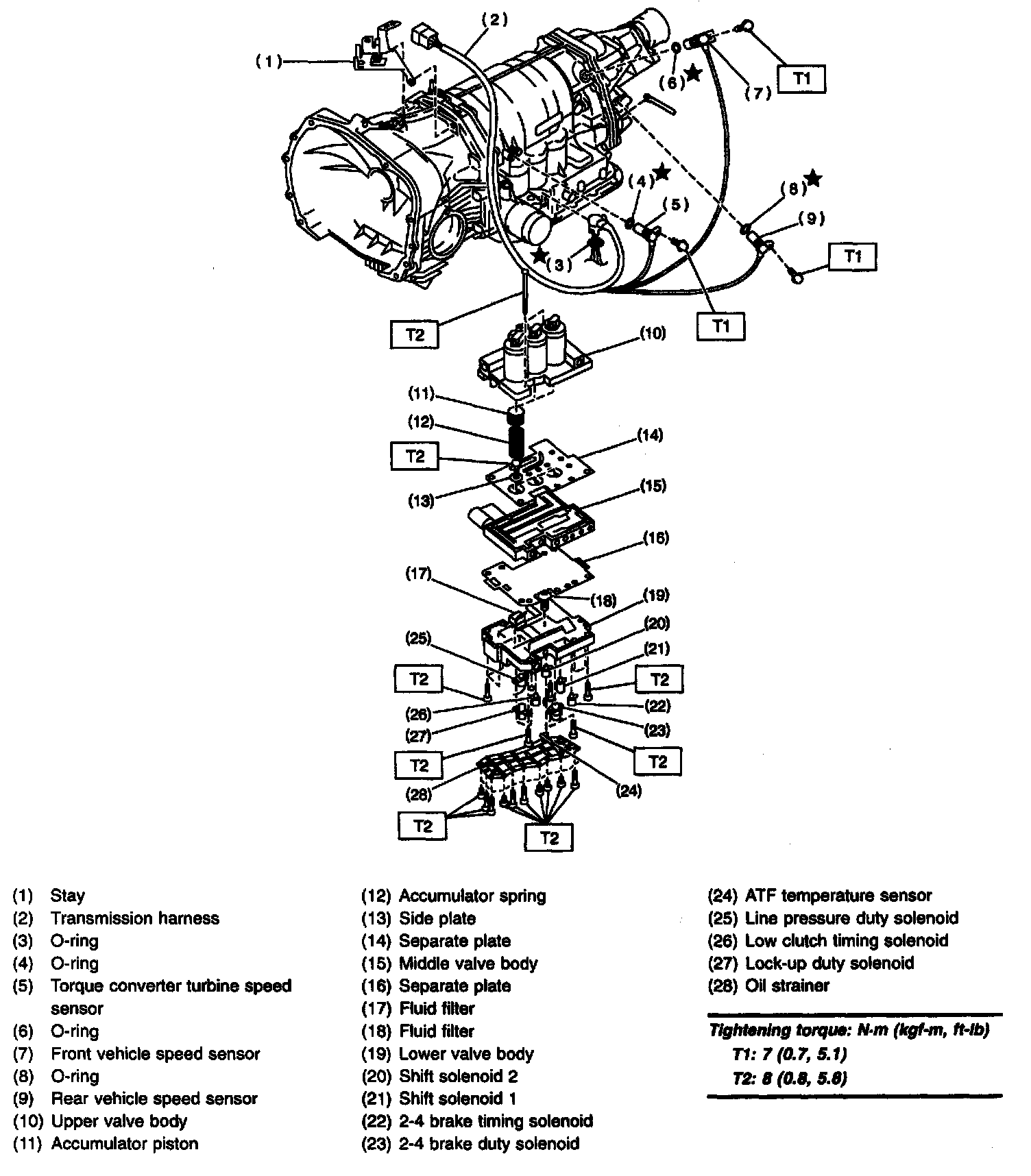

4. CONTROL VALVE AND HARNESS ROUTING

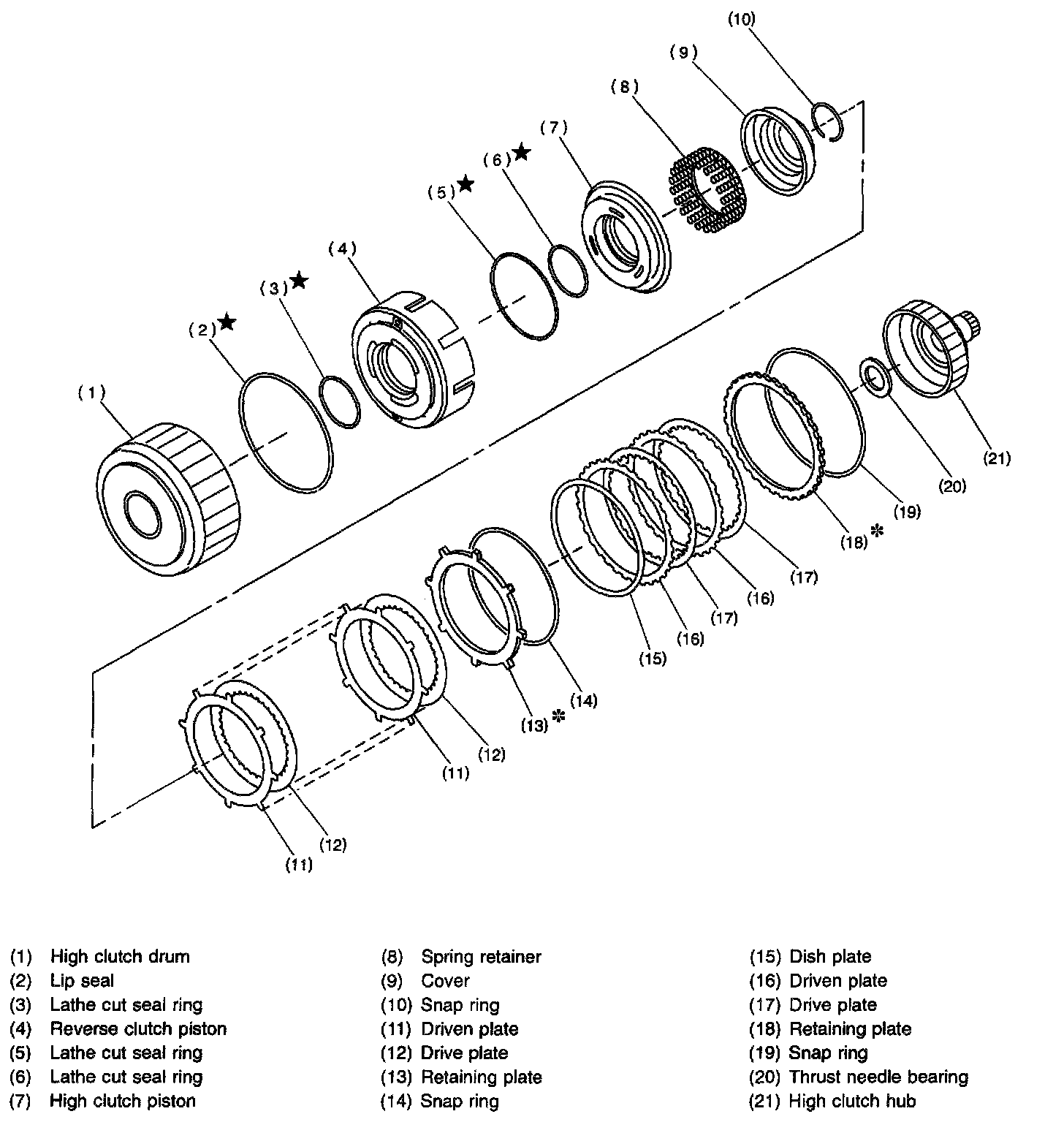

5. HIGH CLUTCH AND REVERSE CLUTCH

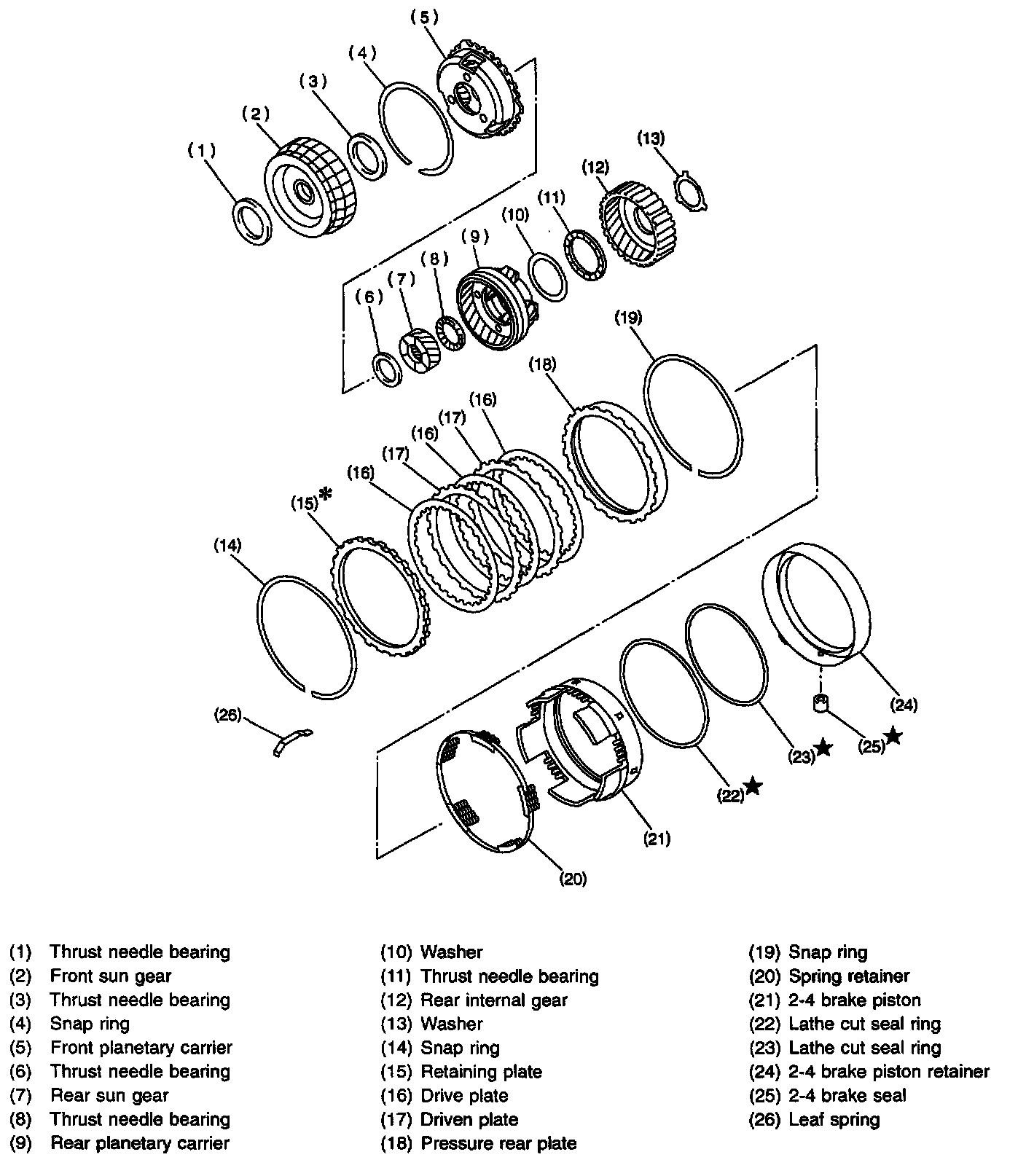

6. PLANETARY GEAR AND 2-4 BRAKE

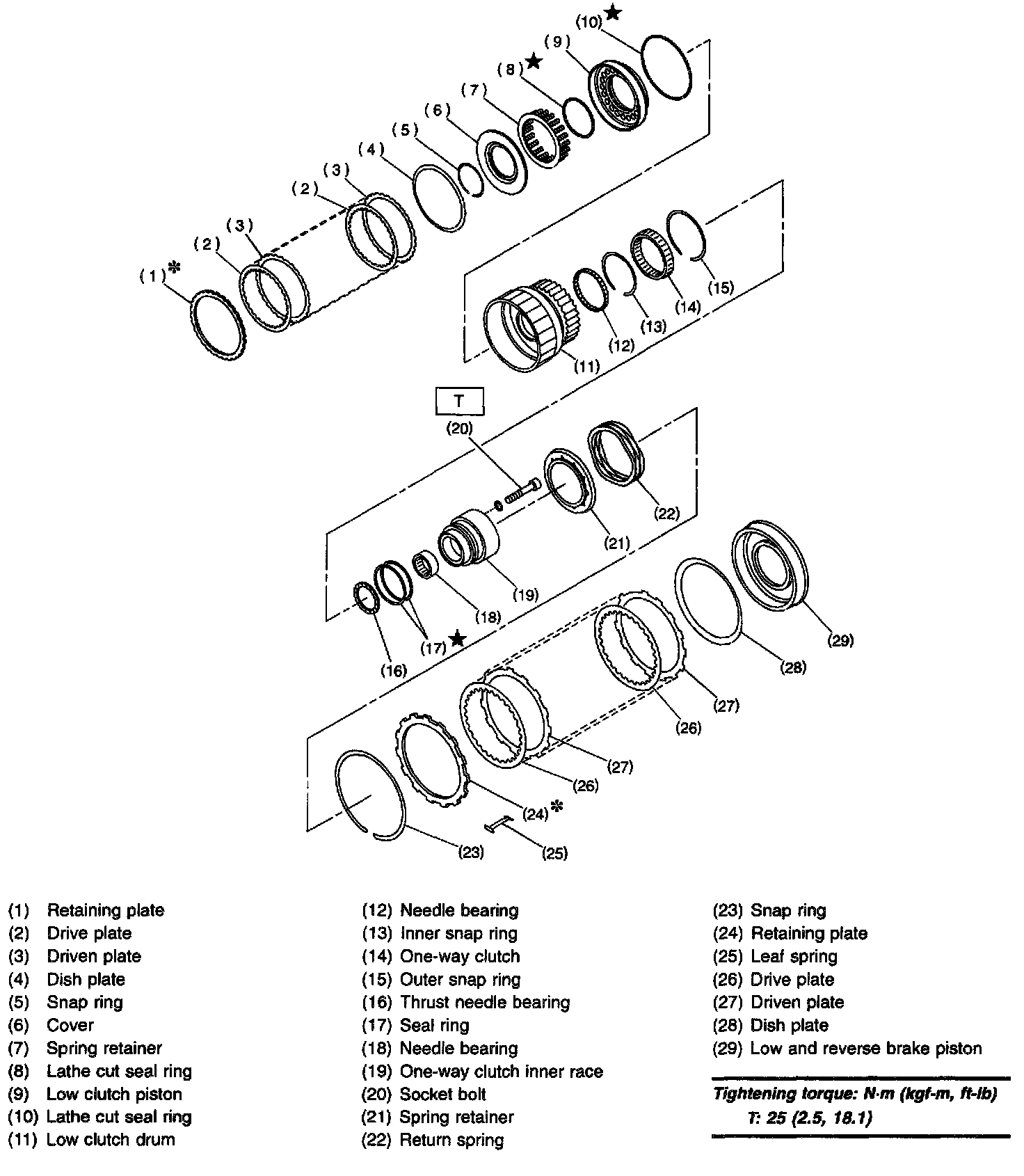

7. LOW CLUTCH AND LOW & REVERSE BRAKE

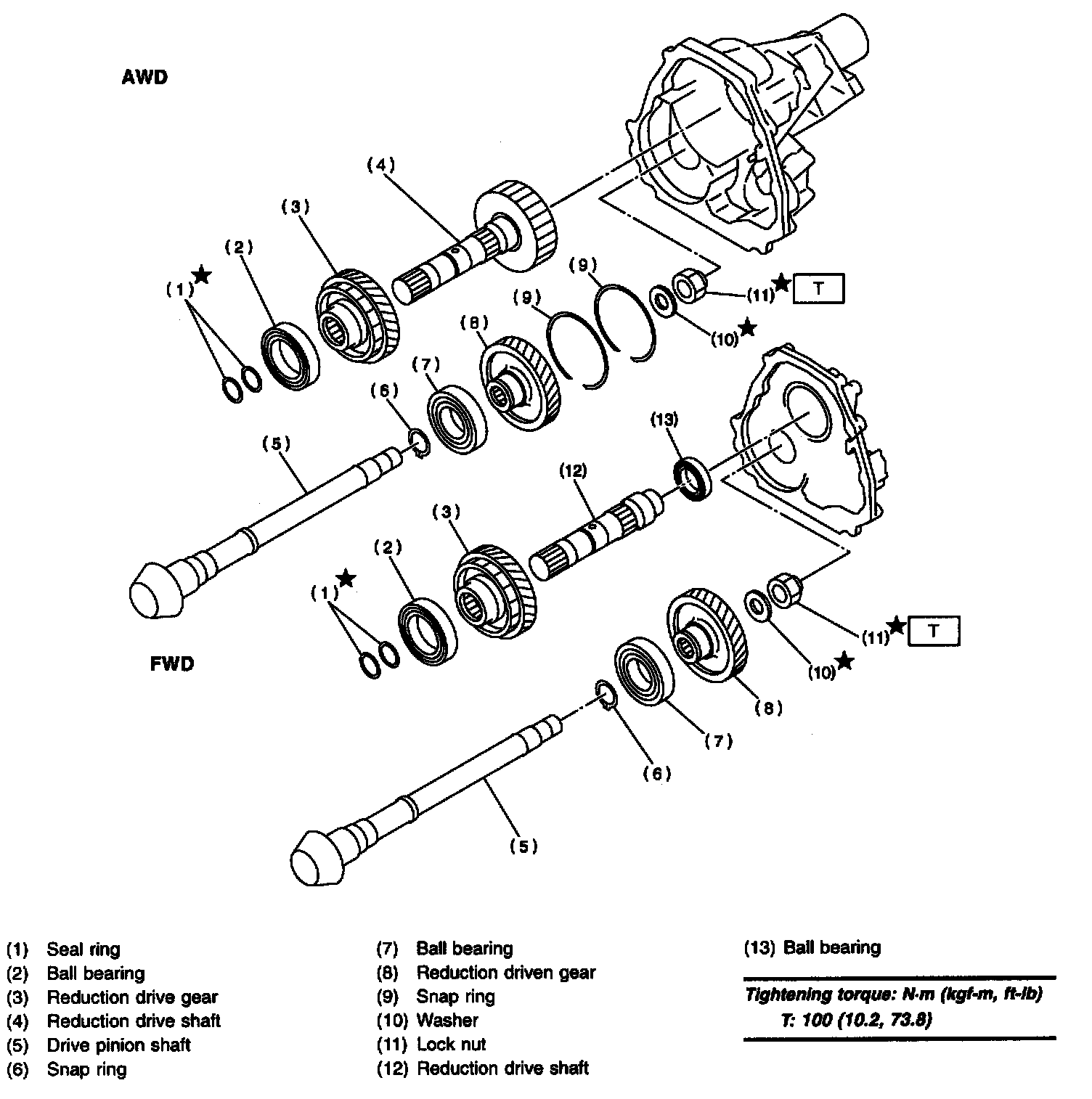

8. REDUCTION GEAR WITHOUT VTD

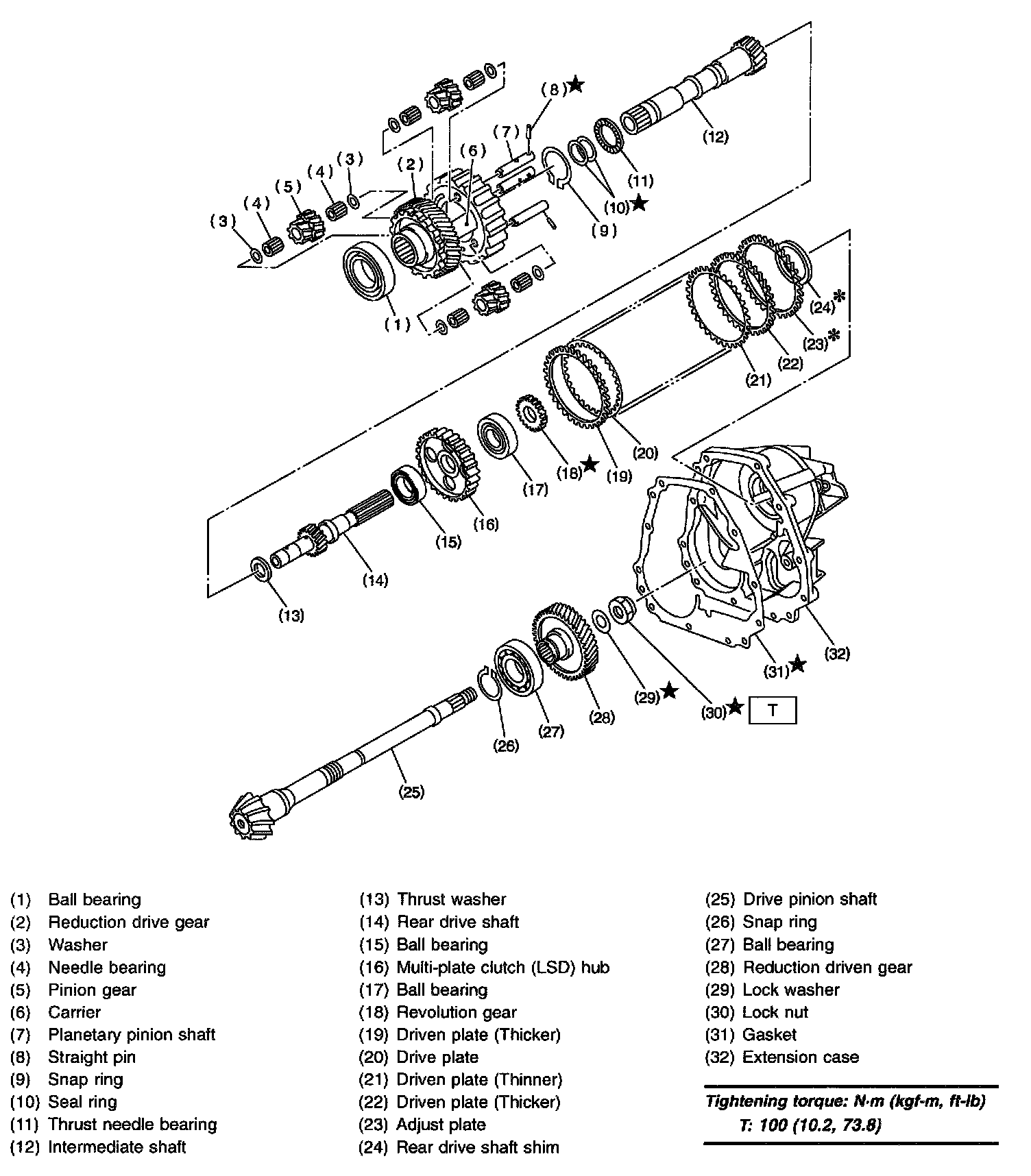

9. REDUCTION GEAR WITH VTD

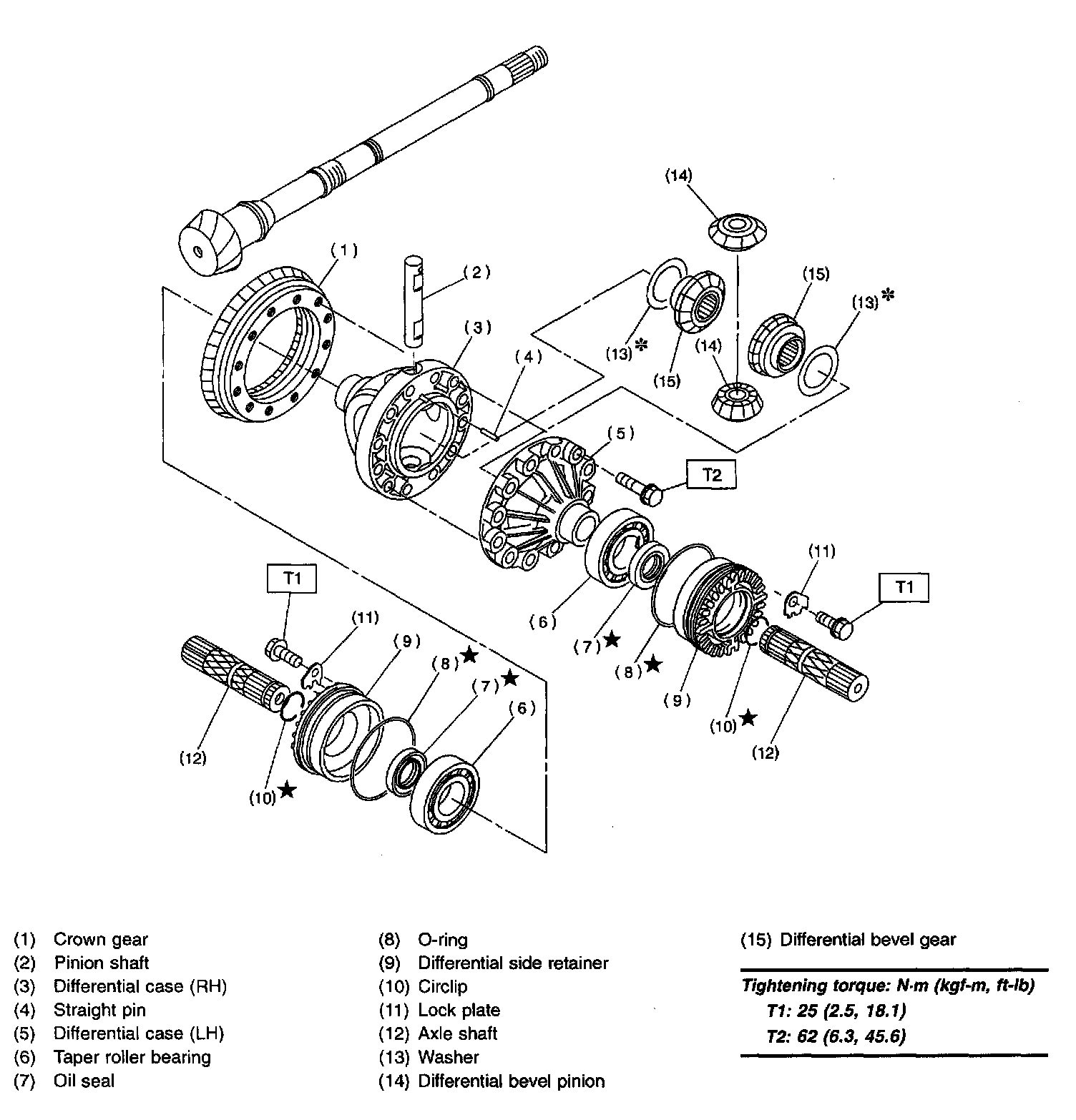

10. DIFFERENTIAL GEAR

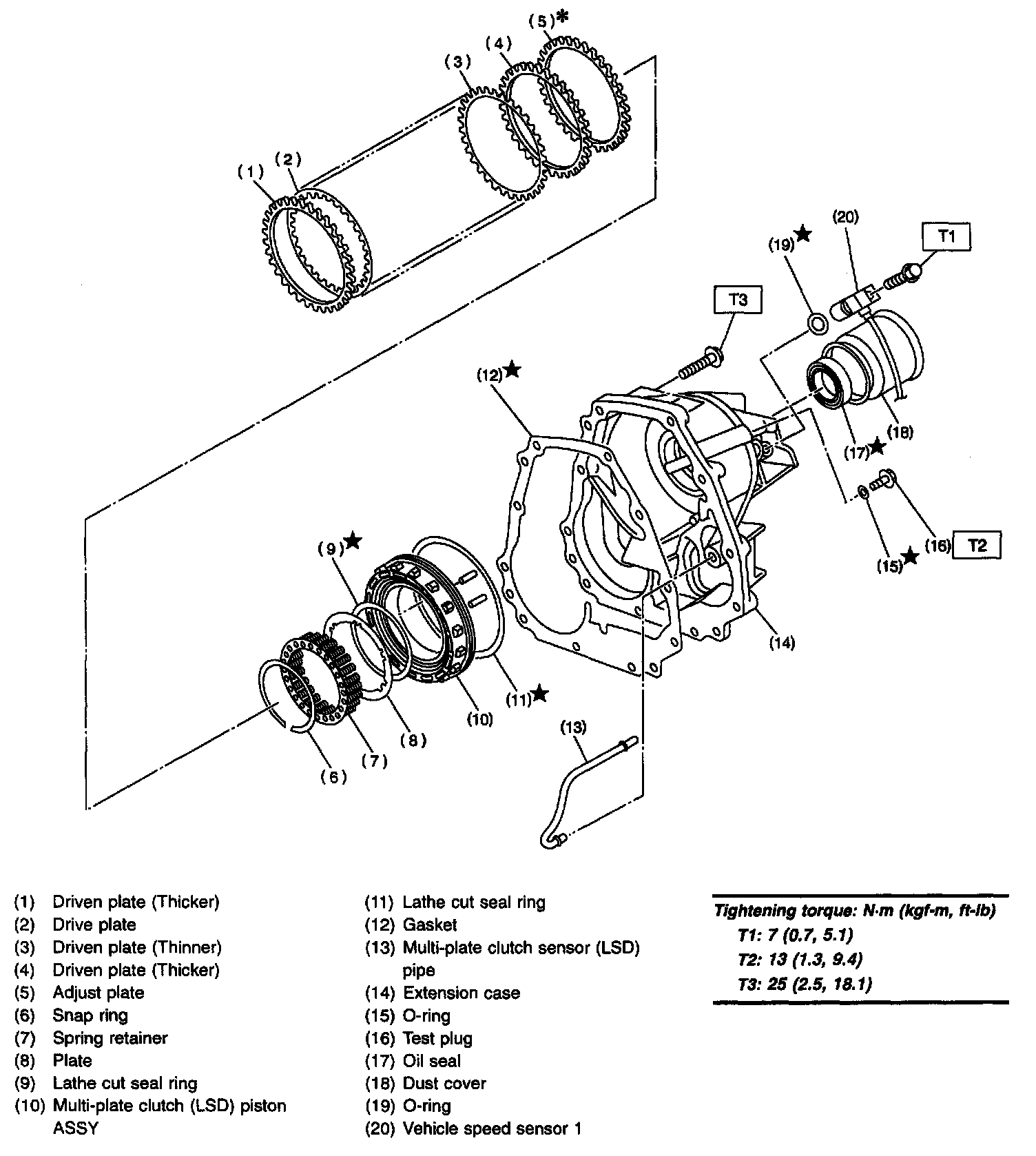

11. TRANSFER AND EXTENSION CASE WITHOUT VTD

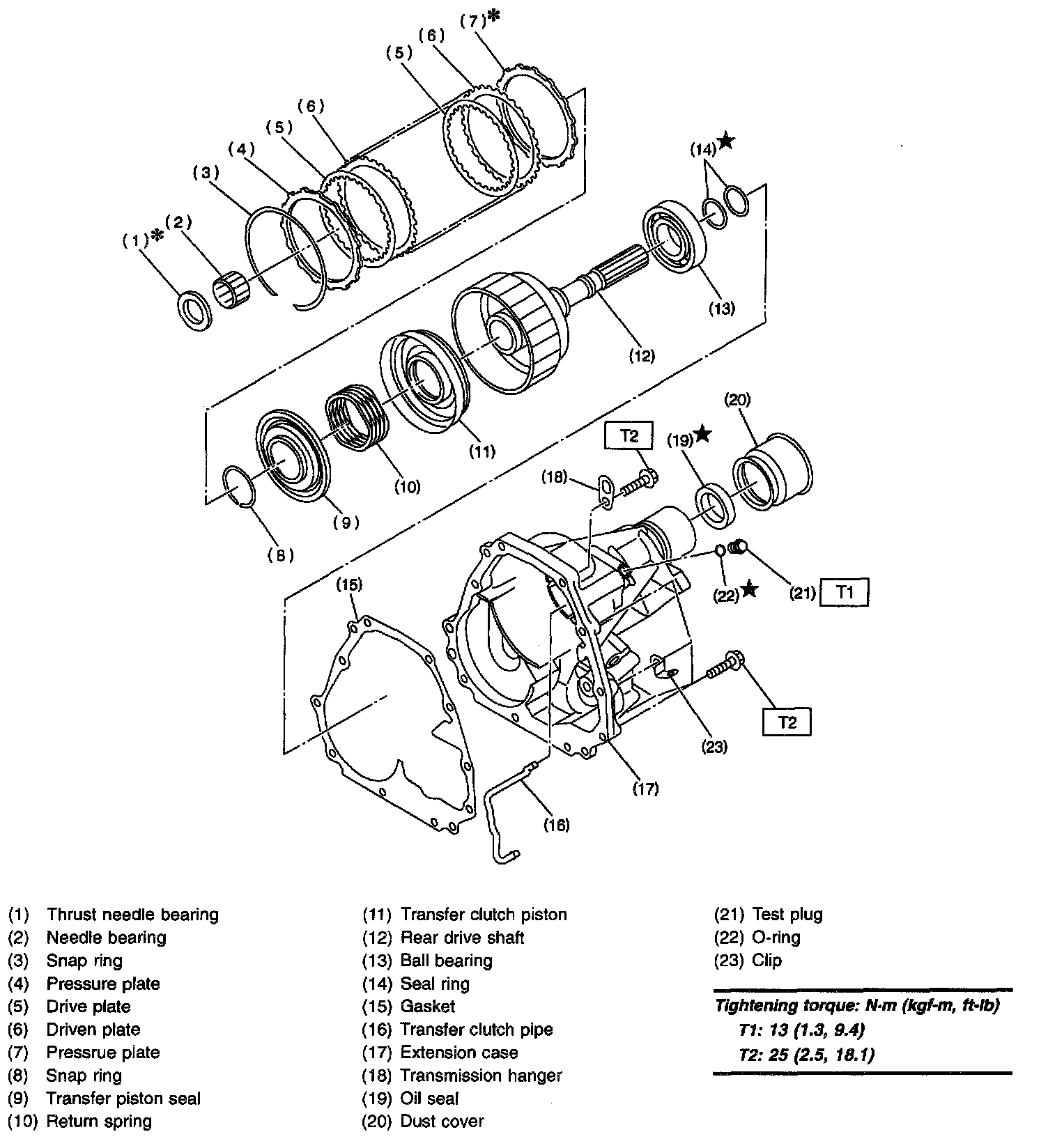

12. TRANSFER AND EXTENSION CASE WITH VTD
