Propeller Shaft
WARNING:
This page is about a different car, the 2004 Subaru Impreza and 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

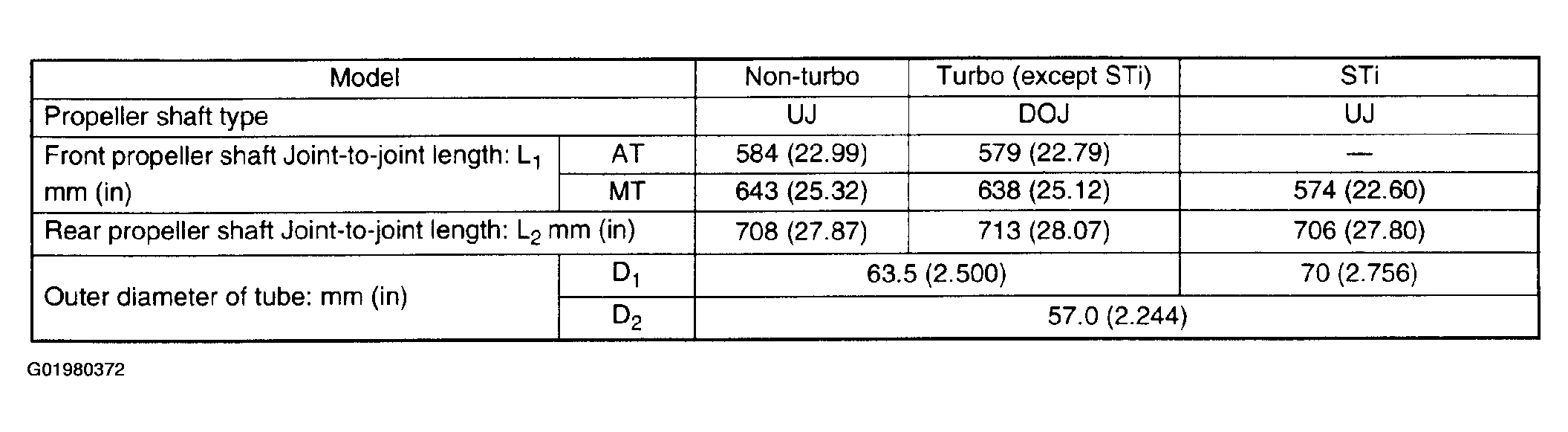

Fig 1: Propeller Shaft Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

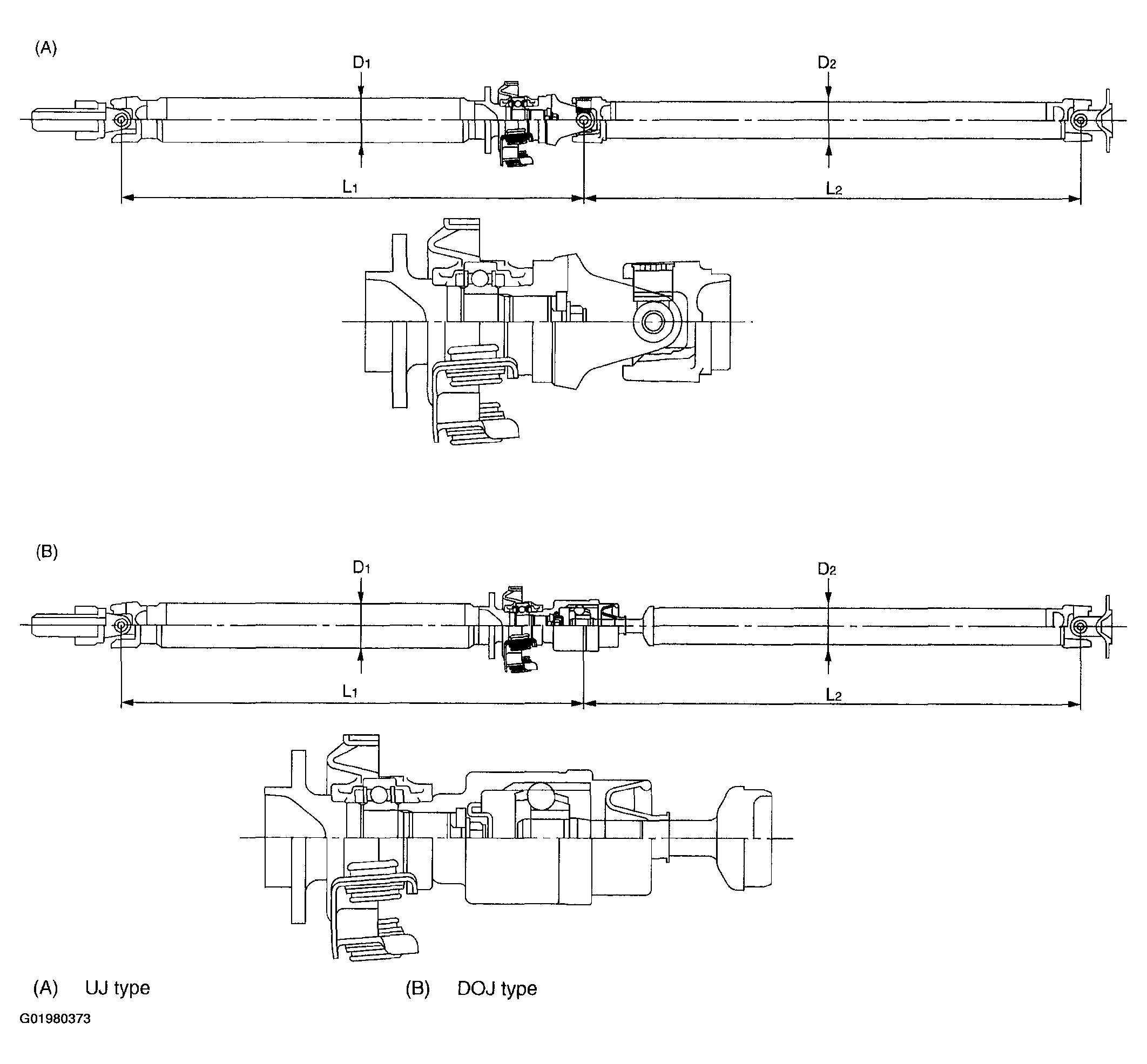

Fig 2: Propeller Shaft Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
