Rear Combination Light Assembly: Removal: Sedan

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery.
  2. Remove the clips and then detach the trunk rear trim.
    Fig 1: Removing Clips & Detaching Trunk Rear Trim
    G01974977Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the trunk side trim of rear portion.
  4. Remove four nuts and then detach the rear combination light while disconnecting the connector.

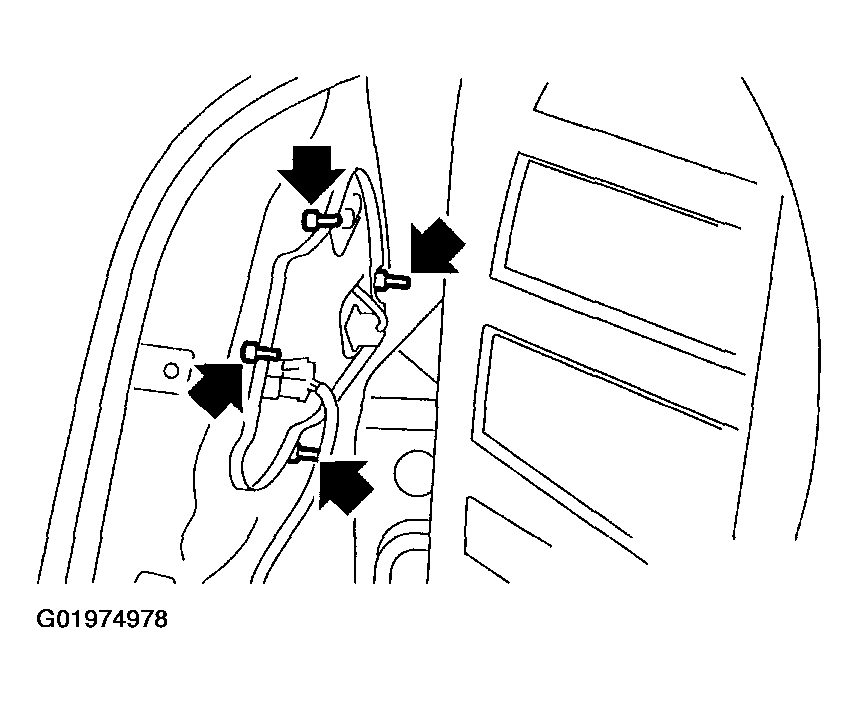

    Fig 2: Removing Nuts & Detaching Rear Combination Light Assembly
    G01974978Courtesy of SUBARU OF AMERICA, INC.
