Inhibitor Switch: Adjustment

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Shift the select lever to "N" range.
Loosen the three inhibitor switch securing bolts.
Insert the ST as vertical as possible into the holes in inhibitor switch lever and switch body.
1. ST 499267300 STOPPER PIN

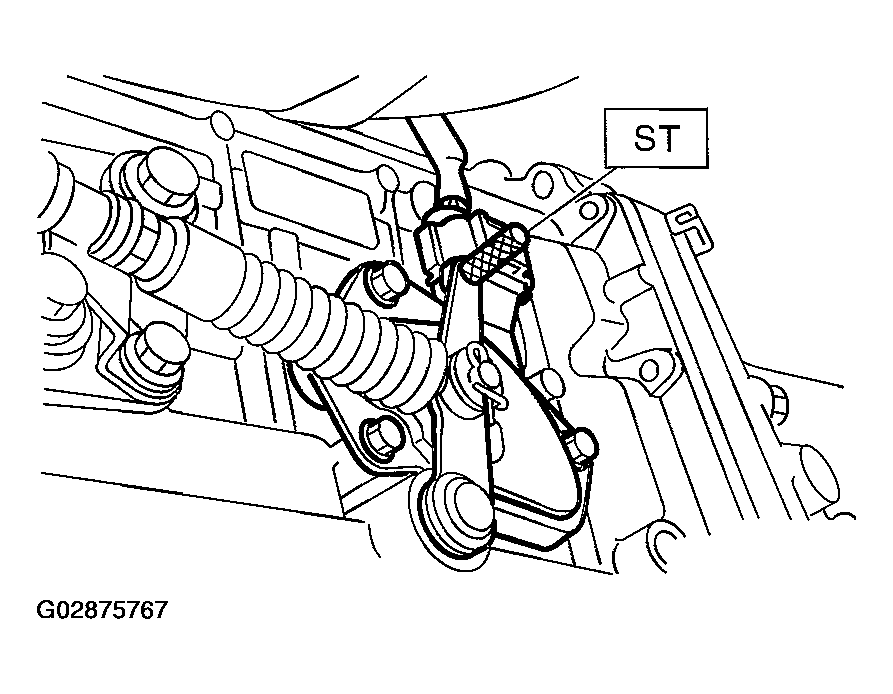

Fig 1: Inserting ST Vertically Into Holes
Courtesy of SUBARU OF AMERICA, INC.
Tighten the three inhibitor switch bolts.
1. Tightening torque: 3.5 N.m (0.35 kgf-m, 2.5 ft-lb)
Repeat the above checks. If the inhibitor switch is determined to be "faulty", replace it.
