Oil Pressure System: Schematic

WARNING: This page is about a different variant/trim than selected.

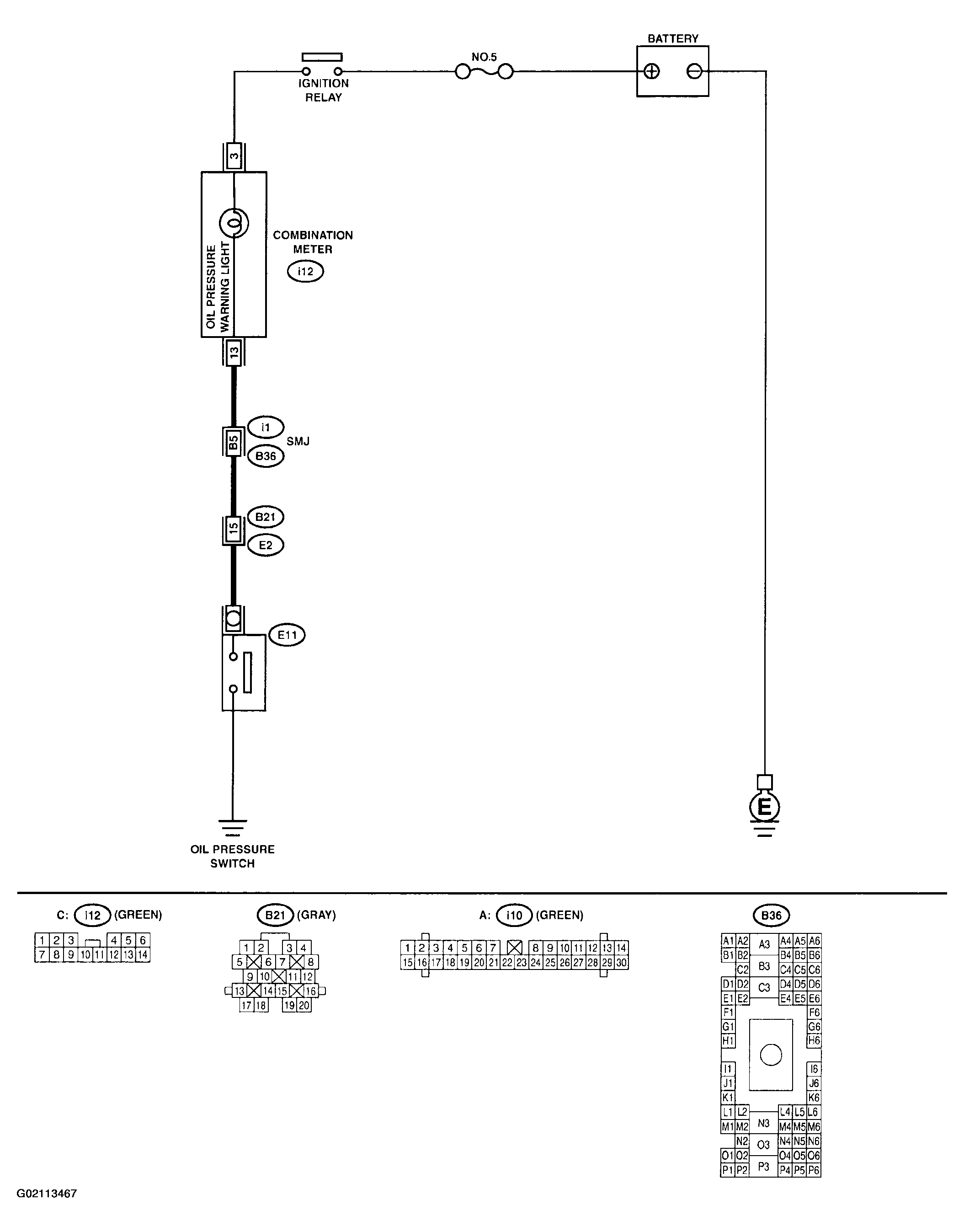

Fig 1: Oil Pressure System Schematic
G02113467
