Inhibitor Switch: Installation

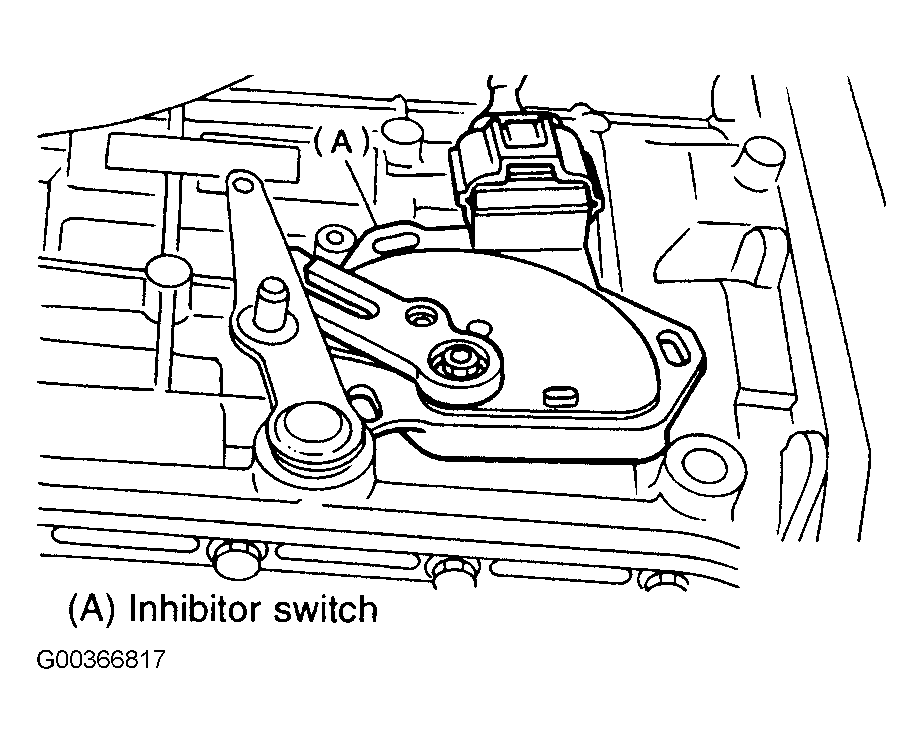

- Install inhibitor switch to transmission case. See Figure .
- Move range select lever to neutral position.

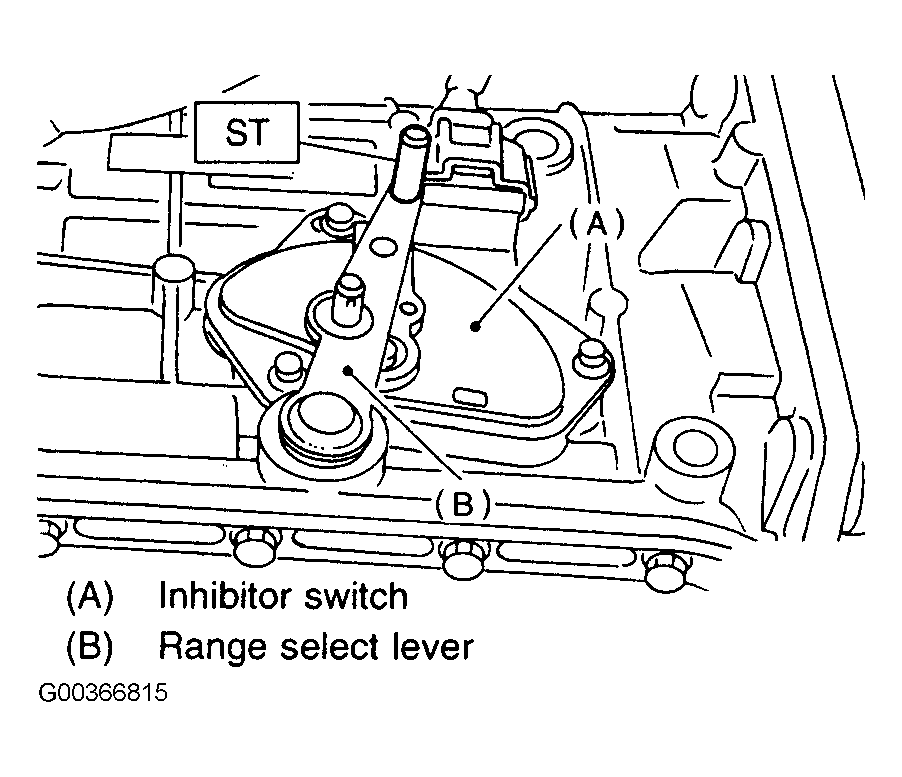

- Using stopper pin, tighten bolts of inhibitor switch. See Figure .
- Install select cable to range select lever.

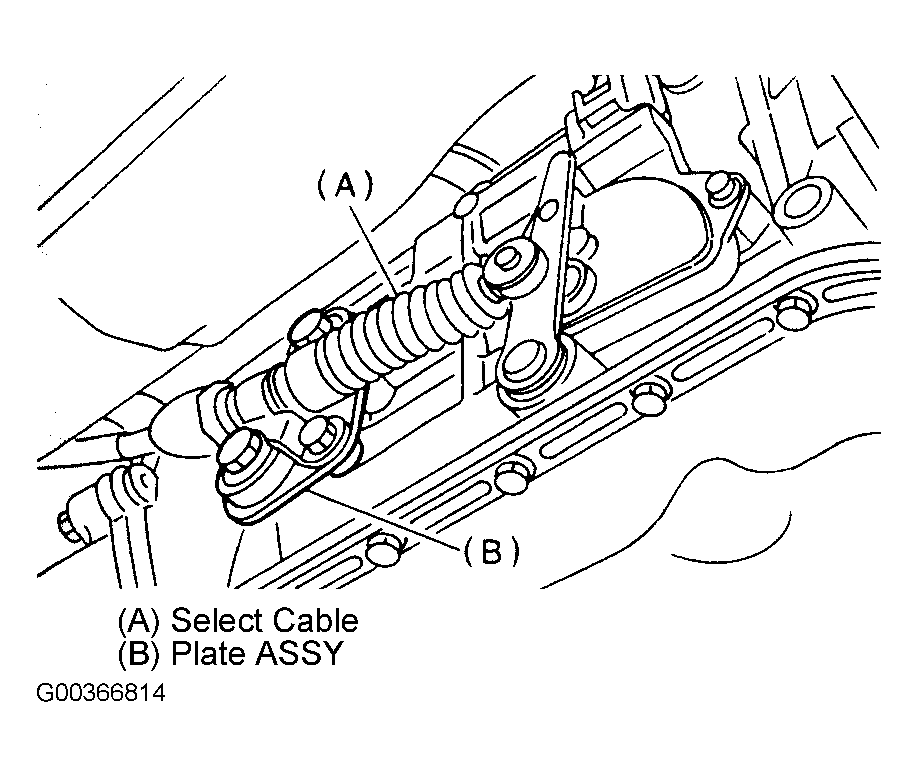

- Install plate assembly to transmission. See Figure .

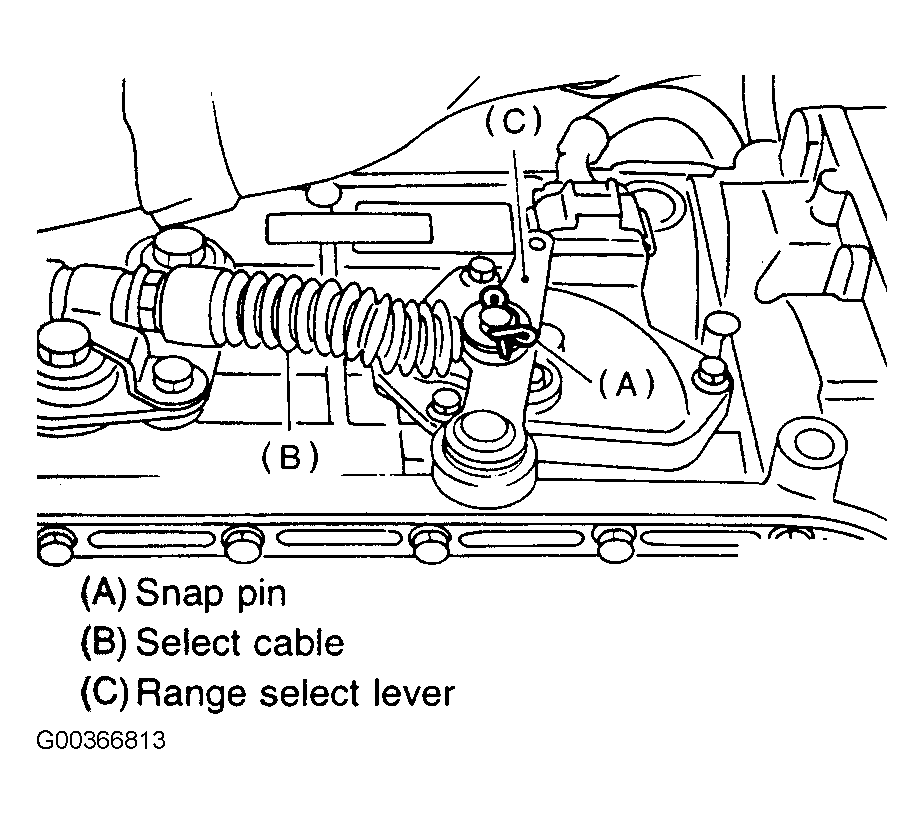

- Install snap pin to range select lever. See Figure .
- Install center exhaust pipe.

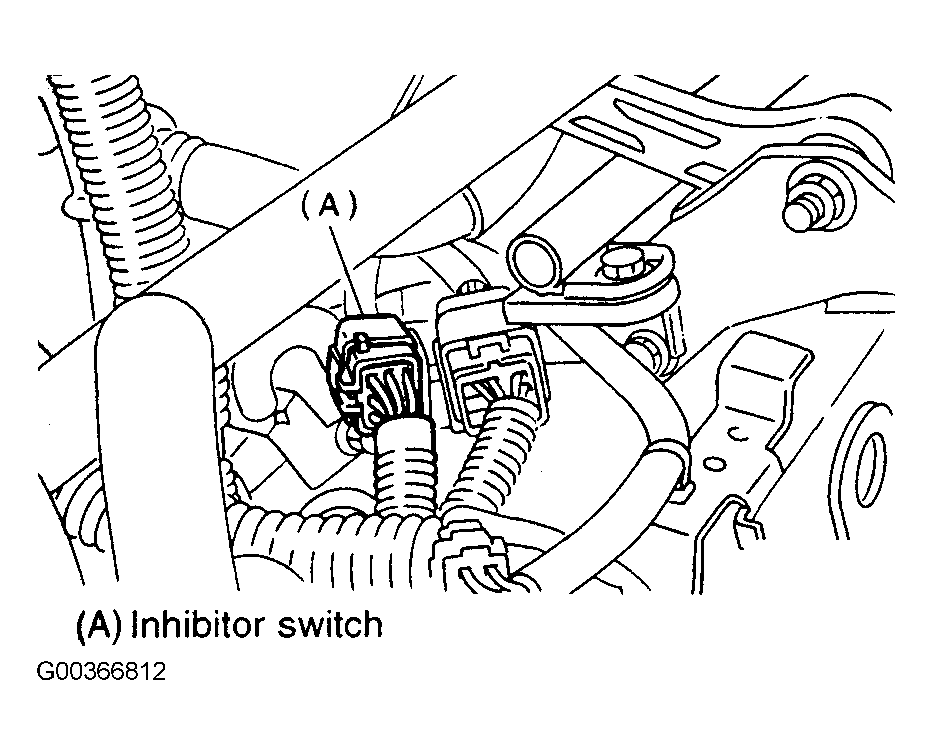

- Connect inhibitor switch connector. See Figure .
- Install air intake chamber and duct.
