Pitching Stopper

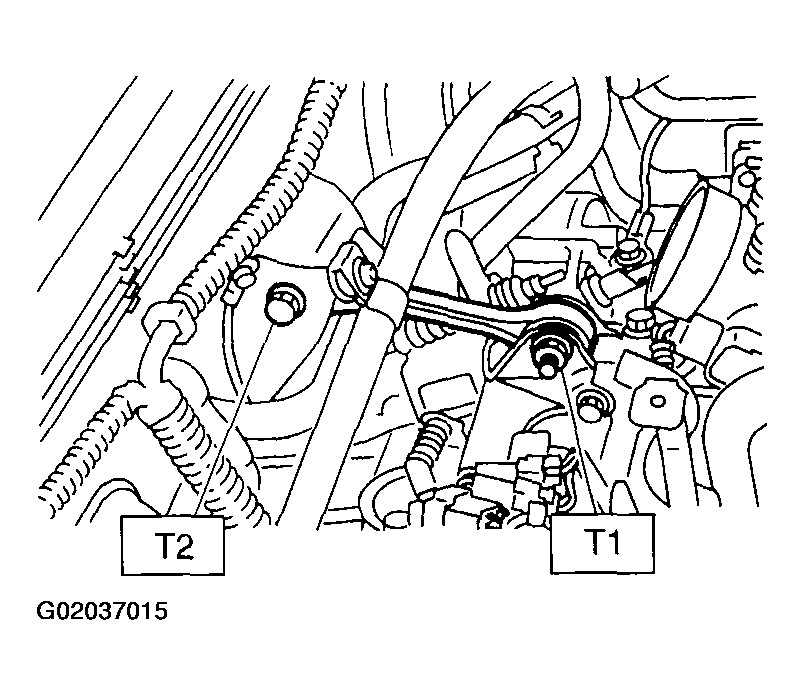

- Install the pitching stopper.
Tightening torque:
- T1:
50 N-m (5.1 kgf-m, 37 ft-Ib)
- T2:
58 N-m (5.9 kgf-m, 43 ft-Ib)
- Install the air intake duct and cleaner case.
