Reduction Gear With VTD

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  100 (10.2, 73.8)

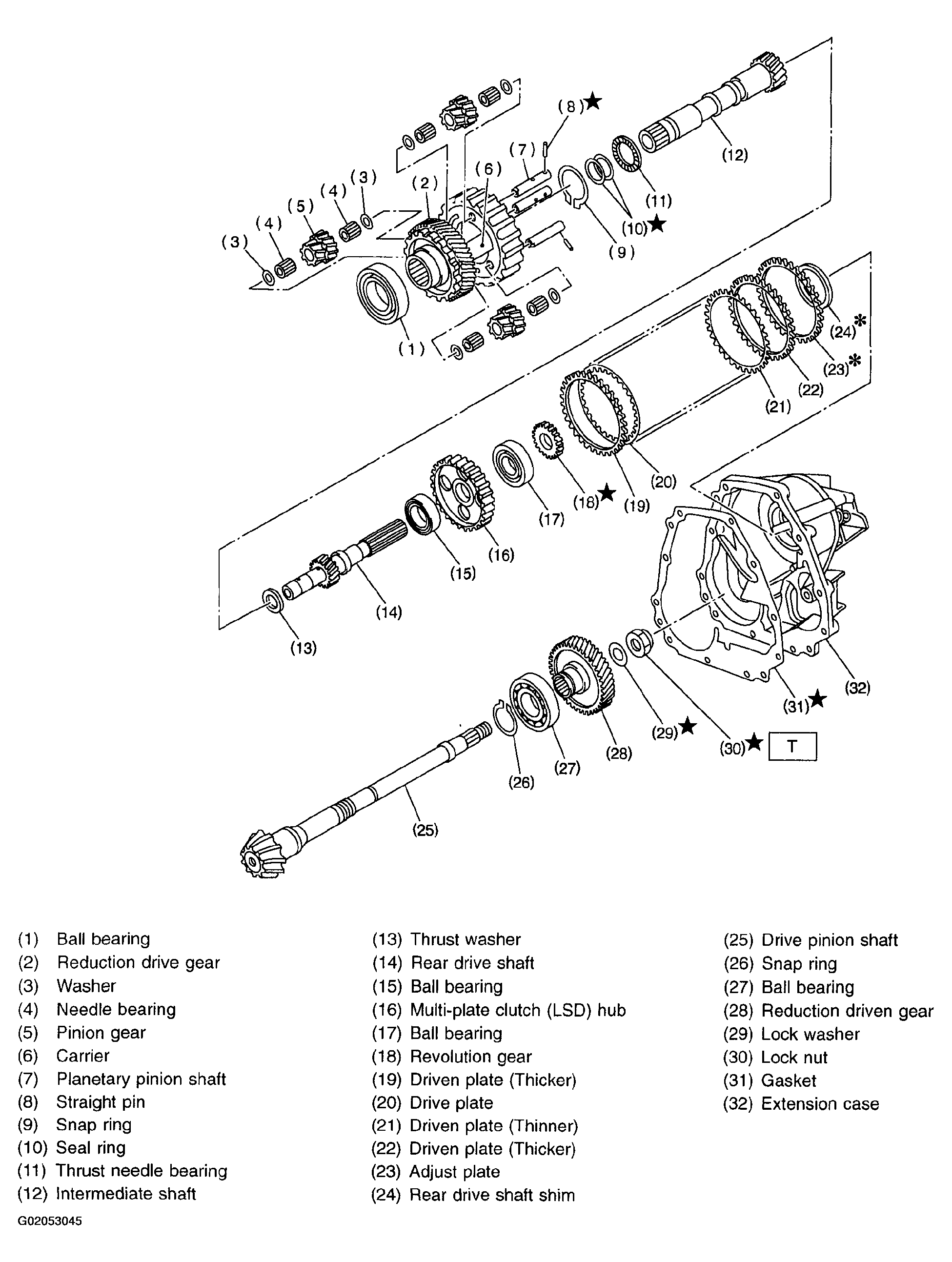

Fig 1: Exploded View Of Reduction Gear - With VTD
G02053045
