Oil Charger Pipe: Installation

  1. Install the oil charger pipe with O-ring.
    CAUTION: Be careful not to damage the O-ring.

    Tightening torque:

    1. 41 N.m (4.2 kgf-m, 30.4 ft-lb)

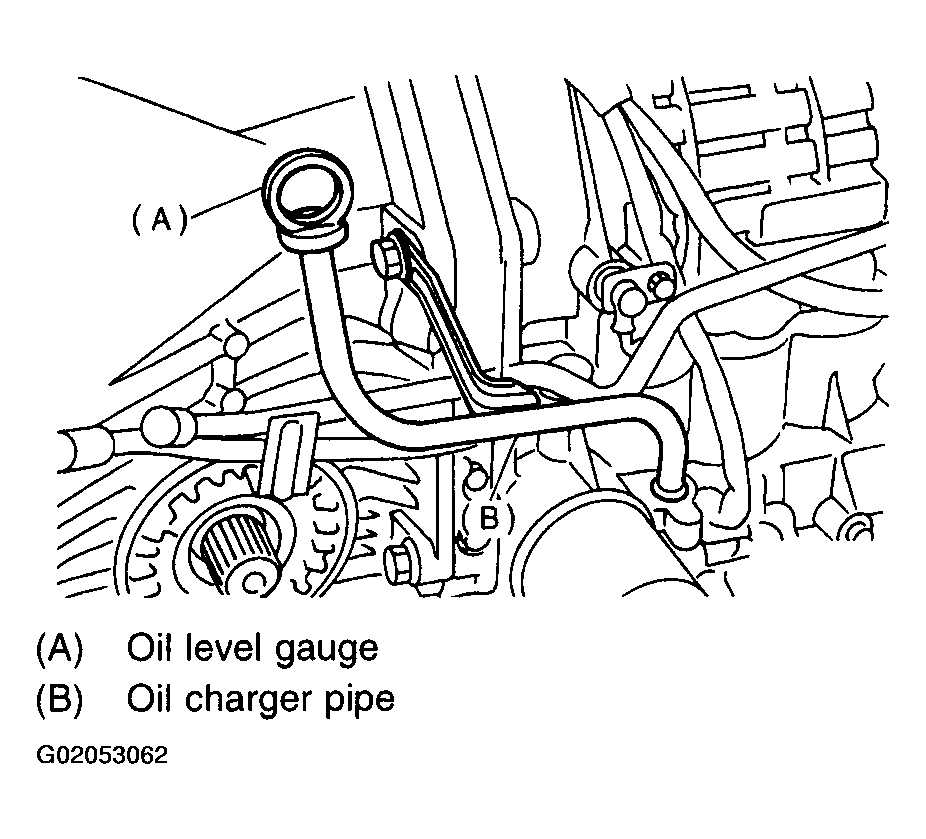

      Fig 1: Installing Oil Charger Pipe With "O" Ring
      G02053062
