Trouble Code 52 Motor And Motor Relay Off Failure: Wiring Diagram

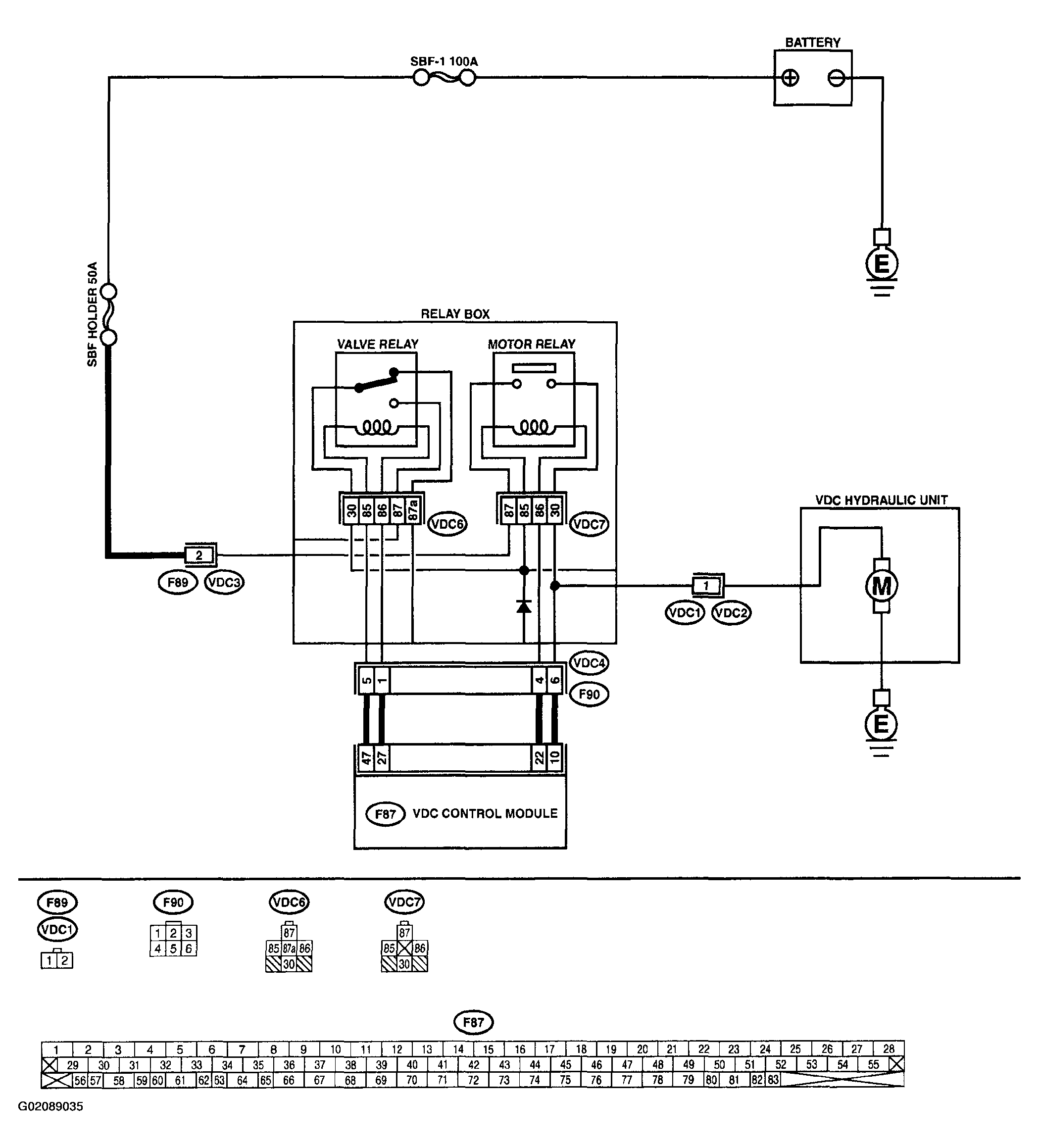

Fig 1: Wiring Diagram - Trouble Code 52 - With Select Monitor (Motor & Motor Relay Off Failure)
G02089035
