Diagnostic Chart

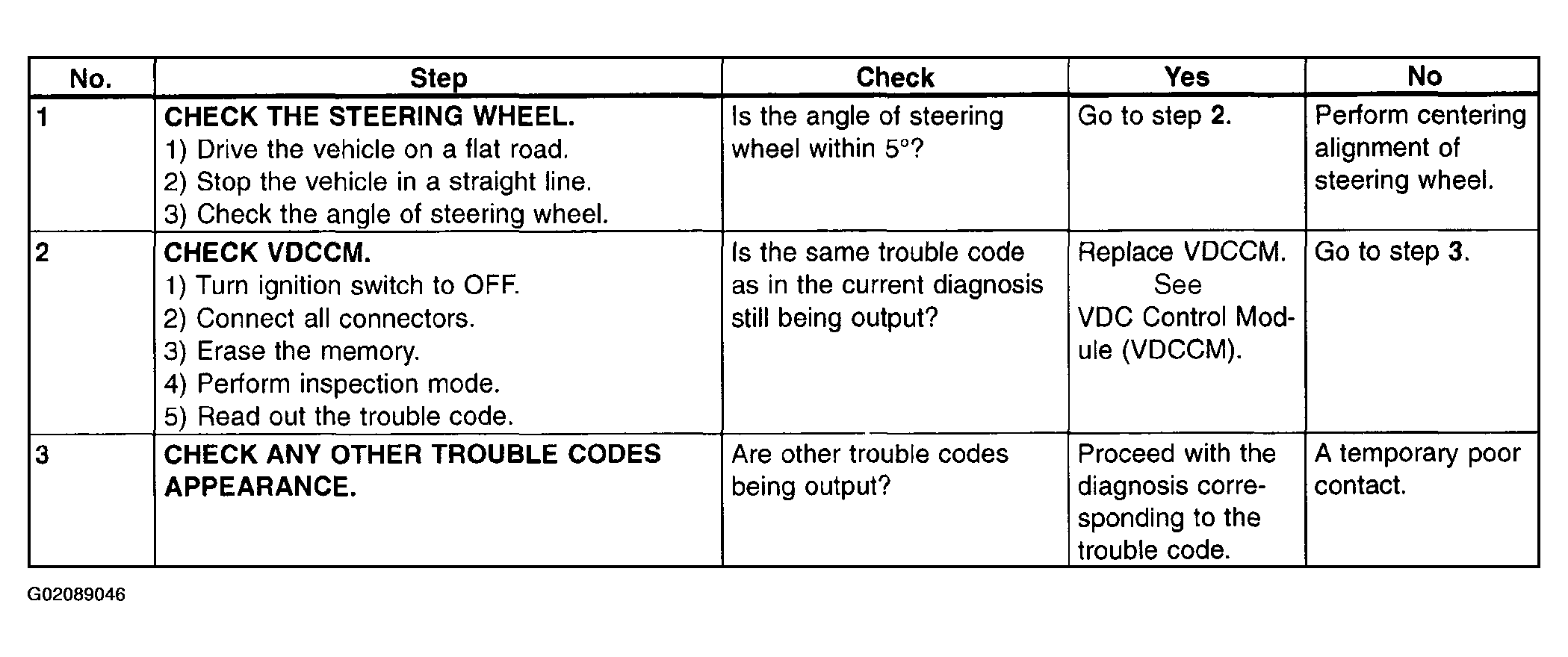

Fig 1: Diagnostic Chart - Trouble Code 71 - With Select Monitor (Steering Angle Sensor Offset Is Too Big)
G02089046
