Without SUBARU Select Monitor

CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM&H/U connector during removal and installation.

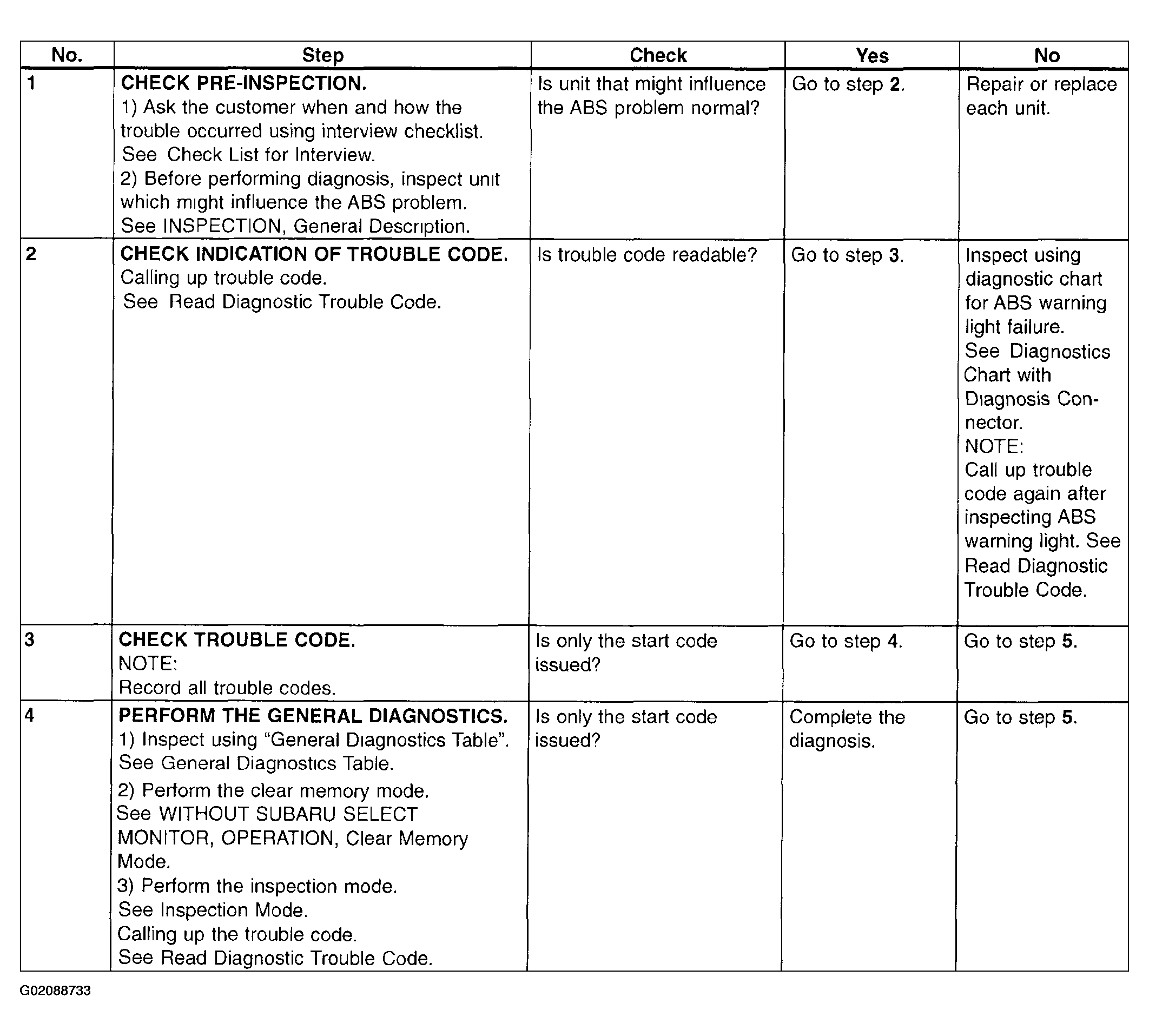

Fig 1: Basic Diagnostic Chart (Without Subaru Select Monitor - 1 Of 2)
G02088733

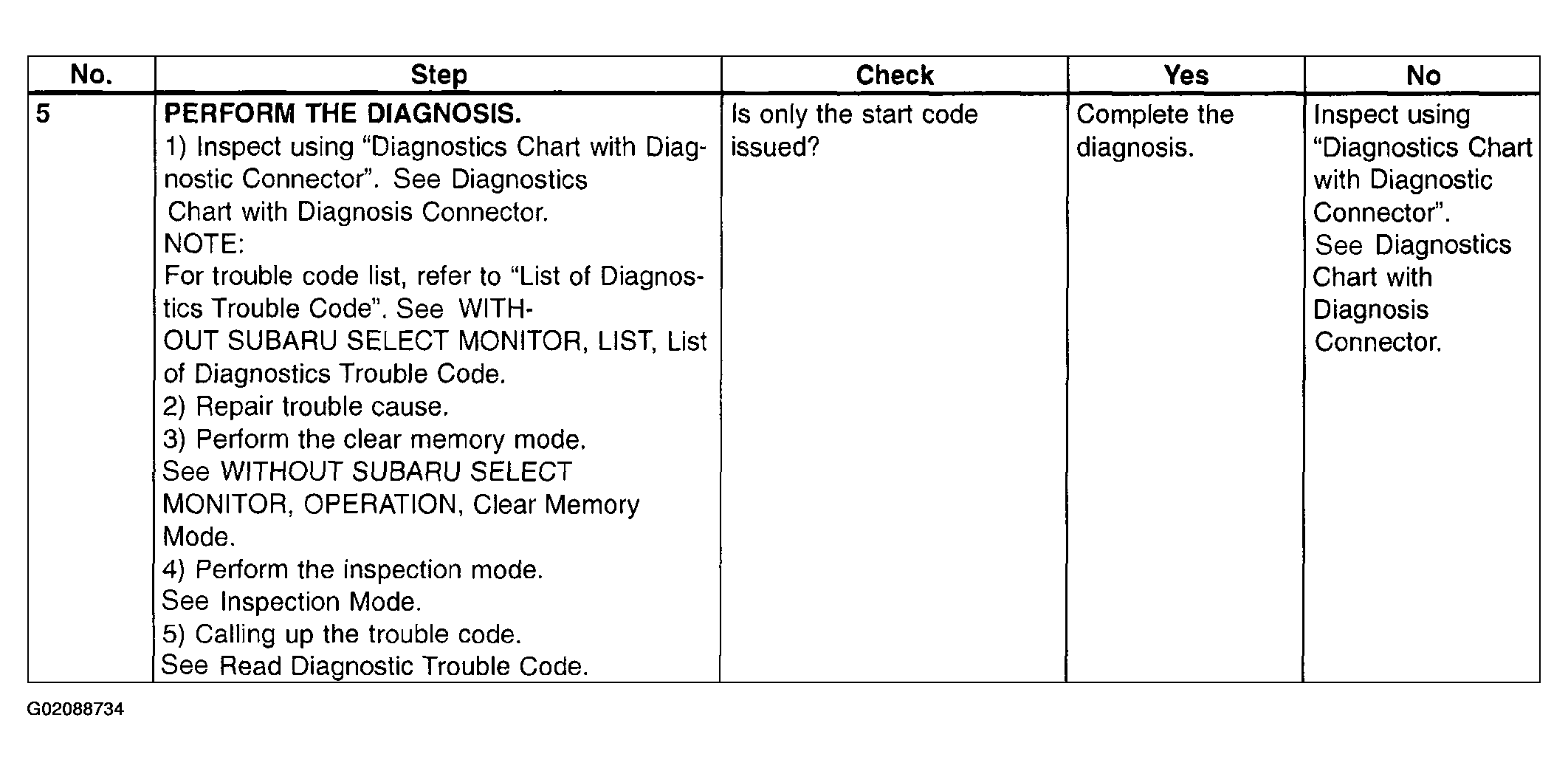

Fig 2: Basic Diagnostic Chart (Without Subaru Select Monitor - 2 Of 2)
G02088734
