Check List for Interview: Check: Symptoms

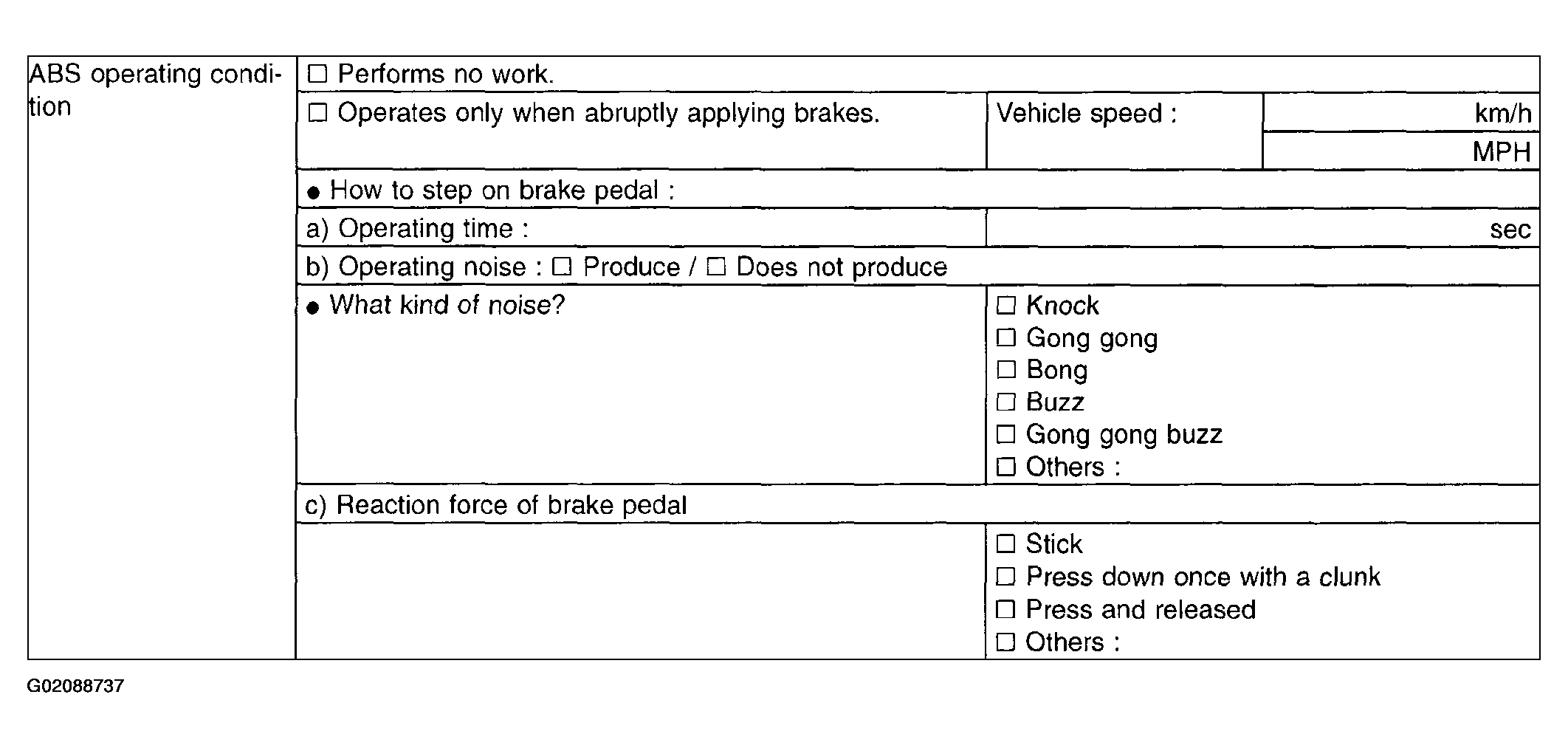

Fig 1: Interview Chart (Symptoms)

G02088737

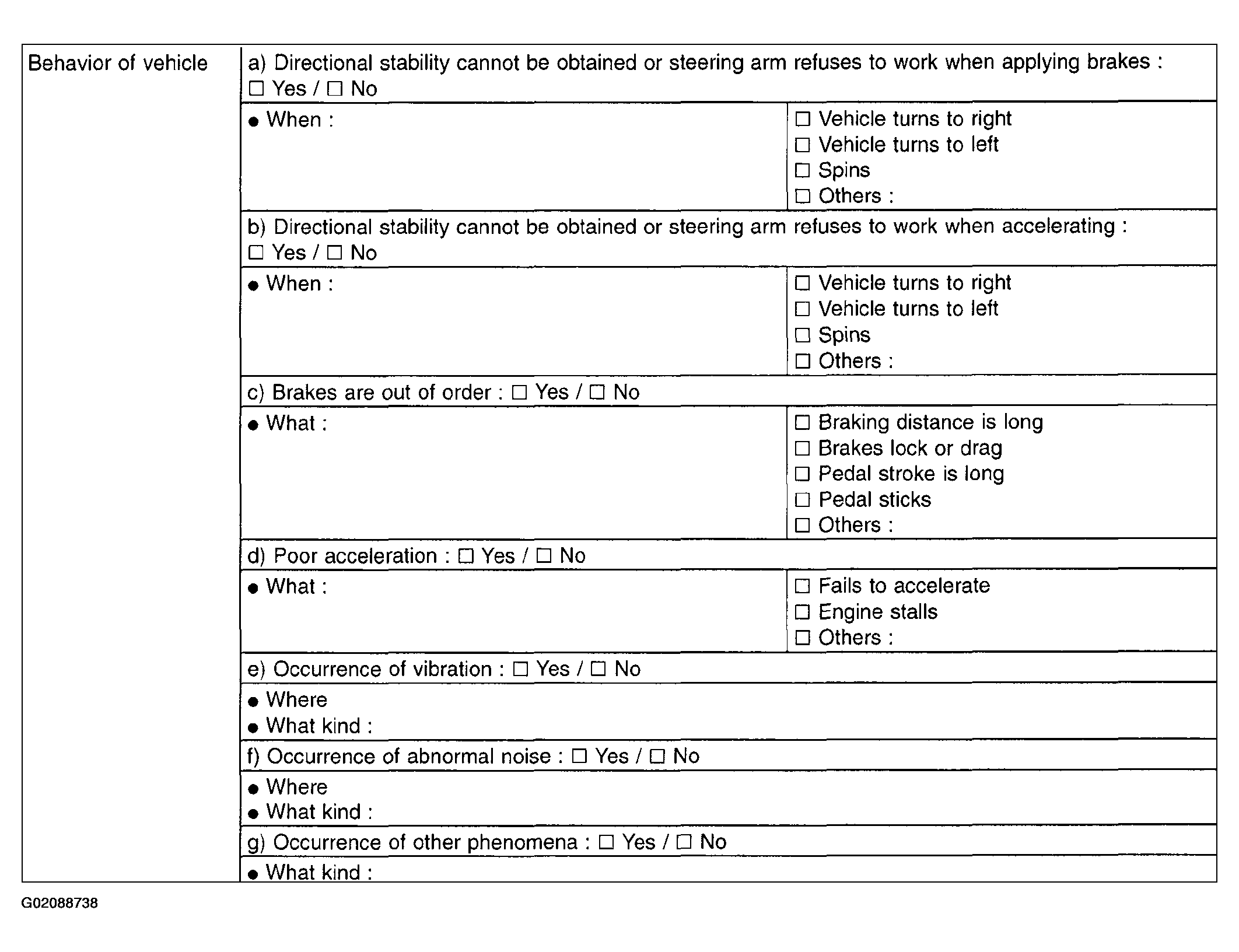

Fig 2: Interview Chart (Behavior Of Vehicle)

G02088738
